Passive aluminum cooler for all M.2 SSDs, size 2280, high 12 mm, CLR-M2

CLR-M2 cooler for M.2 SSD

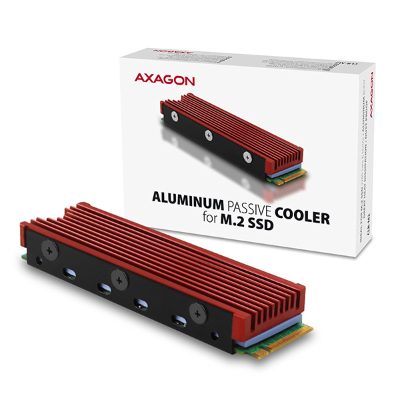

Passive aluminum cooler for all M.2 SSDs, size 2280, high 12 mm.

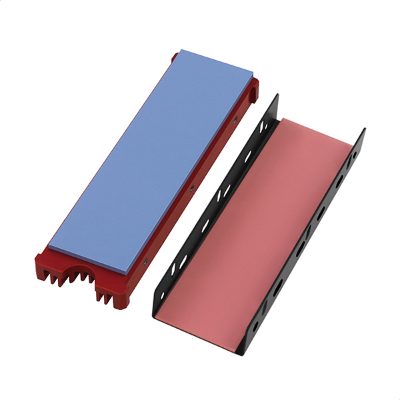

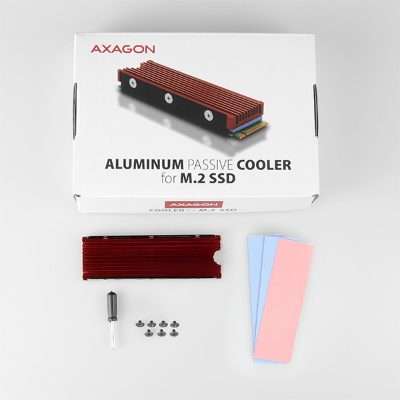

The AXAGON CLR-M2 ALU passive aluminum cooler is ideal for cooling high-performance M.2 SSDs, especially NVMe. The versatile passive cooler can be used for M.2 cards, size 22 x 80 mm. The supplied thermally conductive pads allow the installation of a cooler for all single-sided and double-sided M.2 SSD disks.

Thanks to its overall height of 12 mm and passive of 8 mm height, the cooler can also be used in the slot above which the graphics card extends. The aluminum passive ribbing and metal frame optimize heat dissipation from the M.2 SSD, which can reduce the temperature of the drive by up to 25°C. This prolongs the life of the SSD disk and prevents the slowing down of the disk speed, the so-called „Thermal Throttling“.

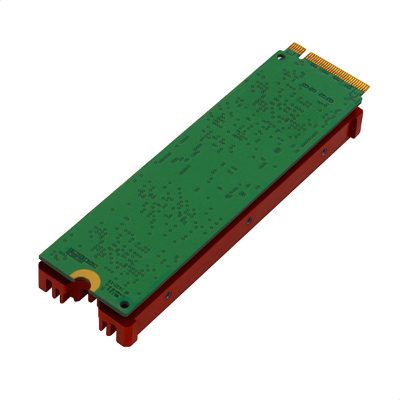

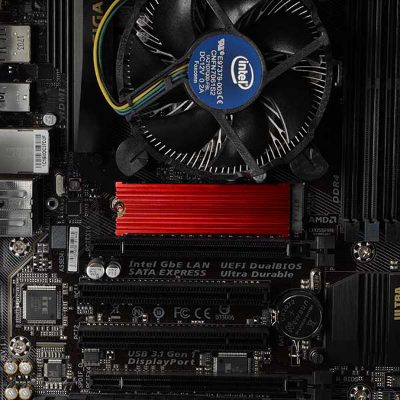

Thanks to its easy installation and compact dimensions, the cooler can be used not only with M.2 AXAGON adapters, but also with M.2 (NGFF) slots on motherboards, etc. Thanks to the metal frame, the cooler dissipates heat from both sides of the M.2 drive for maximum cooling efficiency.
