CABLE USB3 EXTENSION 10M/43156 LINDY
LINDY · 4002888431569
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 24 mo.
- Invoice: with every order
- EAN
- 4002888431569
- Brand
- LINDY
Description

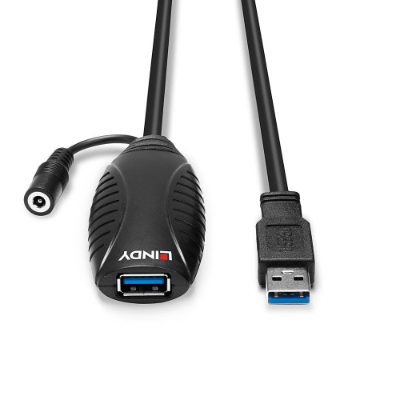

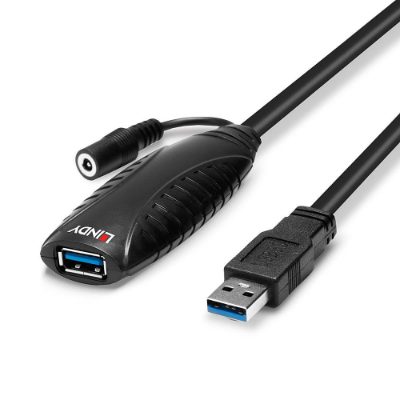

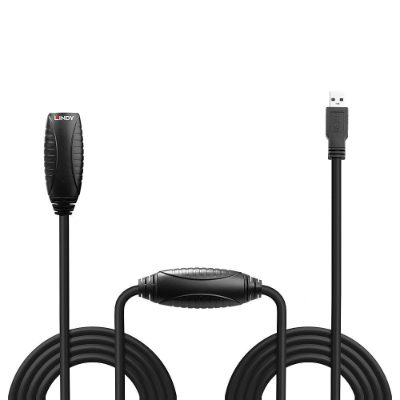

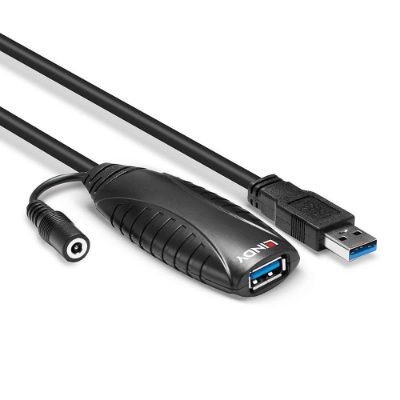

The Lindy USB 3.0 Active Extension Cable uses built-in active electronics to extend the cable length of a USB 3.0 device by an additional 10m whilst continuing to support data transfer rates of up to 5Gbps.
With its USB A male and USB A female connector it allows Type A devices such as storage devices, webcams and other Type A devices to be connected at longer distances to PCs, laptops and tablets, while also ensuring flexible positioning. Up to 2 extension cables can be chained together to achieve a distance of 20m.
The Lindy USB 3.0 Active Extension Cable is compatible with all USB Type A equipped computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss, ideal for both professional and first time users.
The USB active extension cable also features a DC socket for connecting an external power supply (not included) when using USB peripherals which have higher power requirements.Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
- 10 metre USB 3.0 Active Extension Repeater Lead
- Supports transfer rates up to 5Gbps
- For even greater distances simply connect 2 cables in series
- Plug and Play
- 2 year warranty
Specifications
| Minimum bend radius | 60 mm |
| Cable diameter | 6 mm |
| Cable length | 10 m |
| Connector 1 dimensions | 16 x 37 x 9.8 mm |
| Connector 2 dimensions | 32 x 85 x 10 mm |
| Weight | 515 g |
| Wire gauge | 28/28/22 |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Cable type | Round cable |
| Conductor material | Tinned copper |
| Connector 1 | USB A |
| Connector 1 form | Straight |
| Connector 1 gender | Male |
| Connector 2 | USB A |
| Connector 2 form | Straight |
| Connector 2 gender | Female |
| Contact plating | Gold |
| Material | Plastic |
| Connector material | Nickel |
| Connector shield material | Aluminium |
| Connector shielding | Yes |
| Contact material | Copper |
| Maximum data transfer rate | 5 Gbit/s |
| Nominal attenuation | (100 MHz, -1.5 dB) (1.25 GHz, -5.0 dB) (2.5 GHz, -7.5 dB) (7.5 GHz, -25 dB) |
| Plug and Play | Yes |
| Colour | Black |
| Transmission medium | Twisted pair |
| USB hub version | USB 3.2 Gen 1 (3.1 Gen 1) |
| Power connector spec | 3.5/1.35mm DC |
| Operating temperature | 0 - 55 °C |
| Storage temperature | -20 - 70 °C |
| Certification | CE, UKCA, FCC, RoHS, REACH |
| Model name | 10m USB 3.0 Active Extension |
