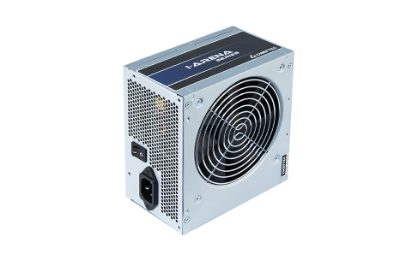

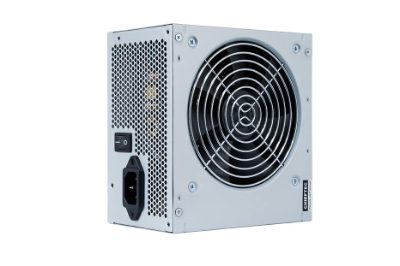

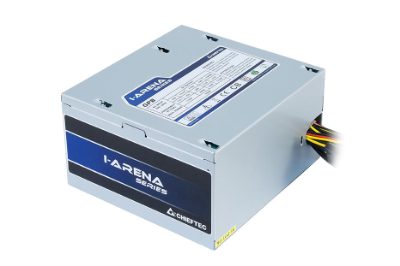

CASE PSU ATX 500W/GPB-500S CHIEFTEC
CHIEFTEC · 4710713233645
32,27 €
The invoice is sent as soon as you order.
Available · 30 pcs
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 24 mo.
- Invoice: with every order
- EAN
- 4710713233645
- Brand
- CHIEFTEC
Description
High efficiency and a highly competitive pricing coupled with the latest “state-of-the-art” PCB design and components distinguish the 6 new power supplies of the iARENA series. Fully aware of environmental requirements, CHIEFTEC offers European PC manufacturers a solution, fixed @230V and with reduced procurement costs thanks to the resource-friendly bulk packaging.
Specifications
| Input frequency | 47 - 63 Hz |
| Input voltage | 200 - 240 V |
| Combined power (+12V rail) | 456 W |
| Combined power (+3.3V) | 110 W |
| Combined power (+5V) | 110 W |
| Combined power (+5Vsb) | 12.5 W |
| Combined power (-12V) | 3.6 W |
| Efficiency | 85 % |
| Input current | 4 A |
| Max output current (+12V1) | 38 A |
| Max output current (+3.3V) | 18 A |
| Max output current (+5V) | 17 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Power protection | Over voltage/Overload/Short circuit/Under voltage |
| Rated power | 500 W |
| PSU cabling type | Non-Modular |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 5 |
| PCI Express power connectors (12+4 pin) | 1 |
| Molex power connectors | 3 |
| ATX version | 2.3 |
| Form factor | PS/2 |
| Intended use | PC |
| Cooling type | Active |
| Fan diameter | 120 mm |
| Fan location | Top |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Colour | Silver |
| Certificates | RoHS |
| Depth | 150 mm |
| Height | 87 mm |
| Width | 140 mm |
| Manual included | Yes |
| Warranty card included | Yes |
