Eaton 3P Ellipse 700 DIN, 700 VA, 420 W
Eaton · 3553340621284
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 24 mo.
- Invoice: with every order
- EAN
- 3553340621284
- Brand
- Eaton
Description
The 3P Ellipse UPS is Eaton’s latest addition to its power protection solution portfolio. Sleek, attractively designed, and silent in operation, this compact UPS offers an exceptional user experience for backup power in both residential and small business settings.
Power up with confidence
Enjoy up to 12% more power than the previous Ellipse ECO models and a typical runtime of 15 to 20 minutes, ensuring you can handle disruptions smoothly.

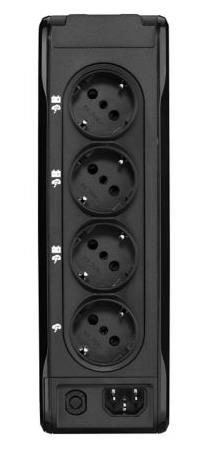

Save yourself the hassle and the need for additional adapters by plugging your equipment directly into the UPS using FR, DIN/IT, and IEC outlet options. This unique feature in a predominantly IEC-only market ensures convenience.
Operate any device with confidence, thanks to the built-in surge protection that meets the high-level IEC 61643-11 standards.
Designed for your space
Complement any interior with 3P’s contemporary good looks that also come with versatile usability. Flexible, multi-position design allows the UPS to fit seamlessly into any environment—horizontally, vertically, as well as rack or wall-mounted (with optional kits).
Charge mobile devices whenever you need to using 3P’s choice of USB-A and USB-C charging ports.
Watch, listen or work without distraction.
Enjoy a silent user experience in both residential and business settings thanks to 3P’s discreet, no-fan engineering.
Control at your fingertips
Access status and notifications in real time via mobile app or web browser with an optional CLOUDPS card. With remote now the ‘new normal’ for many small businesses, cloud connectivity brings added control and peace of mind from any location.
- Power up with confidence
- Designed for your space
- Control at your fingertips
Specifications
| Efficiency | 97 % |
| Efficiency (ECO mode) | 97 % |
| Input frequency | 46/70 Hz |
| Input voltage (max) | 284 V |
| Input operation voltage (min) | 161 V |
| Noise level | 25 dB |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Output frequency | 50/60 Hz |
| Output voltage (max) | 284 V |
| Minimum output voltage | 161 V |
| Total output power | 420 W |
| Output power capacity | 0.7 kVA |
| Power factor | 0.6 |
| Surge protection | Yes |
| UPS topology | Standby (Offline) |
| Output waveform | Stepwise |
| AC outlet types | C14 coupler |
| AC outlets quantity | 4 AC outlet(s) |
| Battery capacity | 7 Ah |
| Battery voltage | 12 V |
| Display type | LED |
| Form factor | Tower |
| Colour | Black |
| Operating altitude | 0 - 3000 m |
| Operating humidity | 0 - 95 % |
| Operating temperature | 0 - 40 °C |
| Certification | IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 CE UKCA Cm |
| Certificates | CB/CE/RoHS/WEEE |
| Rack mount kit included | No |
| WEEE compliance | Yes |
| Depth | 235 mm |
| Height | 263 mm |
| Weight | 3700 g |
| Width | 81 mm |
| Model | 3P700D |
