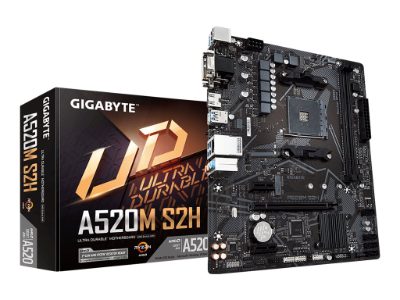

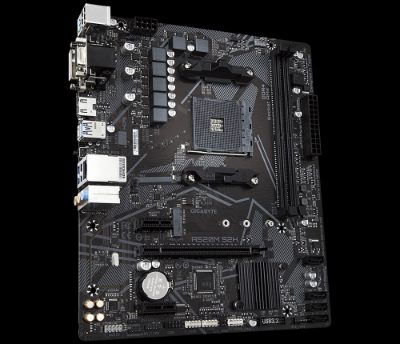

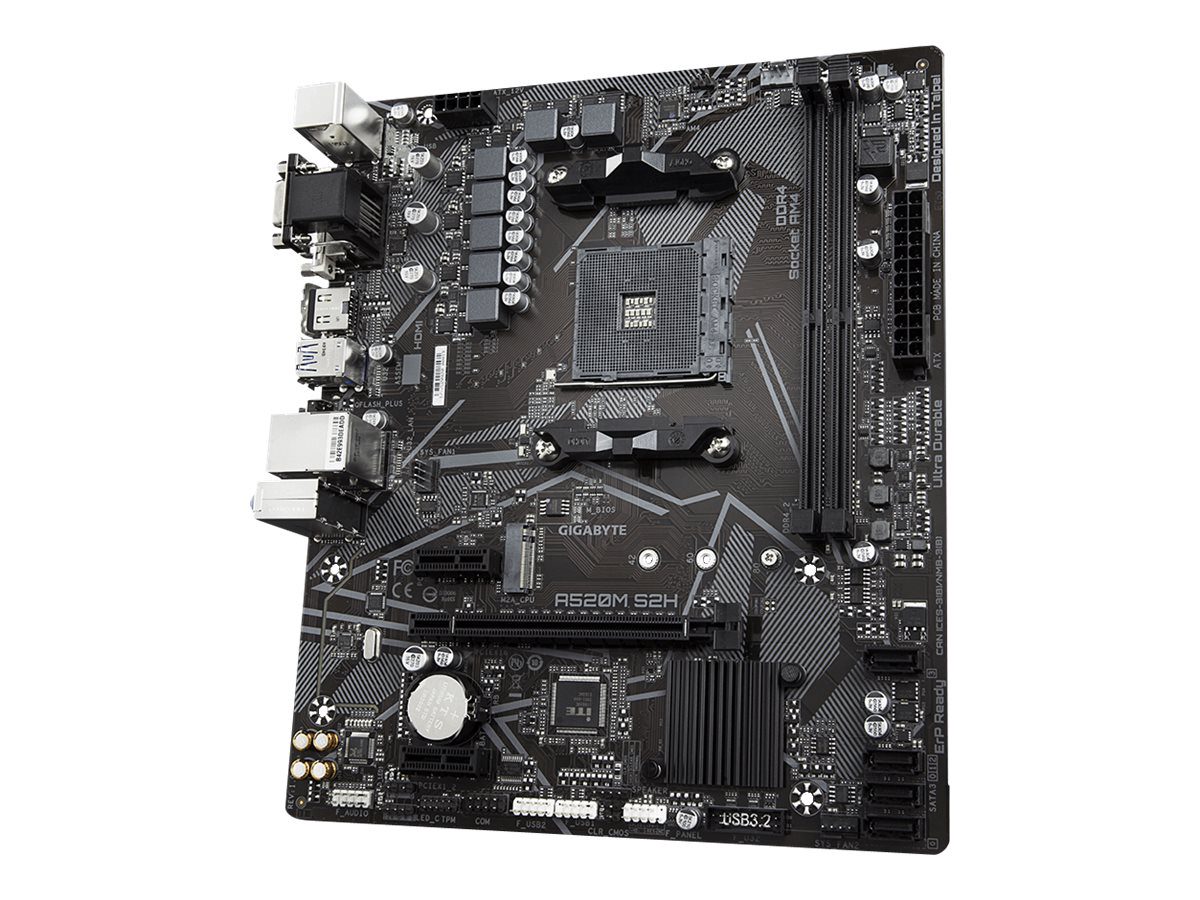

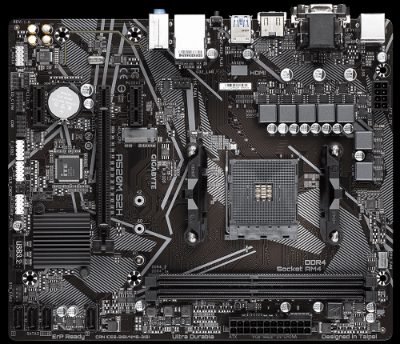

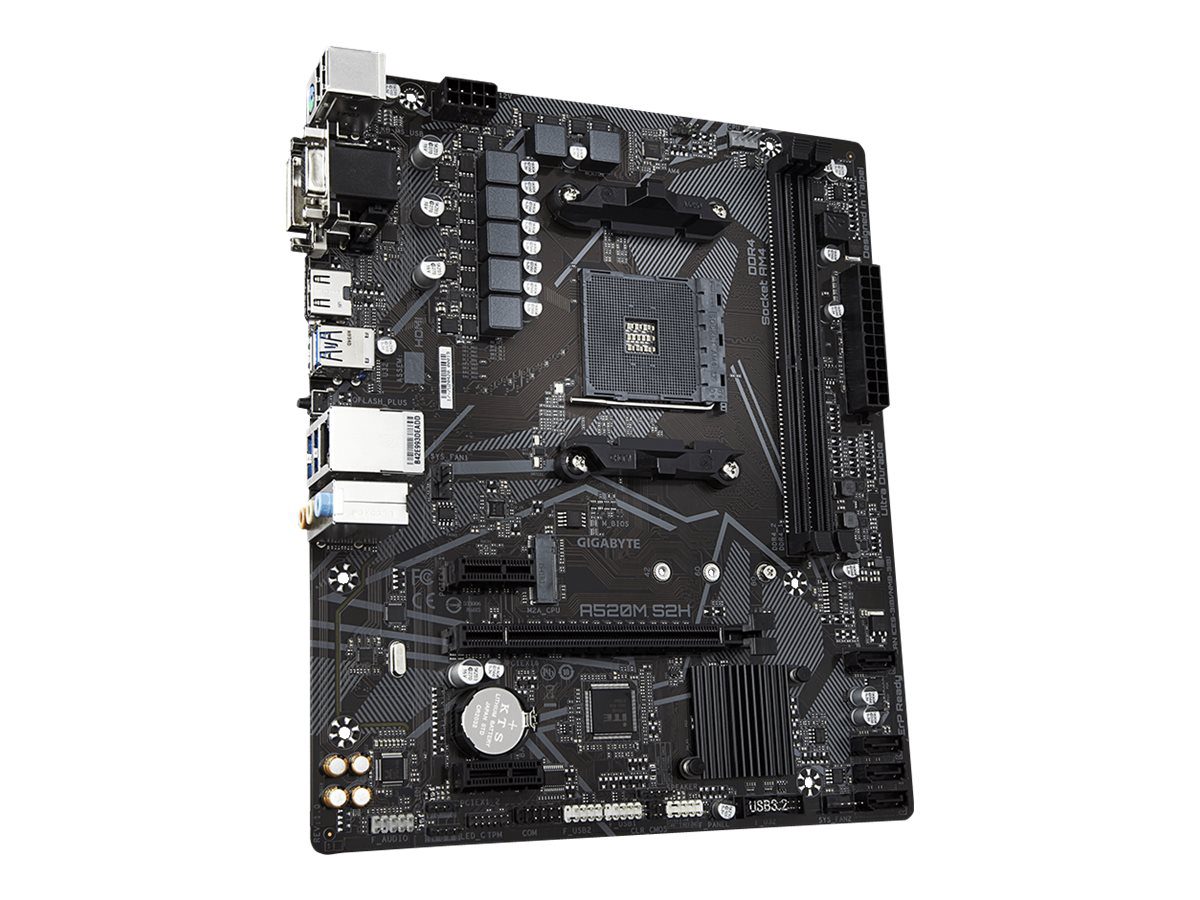

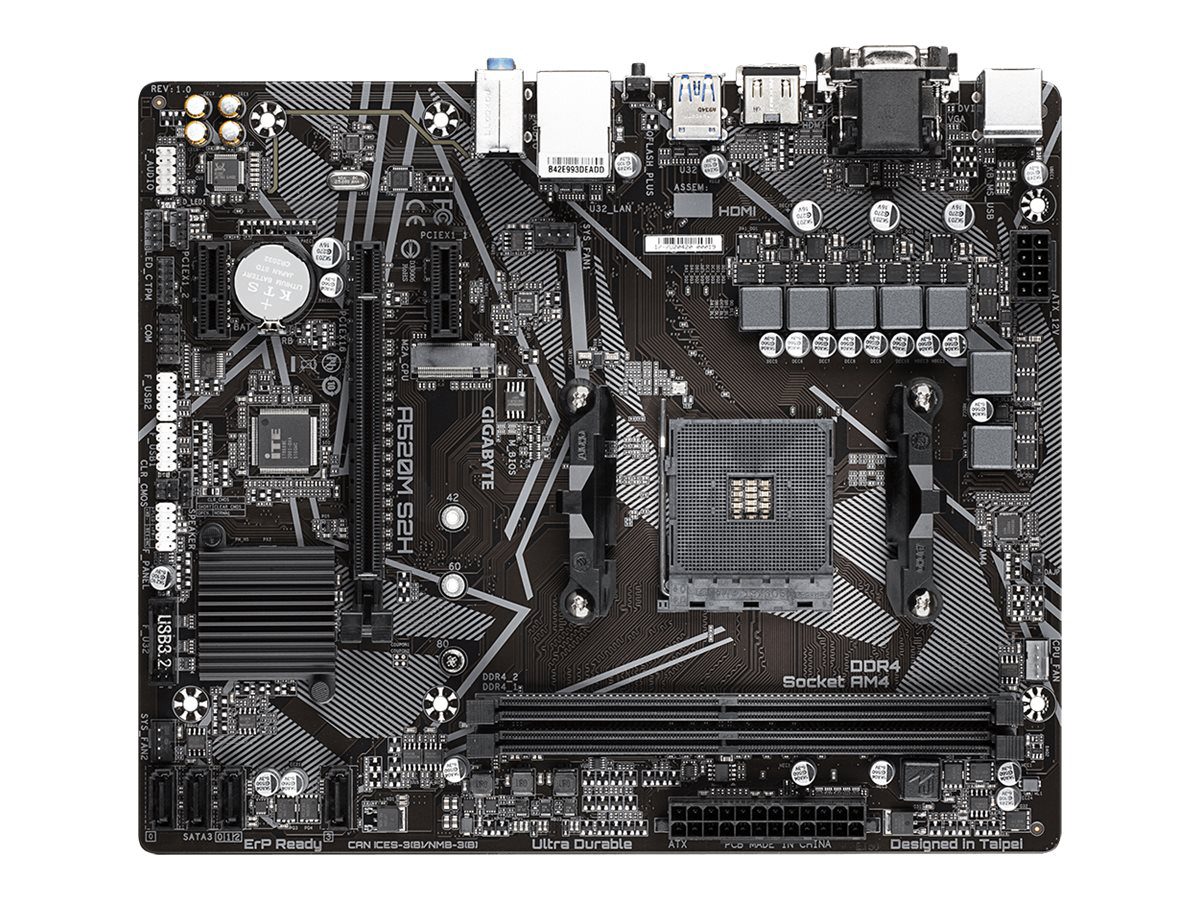

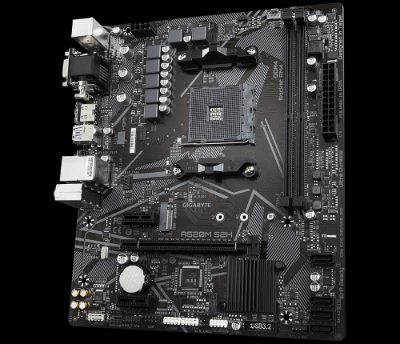

A520M S2H 1.0, Processor family AMD, Processor socket AM4, DDR4 DIMM
A520M S2H 1.0, Processor family AMD, Processor socket AM4, DDR4 DIMM, Memory slots 2, Chipset AMD A, Micro ATX
Gigabyte · 4719331809720
—
The invoice is sent as soon as you order.
Out of stock
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 36 mo.
- Invoice: with every order
- EAN
- 4719331809720
- Brand
- Gigabyte
Description
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
- Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
- 4+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
- Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector
- GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management

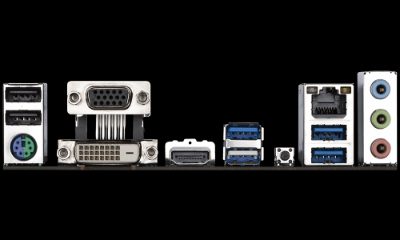

- HDMI, DVI-D, D-sub Ports for Multiple Display
- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- Anti-Sulfur Resistors Design
Specifications
| Audio output channels | 7.1 channels |
| Component for | PC |
| Chipset | AMD A520 |
| Chipset family | AMD |
| Form factor | micro ATX |
| Colour | Black |
| Compatible processor series | AMD Ryzen 3000 Series |
| Maximum memory | 64 GB |
| Maximum number of SMP processors | 1 |
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| ECC compatibility | ECC & Non-ECC |
| Memory channels | Dual-channel |
| Memory form factor | DIMM |
| Number of memory slots | 2 |
| Supported memory clock speeds | 2133/2400/2667/2933/3200/3333/3600/4000/4400/4600/4866/5000 MHz |
| Supported memory types | DDR4-SDRAM |
| RAID levels | 0/1/10 |
| RAID support | Yes |
| Supported drive interfaces | M.2,PCI Express 3.0,SATA |
| HDCP | Yes |
| Integrated graphics | No |
| ATX power connector | Yes |
| CPU fan connector | Yes |
| Fan connector count | 2 |
| SATA connectors | 4 |
| Power fan connector | Yes |
| RGB LED pin header | Yes |
| Internal USB 2.0 connectors | 2 |
| Internal USB 3.2 Gen 1 connectors | 1 |
| DVI-D ports | 1 |
| Ethernet (RJ-45) ports | 1 |
| HDMI ports | 1 |
| PS/2 ports | 1 |
| USB 2.0 ports | 2 |
| USB 3.2 Gen 1 Type-A ports | 4 |
| VGA (D-Sub) input ports | 1 |
| Ethernet type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| M.2 slot count | 1 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| ACPI version | 5.0 |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Clear CMOS button | Yes |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| SMBIOS version | 2.7 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Battery weight | 3 g |
| Country of origin | China |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Depth | 205 mm |
| Height | 35 mm |
| Width | 244 mm |
| Batteries included | Yes |
| Warranty | 3 year(s) |
| Model | A520M S2H 1.3 |
