Gigabyte B550M AORUS ELITE AXG13, Processor family AMD
Gigabyte B550M AORUS ELITE AXG13, Processor family AMD, Processor socket AM4, DDR4, Number of SATA connectors 4
Gigabyte · 4719331855055
91,43 €
The invoice is sent as soon as you order.
Available · 6 pcs
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 36 mo.
- Invoice: with every order
- EAN
- 4719331855055
- Brand
- Gigabyte
Description

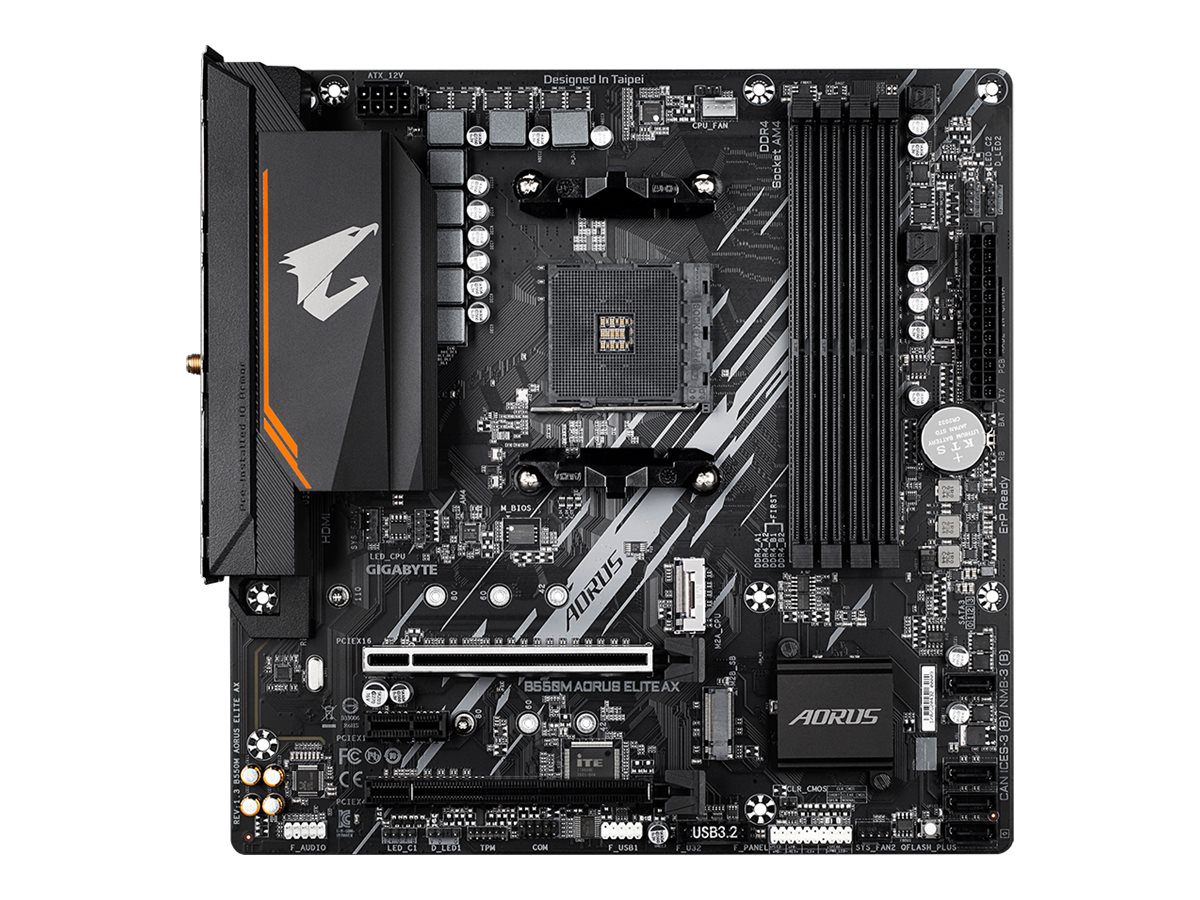

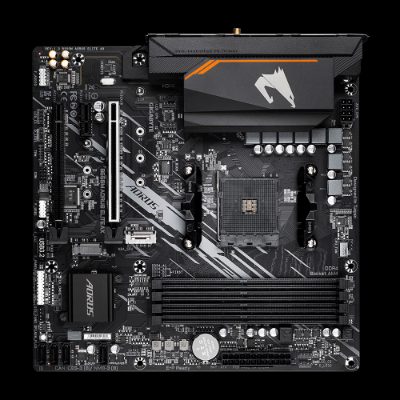

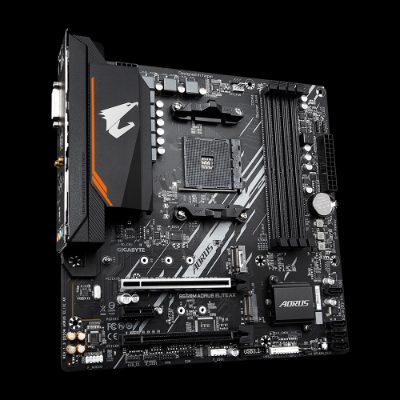

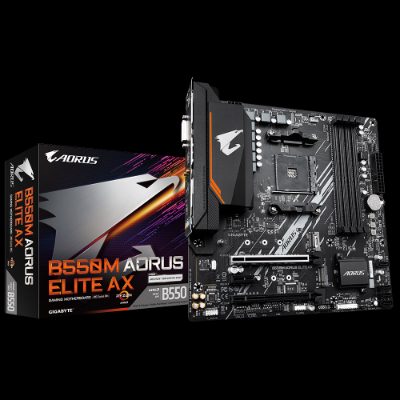

GIGABYTE B550M AORUS ELITE AX (REV. 1.4)
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
- Ultra Durable™ PCIe 4.0 Ready x16 Slot
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
- Onboard Wi-Fi 6E 802.11ax & BT 5.4
- High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
- Realtek GbE LAN with Bandwidth Management
- Rear HDMI & DVI Support
- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- Anti-Sulfur Resistors Design
Specifications
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Cooling type | Passive |
| Chipset | AMD B550 |
| Chipset family | AMD |
| Form factor | micro ATX |
| PC health monitoring | Fan/Temperature/Voltage |
| Power source | ATX |
| Colour | Brown |
| Supported Windows operating systems | Windows 10 x64/Windows 11 x64 |
| Compatible processor series | AMD Ryzen 3000 Series/AMD Ryzen 4000 Series/AMD Ryzen 5000 Series |
| Maximum number of SMP processors | 1 |
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| ECC compatibility | ECC & Non-ECC |
| Maximum memory | 128 GB |
| Maximum internal memory per slot | 32 GB |
| Memory channels | Dual-channel |
| Memory form factor | DIMM |
| Number of memory slots | 4 |
| Memory frequency (max) | 4733 MHz |
| Supported memory clock speeds | 2133/2400/2667/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4733 MHz |
| Supported memory types | DDR4-SDRAM |
| Unbuffered memory | Yes |
| Supported HDDs | 4 |
| Supported storage drives | 6 |
| RAID levels | 0/1/10 |
| RAID support | Yes |
| Supported drive interfaces | M.2,SATA III |
| Supported drive types | HDD & SSD |
| DirectX version | 12.0 |
| HDCP | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Multi-GPU technology | Not supported |
| 12V power connector | Yes |
| ATX power connector | Yes |
| CPU fan connector | Yes |
| EPS power connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Fan connector count | 2 |
| Number of CPU fan connectors | 1 |
| EPS power connector count | 1 |
| Number of RGB LED pin headers | 5 |
| SATA connectors | 4 |
| Number of water pump connectors | 2 |
| RGB LED pin header | Yes |
| Serial port headers | 1 |
| TPM header | Yes |
| Internal USB 2.0 connectors | 1 |
| Internal USB 3.2 Gen 1 connectors | 1 |

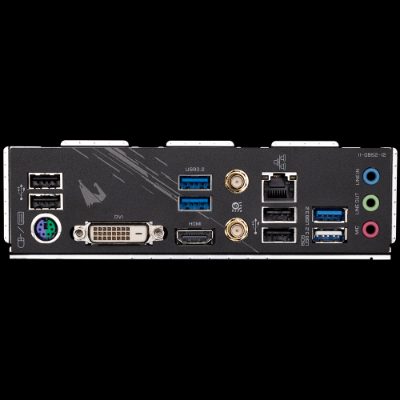

| DVI-D ports | 1 |
| Ethernet (RJ-45) ports | 1 |
| HDMI ports | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 1 |
| Line in | Yes |
| Microphone input | Yes |
| PS/2 ports | 1 |
| USB 2.0 ports | 4 |
| USB 3.2 Gen 1 Type-A ports | 4 |
| Wi-Fi AP antenna jack | 2 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Ethernet type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| LAN controller | Realtek RTL8111H |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Wi-Fi chipset | Realtek RTL8852CE |
| 1st M.2 highest PCI Express generation | 4.0 |
| 1st M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 3.0 |
| 2nd M.2 largest key size | 2280 |
| M.2 slot count | 2 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| ACPI version | 5.0 |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| SMBIOS version | 2.7 |
| Country of origin | China |
| Depth | 244 mm |
| Width | 244 mm |
| Antenna included | Yes |
| Bundled software | Norton® Internet Security (OEM version)LAN bandwidth management software |
| Screws included | Yes |
| Warranty | 3 year(s) |
| Model | B550M AORUS ELITE AX (REV. 1.4) |
