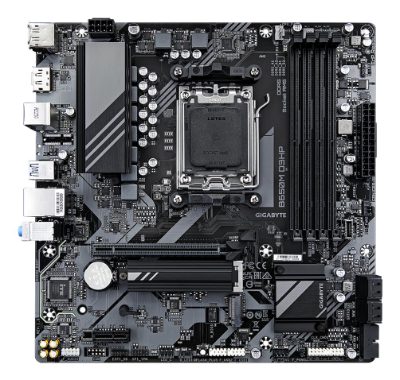

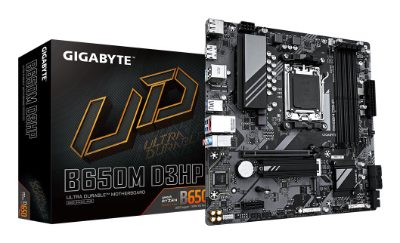

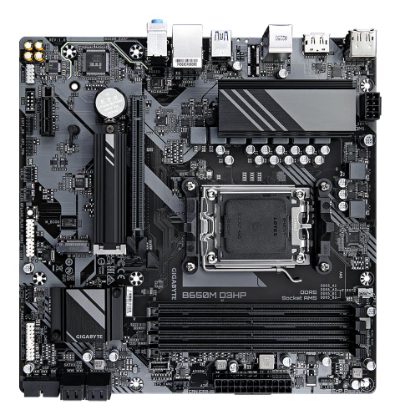

B650M D3HP, Processor family AMD, Processor socket AM5, DDR5 DIMM
B650M D3HP, Processor family AMD, Processor socket AM5, DDR5 DIMM, Memory slots 1, Supported hard disk drive interfaces SATA, M.2, Number of SATA connectors 4, Chipset AMD B650, Micro ATX
Gigabyte · 4719331857851
—
The invoice is sent as soon as you order.
Out of stock
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 36 mo.
- Invoice: with every order
- EAN
- 4719331857851
- Brand
- Gigabyte
Description
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- AMD Socket AM5：Supports AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
- Unparalleled Performance：5+2+2 Phases Digital VRM Solution
- Dual Channel DDR5：4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
- SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector
- EZ-Latch：PCIe x16 Slot with Quick Release Design
- Fast Networks：2.5GbE LAN
- Extended Connectivity：2*DP, HDMI
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Specifications
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Chipset | AMD B650 |
| Chipset family | AMD |
| Form factor | micro ATX |
| PC health monitoring | Fan/Temperature/Voltage |
| Power source | ATX |
| Colour | Brown |
| Supported Windows operating systems | Windows 10 x64/Windows 11 x64 |
| Compatible processor series | AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| ECC compatibility | Non-ECC |
| Maximum memory | 256 GB |
| Maximum internal memory per slot | 64 GB |
| Memory channels | Dual-channel |
| Memory form factor | DIMM |
| Number of memory slots | 4 |
| Memory frequency (max) | 7600 MHz |
| Supported memory clock speeds | 4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600 MHz |
| Supported memory types | DDR5-SDRAM |
| Unbuffered memory | Yes |
| Supported HDDs | 4 |
| Supported storage drives | 6 |
| RAID levels | 0/1/10 |
| RAID support | Yes |
| Supported drive interfaces | M.2,SATA III |
| Supported drive types | HDD & SSD |
| DirectX version | 12.0 |
| Discrete graphics card | Yes |
| HDCP | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Multi-GPU technology | Not supported |
| 12V power connector | Yes |
| ATX power connector | Yes |
| CPU fan connector | Yes |
| EPS power connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Fan connector count | 2 |
| Number of CPU fan connectors | 1 |
| EPS power connector count | 1 |
| Number of RGB LED pin headers | 3 |
| SATA connectors | 4 |
| RGB LED pin header | Yes |
| TPM header | Yes |
| Internal USB 2.0 connectors | 2 |
| Internal USB 3.2 Gen 1 connectors | 1 |
| USB 3.2 Gen 2 connectors | 1 |
| DisplayPort out version | 1.4 |
| DisplayPorts | 2 |
| Ethernet (RJ-45) ports | 1 |
| HDMI ports | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 1 |
| Line in | Yes |
| Microphone input | Yes |
| PS/2 ports | 1 |
| USB 2.0 ports | 2 |
| USB 3.2 Gen 1 Type-A ports | 3 |
| USB 3.2 Gen 1 Type-C ports | 1 |
| Ethernet type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| LAN controller | Realtek RTL8125 |
| Wi-Fi | No |
| 1st M.2 highest PCI Express generation | 4.0 |
| 1st M.2 largest key size | 2580 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 22110 |
| M.2 slot count | 2 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| ACPI version | 5.0 |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| SMBIOS version | 2.7 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Battery weight | 3 g |
| Country of origin | China |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Depth | 244 mm |
| Height | 35 mm |
| Width | 244 mm |
| Batteries included | Yes |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Screws included | Yes |
| Warranty | 3 year(s) |
| Model | B650M D3HP (rev. 1.3) |
