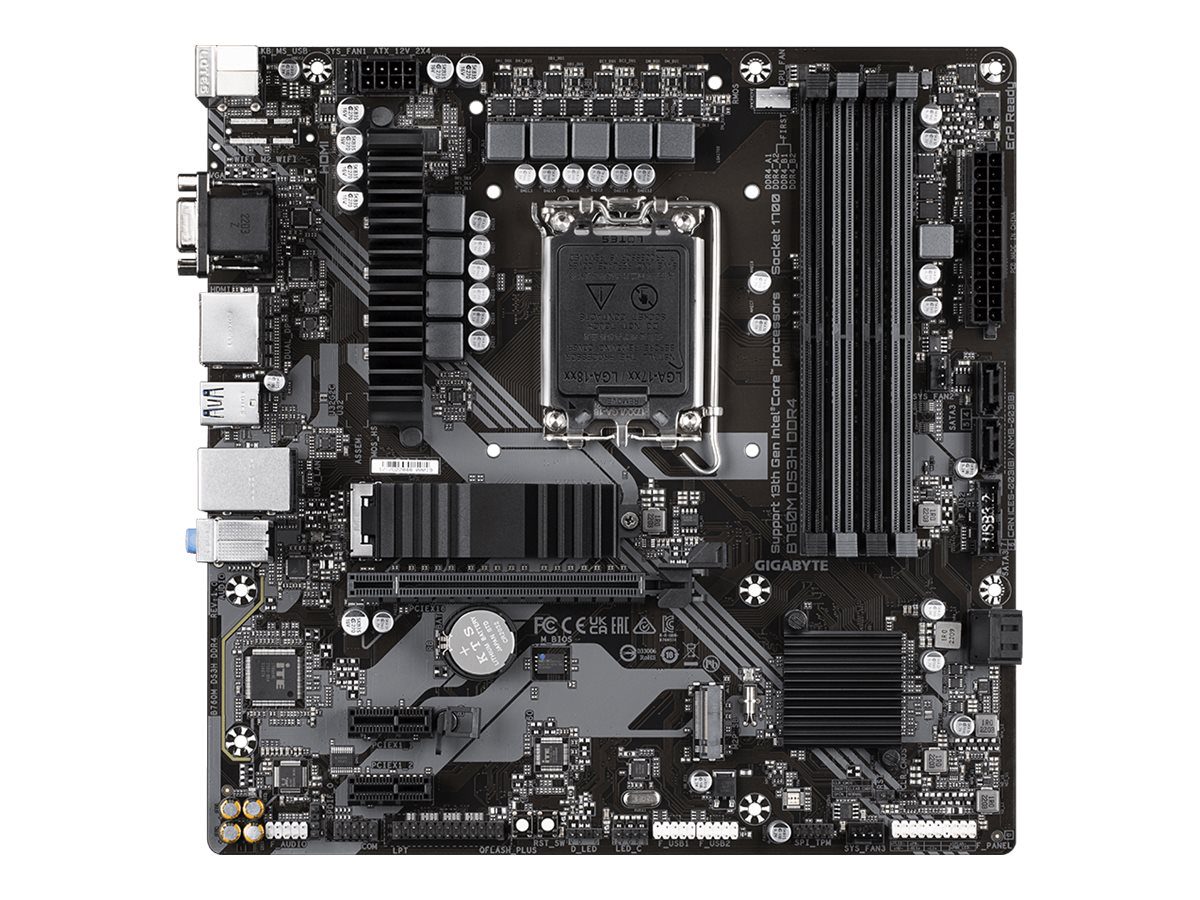

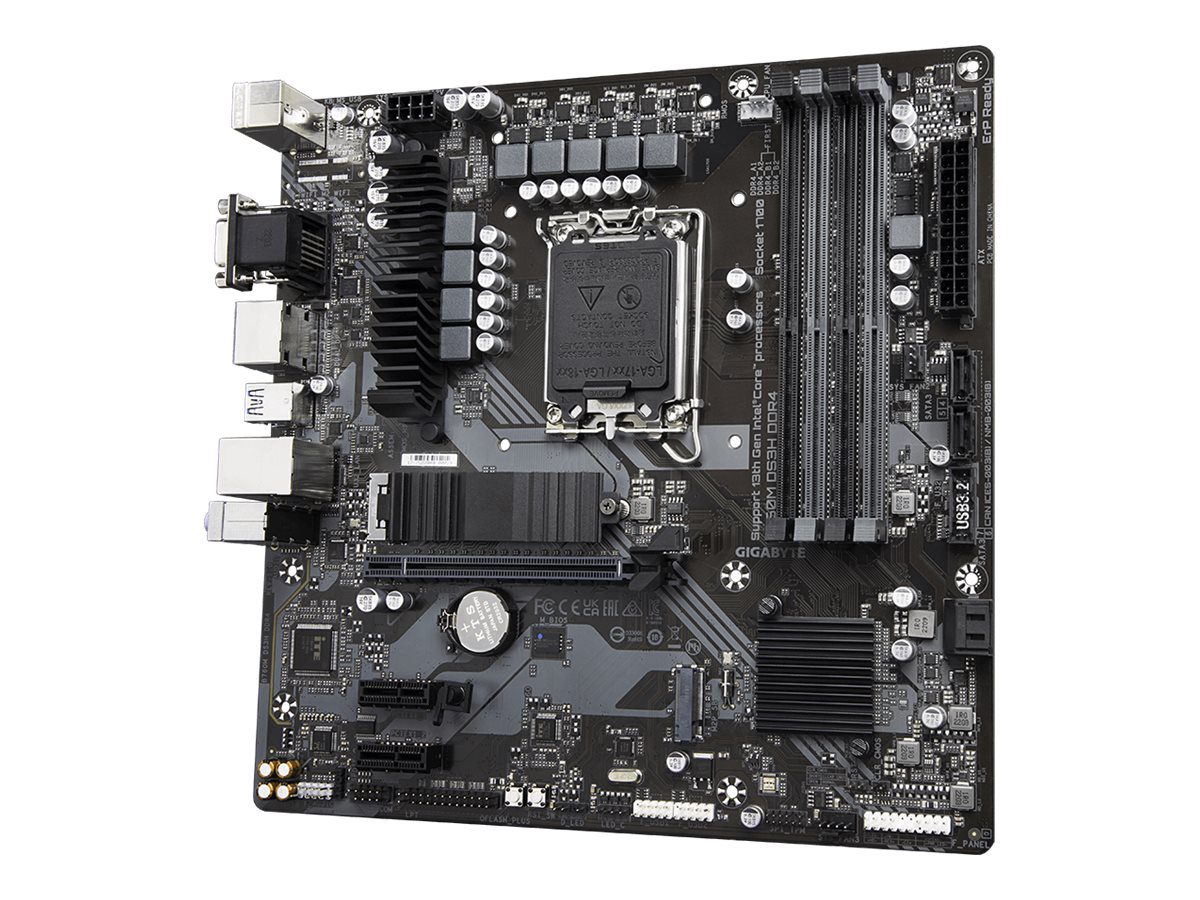

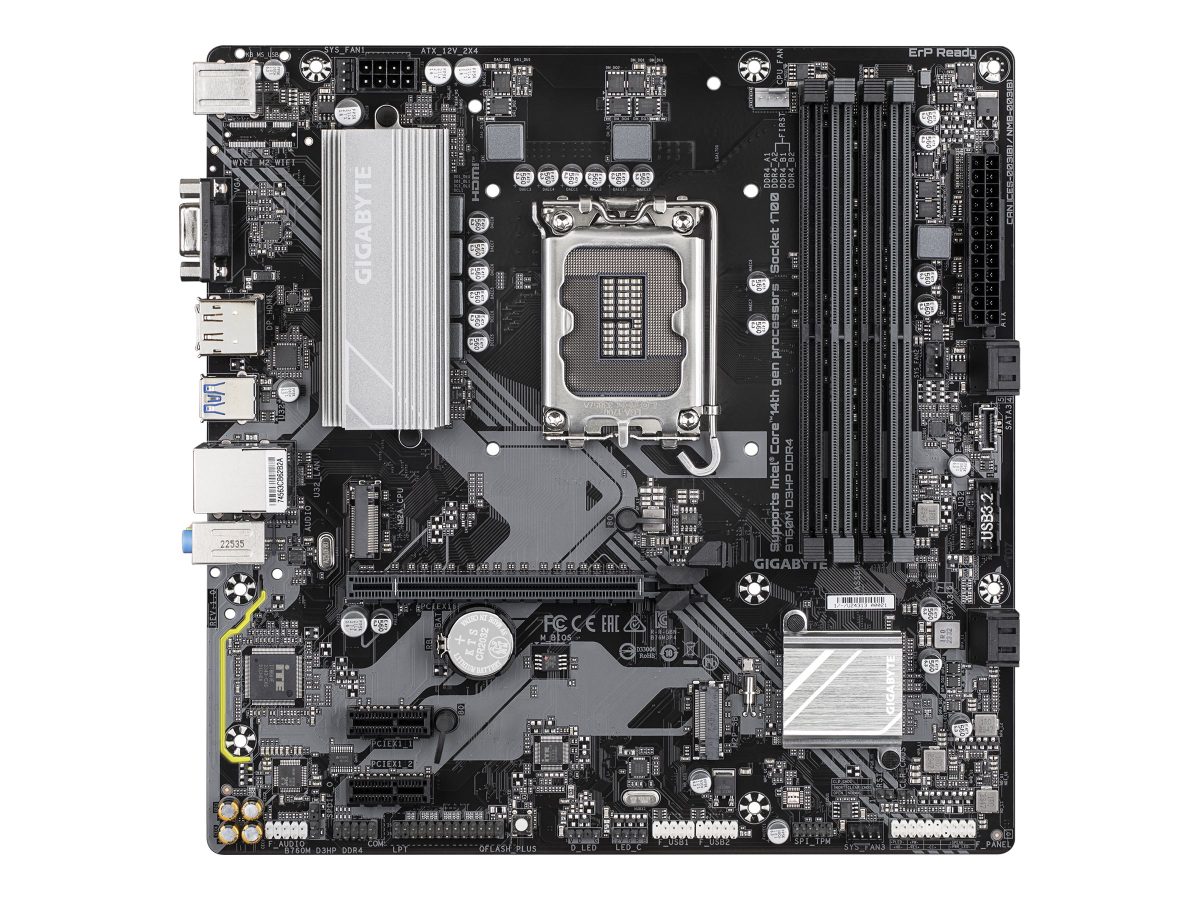

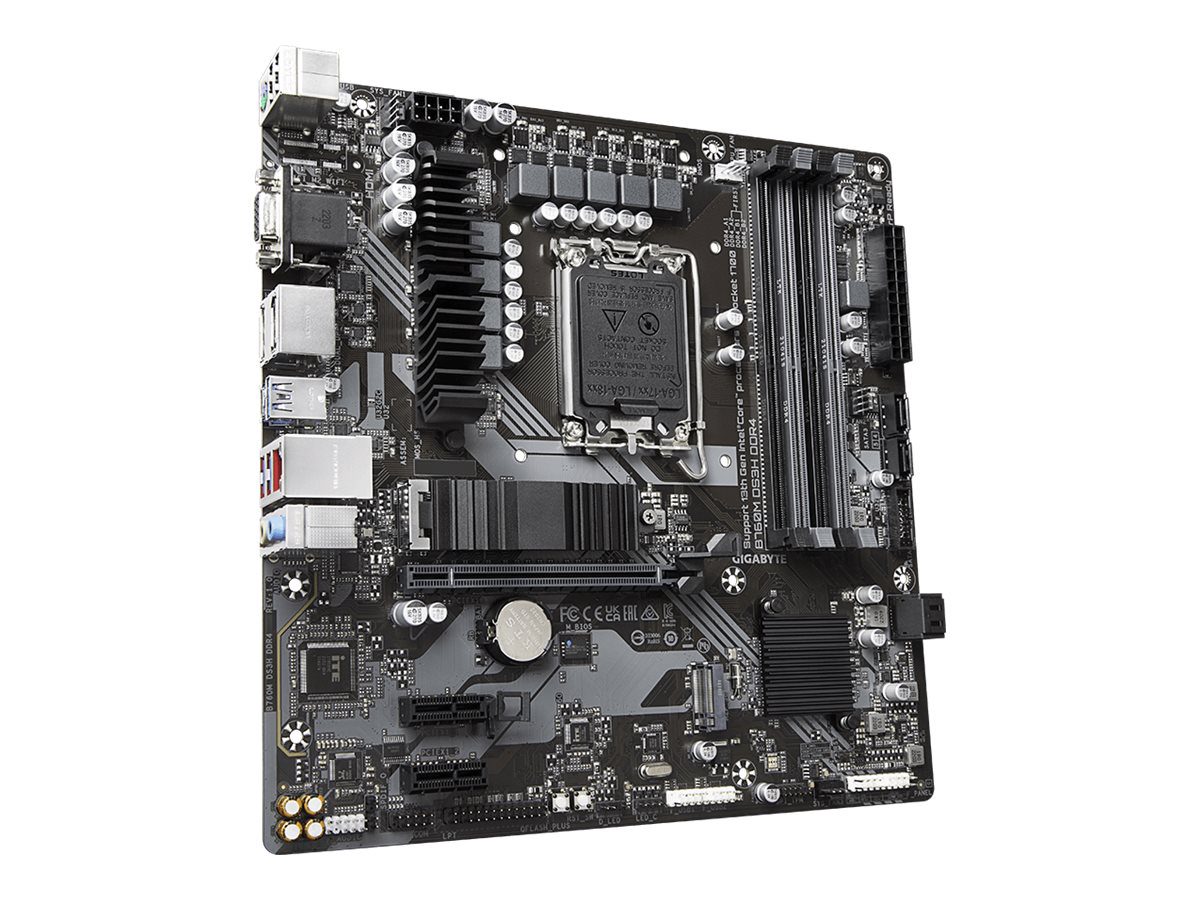

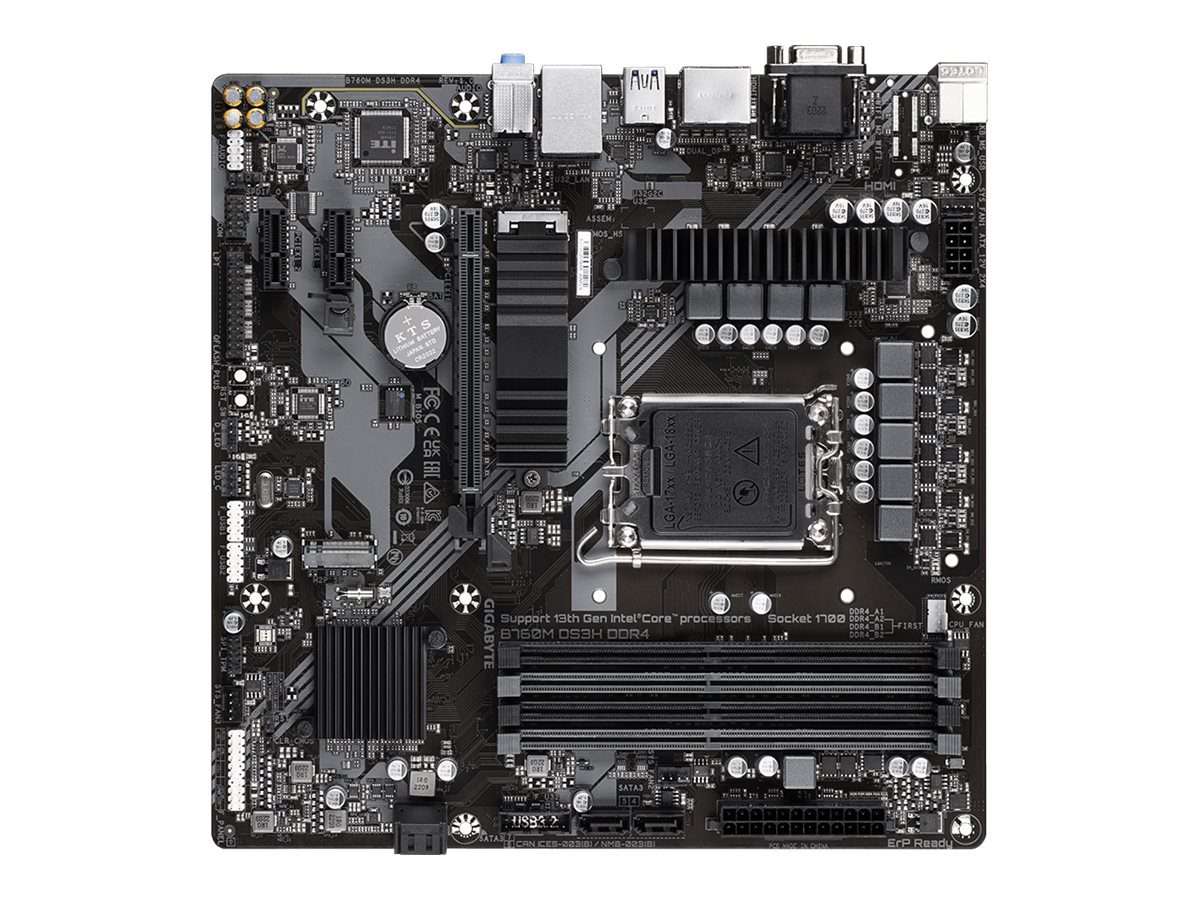

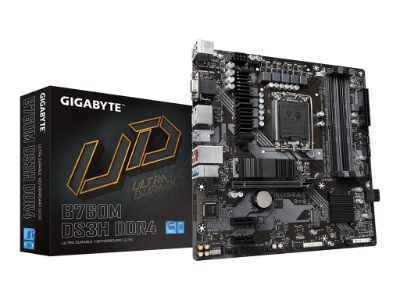

Gigabyte B760M D3HP DDR4, Processor family Intel
Gigabyte B760M D3HP DDR4, Processor family Intel, Processor socket LGA1700, DDR4, Supported hard disk drive interfaces M.2, SATA, Number of SATA connectors 4
Gigabyte · 4719331862848
83,26 €
The invoice is sent as soon as you order.
Available · 9 pcs
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 36 mo.
- Invoice: with every order
- EAN
- 4719331862848
- Brand
- Gigabyte
Description
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- Supports Intel Core 14th/ 13th /12th processors
- Unparalleled Performance：Hybrid 4+1+1 Phases Digital VRM Solution
- Dual Channel DDR4：4*DIMMs XMP Memory Module Support
- Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
- Fast Networks：GbE LAN
- Extended Connectivity：Front USB-C 5Gb/s, DP, HDMI, D-Sub
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Specifications
| Audio output channels | 7.1 channels |
| Component for | PC |
| Chipset | Intel B760 Express |
| Chipset family | Intel |
| Form factor | micro ATX |
| PC health monitoring | Fan/Temperature/Voltage/Water cooling |
| Power source | ATX |
| Colour | Brown |
| Supported Windows operating systems | Windows 10/Windows 11 |
| Compatible processor series | Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold |
| Maximum memory | 128 GB |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| ECC compatibility | ECC & Non-ECC |
| Memory channels | Dual-channel |
| Memory form factor | DIMM |
| Number of memory slots | 4 |
| Memory frequency (max) | 5333 MHz |
| Supported memory clock speeds | 2133/2400/2666/2933/3000/3200/3300/3333/3400/3466/3600/3666/3733/3800/3866/4000/4133/4266/4300/4400/4500/4600/4700/4800/4933/5000/5133/5333 MHz |
| Supported memory module capacities | 12GB/16GB/1GB/2GB/32GB/4GB/8GB |
| Supported memory types | DDR4-SDRAM |
| Unbuffered memory | Yes |
| Supported HDDs | 4 |
| Supported storage drives | 6 |
| RAID levels | 0/1/10/5 |
| RAID support | Yes |
| Supported drive interfaces | M.2,SATA III |
| Supported drive types | HDD & SSD |
| DirectX version | 12.0 |
| HDCP | Yes |
| Maximum resolution | 4096 x 2304 pixels |
| Multi-GPU technology | Not supported |
| 12V power connector | Yes |
| ATX power connector | Yes |
| Audio connector | Yes |
| CPU fan connector | Yes |
| EPS power connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Fan connector count | 3 |
| Number of Parallel ATA connectors | 1 |
| SATA connectors | 4 |
| Parallel connector | Yes |
| Power fan connector | Yes |
| RGB LED pin header | Yes |
| S/PDIF out connector | Yes |
| Serial port headers | 1 |
| TPM header | Yes |
| Internal USB 2.0 connectors | 2 |
| Internal USB 3.2 Gen 1 connectors | 1 |
| Digital audio optical outputs | 3 |
| DisplayPort out version | 1.4 |
| DisplayPorts | 2 |
| Ethernet (RJ-45) ports | 1 |
| HDMI ports | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 1 |
| Line in | Yes |
| Microphone input | Yes |
| PS/2 ports | 1 |
| USB 2.0 ports | 2 |
| USB 3.2 Gen 1 Type-A ports | 3 |
| USB connector type | USB Type-A |
| VGA (D-Sub) input ports | 1 |
| Ethernet type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| M.2 slot count | 2 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x1 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 slots | 1 |
| PCI Express x4 slots | 1 |
| ACPI version | 5.0 |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| SMBIOS version | 2.7 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Battery weight | 3 g |
| Country of origin | China |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Depth | 244 mm |
| Height | 35 mm |
| Width | 244 mm |
| Batteries included | Yes |
| Bundled software | Norton Internet Security |
| Warranty | 3 year(s) |
| Model | B760M D3HP DDR4 |
