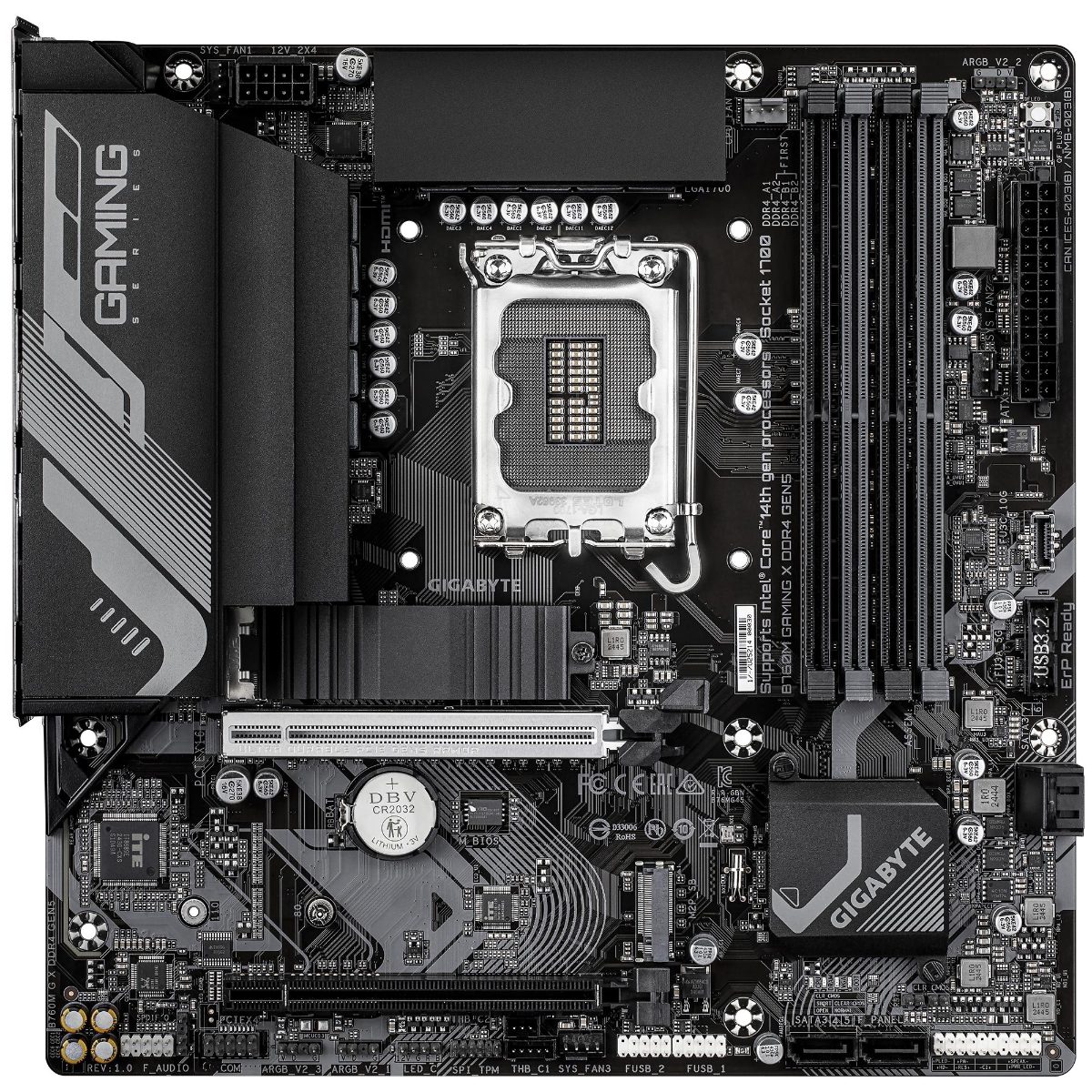

Gigabyte B760M GAMING X DDR4 GEN5, Processor family Intel
Gigabyte B760M GAMING X DDR4 GEN5, Processor family Intel, Processor socket LGA1700, DDR4, Supported hard disk drive interfaces M.2, SATA, Number of SATA connectors 4
Gigabyte · 4719331874087
113,95 €
The invoice is sent as soon as you order.
Available · 5 pcs
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 36 mo.
- Invoice: with every order
- EAN
- 4719331874087
- Brand
- Gigabyte
Description
GIGABYTE B760M GAMING X DDR4 GEN5
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
- PCIe Gen5 Performance: Perfect Sync to Win
- Supports Intel Core 14th/ 13th/12 processors
- Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
- EZ-Latch: PCIe 5.0x16 Slot with Quick Release Design
- PCIe UD Slot: SMD PCIe 5.0 Armor for enhanced graphics card support
- Unparalleled Performance: Hybrid 8+1+1 Phases VRM Solution
- Dual Channel DDR4: 4*DIMMs with XMP Memory Module Support
- Fast Networks: 2.5GbE LAN
- Extended Connectivity: Front USB-C 10Gb/s, DP, HDMI
- Next Generation Storage: 2*PCIe 4.0 x4 M.2 Connectors
Specifications
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Cooling type | Passive |
| Chipset | Intel B760 |
| Chipset family | Intel |
| Form factor | micro ATX |
| PC health monitoring | Fan/Temperature/Voltage/Water cooling |
| Power source | ATX |
| Colour | Dark brown |
| Supported Windows operating systems | Windows 10 x64/Windows 11 x64 |
| Compatible processor series | Intel Core/Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i3 14th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i5 14th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i7 14th Gen/Intel Core i9 12th Gen/Intel® Celeron® |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| ECC compatibility | ECC & Non-ECC |
| Maximum memory | 128 GB |
| Maximum internal memory per slot | 32 GB |
| Memory channels | Dual-channel |
| Memory form factor | DIMM |
| Number of memory slots | 4 |
| Memory frequency (max) | 3200 MHz |
| Supported memory clock speeds | 2133/2400/2666/2933/3000/3200 MHz |
| Supported memory types | DDR4-SDRAM |
| Unbuffered memory | Yes |
| Supported HDDs | 4 |
| Supported storage drives | 6 |
| RAID levels | 0/1/10/5 |
| RAID support | Yes |
| Supported drive interfaces | M.2,PCI Express 4.0,SATA III |
| Supported drive types | HDD & SSD |
| DirectX version | 12.0 |
| HDCP | Yes |
| Maximum resolution | 4096 x 2304 pixels |
| Multi-GPU technology | Not supported |
| 12V power connector | Yes |
| ATX power connector | Yes |
| CPU fan connector | Yes |
| EPS power connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Fan connector count | 3 |
| Number of CPU fan connectors | 1 |
| EPS power connector count | 1 |
| Number of RGB LED pin headers | 4 |
| SATA connectors | 4 |
| RGB LED pin header | Yes |
| S/PDIF out connector | Yes |
| Serial port headers | 1 |
| Thunderbolt headers | 2 |
| TPM header | Yes |
| Internal USB 2.0 connectors | 2 |
| Internal USB 3.2 Gen 1 connectors | 1 |
| USB 3.2 Gen 2 connectors | 1 |
| DisplayPort out version | 1.2 |
| DisplayPorts | 1 |
| Ethernet (RJ-45) ports | 1 |
| HDMI ports | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 1 |
| Line in | Yes |
| Microphone input | Yes |
| USB 2.0 ports | 5 |
| USB 3.2 Gen 1 Type-A ports | 3 |
| Ethernet type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| LAN controller | Realtek RTL8125 |
| Wi-Fi | No |
| 1st M.2 highest PCI Express generation | 4.0 |
| 1st M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 22110 |
| M.2 slot count | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| ACPI version | 5.0 |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| SMBIOS version | 2.7 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Battery weight | 3 g |
| Country of origin | China |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Depth | 244 mm |
| Height | 35 mm |
| Width | 244 mm |
| Batteries included | Yes |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Screws included | Yes |
| Warranty | 3 year(s) |
| Weight | 1190 g |
| Model | GIGABYTE B760M GAMING X DDR4 GEN5 |
