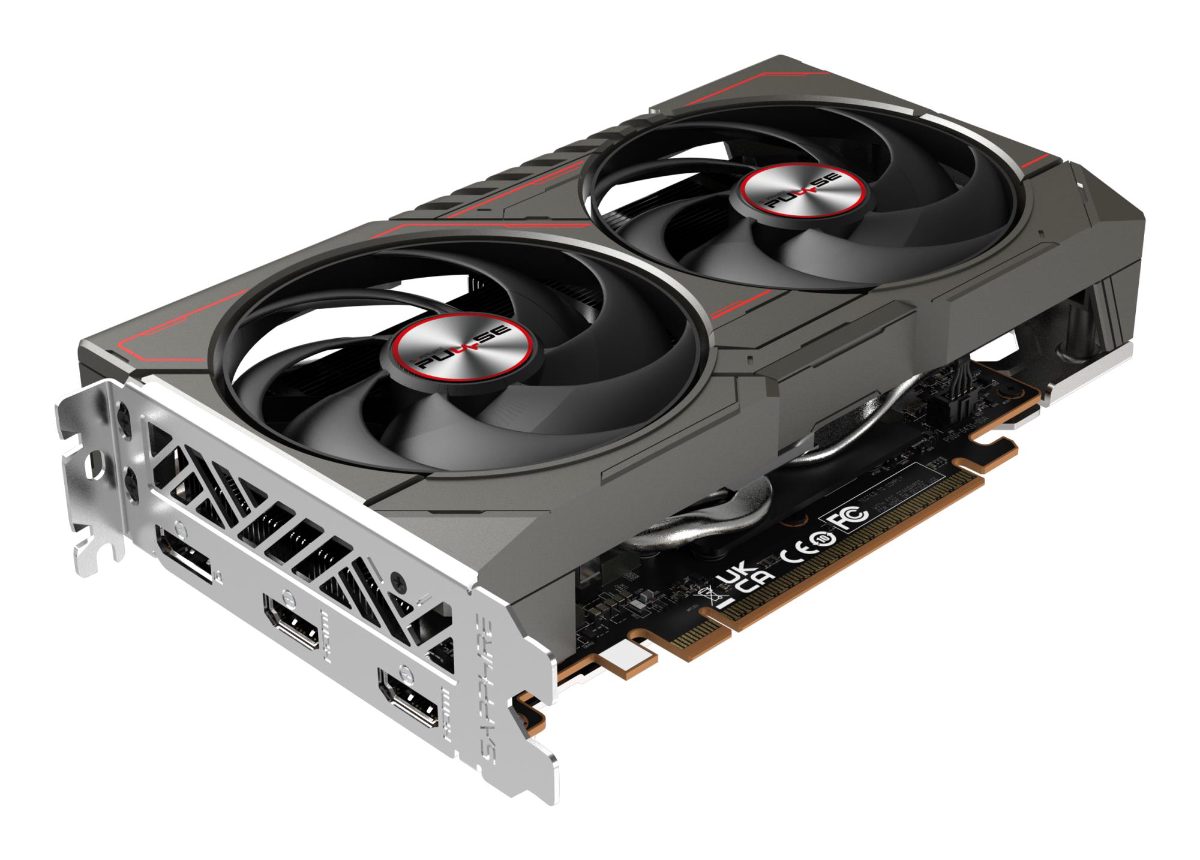

Graphics Card, SAPPHIRE, AMD, Radeon RX 9060 XT, 8 GB, GDDR6, 128 bit
Graphics Card, SAPPHIRE, AMD, Radeon RX 9060 XT, 8 GB, GDDR6, 128 bit, PCI Express x16 5.0, Active, 11350-05-20G
SAPPHIRE · 4895106297333
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 36 mo.
- Invoice: with every order
- EAN
- 4895106297333
- Brand
- SAPPHIRE
Description
Fuse Protection
In order to protect your card, the SAPPHIRE cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.
Honeywell PTM7950 TIM
The Honeywell PTM7950 Thermal Interface Material (TIM) offers a premium solution for high-performance electronics, particularly in the demanding field of graphics processing units (GPUs). The PTM7950 delivers superior thermal conductivity, enhancing the reliability and longevity of graphics cards by its outstanding material characteristics.
AeroCurve Fan Blade
The latest fan blade design builds upon its predecessor with advancements that reduce air friction, increasing the usable fan RPM range while maintaining low noise levels. This refined design ensures improved airflow, optimized static pressure, and enhanced cooling efficiency for demanding applications.
FrameDefense
The mechanical design of the graphics card features a robust, box-like frame that ensures exceptional build quality and durability. This solid construction provides a protective enclosure for all internal components, reducing the risk of damage during handling or installation. This rigid frame offers added stability and strength, making it highly resistant to accidental impacts or pressure, ensuring that the delicate components, such as the GPU, memory, and VRMs, remain secure. With this design, users can confidently handle the card without worrying about compromising its integrity or performance.
Digital Power Design
SAPPHIRE PULSE AMD Radeon™ RX 9060 Series are designed with digital power which provides accurate power control and excellent power efficiency
- GPU: Boost Clock: Up to 3130 MHz
- GPU: Game Clock: Up to 2530 MHz
- Memory: 8GB/128 bit DDR6. 20Gbps Effective
- Stream Processors: 2048
- AMD RDNA™ 4 Architecture
- Ray Accelerator: 32
Specifications
| AI accelerator count | 64 |
| Compute units | 32 |
| CUDA | No |
| Discrete graphics card model | Radeon RX 9060 XT |
| Graphics family | AMD |
| Infinity cache | 32 MB |
| Maximum displays per graphics card | 3 |
| Maximum resolution | 7680 x 4320 pixels |
| Multi-GPU technology | Not supported |
| Boost frequency | 3130 MHz |
| Processor boost clock speed (Gaming mode) | 2530 MHz |
| Ray accelerator count | 32 |
| Stream processors | 2048 |
| Maximum data transfer rate | 20 Gbit/s |
| Discrete graphics memory | 8 GB |
| Graphics memory type | GDDR6 |
| Memory bus width | 128 bit |
| DisplayPort out version | 2.1a |
| DisplayPorts | 1 |
| HDMI ports | 2 |
| HDMI version | 2.1b |
| Host interface | PCI Express x16 5.0 |
| AMD FreeSync | Yes |
| DirectX version | 12 Ultimate |
| Dual Link DVI | No |
| TV tuner | No |
| Cooling solution | Sapphire Dual-X |
| Cooling type | Active |
| Number of fans | 2 fan(s) |
| Number of slots | 2 |
| Colour | Grey/White |
| Minimum system power supply | 450 W |
| Supplementary power connectors | 1x 8-pin |
| Thermal Design Power (TDP) | 150 W |
| Linux support | Yes |
| Minimum RAM | 8192 MB |
| Supported Windows operating systems | Windows 10/Windows 11 |
| Depth | 40.6 mm |
| Height | 122 mm |
| Length | 200 mm |
| Net weight | 0.7 kg |
