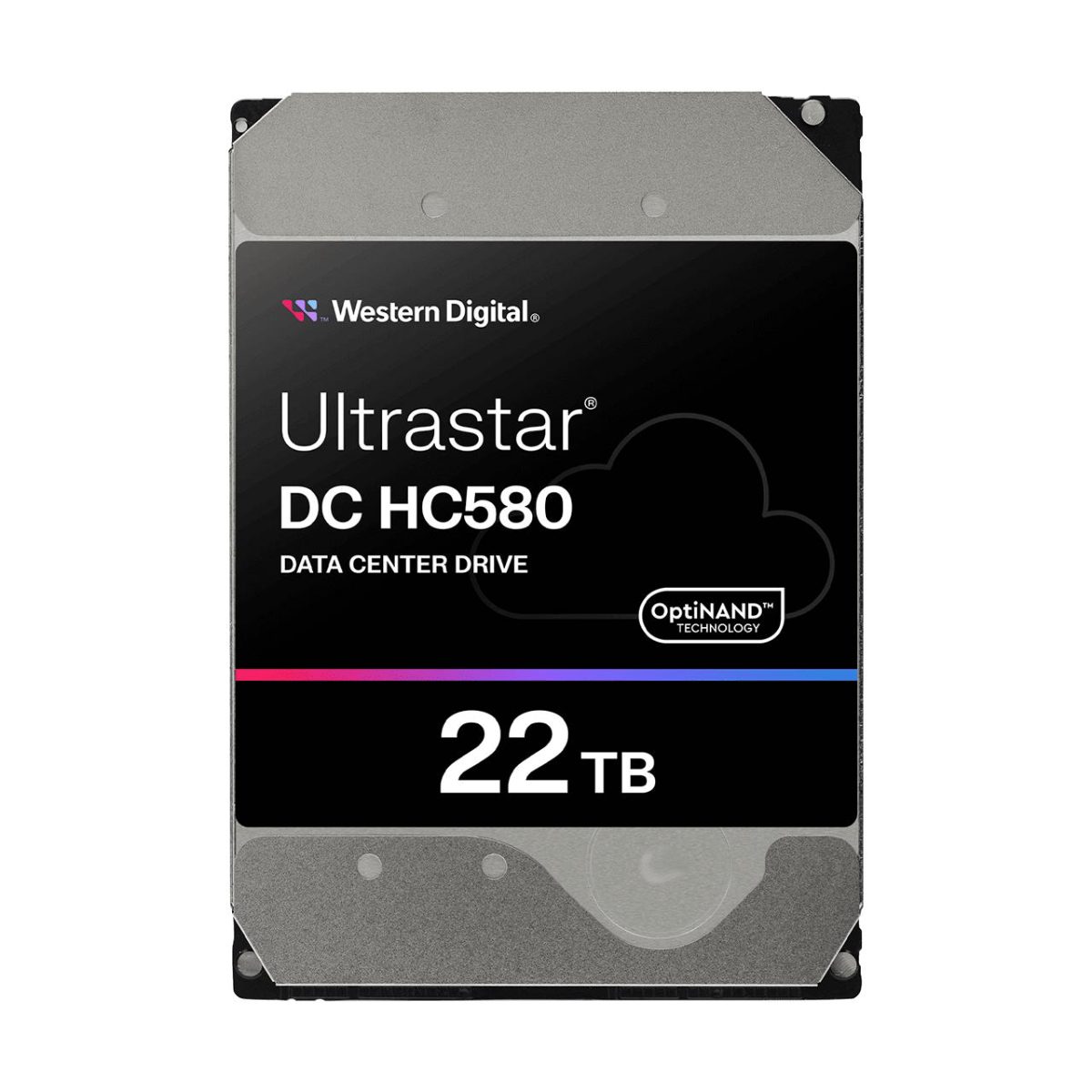

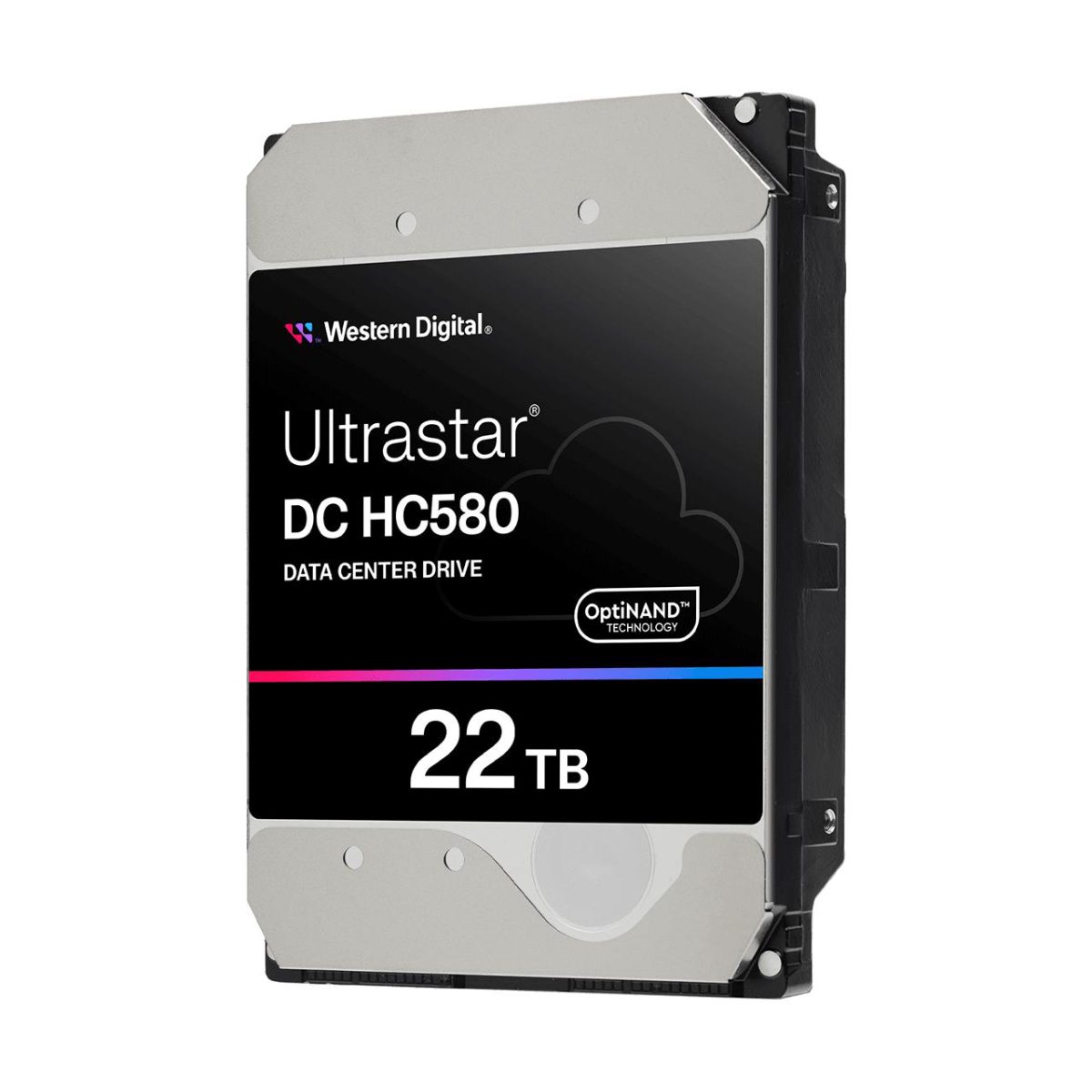

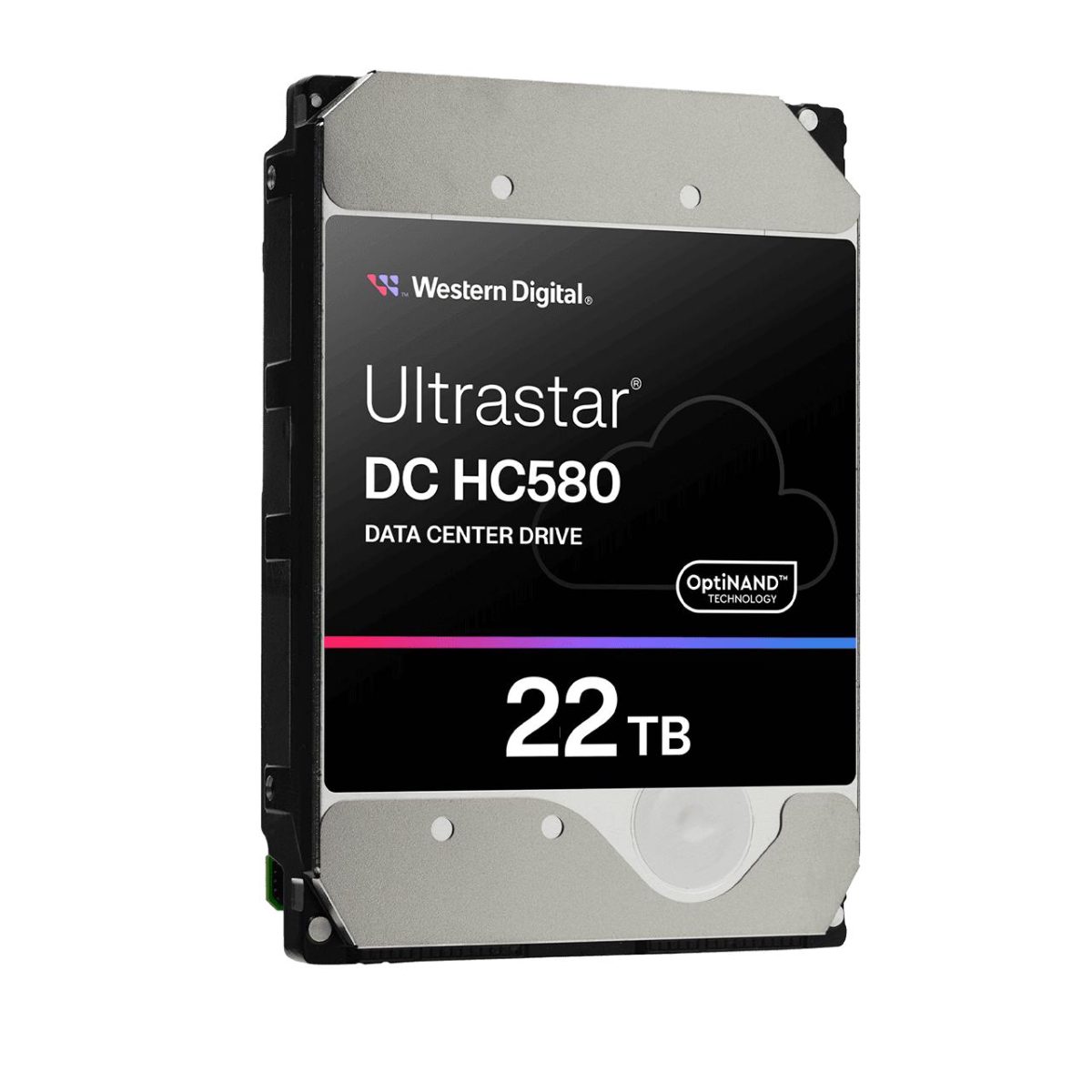

HDD, WESTERN DIGITAL ULTRASTAR, Ultrastar DC HC580
HDD, WESTERN DIGITAL ULTRASTAR, Ultrastar DC HC580, WUH722422ALE6L4 0F62785, 22TB, 512 MB, 7200 rpm, 3,5", 0F62785
WESTERN DIGITAL
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 60 mo.
- Invoice: with every order
- Brand
- WESTERN DIGITAL
Description
24TB data center HDD with OptiNAND technology
The relentless growth of data means organizations must find ways to efficiently store ever more data. The Ultrastar DC HC580 24TB1 HDD with improved OptiNAND technology is the next step in high-capacity hard drives, allowing data centers to maximize their storage, especially in footprint- and powerconstrained environments.
Keep up with exponential data growth
The 24TB1 Ultrastar DC HC580 HDD with OptiNAND technology’s capacity-enabling features provides more efficient storage on a 10-disk CMR drive, enabling you to store more in the same footprint
Innovative technologies for higher capacities
Improved OptiNAND technology, energy-assisted magnetic recording (EAMR), triplestage actuator (TSA), and HelioSeal enable high capacity with low power
Performance and protection
ArmorCache is a feature enabled by OptiNAND that offers higher performance in write cache disabled mode and provides enterprise power loss protection in write cache enabled mode
Designed for data center workloads
The Ultrastar DC HC580 is performance-optimized to handle heavy application workloads of up to 550TB2 per year.
Built with reliability in mind
This robust drive delivers dependability in intense data center environments with up to 2.5M hours MTBF3 (projected).
- New, improved OptiNAND technology enables more efficient storage footprint
- Energy-assisted magnetic recording (EAMR), triple-stage actuator (TSA), and HelioSeal for high capacity with low power
- ArmorCache improves performance and provides enterprise power loss protection
Specifications
| Average latency | 4.16 ms |
| Component for | Server/workstation |
| HDD capacity | 22000 GB |
| Hard disk size | 3.5 " |
| HDD rotational speed | 7200 RPM |
| Sustained transfer rate | 291 MiB/s |
| Hot-swap | No |
| Drive interface | Serial ATA |
| MTBF | 2500000 h |
| Storage drive buffer size | 512 MB |
| Product type | HDD |
| Workload rate limit | 550 TB/year |
| Input voltage | 5 / 12 V |
| Power consumption (idle) | 5.5 W |
| Power consumption (read) | 8.5 W |
| Power consumption (write) | 8.5 W |
| Non-operating shock | 200 G |
| Non-operating vibration | 1.04 G |
| Operating shock | 40 G |
| Operating temperature | 5 - 60 °C |
| Operating vibration | 0.7 G |
| Storage temperature | -40 - 70 °C |
| Depth | 147 mm |
| Height | 26.1 mm |
| Weight | 670 g |
| Width | 101.6 mm |
| Linux support | Yes |
| Warranty | 5 year(s) |
| Supported Windows operating systems | Yes |
| Model | Western Digital Ultrastar 22TB DC HC580 |
| Product family | Ultrastar DC HC580 |
| Model name | WUH722422ALE6L4 0F62785 |
| Net weight | 0.67 kg |
