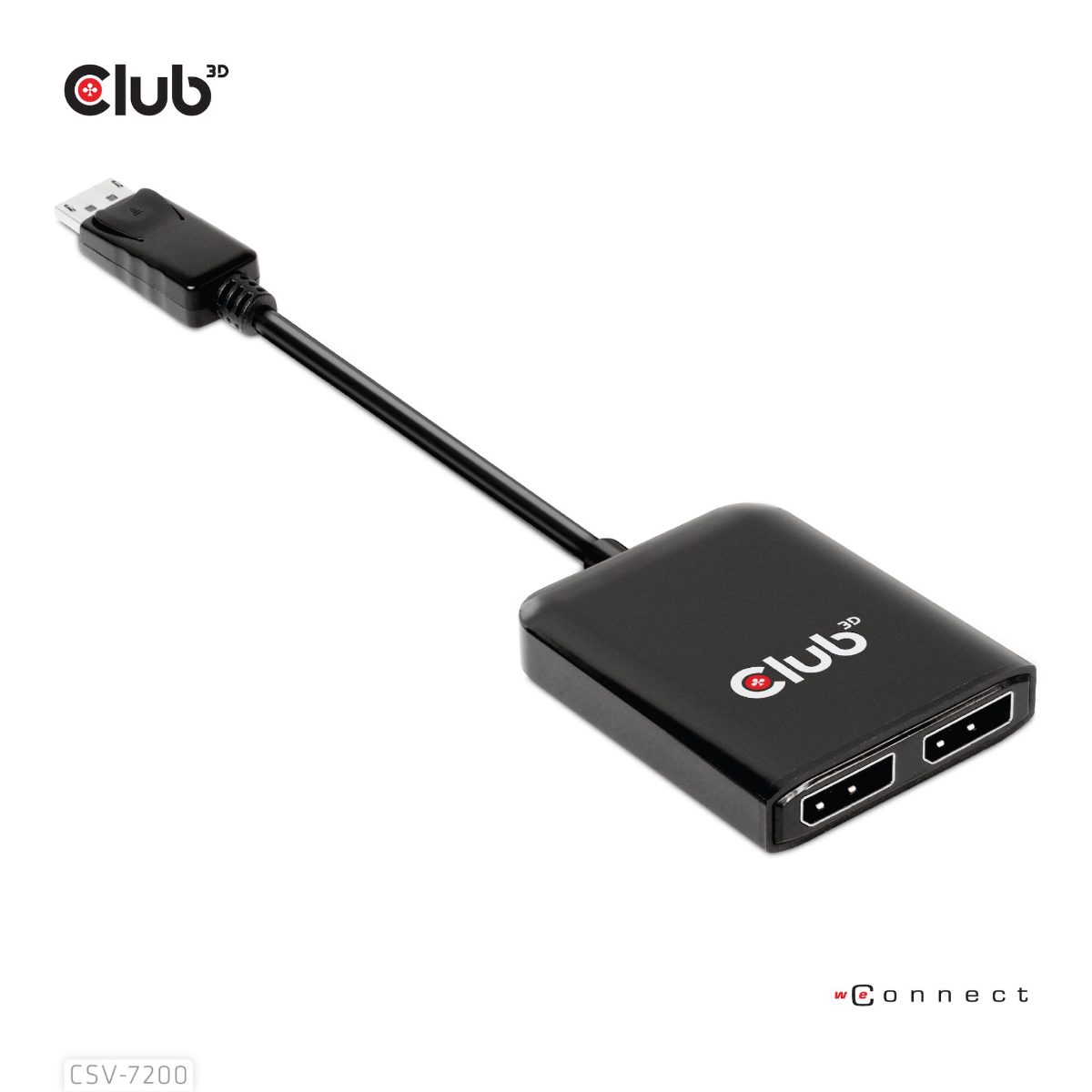

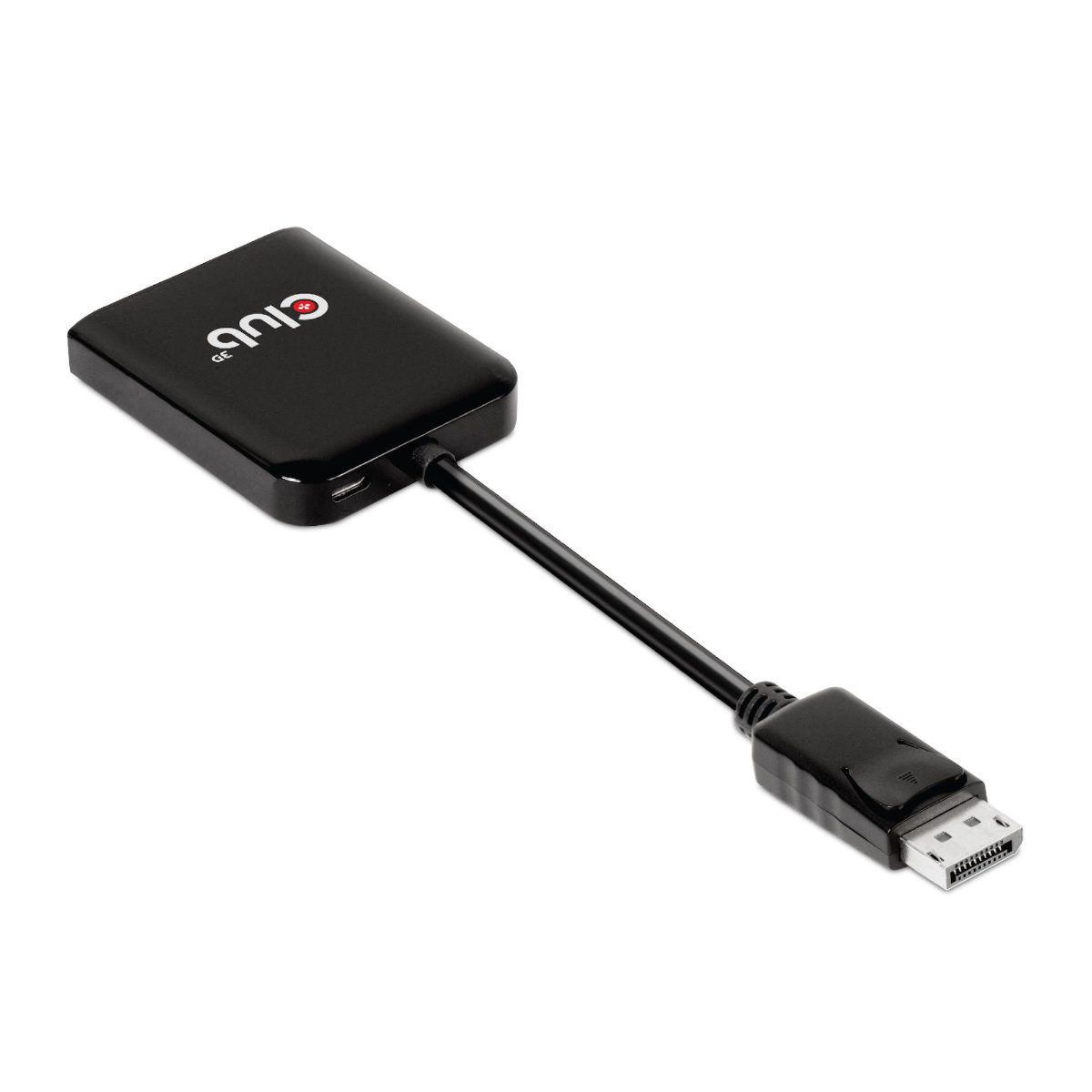

I/O ADAPTER DP TO DP/DUAL CSV-7200 CLUB3D
CLUB3D · 8719214471927
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 24 mo.
- Invoice: with every order
- EAN
- 8719214471927
- Brand
- CLUB3D
Description

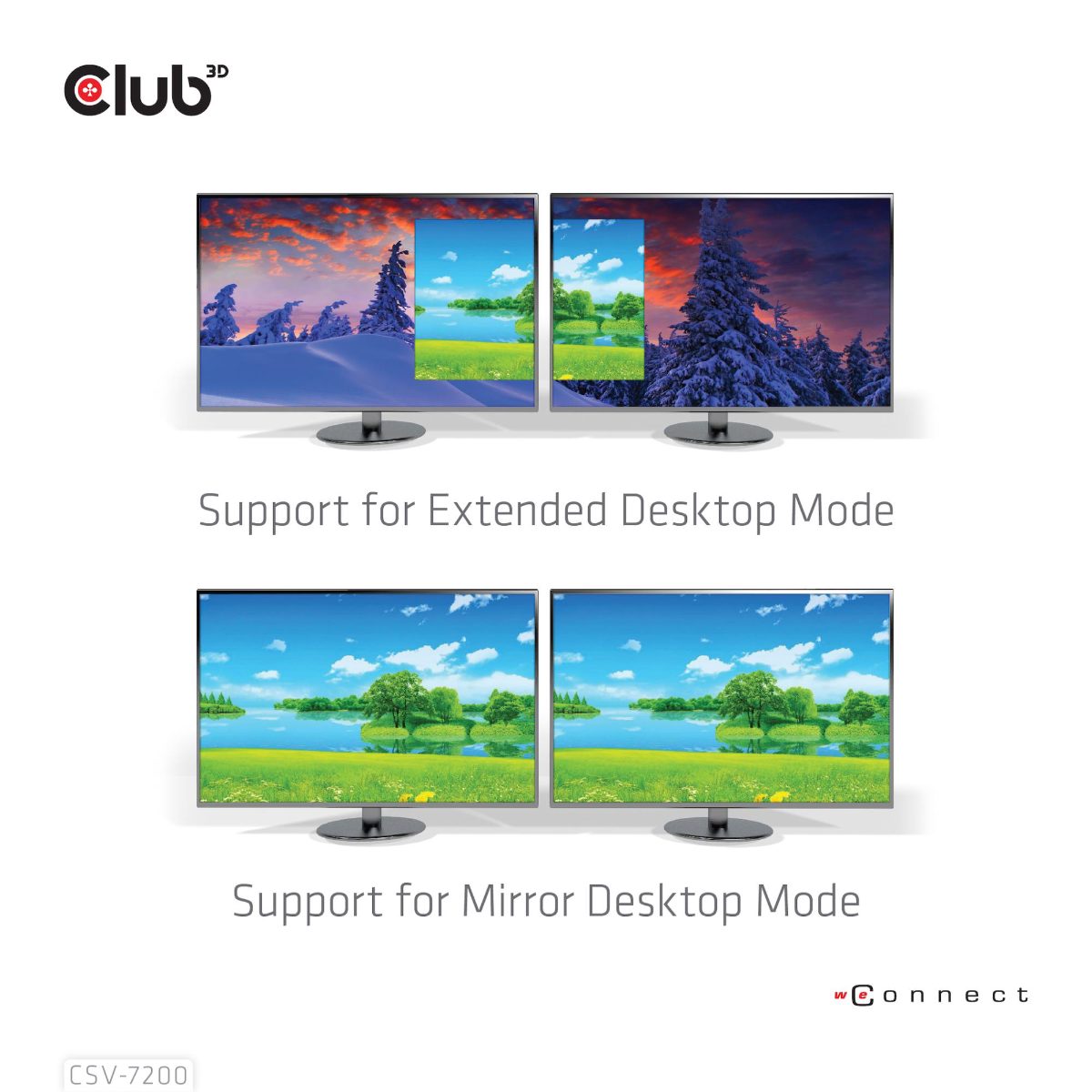

The Club 3D CSV-7200H Multi Stream Transport (MST) Hub DisplayPort™ 1.4 to Dual HDMI 4K60Hz is an integrated solution that allows you to enjoy displaying content onto two different displays simultaneously under MST mode. The Two screens can accommodate displaying the same contents in parallel or by simply extending the existing screen, giving a panoramic view of the content which maximizes the user’s visual experience. With its multi-display capabilities, this hub can serve as a convenient and hassle-free portable, alternative solution to the conventional docking station. It is the perfect solution for host devices that feature DP1.2 /1.4 graphic cards for gaming and commercial applications.
- Supports main link rates of 8.1Gbps (HBR3),5.4Gbps (HBR2), 2.7Gbps (HBR) and (1.62Gbps RBR) from source
- Supports up to Two HDMI™ 4K60Hz ports

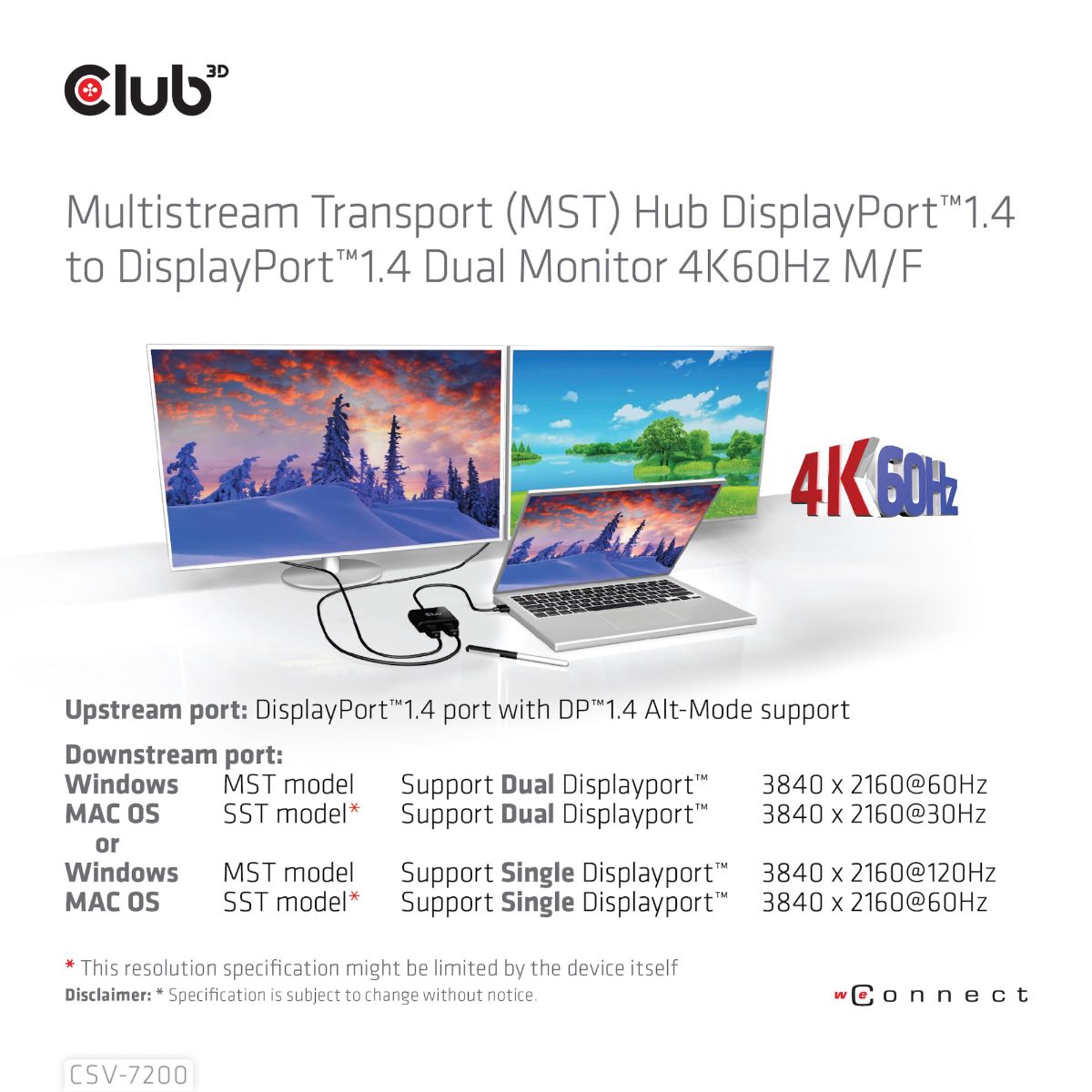

- Supported output resolutions:
- up to 3840*2160p @ 60Hz single or dual displays (Note when the source is DP1.4 and supports DSC1.2)
- 1x 3840*2160P/30HZ + 1x 1920*1080P/60HZ (DP1.2)
- Supports transmission of audio and video signals
- Works with AMD*, Nvidia™ and Intel™ HD Graphics solutions
- Plug and Play - no driver needed
- Functionality may vary per GPU and OS

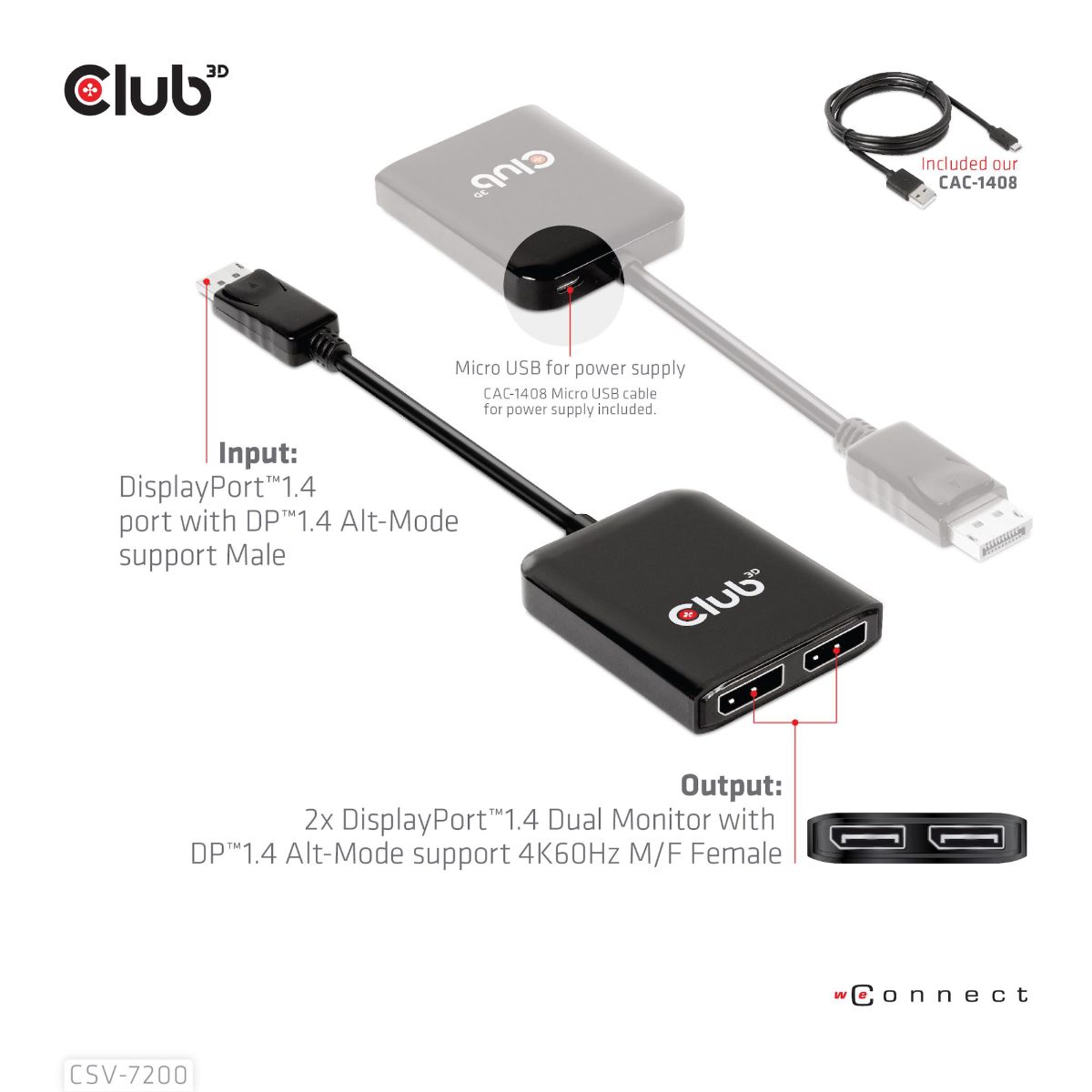

- USB Bus Powered
- Compliant with: DisplayPort™ v1.4, DisplayPort™ v1.2, VESA DDM Standard, HDMI™ 4K60Hz
Specifications
| Video out | 2x DisplayPort |
| Video port type | DisplayPort |
| Number of video ports | 2 |
| Certification | Meets ROHS, FCC, and CE EMI requirements |
| HDCP | Yes |
| HDCP version | 1.4/2.2 |
| macOS versions supported | Mac OS X 10.14 Mojave/Mac OS X 10.15 Catalina/Mac OS X 10.15.3 Catalina |
| Maximum resolution | 3840 x 2160 pixels |
| Plug and Play | Yes |
| Colour | Black |
| Supported resolutions | 1920 x 1080 (HD 1080)/3840 x 2160 |
| Supported Windows operating systems | Windows 10 |

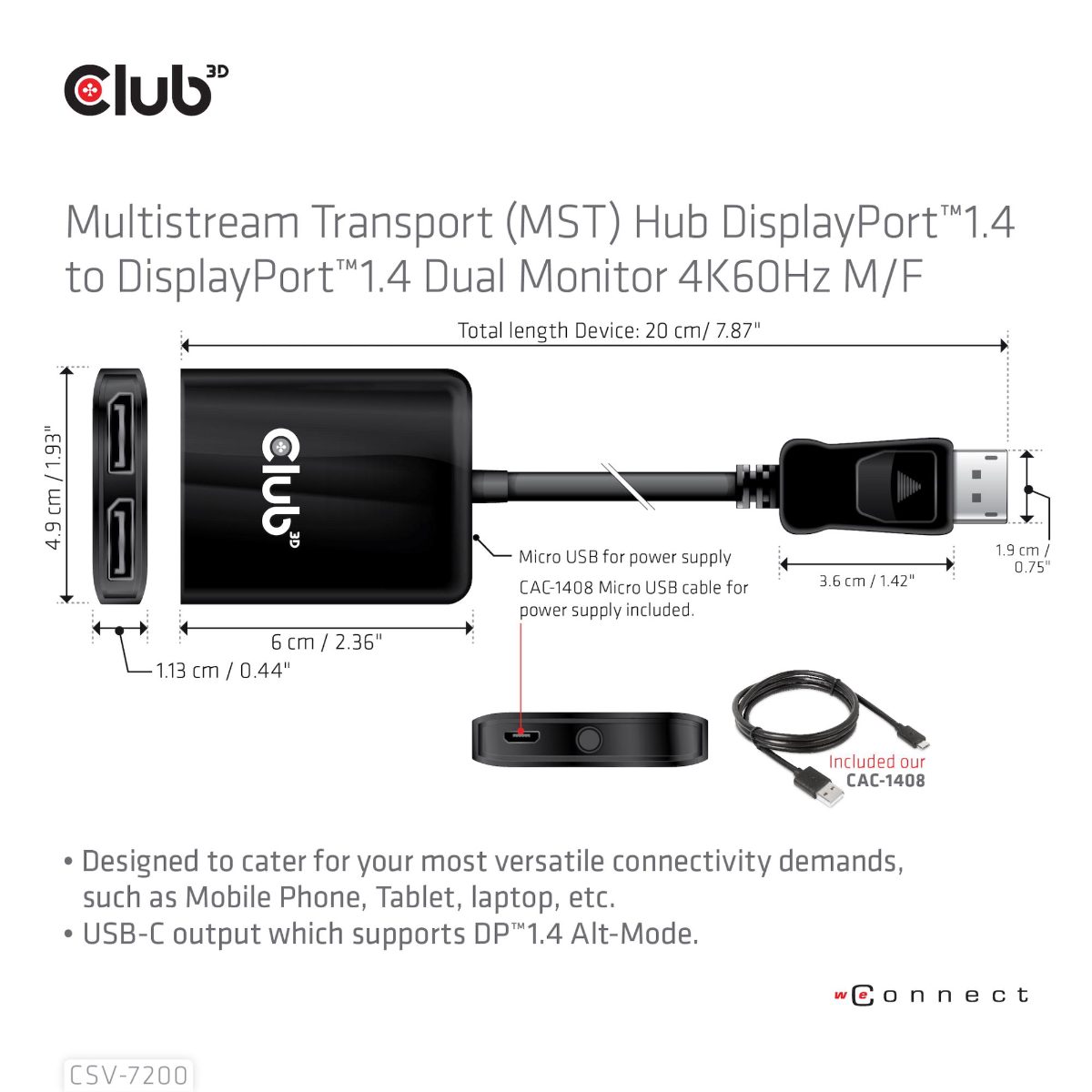

| Depth | 49 mm |
| Height | 11.3 mm |
| Weight | 50 g |
| Width | 60 mm |

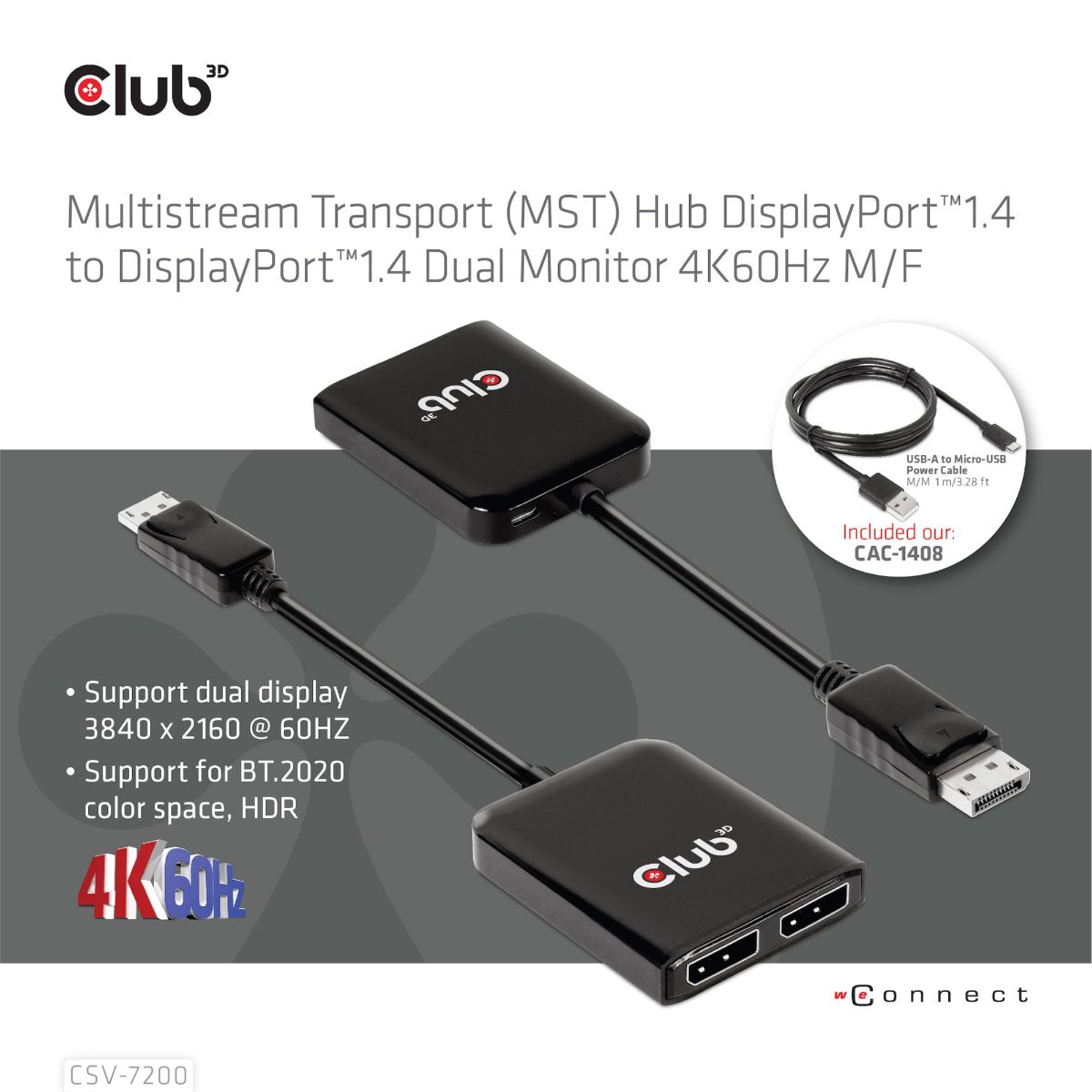

| Model name | Multistream Transport (MST) Hub DisplayPort™1.4 to DisplayPort™1.4 Dual Monitor 4K60Hz M/F |
