LG 22SM3G-B 21.5“ 1920x1080/250cd/m2/14ms/ HDMI USB, LG, 22SM3G
LG 22SM3G-B 21.5“ 1920x1080/250cd/m2/14ms/ HDMI USB, LG, 22SM3G, 21.5 ", Landscape, 16/7, WebOS, 14 ms, 178 °, 250 cd/m²
LG · 8806098661039
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 36 mo.
- Invoice: with every order
- EAN
- 8806098661039
- Brand
- LG
Description

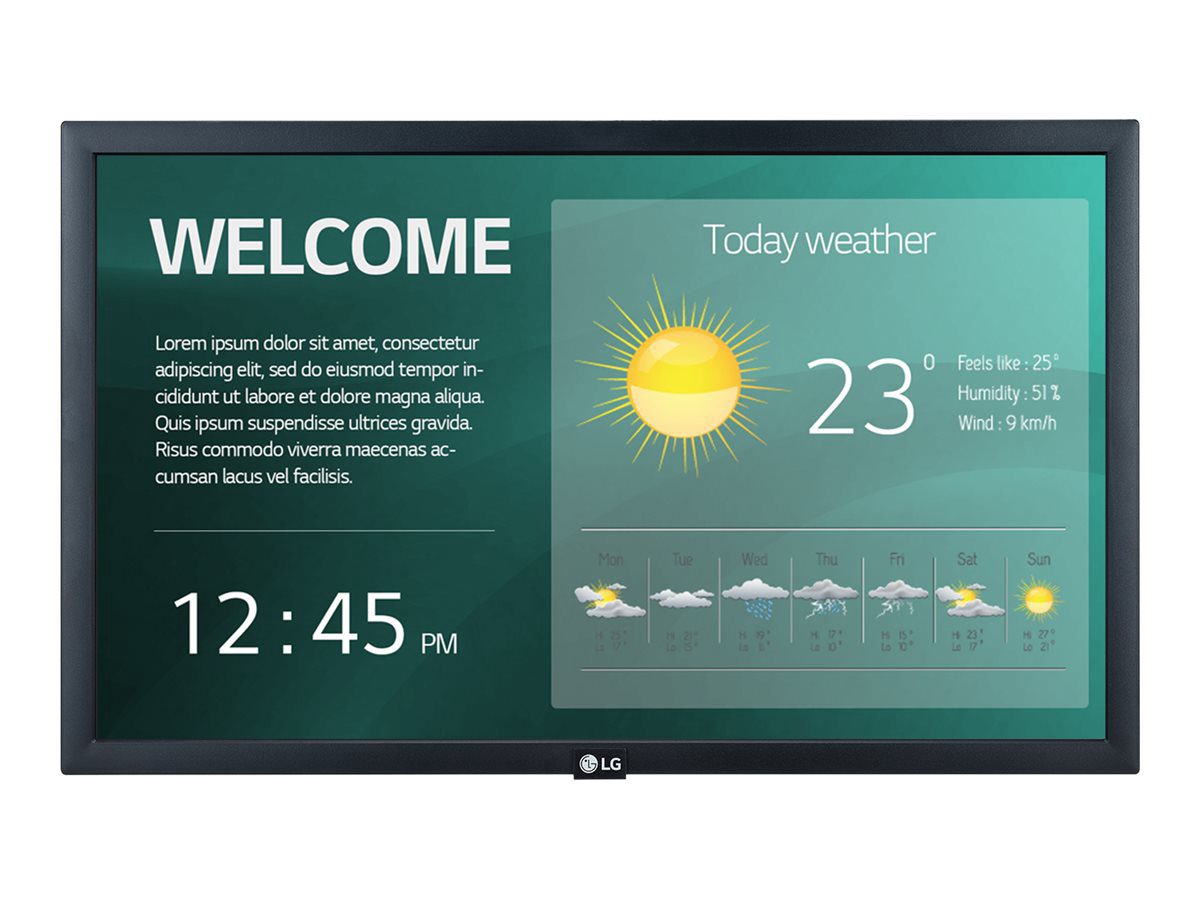

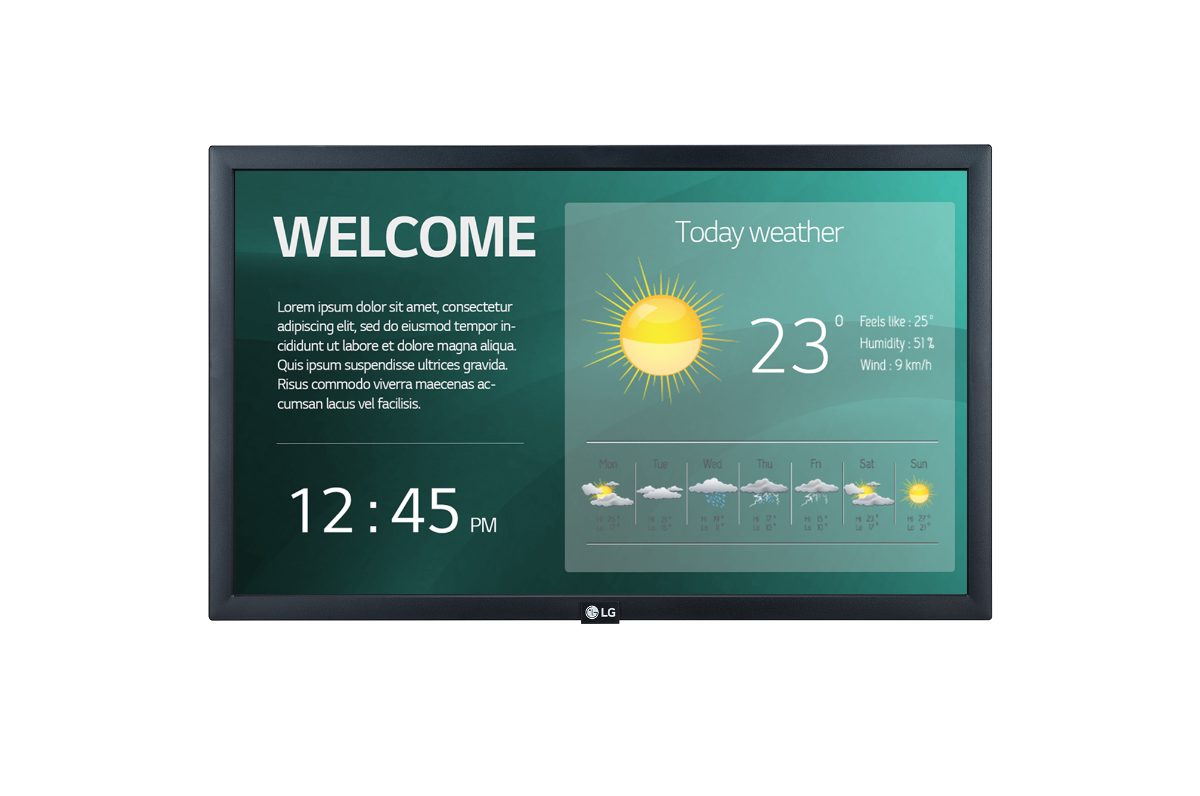

22" Signage with More Utility for Commercial Space
22SM3G delivers information and performs guide with more effective ways in various commercial space, which provides more convenient solution thanks to its upgraded webOS platform.
High Performance SoC with webOS
Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS smart signage platform enhances user convenience with intuitive GUI and simple app development tools.
Various Sensor Applications
LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players.
A Wide Range of Interfaces
Through its diverse interfaces, users can connect the display with various sources for optimal use. Also, the failover function supports users preparing backup sources in case an unexpected error occurs.
USB Plug & Play
22SM3G supports USB Plug & Play feature, so users can easily set content playback using a USB.
Remote Monitoring and Control
Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple 22SM3G displays in different locations in real-time. It is available on internet-connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.
Real-time Care Service with LG Signage365Care
The maintenance gets easier and faster with the optional service Signage365Care*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring stable operation of the client’s business.
- Brightness(Typ.) : 250 cd/m²
- Bezel : 16.3mm

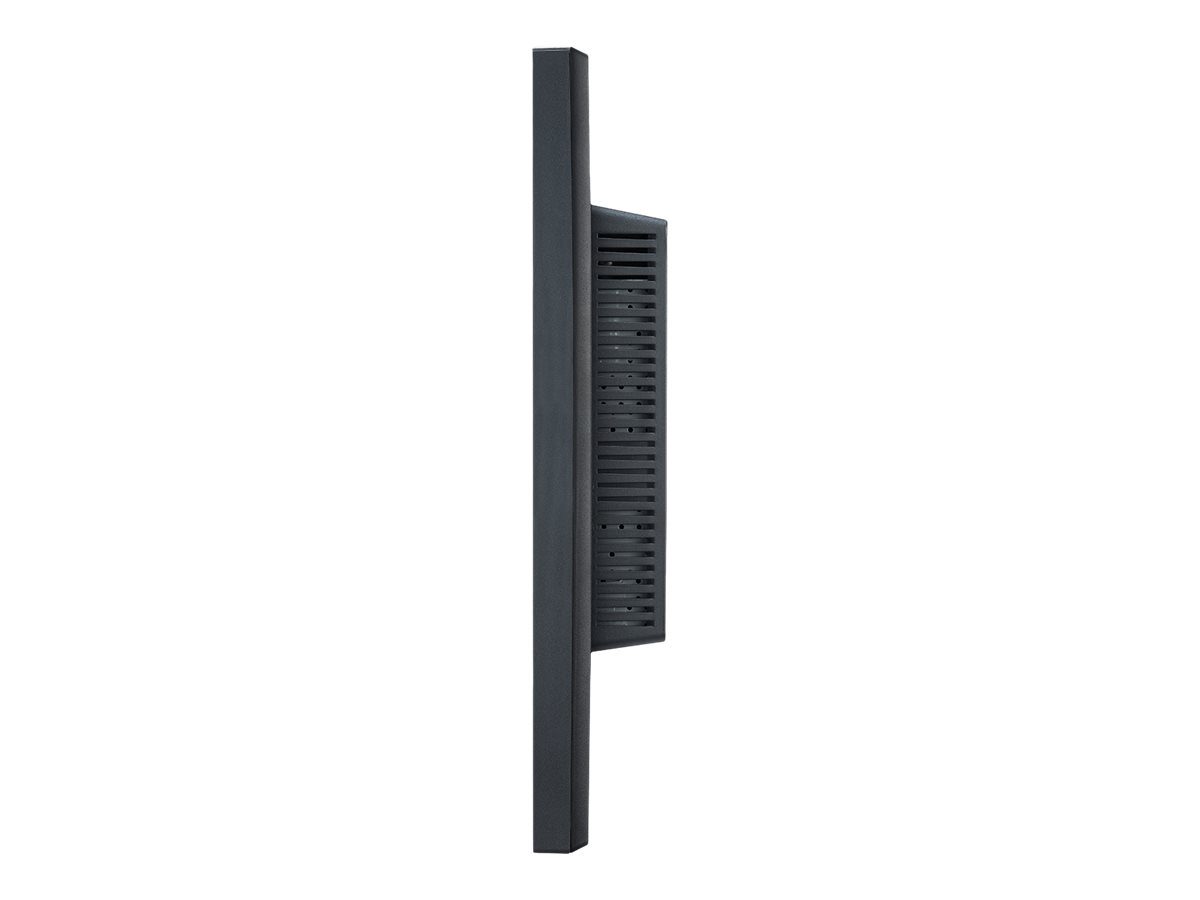

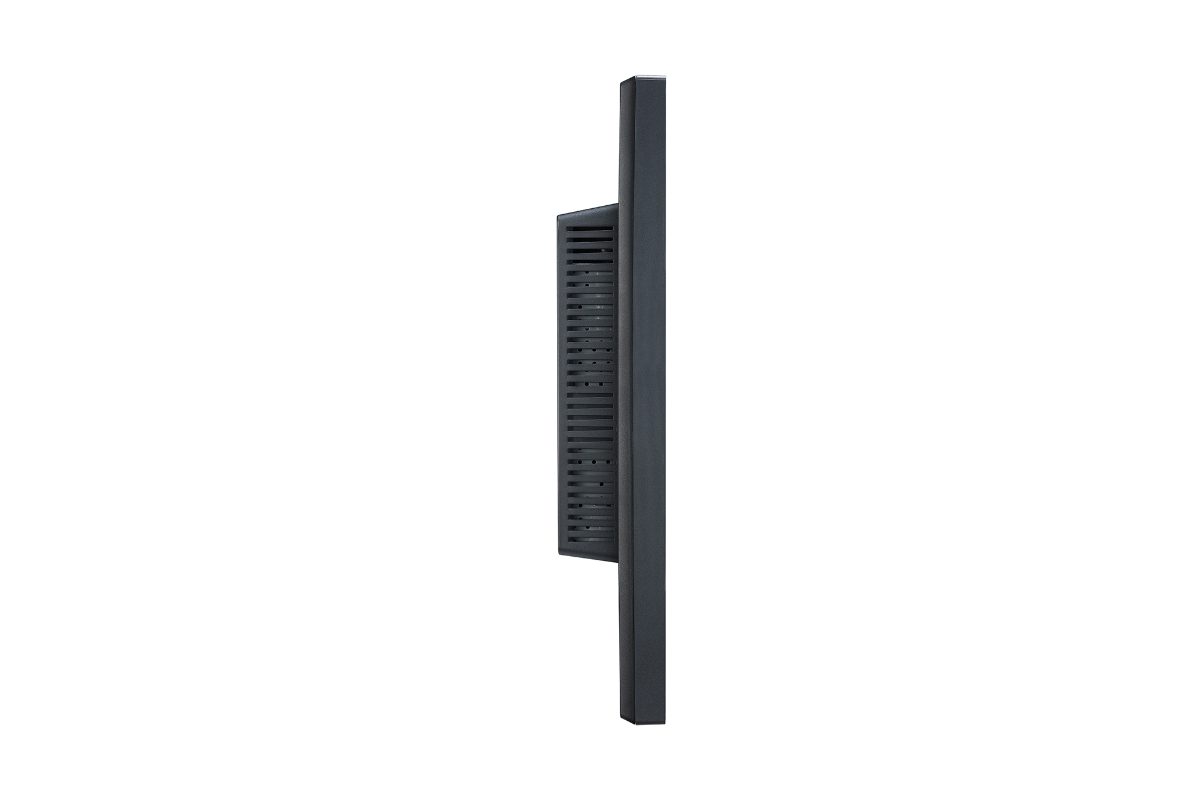

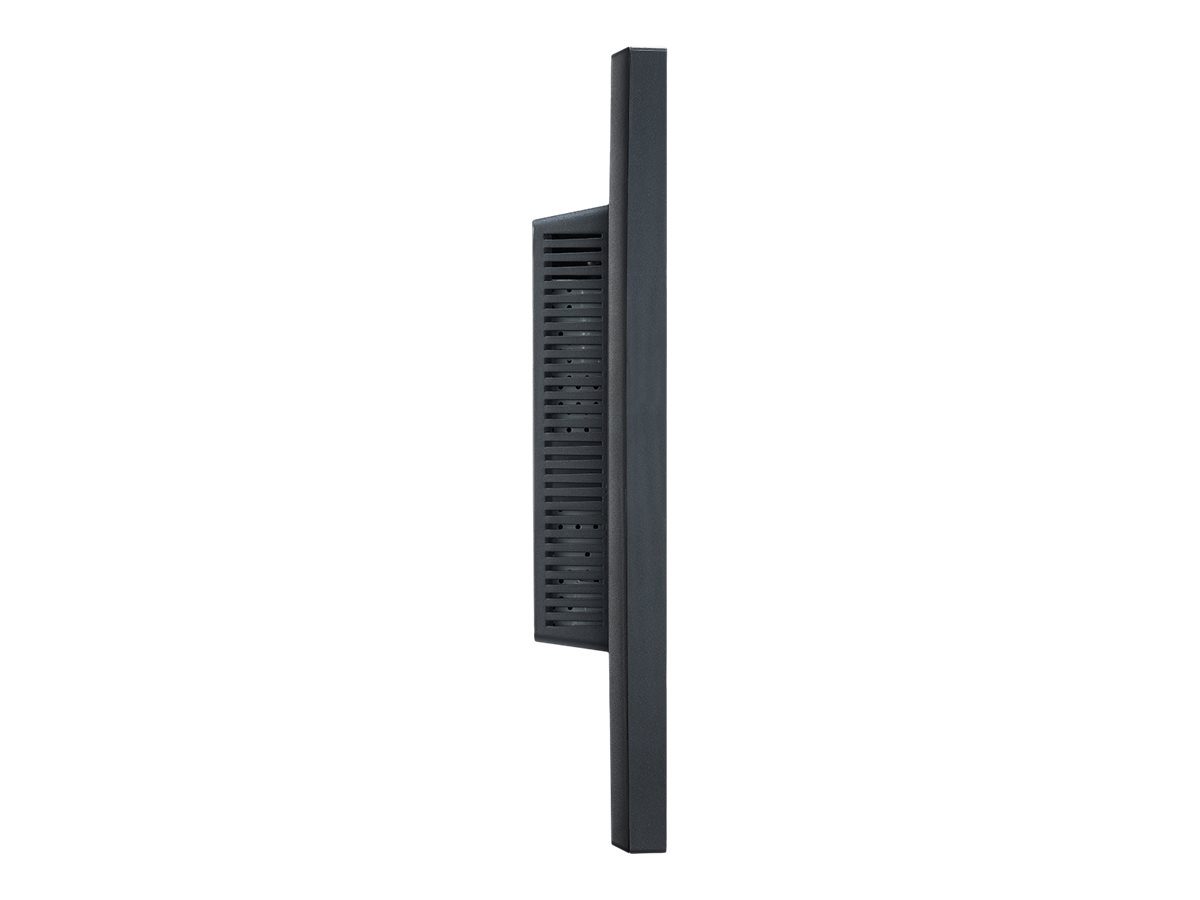

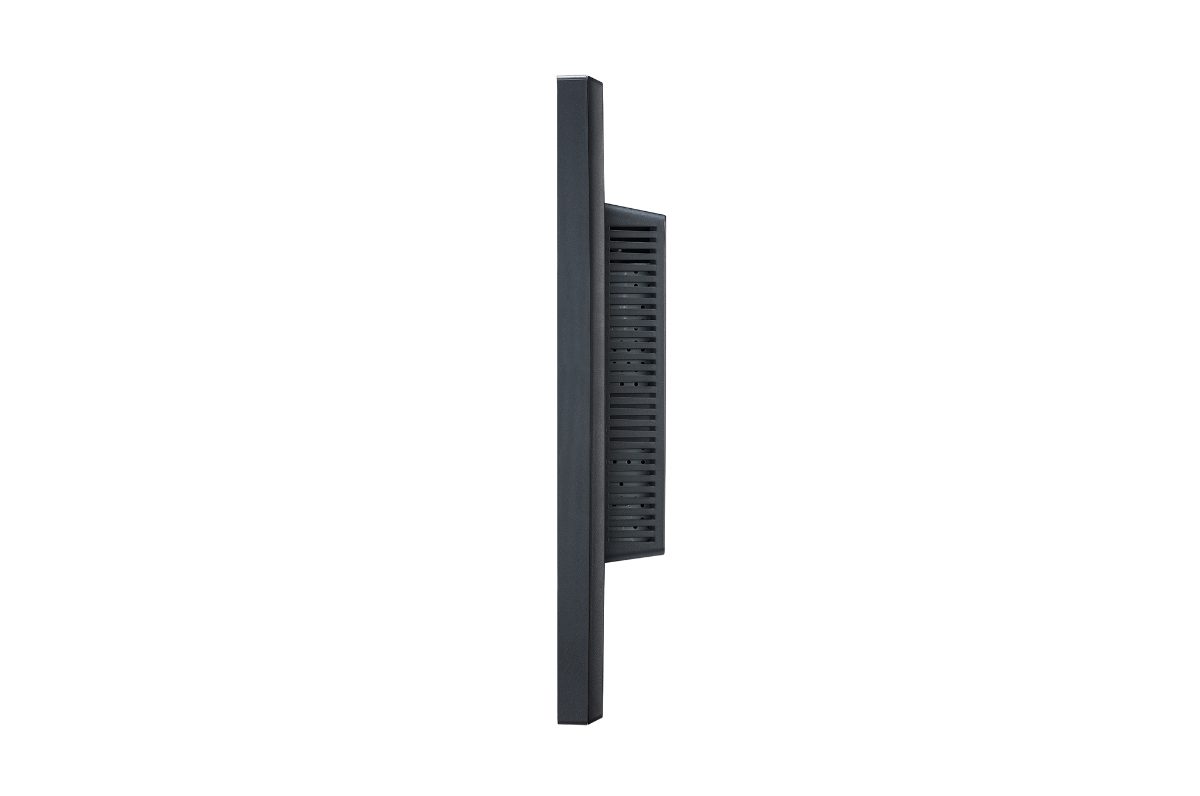

- Depth : 53.8mm

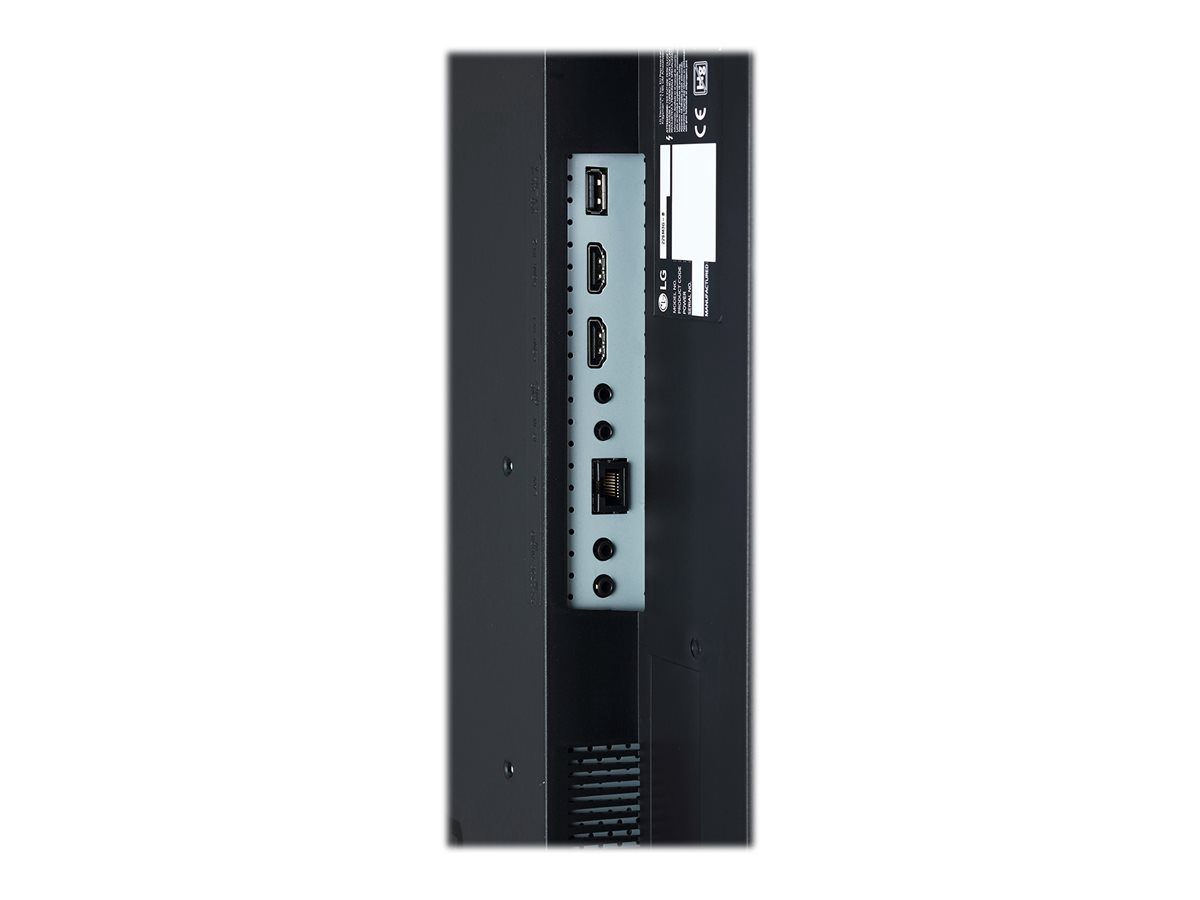

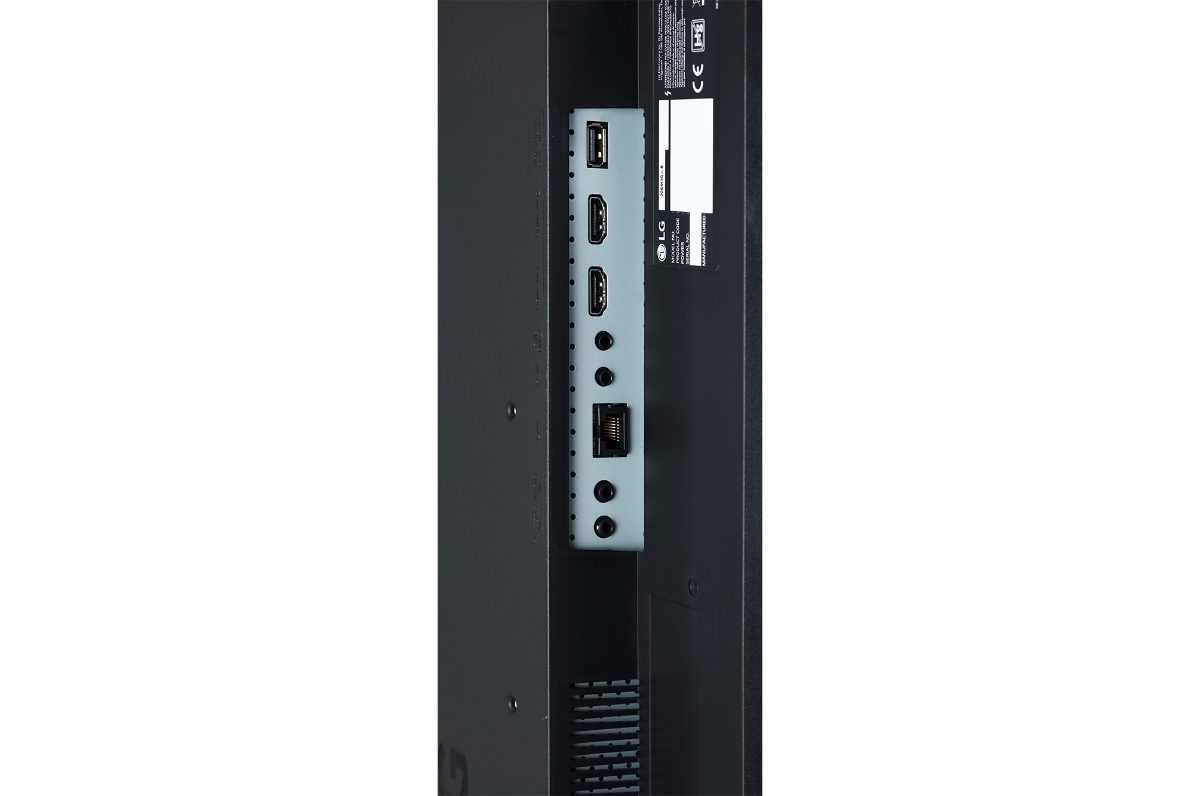

- Interface : HDMI(2) / USB 2.0 / RS232C / RJ45 / IR / Audio
- USB Plug & Play, Built-in Wi-Fi
Specifications
| Contrast ratio (dynamic) | 400000:1 |
| Contrast ratio | 1000:1 |
| Brightness | 250 cd/m² |
| Screen diagonal | 21.5 " |
| Screen diagonal (cm) | 55.88 cm |
| Resolution | 1920 x 1080 pixels |
| Display technology | IPS |
| HD type | Full HD |
| Aspect ratio | 16:9 |
| Touchscreen | No |
| Viewing angle, horizontal | 178 ° |
| Viewing angle, vertical | 178 ° |
| Audio (L/R) in | 1 |
| DVI port | No |
| Ethernet (RJ-45) ports | 1 |
| HDMI ports | 2 |
| RS-232 interface | Yes |
| USB port | Yes |
| Number of USB ports | 1 |
| USB hub version | 2.0 |
| Built-in speakers | Yes |
| Number of speakers | 2 |
| RMS output power | 2 W |
| Orientation | Horizontal |
| VESA pattern | 100 x 100 mm |
| Colour | Black |
| Form factor | Digital signage flat panel |
| VESA mounting | Yes |
| Operating hours | 16/7 |
| Intended use | Universal |
| Input frequency | 50 - 60 Hz |
| Input voltage | 100 - 240 V |
| Heat dissipation | 7.89 BTU/h |
| Power consumption (off) | 0.5 W |
| Power consumption (standby) | 1 W |
| Power consumption (typical) | 33 W |
| Built-in processor | Yes |
| Computer system | No |
| Memory capacity | 4 GB |
| Number of cores | 4 |
| Depth | 53.8 mm |
| Height | 302.1 mm |
| Weight | 3340 g |
| Width | 510.3 mm |
| Batteries included | Yes |
| Cables included | AC |
| Mounting kit included | Yes |
| Remote control included | Yes |
| Operating humidity | 10 - 80 % |
| Operating temperature | 0 - 40 °C |
| Non-operating relative humidity | 5 - 85 % |
| Storage temperature | -20 - 60 °C |
| Certification | CB, NRTL, EMC, FCC Class "A", CE, ErP |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Model | 22SM3G-B |
| Model name | 22SM3G-B Digital signage display 54.6 cm (21.5') IPS Wi-Fi 250 cd/m² Full HD Black Built-in processor 16/7 |
