Mainboard, ASROCK, AMD B550, SAM4, MicroATX, 1xPCI-Express 3.0 1x, 1xM.2
Mainboard, ASROCK, AMD B550, SAM4, MicroATX, 1xPCI-Express 3.0 1x, 1xM.2, 1xPCI-Express 4.0 16x, Memory DDR4, Memory slots 2, 1x15pin D-sub, 1xDVI, 1xHDMI, 2xUSB 2.0, 4xUSB 3.2, 1xPS/2, 1xRJ45, 3xAudio port, B550M-HDV
ASROCK · 4710483931635
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 24 mo.
- Invoice: with every order
- EAN
- 4710483931635
- Brand
- ASROCK
Description
6 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Hyper M.2 (PCIe Gen4 x4)
Supports the next generation PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

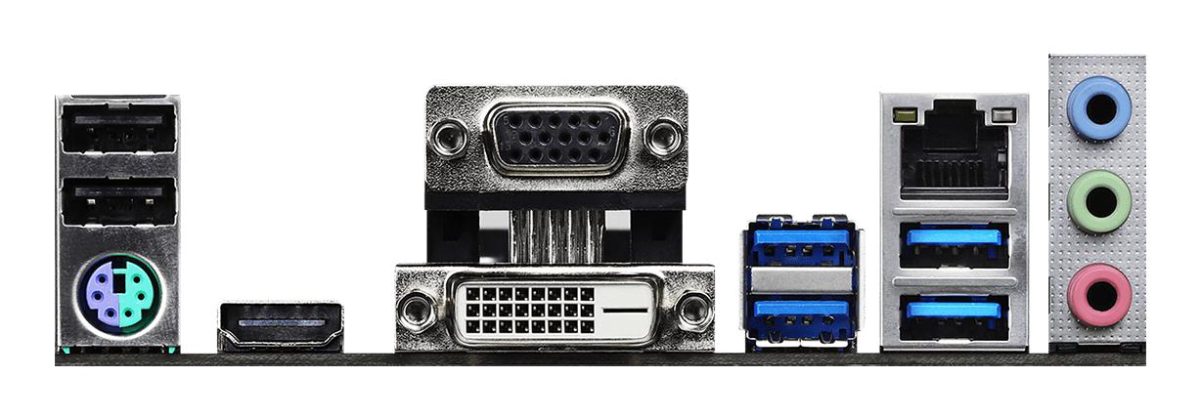

3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.
*Supported only with processors with integrated graphics. Please check CPU support list from each motherboard webpage.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
- Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors
- 6 Power Phase Design
- Supports DDR4 4733+ (OC)
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
- Graphics Output Options: HDMI, DVI-D, D-Sub
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
- 4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
- 6 USB 3.2 Gen1 (2 Front, 4 Rear)
- Gigabit LAN
Specifications
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Chipset | AMD B550 |
| Chipset family | AMD |
| Form factor | micro ATX |
| Compatible processor series | AMD Ryzen 3000 Series |
| Maximum number of SMP processors | 1 |
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| ECC compatibility | ECC & Non-ECC |
| Maximum memory | 64 GB |
| Memory channels | Dual-channel |
| Memory form factor | DIMM |
| Number of memory slots | 2 |
| Supported memory clock speeds | 2133/2400/2667/2933/3200/3466/3600/3733/3800/3866/4000/4133/4200/4266/4333/4400/4466/4533/4600/4666 MHz |
| Supported memory types | DDR4-SDRAM |
| Unbuffered memory | Yes |
| Supported drive interfaces | M.2,SATA III |
| DirectX version | 12.0 |
| Graphics model | Radeon Vega |
| Graphics family | AMD |
| HDCP | Yes |
| Integrated graphics | Yes |
| ATX power connector | Yes |
| CPU fan connector | Yes |
| Front panel audio connector | Yes |
| Fan connector count | 2 |
| SATA connectors | 4 |
| Molex power connectors | 1 |
| TPM header | Yes |
| Internal USB 2.0 connectors | 4 |
| Internal USB 3.2 Gen 1 connectors | 2 |
| DVI-D ports | 1 |
| Ethernet (RJ-45) ports | 1 |
| HDMI ports | 1 |
| PS/2 ports | 1 |
| USB 2.0 ports | 2 |
| USB 3.2 Gen 1 Type-A ports | 4 |
| VGA (D-Sub) input ports | 1 |
| Ethernet type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| LAN controller | Realtek RTL8111H |
| Wake-on-LAN | Yes |
| Wi-Fi | No |
| BIOS type | UEFI AMI |
| Depth | 201 mm |
| Height | 70 mm |
| Width | 230 mm |
| Drivers included | Yes |
| Weight | 465 g |
