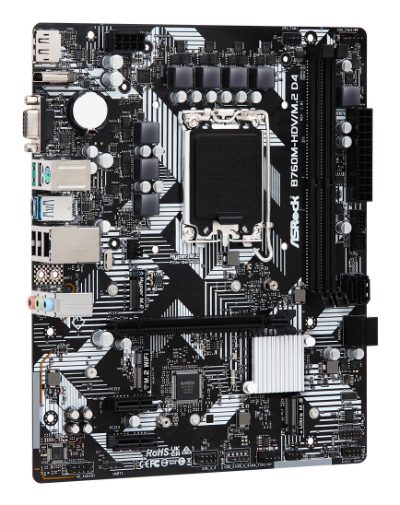

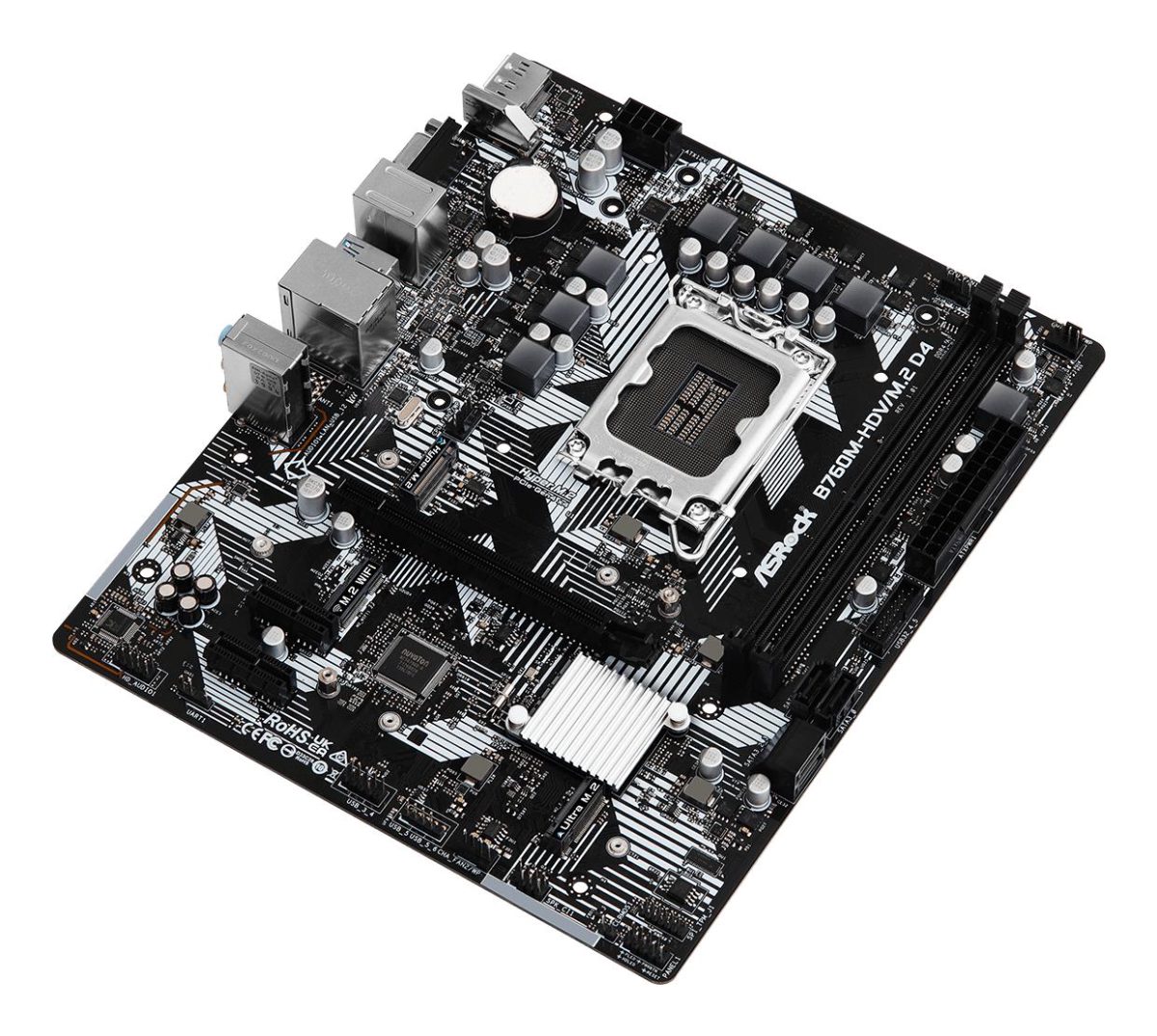

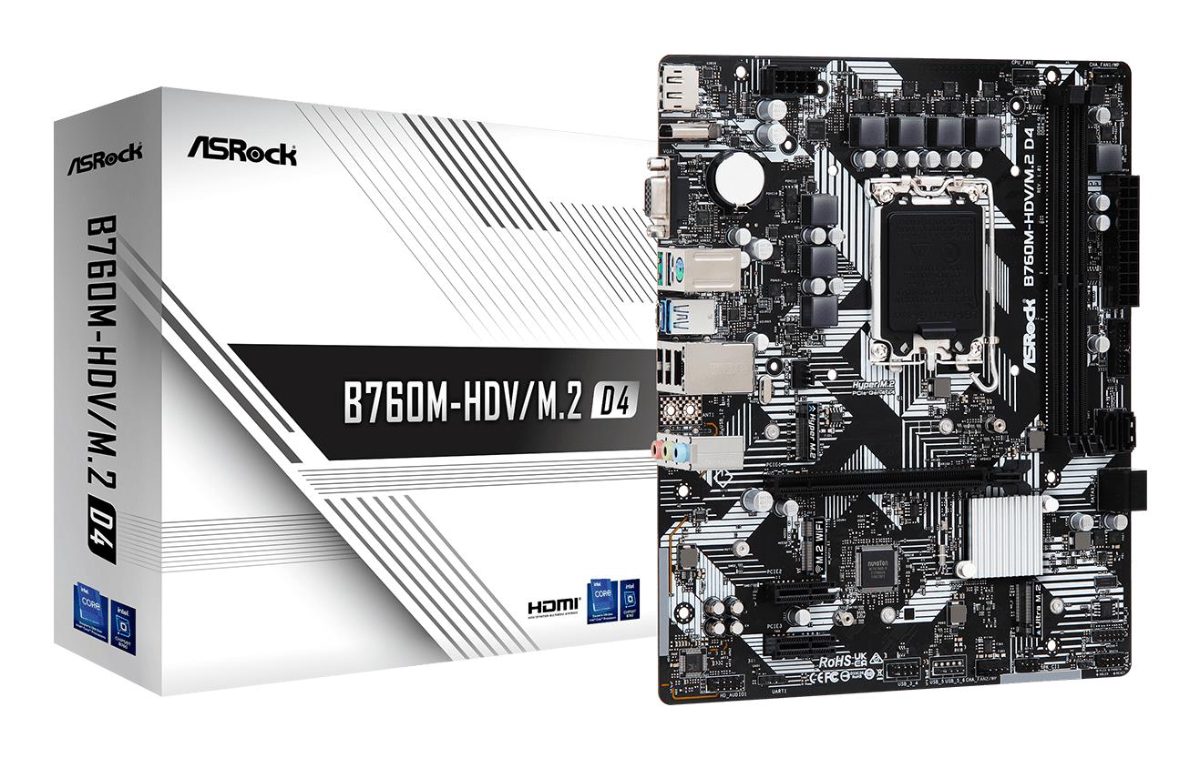

Mainboard, ASROCK, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR4
Mainboard, ASROCK, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR4, Memory slots 2, 2xPCI-Express 3.0 1x, 1xPCI-Express 4.0 16x, 2xM.2, 1x15pin D-sub, 1xHDMI, 1xDisplayPort, 2xUSB 2.0, 3xUSB 3.2, 1xUSB-C, 1xPS/2, 1xRJ45, 3xAudio port, B760M-HDV/M.2D4
ASROCK · 4710483942020
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 36 mo.
- Invoice: with every order
- EAN
- 4710483942020
- Brand
- ASROCK
Description
5+1+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
High Speed M.2 Solution(PCIe Gen4 x4)
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.

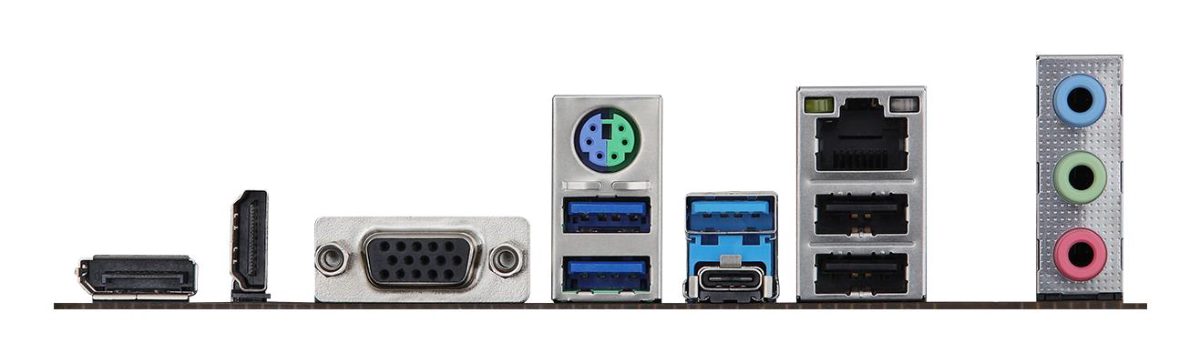

3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
- ‧Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
- 5+1+1 Power Phase
- Supports DDR4 5333MHz (OC)
- 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
- Graphics Output Options: HDMI, DisplayPort, D-Sub
- Realtek ALC887/897 7.1 CH HD Audio Codec
- 4 SATA3, 1 Hyper M.2 (PCIe Gen4x4)
- 1 Ultra M.2 (PCIe Gen3x4 & SATA)
- 1 USB 3.2 Gen1 Type-C (Rear)
- 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
- 5 USB 2.0 (2 Rear, 3 Front)
- Realtek 1G LAN
- Supports ASRock Auto Driver Installer
Specifications
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Certification | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
| Component for | PC |
| Chipset | Intel B760 |
| Chipset family | Intel |
| Form factor | micro ATX |
| Supported Windows operating systems | Windows 10 Education x64/Windows 11 x64 |
| Compatible processor series | Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9 |
| Maximum number of SMP processors | 1 |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| ECC compatibility | Non-ECC |
| Maximum memory | 64 GB |
| Memory channels | Dual-channel |
| Memory form factor | DIMM |
| Number of memory slots | 2 |
| Supported memory clock speeds | 3200/4400/5333 MHz |
| Supported memory types | DDR4-SDRAM |
| Unbuffered memory | Yes |
| RAID levels | 0/1/10/5 |
| RAID support | Yes |
| Supported drive interfaces | M.2,SATA III |
| HDCP | Yes |
| Multi-GPU technology | Not supported |
| ATX power connector | Yes |
| Chassis intrusion connector | Yes |
| CPU fan connector | Yes |
| EPS power connector | Yes |
| Front panel connector | Yes |
| SATA connectors | 4 |
| TPM header | Yes |
| Internal USB 2.0 connectors | 3 |
| Internal USB 3.2 Gen 1 connectors | 2 |
| DisplayPort out version | 1.4 |
| DisplayPorts | 1 |
| Ethernet (RJ-45) ports | 1 |
| HDMI ports | 1 |
| Line in | Yes |
| Microphone input | Yes |
| PS/2 ports | 1 |
| USB 2.0 ports | 2 |
| USB 3.2 Gen 1 Type-A ports | 3 |
| USB 3.2 Gen 1 Type-C ports | 1 |
| VGA (D-Sub) input ports | 1 |
| Ethernet type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| LAN controller | Realtek RTL8111H |
| Wi-Fi | No |
| M.2 slot count | 1 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Depth | 201 mm |
| Width | 244 mm |
| Cables included | SATA |
| Model | B760M-HDV/M.2 D4 |
