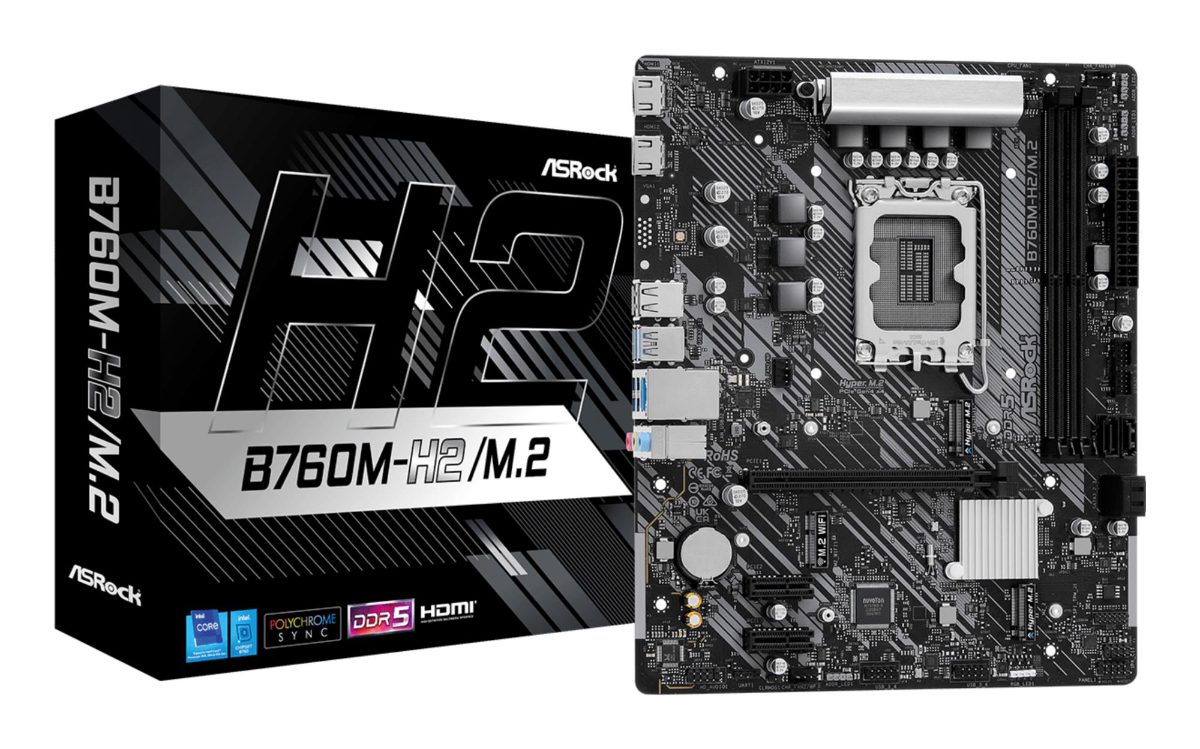

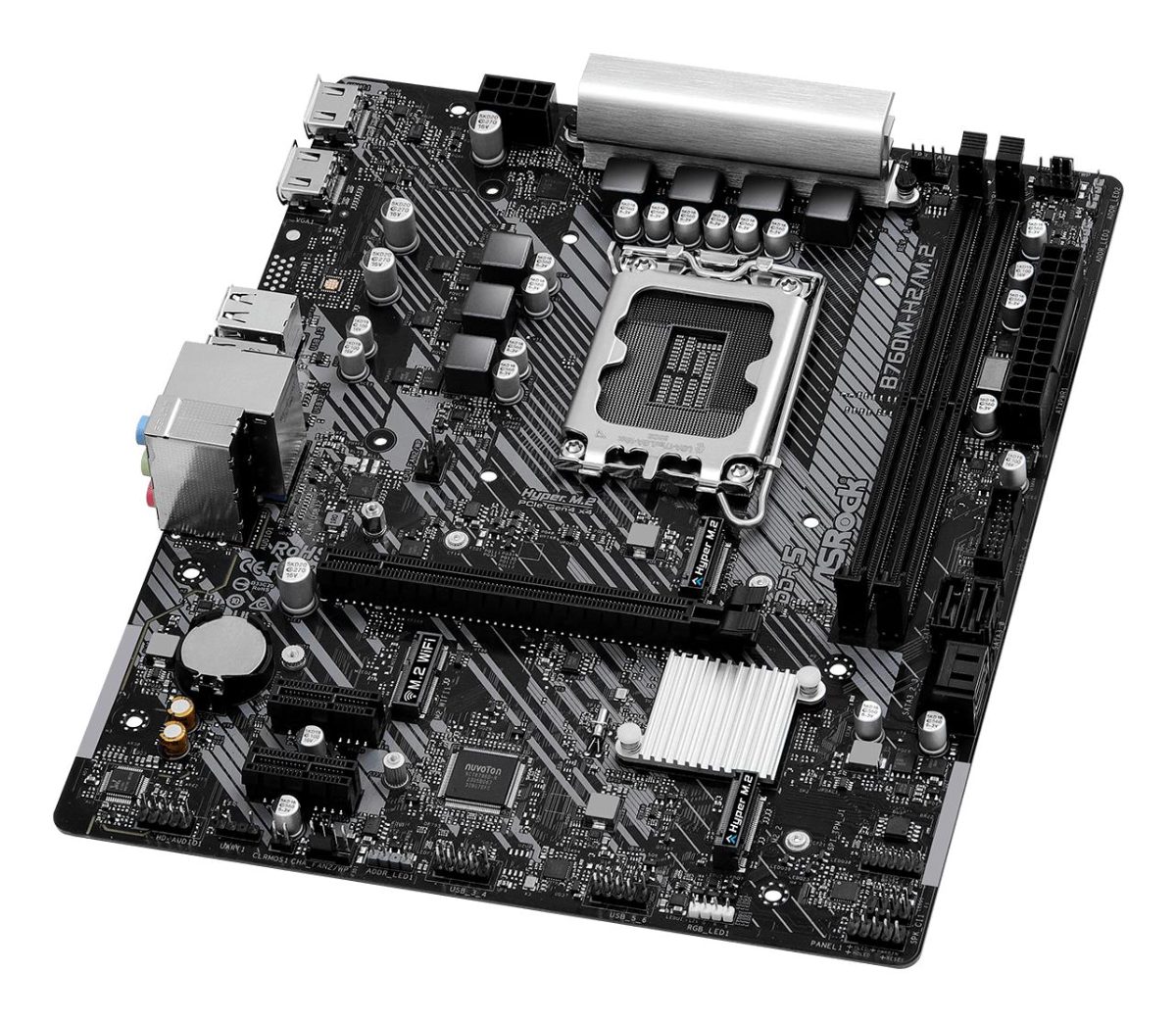

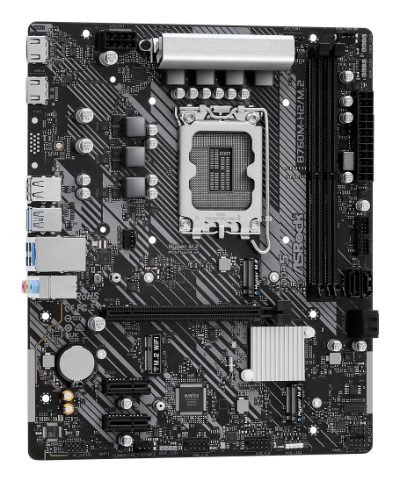

Mainboard, ASROCK, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR5
Mainboard, ASROCK, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR5, Memory slots 2, 2xPCI-Express 3.0 1x, 1xPCI-Express 4.0 16x, 3xM.2, 2xHDMI, 2xUSB 2.0, 4xUSB 3.2, 1xRJ45, 3xAudio port, B760M-H2/M.2
ASROCK · 4710483944215
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 36 mo.
- Invoice: with every order
- EAN
- 4710483944215
- Brand
- ASROCK
Description
POLYCHROME RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects
High Speed M.2 Solution(PCIe Gen4 x4)
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
Dual HDMI Outputs
Equipped with two of the most widely used HDMI connectors, enjoy better multi-monitor compatibility and an easy setup experience.
Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
- 5+1+1 Power Phase
- 2 x DDR5 DIMMs
- Supports Dual Channel, up to 7200+ (OC)
- 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi

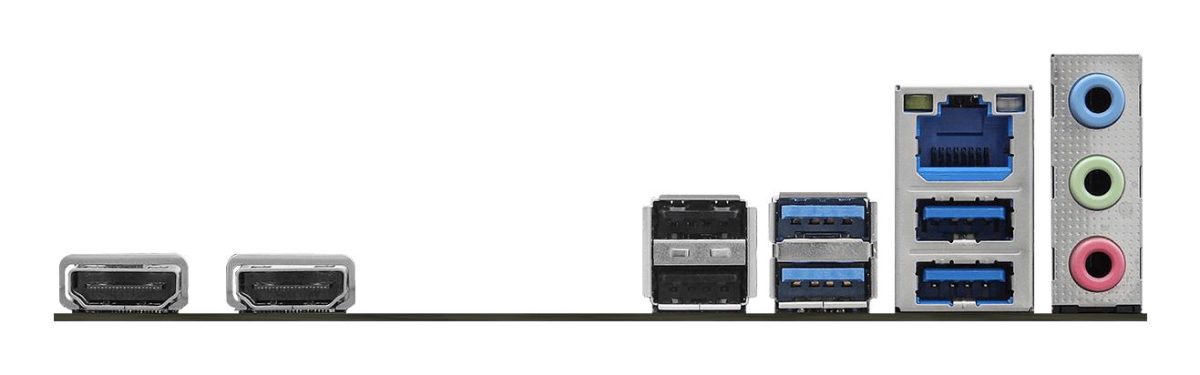

- Graphics Output Options: 2 HDMI
- Realtek ALC897 7.1 CH HD Audio Codec
- 4 SATA3, 2 Hyper M.2 (PCIe Gen4 x4)
- 6 USB 3.2 Gen1 Type-A (4 Rear, 2 Front)
- 6 USB 2.0 (2 Rear, 4 Front)
- Dragon 2.5G LAN
- Supports ASRock Auto Driver Installer
Specifications
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Certification | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
| Component for | PC |
| Chipset | Intel B760 |
| Chipset family | Intel |
| Form factor | micro ATX |
| Supported Windows operating systems | Windows 10 x64/Windows 11 x64 |
| Compatible processor series | Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9 |
| Maximum memory | 128 GB |
| Maximum number of SMP processors | 1 |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| ECC compatibility | Non-ECC |
| Memory channels | Dual-channel |
| Memory form factor | DIMM |
| Number of memory slots | 2 |
| Memory frequency (max) | 7200 MHz |
| Supported memory clock speeds | 5600/6800/7200 MHz |
| Supported memory types | DDR5-SDRAM |
| Unbuffered memory | Yes |
| Supported HDDs | 6 |
| Supported storage drives | 4 |
| RAID levels | 0/1/10/5 |
| RAID support | Yes |
| Supported drive interfaces | M.2,SATA III |
| HDCP | Yes |
| Multi-GPU technology | Not supported |
| ATX power connector | Yes |
| Chassis intrusion connector | Yes |
| CPU fan connector | Yes |
| EPS power connector | Yes |
| Front panel connector | Yes |
| SATA connectors | 4 |
| TPM header | Yes |
| Internal USB 2.0 connectors | 4 |
| Internal USB 3.2 Gen 1 connectors | 2 |
| Ethernet (RJ-45) ports | 1 |
| HDMI ports | 2 |
| HDMI version | 2.1 |
| Line in | Yes |
| Microphone input | Yes |
| PS/2 ports | 1 |
| USB 2.0 ports | 2 |
| USB 3.2 Gen 1 Type-A ports | 4 |
| USB 3.2 Gen 1 Type-C ports | 1 |
| Ethernet type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| M.2 slot count | 2 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Depth | 201 mm |
| Width | 244 mm |
| Cables included | SATA |
| Model | B760M-H2/M.2 |
