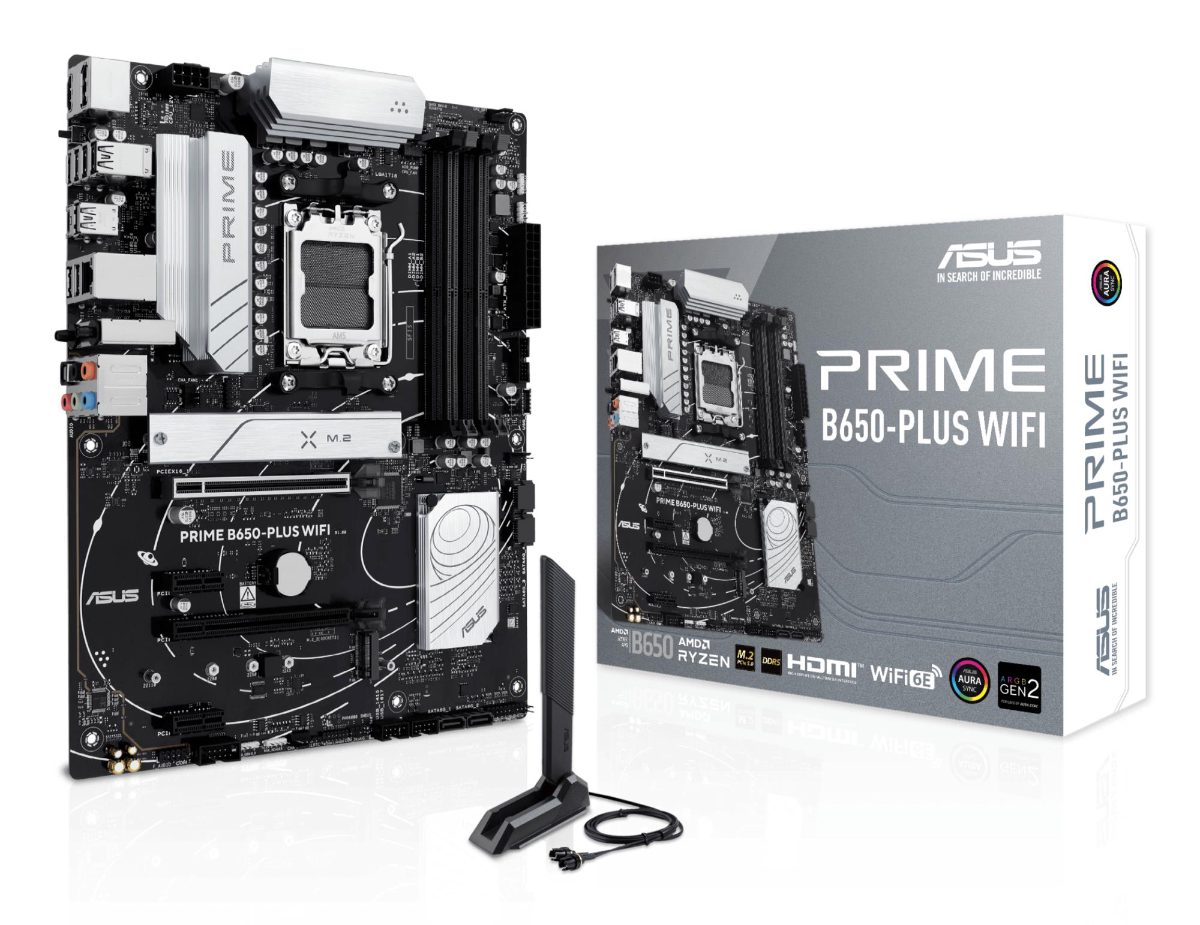

Mainboard, ASUS, AMD B650, SAM5, ATX, Memory DDR5, 2xPCI-Express 4.0 1x

Name: Mainboard, ASUS, AMD B650, SAM5, ATX, Memory DDR5, 2xPCI-Express 4.0 1x, 2xPCI-Express 4.0 16x, 2xM.2, 1xHDMI, 1xDisplayPort, 2xUSB 2.0, 2xUSB 3.0, 3xUSB 3.2, 2xUSB-C, 1xOptical S/PDIF, 1xRJ45, 5xAudio port, PRIMEB650-PLUSWIFI
Brand: ASUS
SKU: 4711387760895

Mainboard, ASUS, AMD B650, SAM5, ATX, Memory DDR5, 2xPCI-Express 4.0 1x, 2xPCI-Express 4.0 16x, 2xM.2, 1xHDMI, 1xDisplayPort, 2xUSB 2.0, 2xUSB 3.0, 3xUSB 3.2, 2xUSB-C, 1xOptical S/PDIF, 1xRJ45, 5xAudio port, PRIMEB650-PLUSWIFI

ASUS · 4711387760895

—

The invoice is sent as soon as you order.

Out of stock

Payment: bank transfer or cash on delivery
Delivery: 1–3 working days, anywhere in Latvia
Warranty: 36 mo.
Invoice: with every order

EAN: 4711387760895
Brand: ASUS

Description

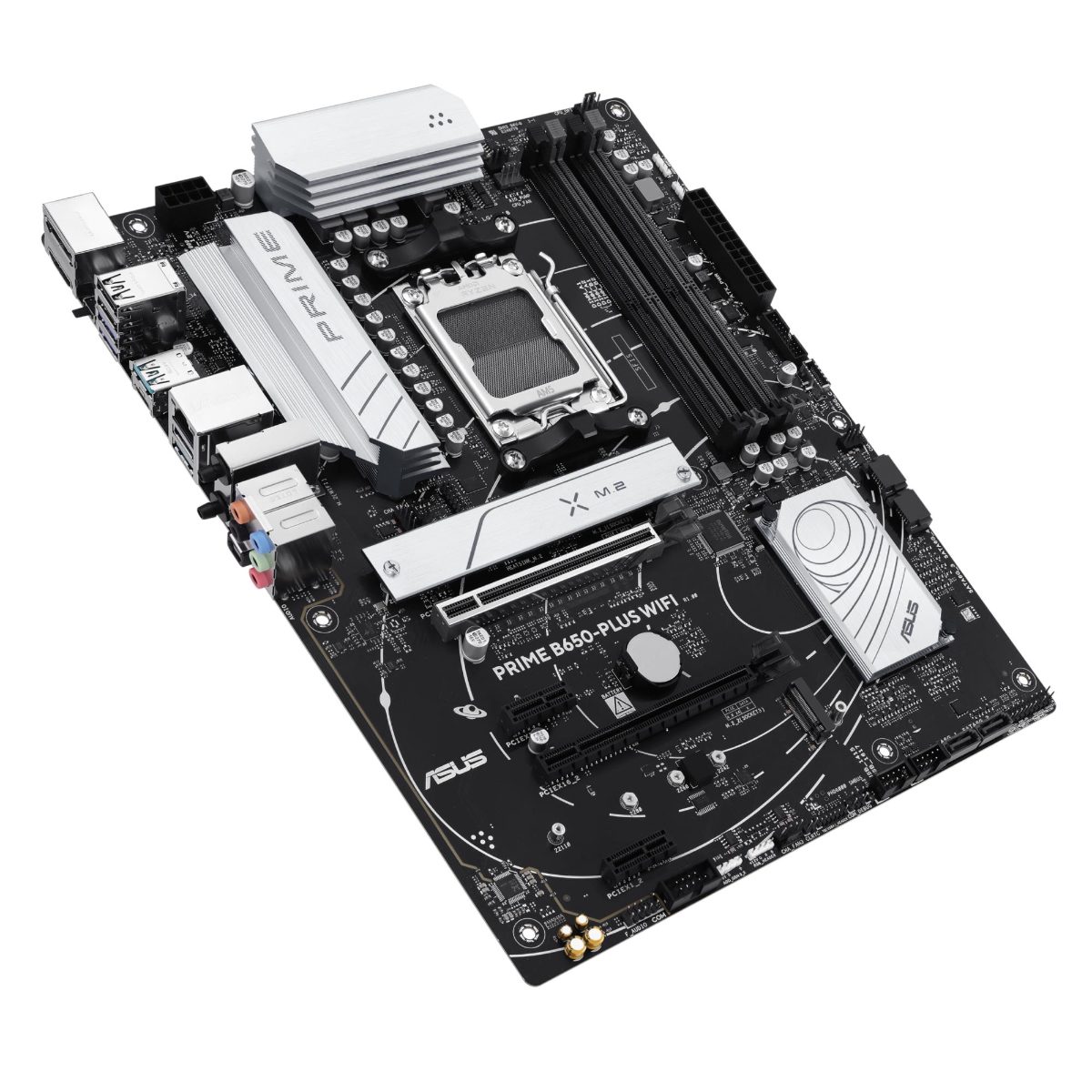

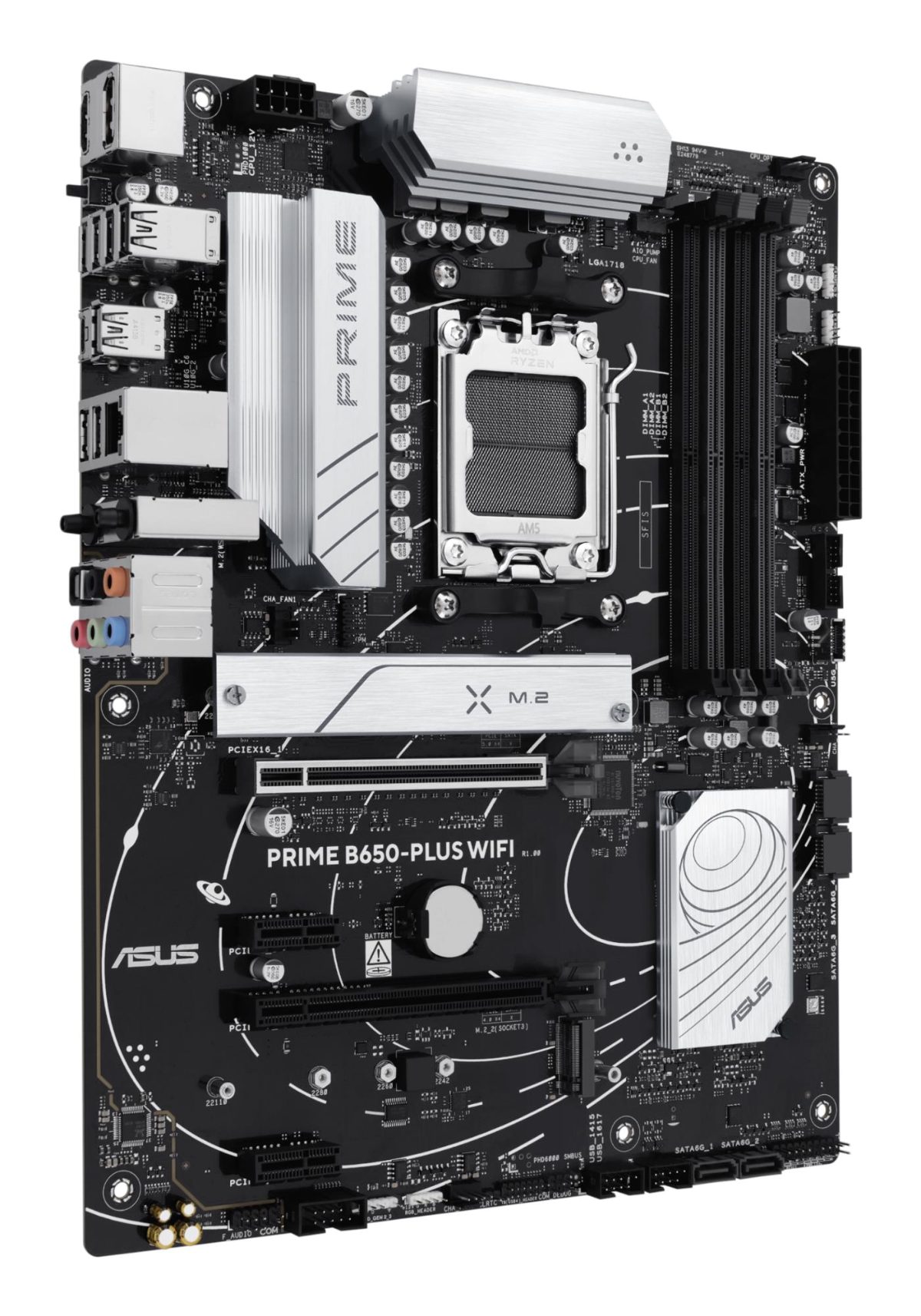

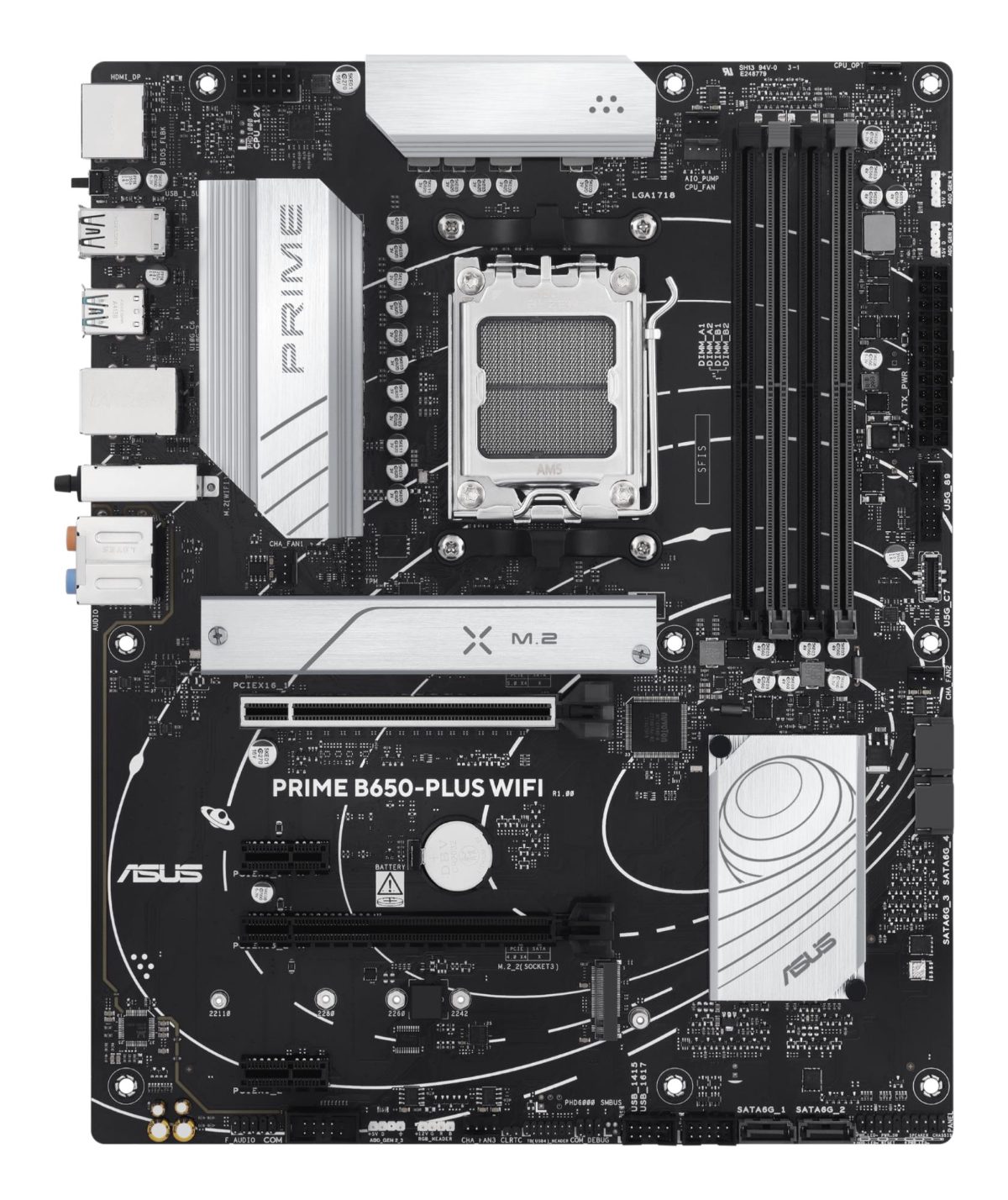

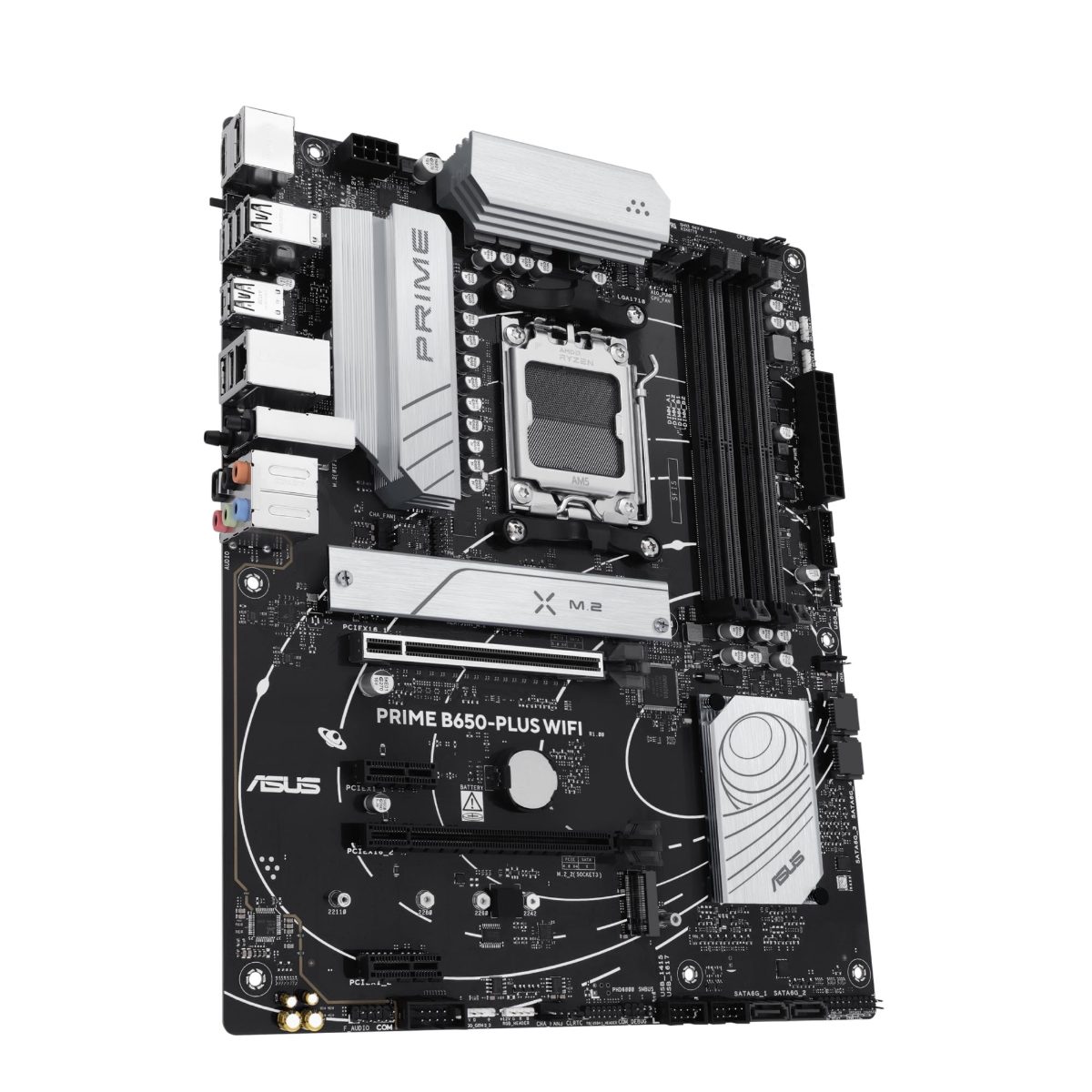

B650-PLUS WIFI
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 9000 & 8000 & 7000 Series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B650-PLUS WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.

AMD AM5 Socket: Ready for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

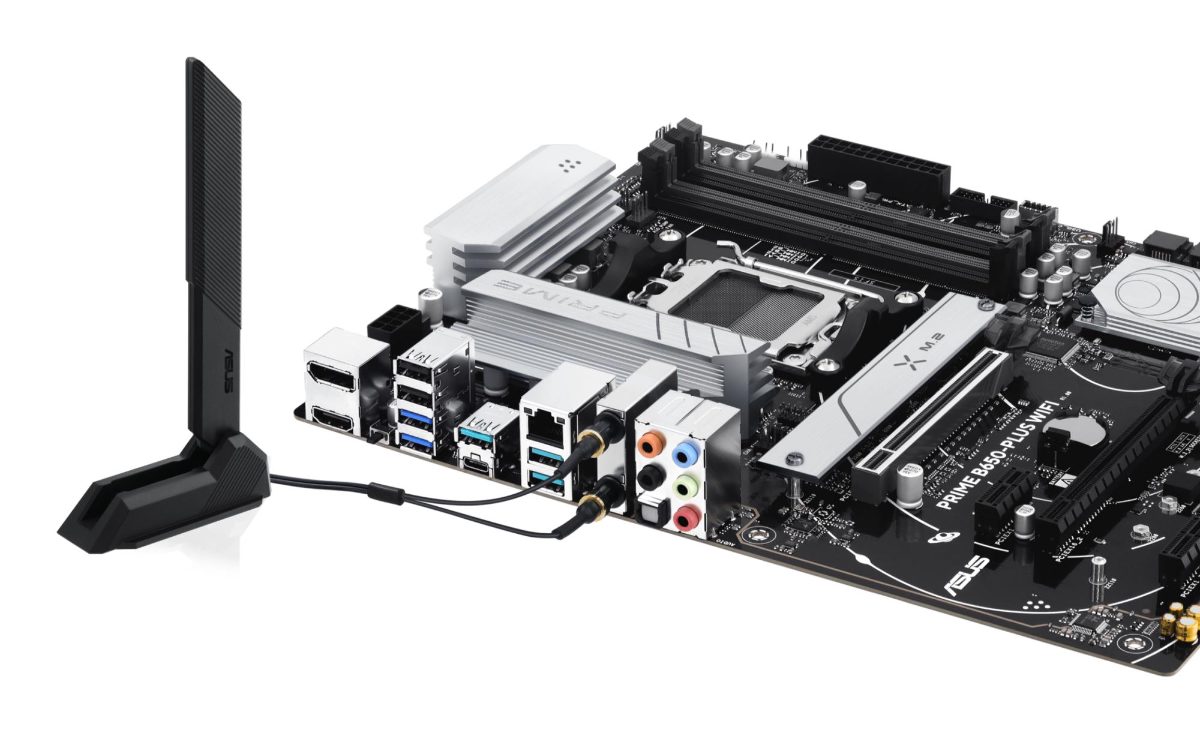

Ultrafast Connectivity: WIFI 6E, M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 10Gbps Type-C®, front USB 5Gbps Type-C®, Thunderbolt™ 4 header support
ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
Comprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware

Specifications

Audio output channels	7.1 channels
Component for	PC
Chipset	AMD B650
Chipset family	AMD
Form factor	ATX
Supported Windows operating systems	Windows 10 x64/Windows 11
Compatible processor series	AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor manufacturer	AMD
Processor socket	Socket AM5
ECC compatibility	ECC & Non-ECC
Maximum memory	192 GB
Memory channels	Dual-channel
Memory form factor	DIMM
Number of memory slots	4
Memory frequency (max)	7600 MHz
Supported memory clock speeds	4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800 MHz
Supported memory types	DDR5-SDRAM
Unbuffered memory	Yes
Supported HDDs	4
Supported storage drives	6
RAID levels	0/1/10
RAID support	Yes
Supported drive interfaces	M.2,SATA III
Supported drive types	HDD & SSD
Multi-GPU technology	Not supported
12V power connector	Yes
ATX power connector	Yes
CPU fan connector	Yes
EPS power connector	Yes
Front panel audio connector	Yes
Front panel connector	Yes
Fan connector count	3
COM ports	1
Number of CPU fan connectors	2
Number of RGB LED pin headers	1
SATA connectors	4
RGB LED pin header	Yes
Thunderbolt headers	1
TPM header	Yes
Internal USB 2.0 connectors	2
Internal USB 3.2 Gen 1 connectors	2

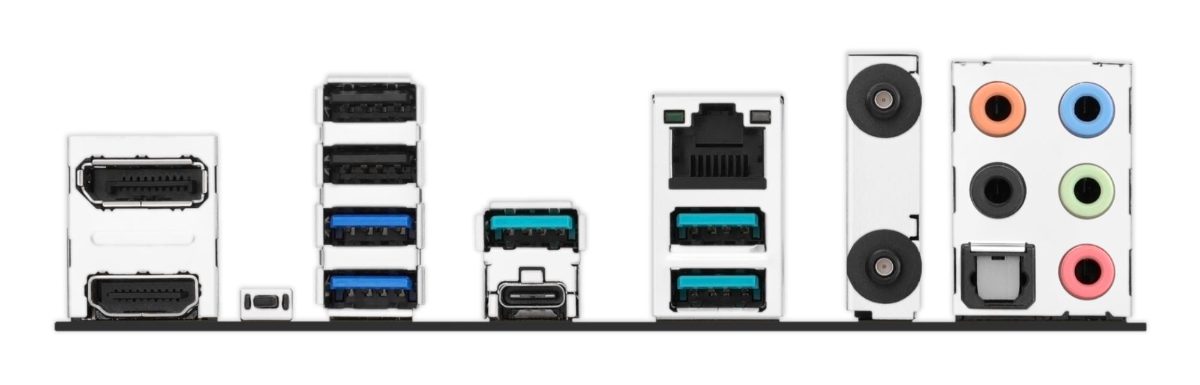

DisplayPorts	1
Ethernet (RJ-45) ports	1
HDMI ports	1
S/PDIF out connector	Yes
USB 2.0 ports	2
USB 3.2 Gen 1 Type-A ports	2
USB 3.2 Gen 2 Type-A ports	3
USB 3.2 Gen 2 Type-C ports	1
Wi-Fi AP antenna jack	1
Bluetooth	Yes
Bluetooth version	5.3
Ethernet type	2.5 Gigabit Ethernet
Ethernet LAN	Yes
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 6E (802.11ax)
1st M.2 highest PCI Express generation	5.0
1st M.2 largest key size	22110
2nd M.2 highest PCI Express generation	4.0
2nd M.2 largest key size	22110
M.2 slot count	2
PCI Express x1 (Gen 4.x) slots	2
PCI Express x16 (Gen 4.x) slots	2
BIOS memory size	256 Mbit
BIOS type	UEFI AMI
Depth	244 mm
Width	305 mm

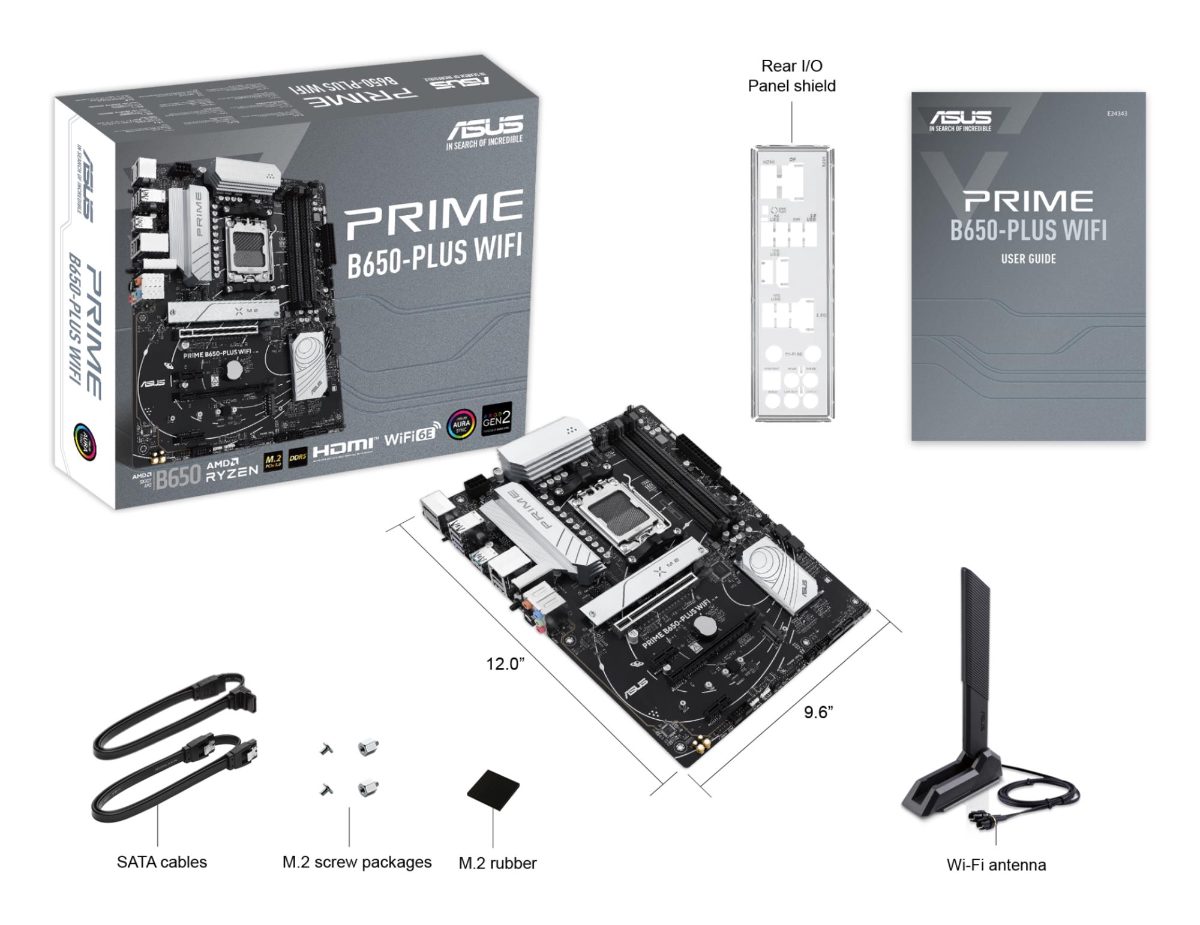

Antenna included	Yes
Cables included	SATA
Screws included	Yes
Model	PRIME B650-PLUS WIFI
