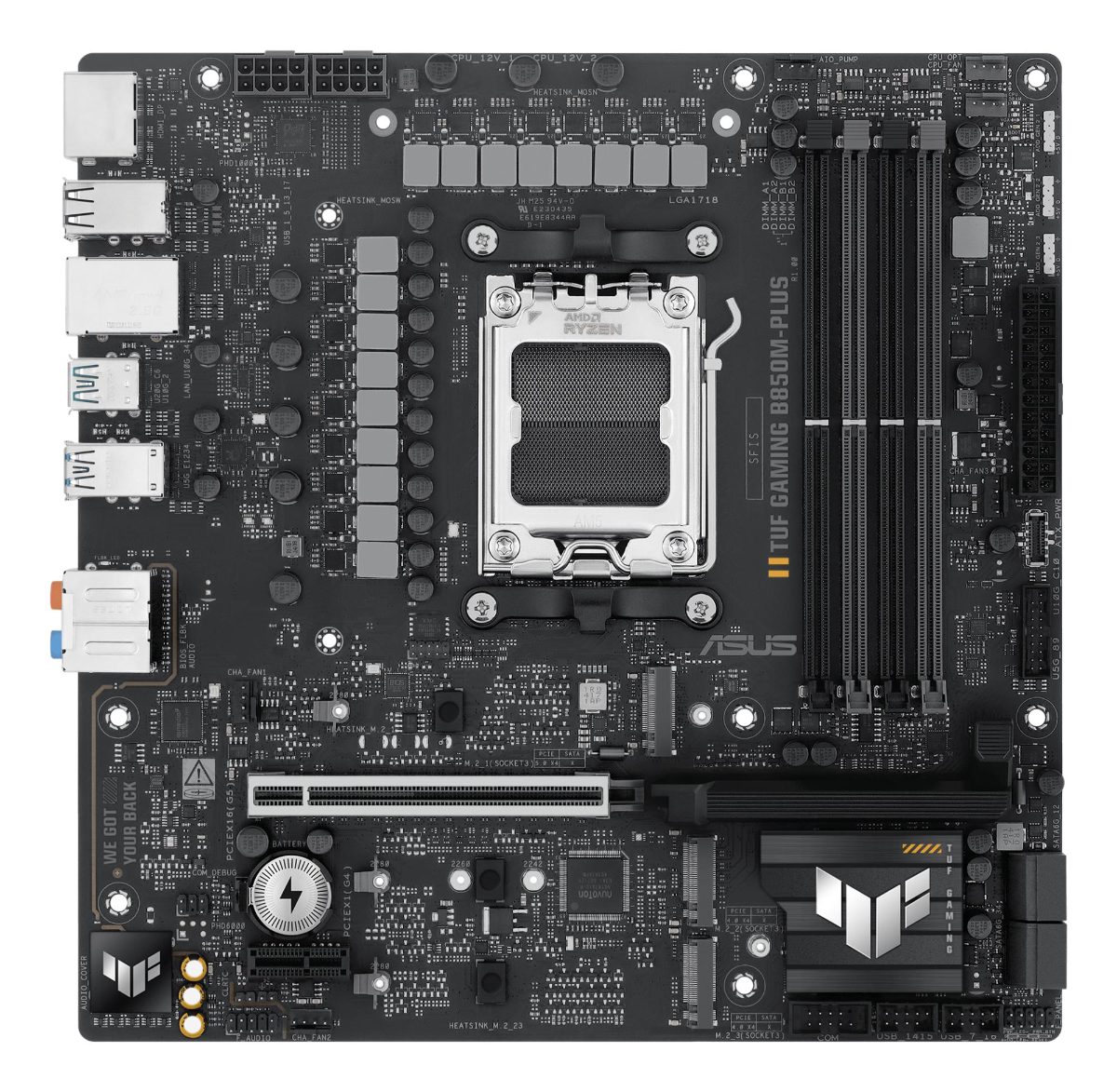

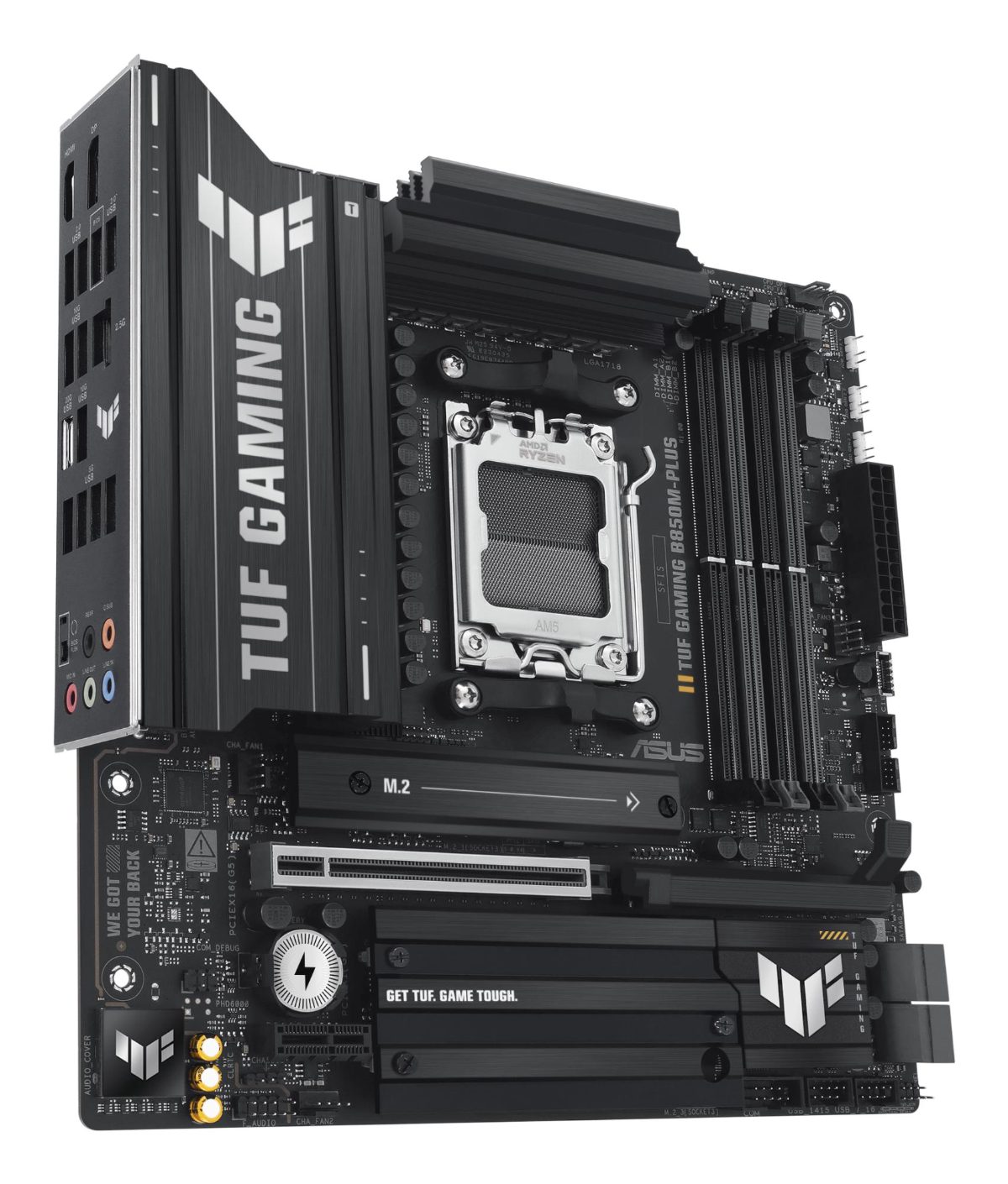

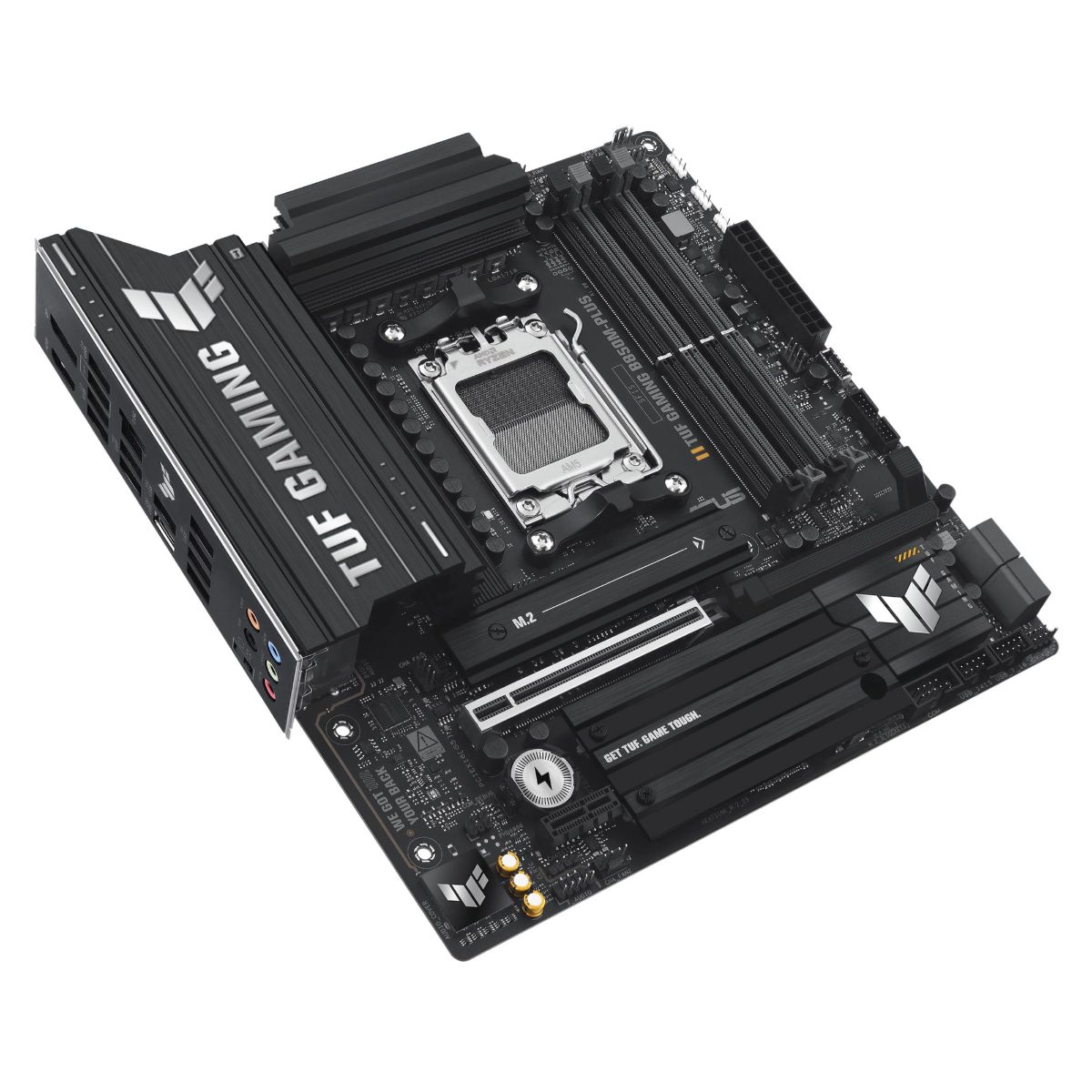

Mainboard, ASUS, AMD B850, SAM5, Micro-ATX, Memory DDR5, Memory slots 4

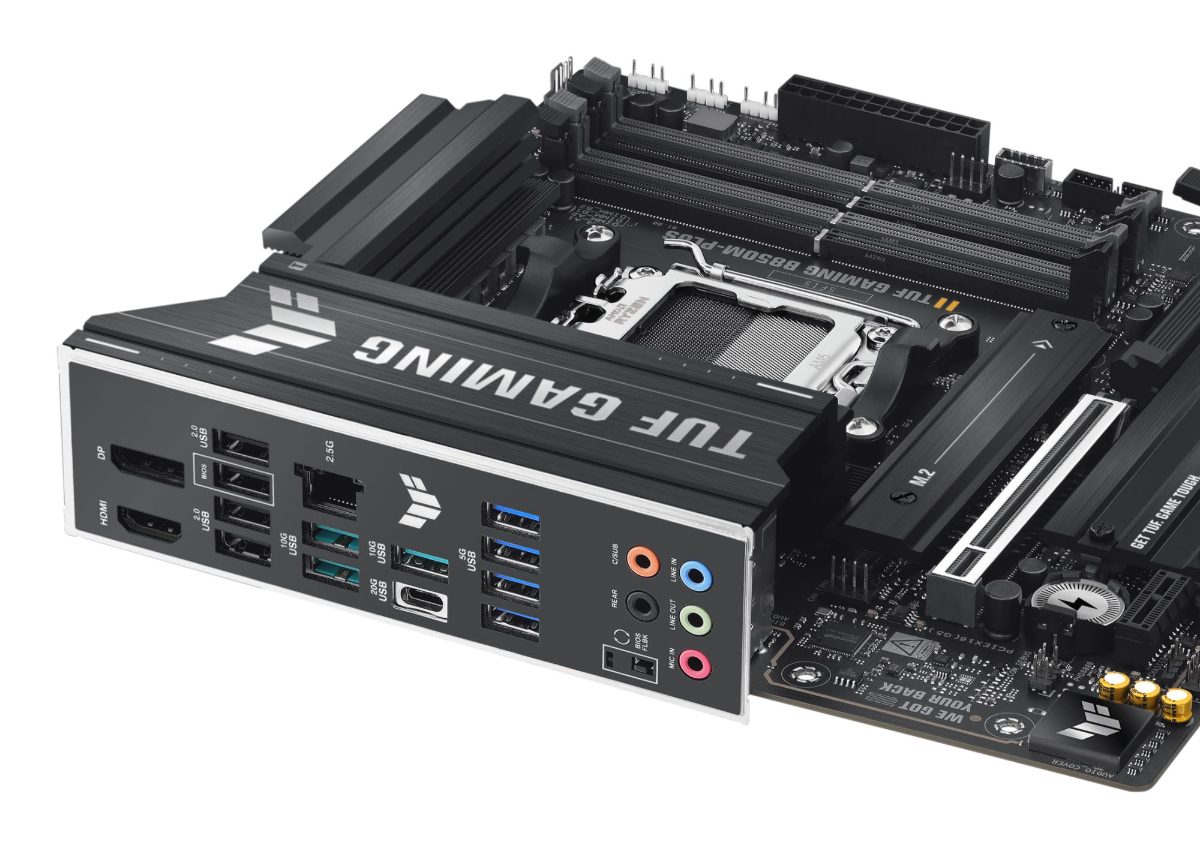

Mainboard, ASUS, AMD B850, SAM5, Micro-ATX, Memory DDR5, Memory slots 4, 1xPCI-Express 4.0 1x, 1xPCI-Express 4.0 16x, 1xPCI-Express 5.0 16x, 3xM.2, 1xHDMI, 1xDisplayPort, 4xUSB 2.0, 4xUSB 3.0, 3xUSB 3.2, 1xUSB-C, 1xRJ45, 5xAudio port, TUFGAMINGB850M-PLUS
ASUS · 4711387775172
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 36 mo.
- Invoice: with every order
- EAN
- 4711387775172
- Brand
- ASUS
Description

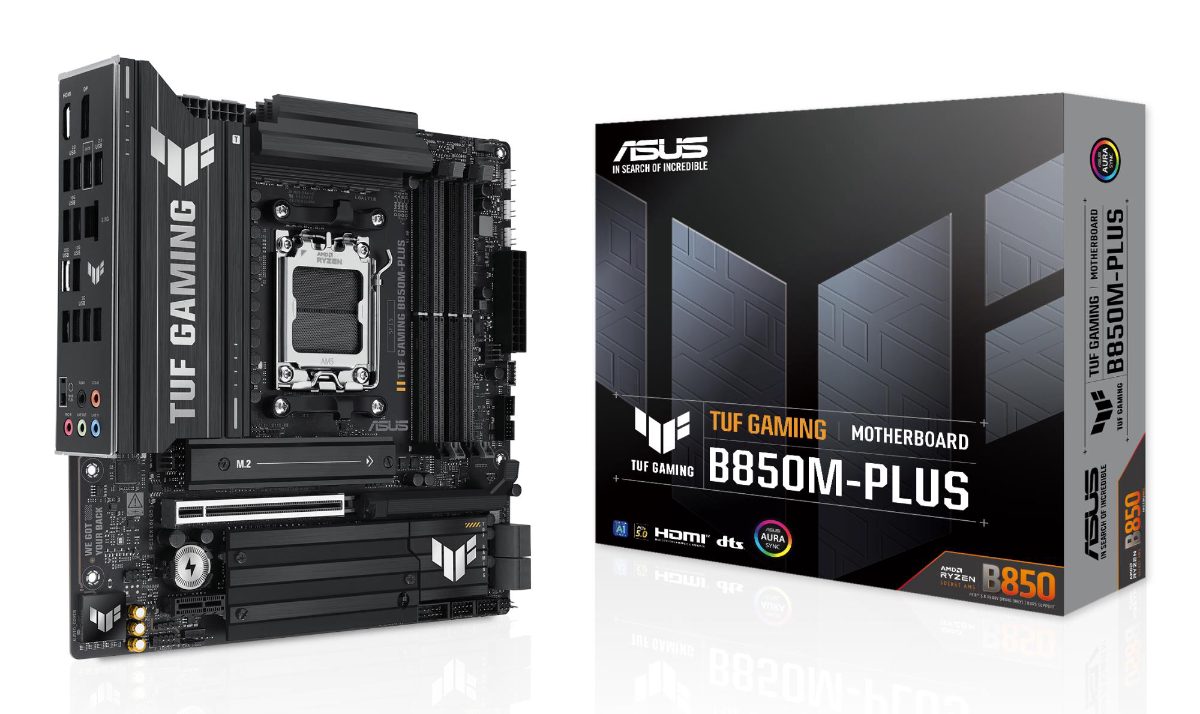

TUF GAMING
B850M-PLUS

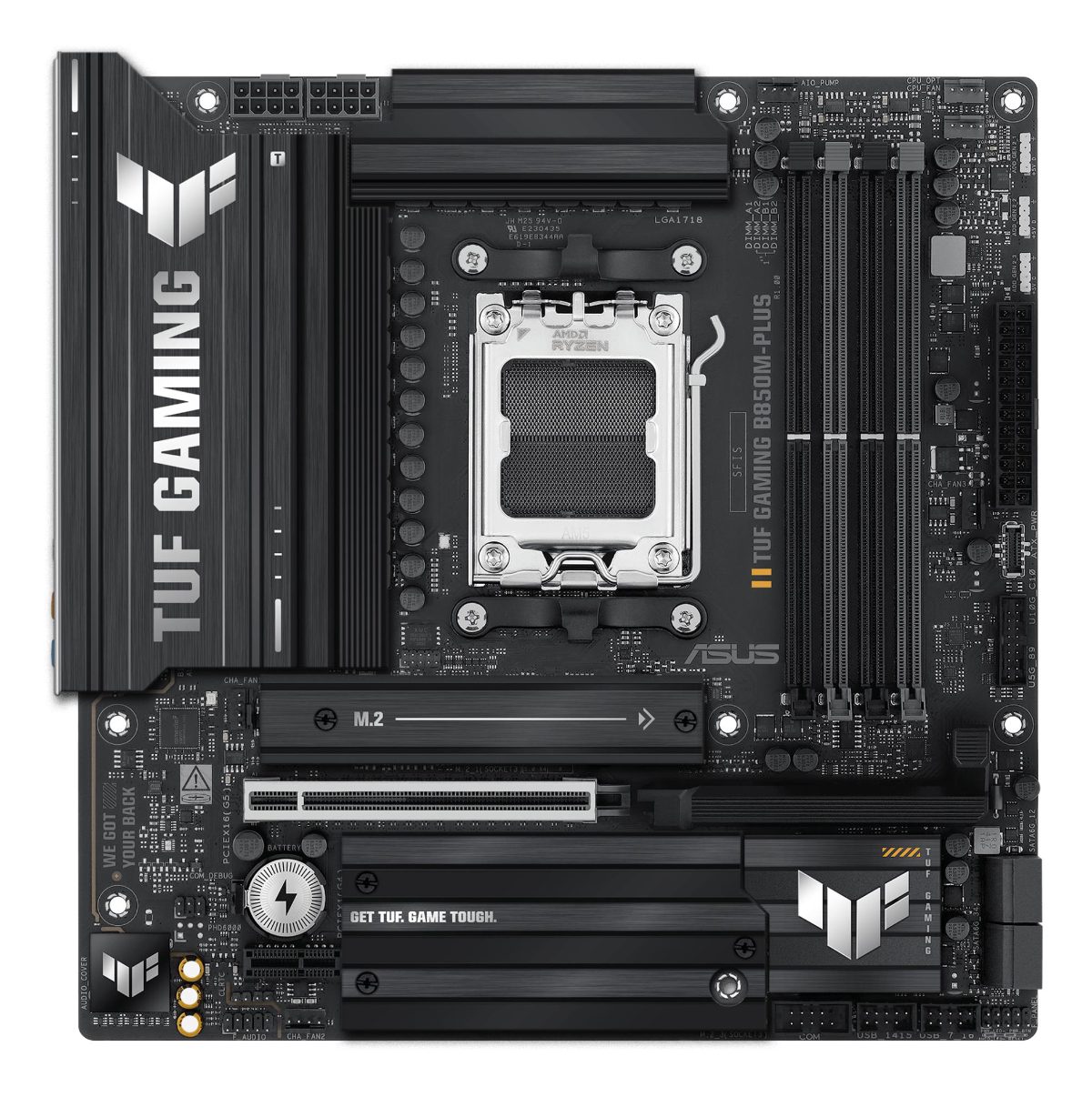

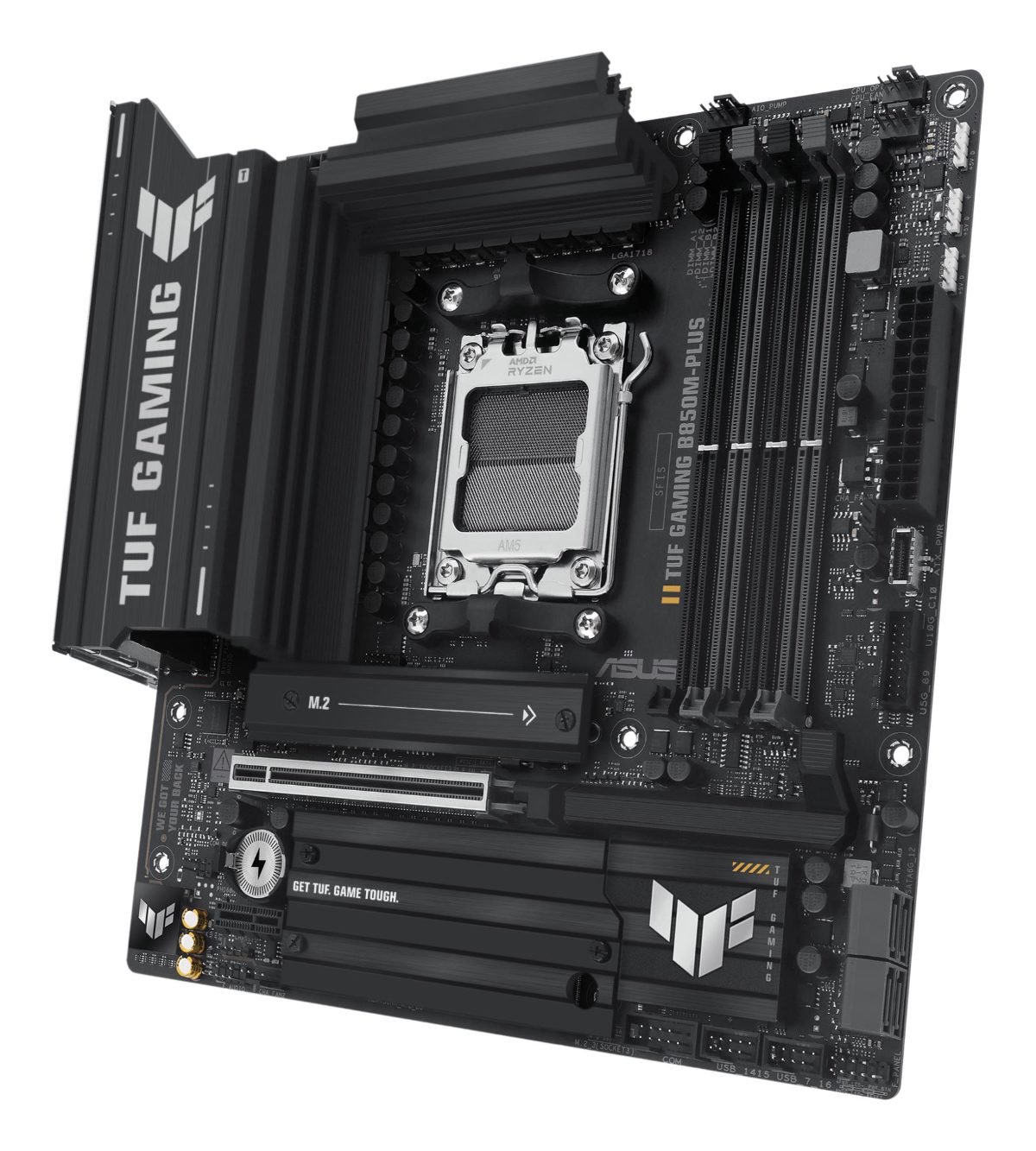

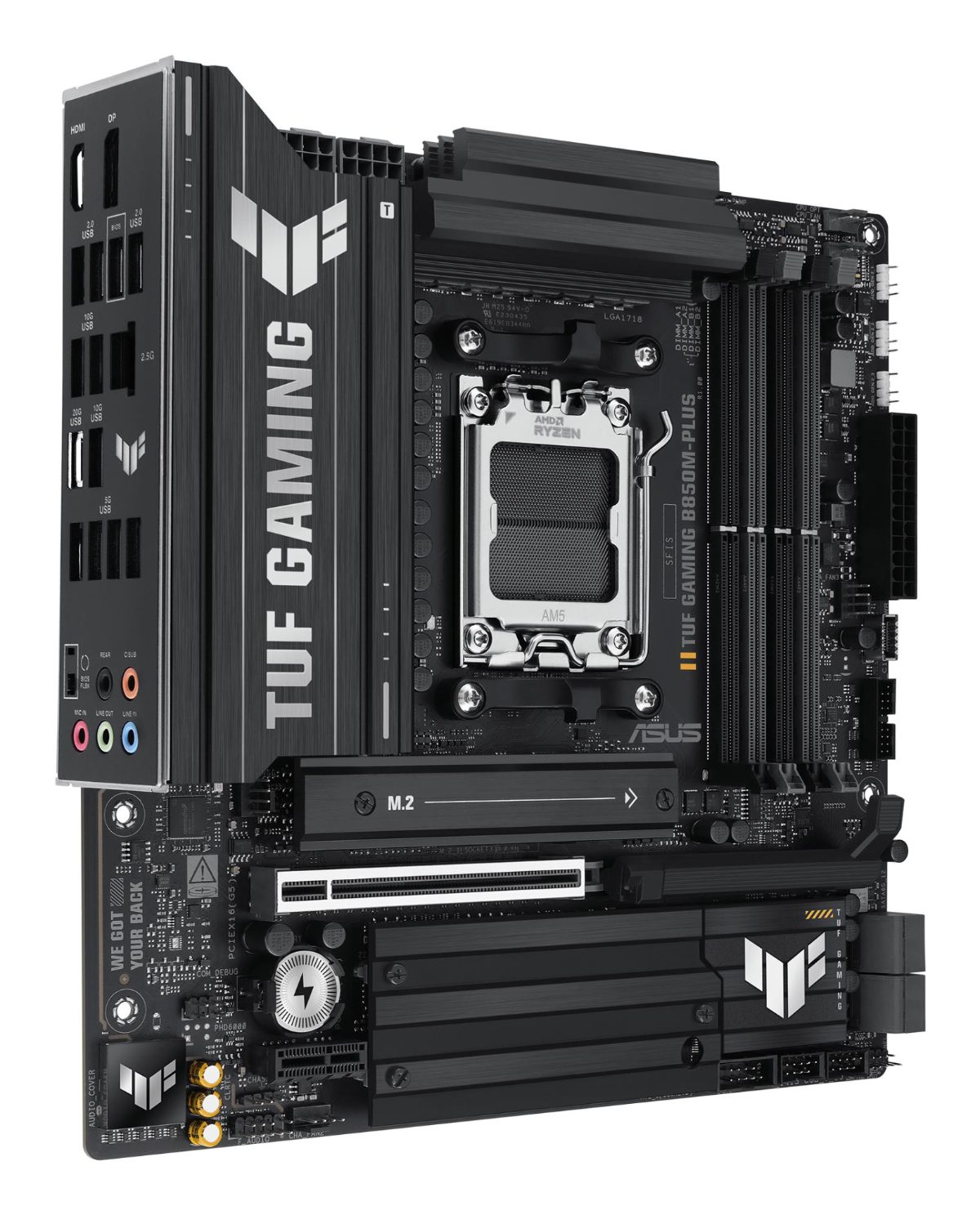

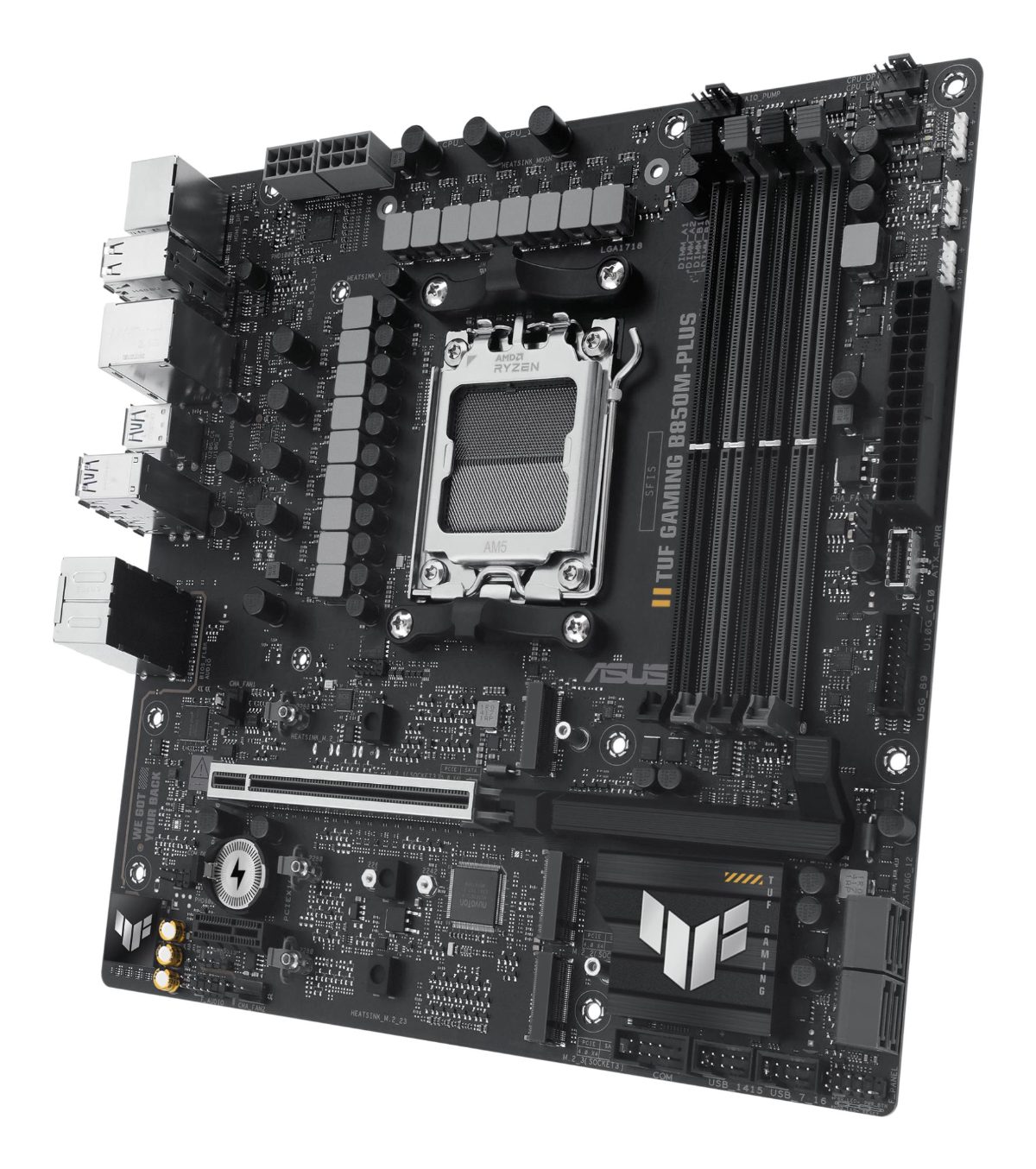

ASUS TUF GAMING B850M-PLUS takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.
Specifications
| Audio chip | Realtek ALC1220P |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Chipset | AMD B850 |
| Chipset family | AMD |
| Form factor | micro ATX |
| Supported Windows operating systems | Windows 10 x64/Windows 11 |
| Compatible processor series | AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| ECC compatibility | ECC & Non-ECC |
| Maximum memory | 192 GB |
| Memory channels | Dual-channel |
| Memory form factor | DIMM |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Unbuffered memory | Yes |
| Supported HDDs | 4 |
| Supported storage drives | 7 |
| RAID levels | 0/1/10/5 |
| RAID support | Yes |
| Supported drive interfaces | M.2,SATA III |
| Supported drive types | HDD & SSD |
| Multi-GPU technology | Not supported |
| 12V power connector | Yes |
| ATX power connector | Yes |
| Chassis intrusion connector | Yes |
| CPU fan connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Fan connector count | 3 |
| COM ports | 1 |
| SATA connectors | 4 |
| S/PDIF out connector | Yes |
| Internal USB 2.0 connectors | 2 |
| Internal USB 3.2 Gen 1 connectors | 1 |
| USB 3.2 Gen 2 connectors | 1 |

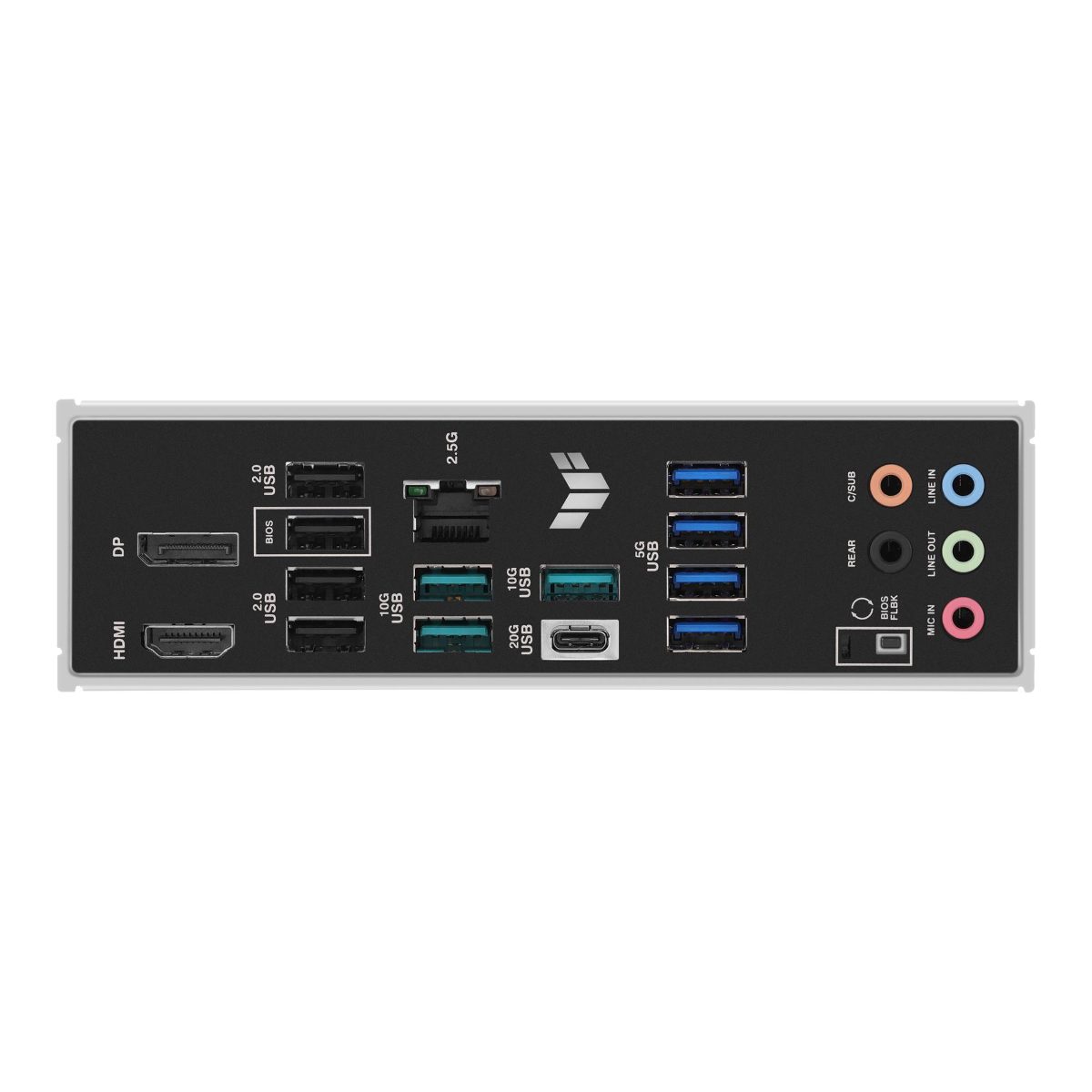

| DisplayPorts | 1 |
| Ethernet (RJ-45) ports | 1 |
| HDMI ports | 1 |
| USB 2.0 ports | 4 |
| USB 3.2 Gen 1 Type-A ports | 4 |
| USB 3.2 Gen 2 Type-A ports | 3 |
| USB 3.2 Gen 2x2 Type-C ports | 1 |
| Wi-Fi AP antenna jack | 1 |
| Ethernet type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| 1st M.2 highest PCI Express generation | 5.0 |
| 1st M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 2280 |
| M.2 slot count | 3 |
| PCI Express x1 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Depth | 244 mm |
| Width | 244 mm |

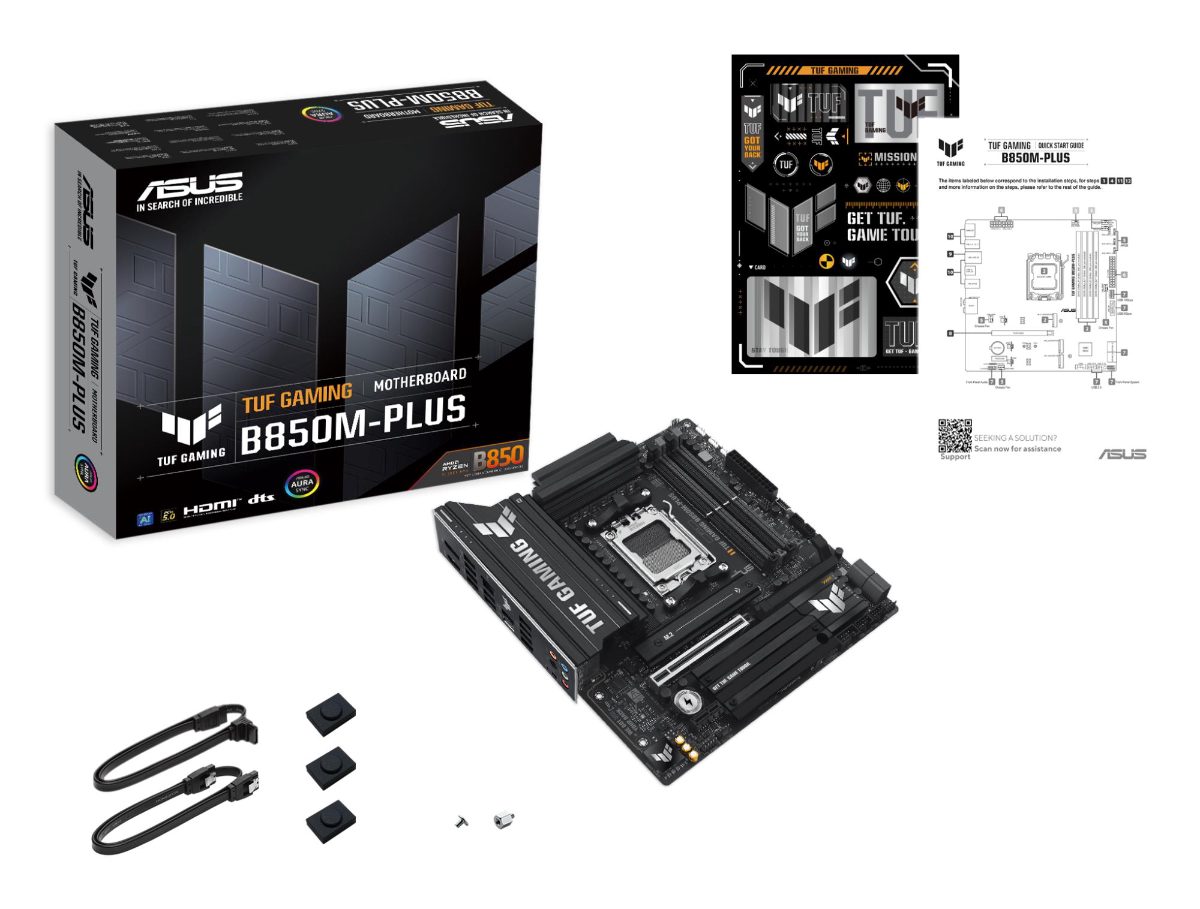

| Cables included | SATA |
| Screws included | Yes |
| Weight | 1190 g |
| Model | TUF GAMING B850M-PLUS |
