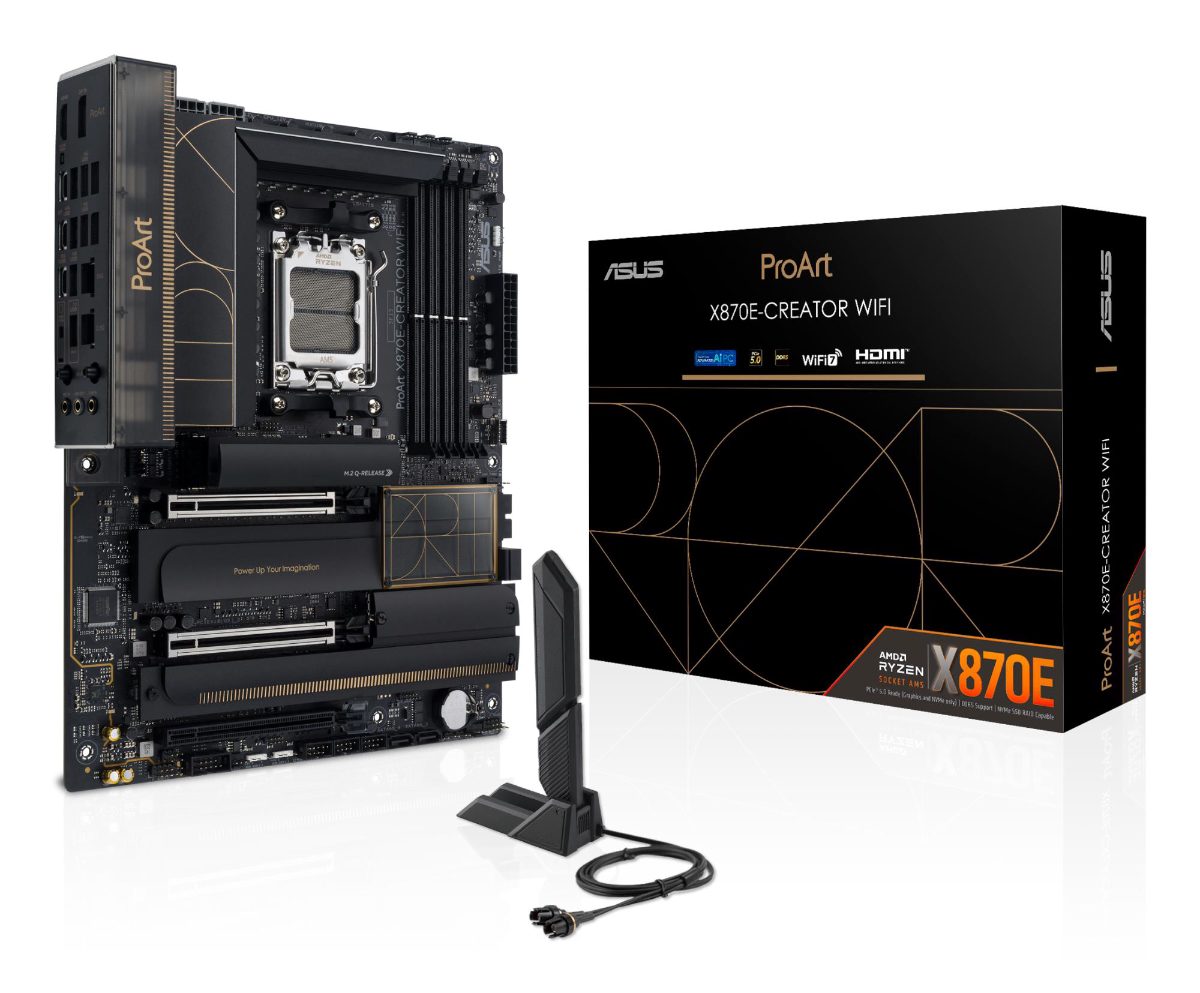

Mainboard, ASUS, AMD X870E, SAM5, ATX, Memory DDR5, Memory slots 4
Mainboard, ASUS, AMD X870E, SAM5, ATX, Memory DDR5, Memory slots 4, 3xPCI-Express 4.0 16x, 2xPCI-Express 5.0 16x, 4xM.2, 1xHDMI, 1xDisplayPort, 1xUSB 2.0, 7xUSB 3.2, 3xUSB-C, 1xRJ45, 3xAudio port, PROARTX870E-CREATORWIFI
ASUS · 4711387730775
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 36 mo.
- Invoice: with every order
- EAN
- 4711387730775
- Brand
- ASUS
Description

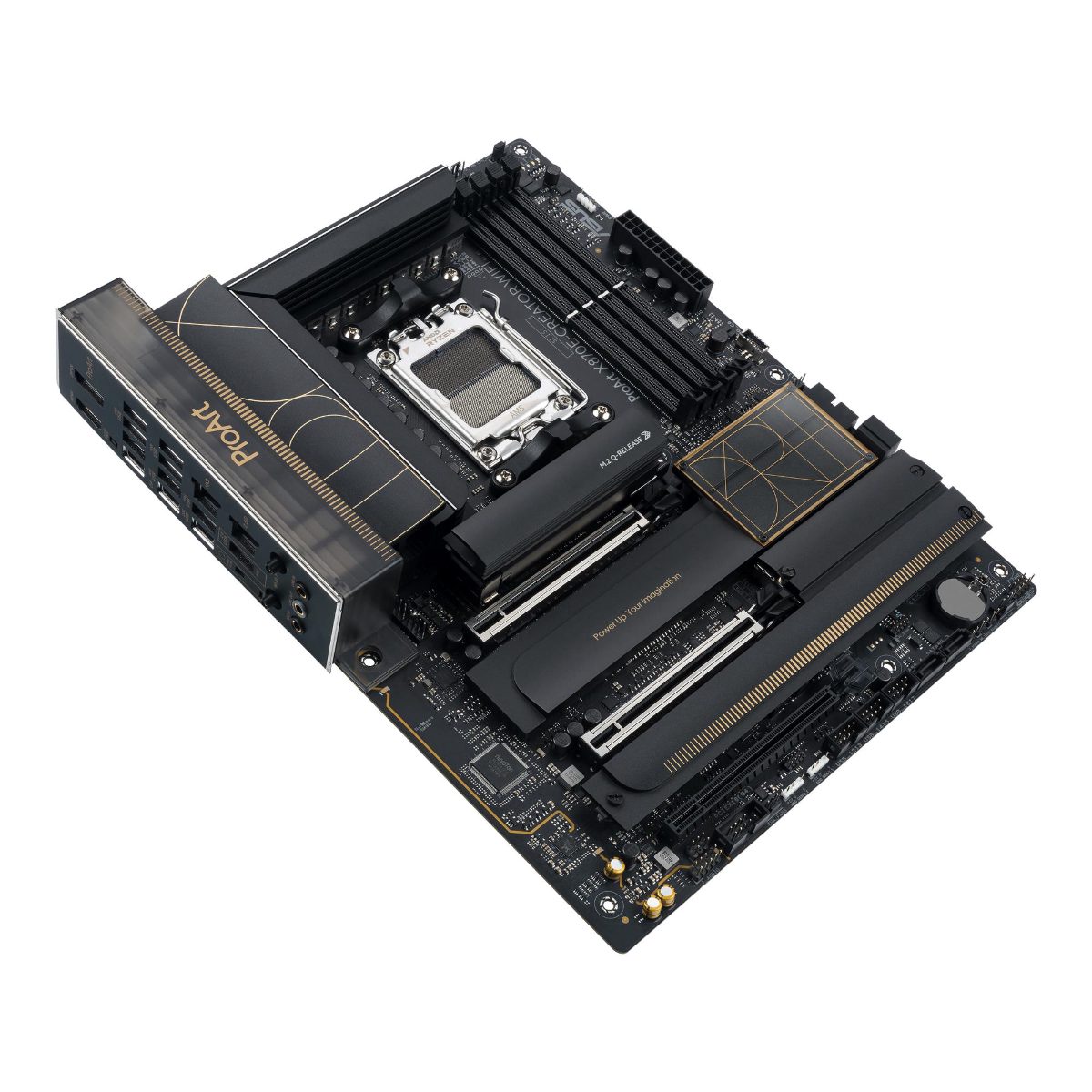

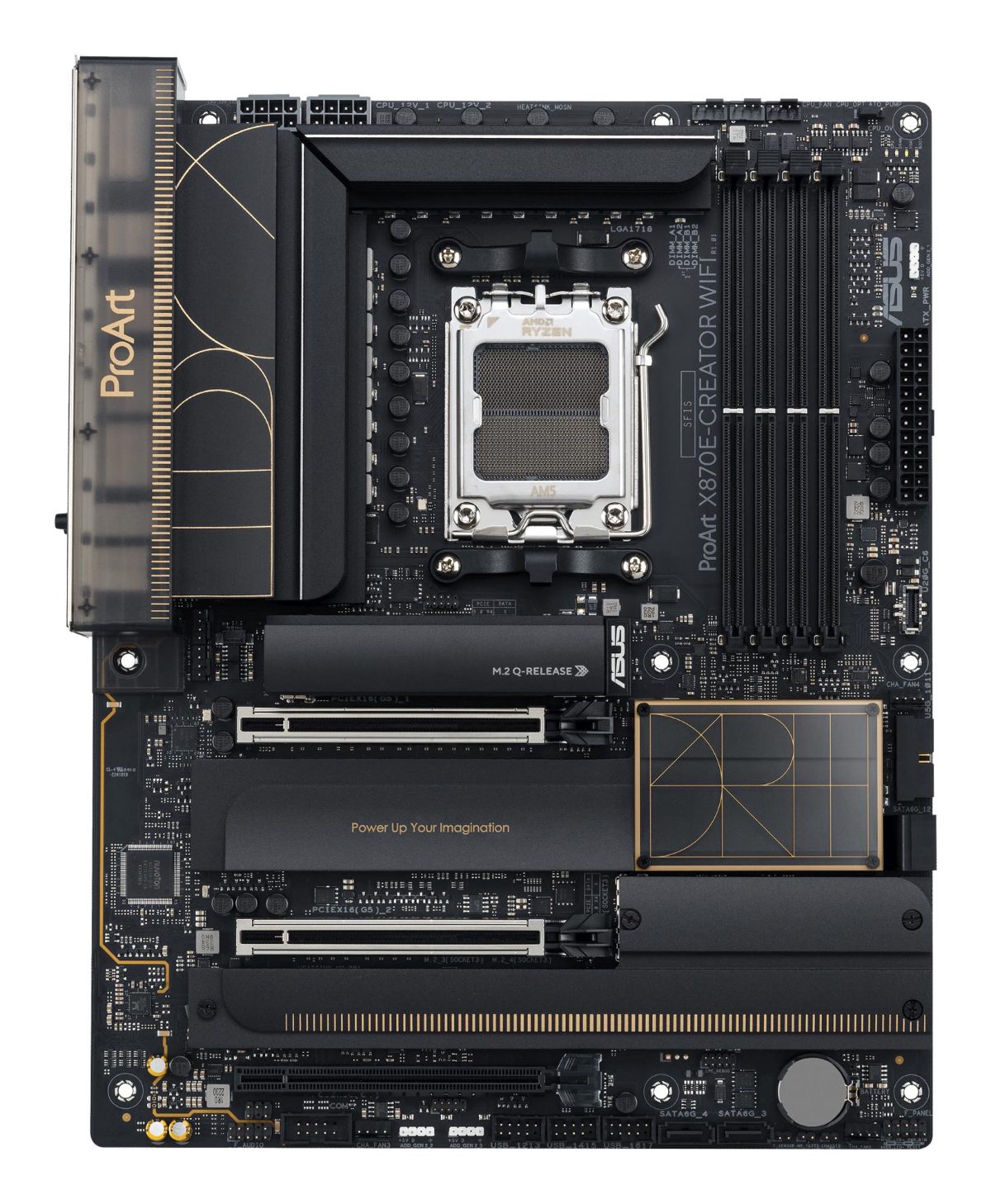

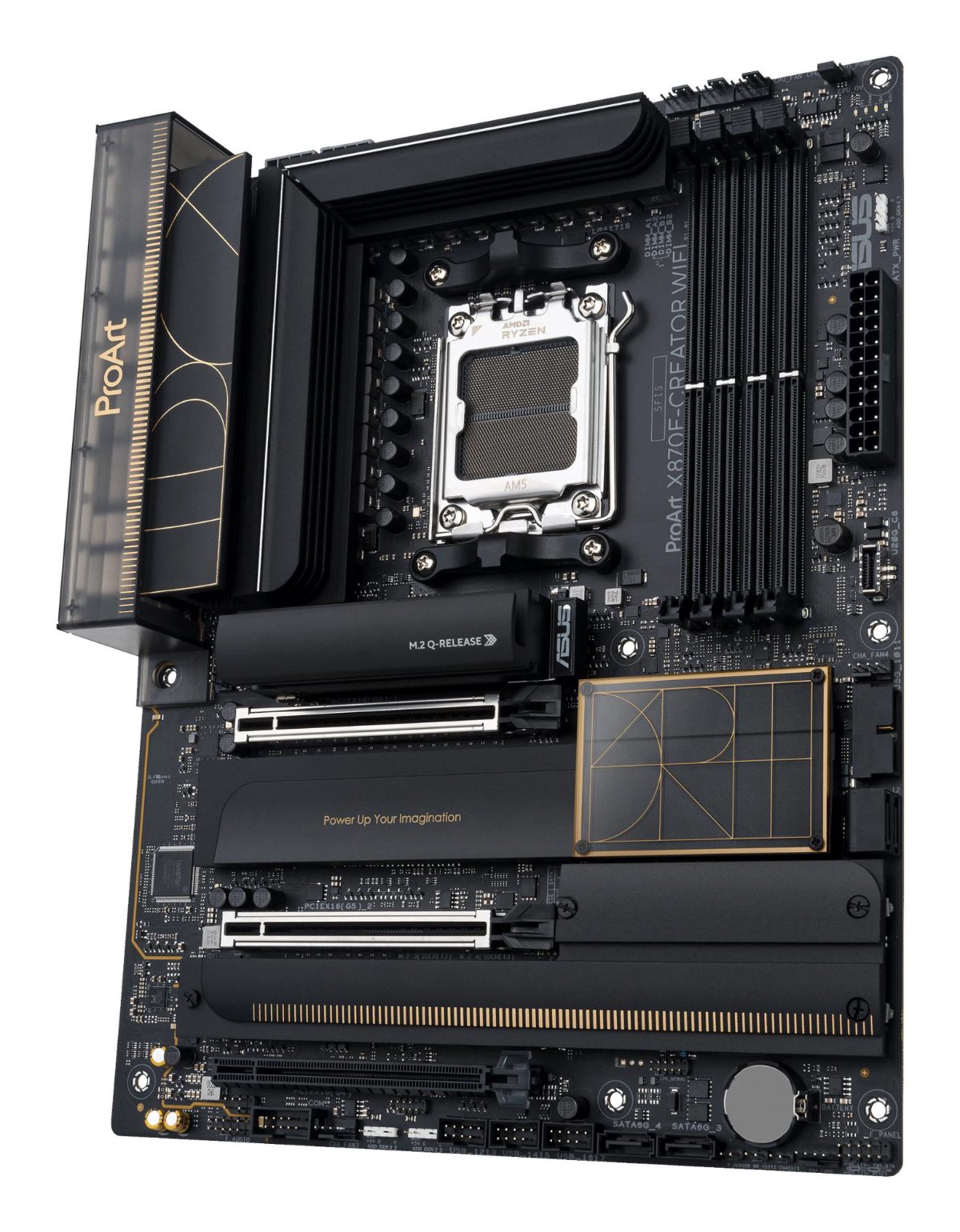

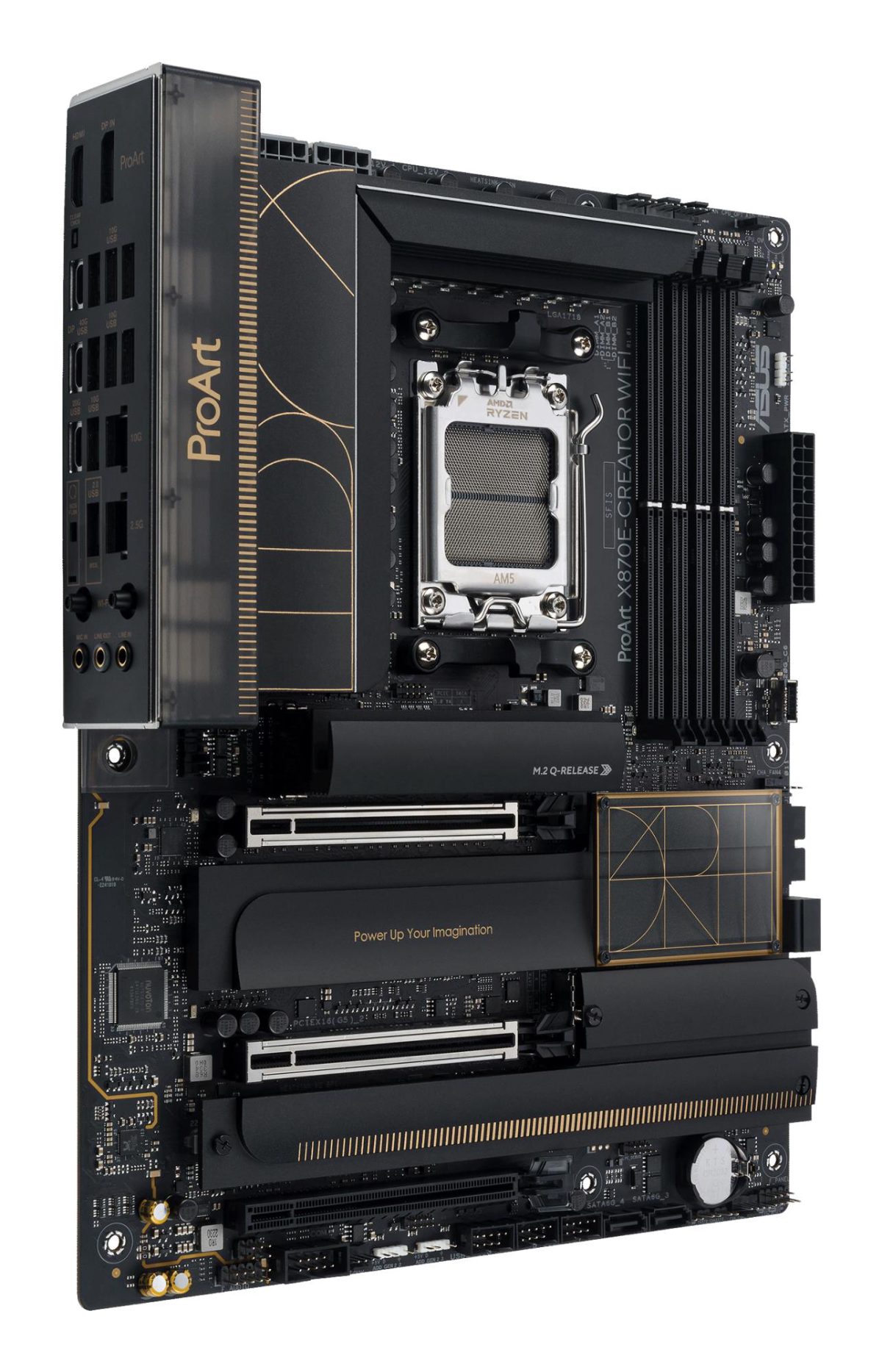

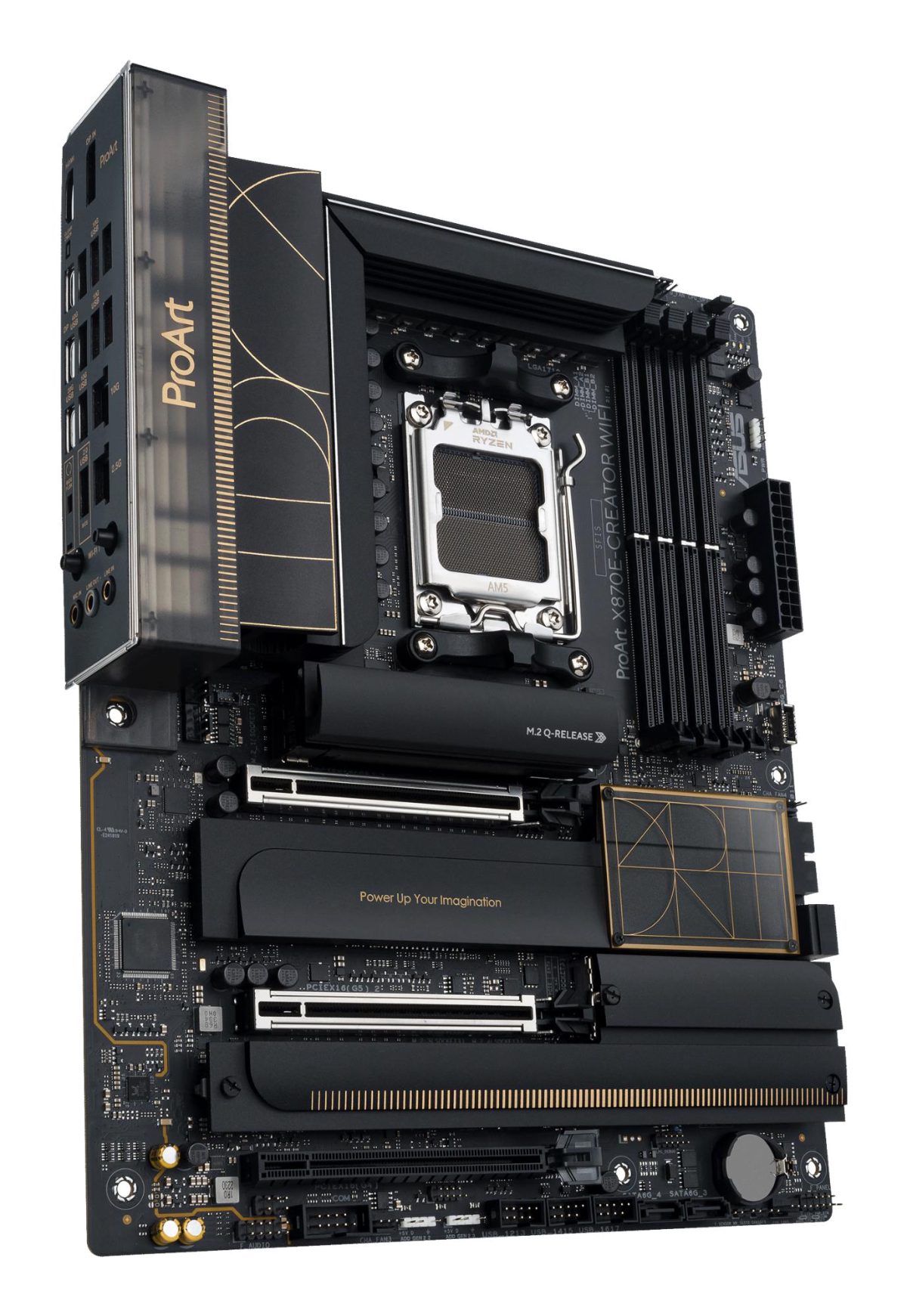

The ProArt X870E-Creator WiFi empowers creators of all levels by maximizing the performance of the latest AMD Ryzen™ 9000, 8000 and 7000 Series processors with 16+2+2 team power stages, DDR5 slots, PCIe® 5.0 and lightning-fast connectivity including dual USB4®, 10G and 2.5G Ethernet, and WiFi 7.

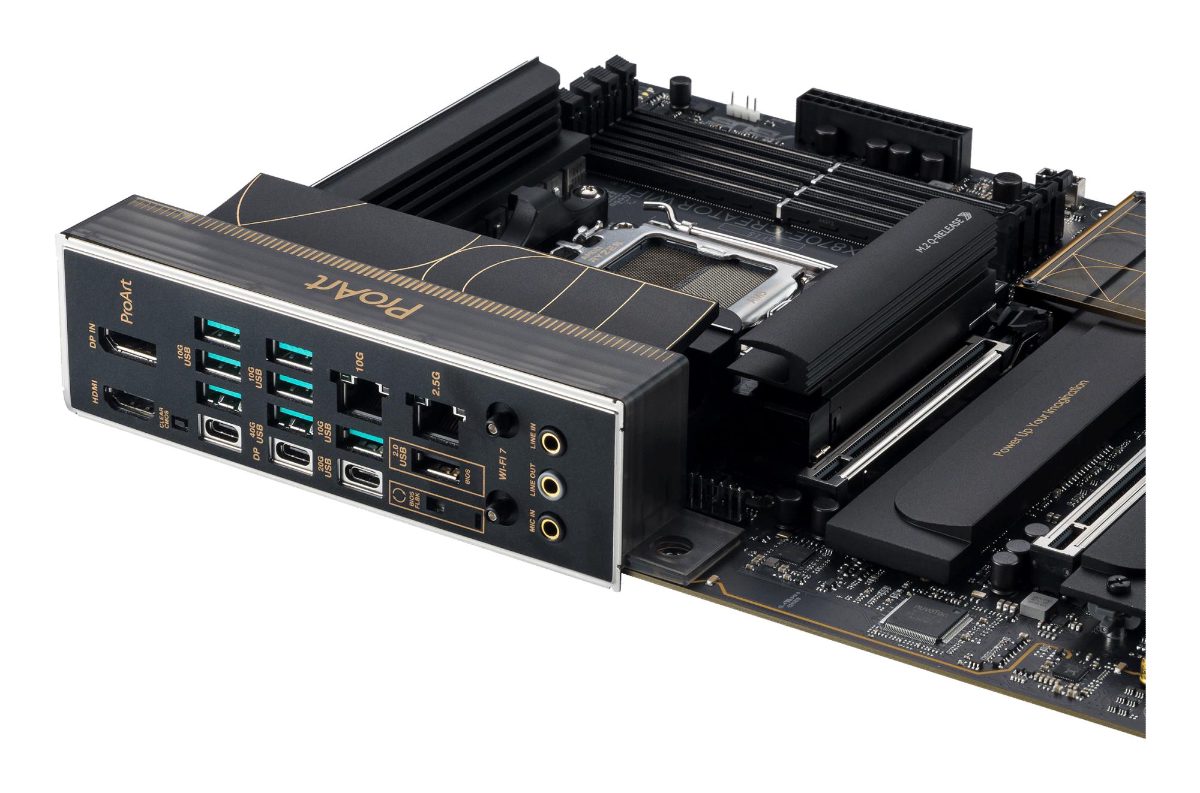

This motherboard manifests a professional, elegant and precise vision for content creators of all kinds, with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A translucent I/O cover also gives users a stylish peek at the premium connectors within.
All You Need for Maximum Productivity
Dual USB4® Connectivity

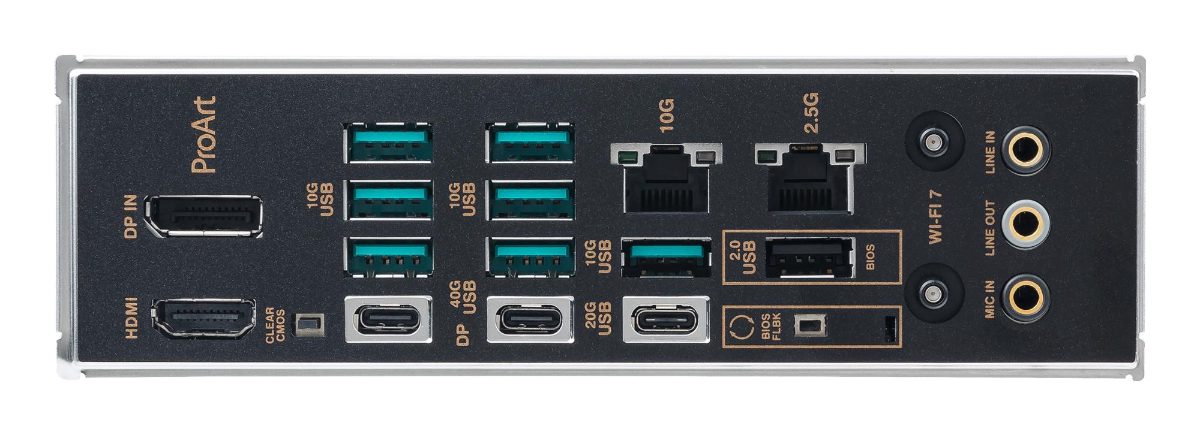

Get immersed in your creations with two USB4 ports for connecting to all your content-creation gadgets, enjoying up to 40 Gbps bi-directional data transfers. To further push your creative work with one 8K or two 4K color-accurate monitors, you can connect your discrete graphics card to the onboard DisplayPort™ In port on the rear I/O panel and direct the video output via the USB4 port.
Specifications
| Audio chip | Realtek S1220A |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Chipset | AMD X870E |
| Chipset family | AMD |
| Form factor | ATX |
| Supported Windows operating systems | Windows 11 |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| ECC compatibility | ECC & Non-ECC |
| Maximum memory | 192 GB |
| Memory channels | Dual-channel |
| Memory form factor | DIMM |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Unbuffered memory | Yes |
| Supported HDDs | 4 |
| Supported storage drives | 8 |
| RAID levels | 0/1/10/5 |
| RAID support | Yes |
| Supported drive interfaces | M.2,SATA III |
| Supported drive types | HDD & SSD |
| Multi-GPU technology | Not supported |
| 12V power connector | Yes |
| ATX power connector | Yes |
| Chassis intrusion connector | Yes |
| CPU fan connector | Yes |
| Front panel audio connector | Yes |
| Fan connector count | 5 |
| COM ports | 1 |
| SATA connectors | 4 |
| Internal USB 2.0 connectors | 3 |
| Internal USB 3.2 Gen 1 connectors | 1 |
| USB 3.2 Gen 2x2 connectors | 1 |
| DisplayPorts | 1 |
| Ethernet (RJ-45) ports | 2 |
| HDMI ports | 1 |
| Microphone input | Yes |
| USB 2.0 ports | 1 |
| USB 3.2 Gen 2 Type-A ports | 7 |
| USB 3.2 Gen 2x2 Type-C ports | 1 |
| USB4 Gen 2x2 ports | 2 |
| Wi-Fi AP antenna jack | 1 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Ethernet type | 10 Gigabit Ethernet/2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |

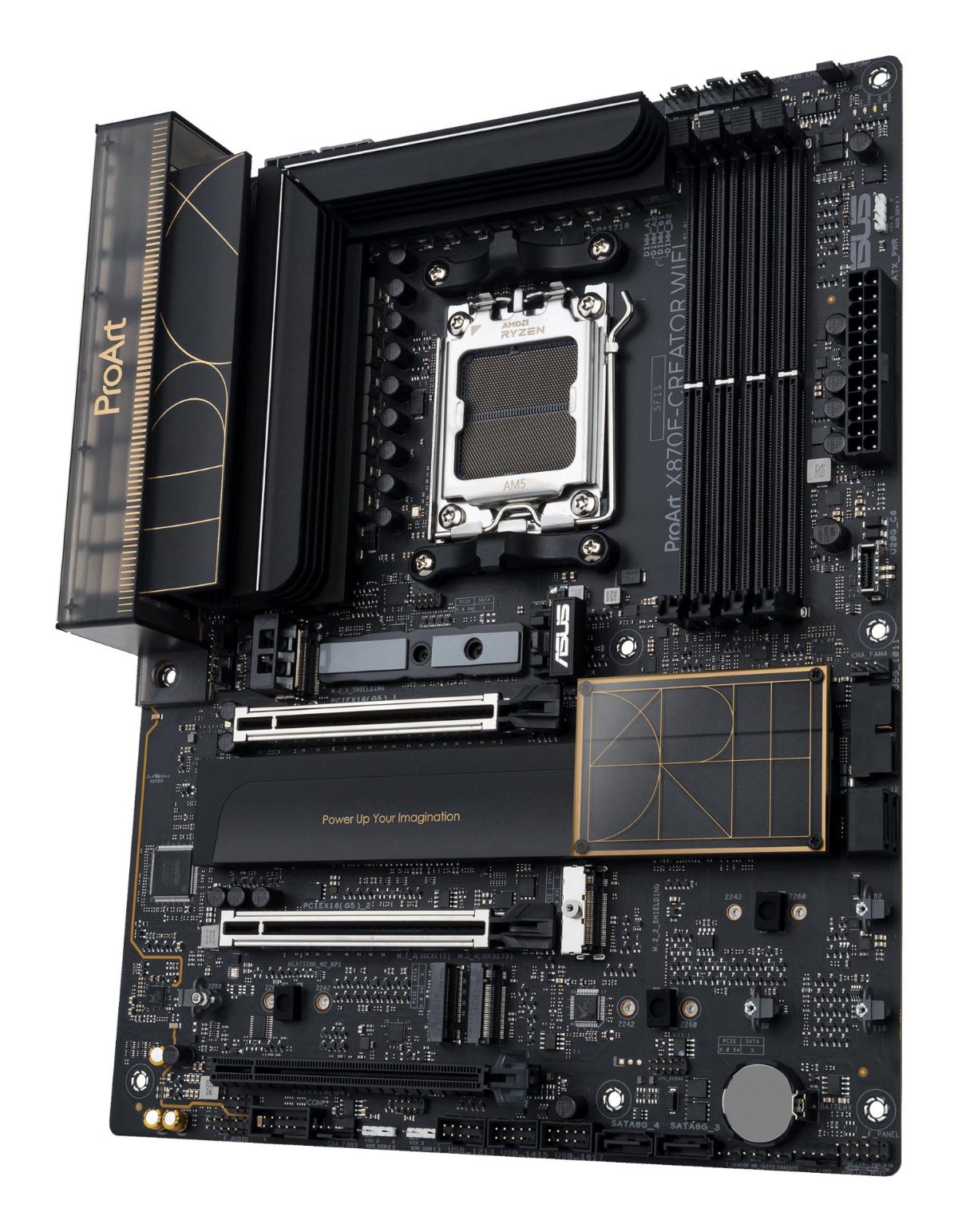

| M.2 slot count | 4 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Clear CMOS button | Yes |
| Depth | 244 mm |
| Width | 305 mm |

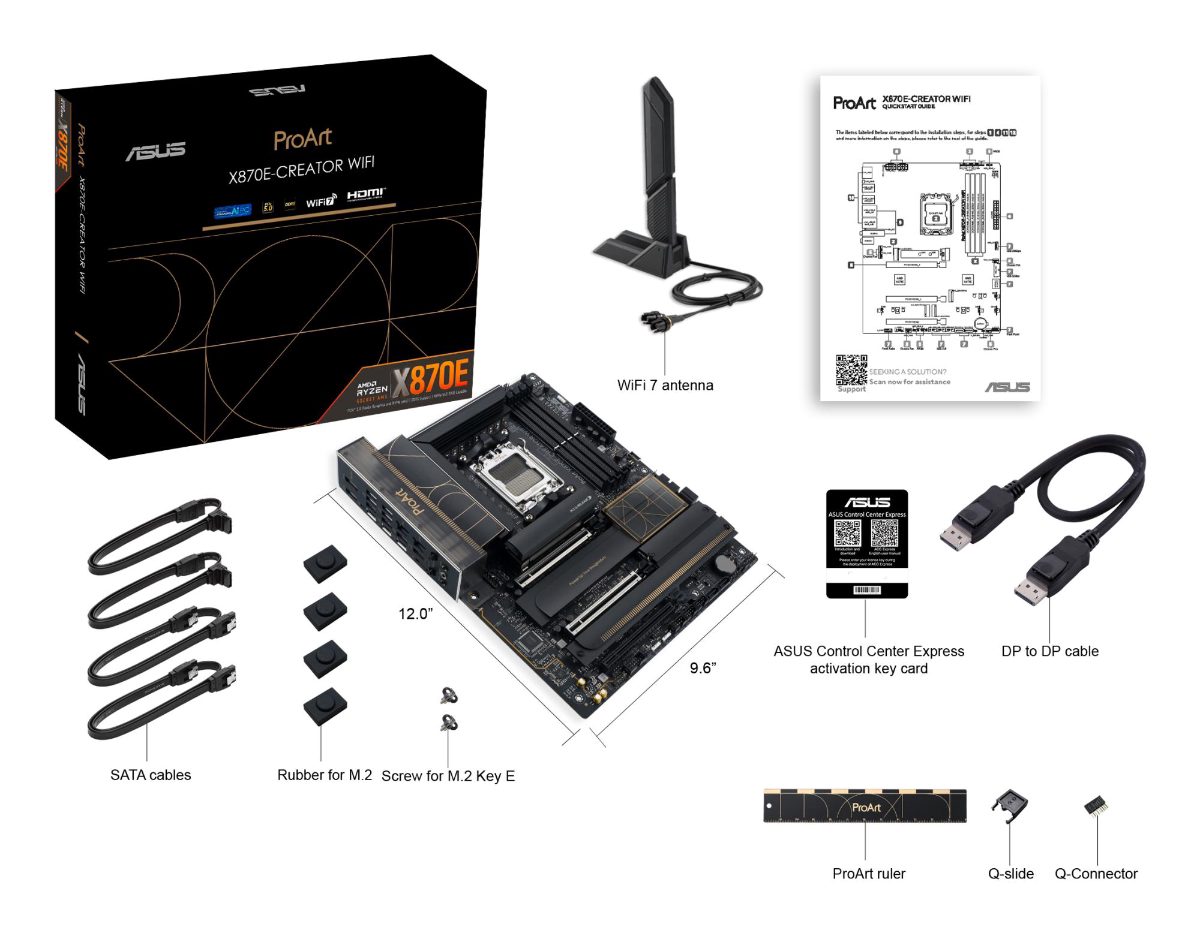

| Cables included | DisplayPort,SATA |
| Model | PROART X870E-CREATOR WIFI |
