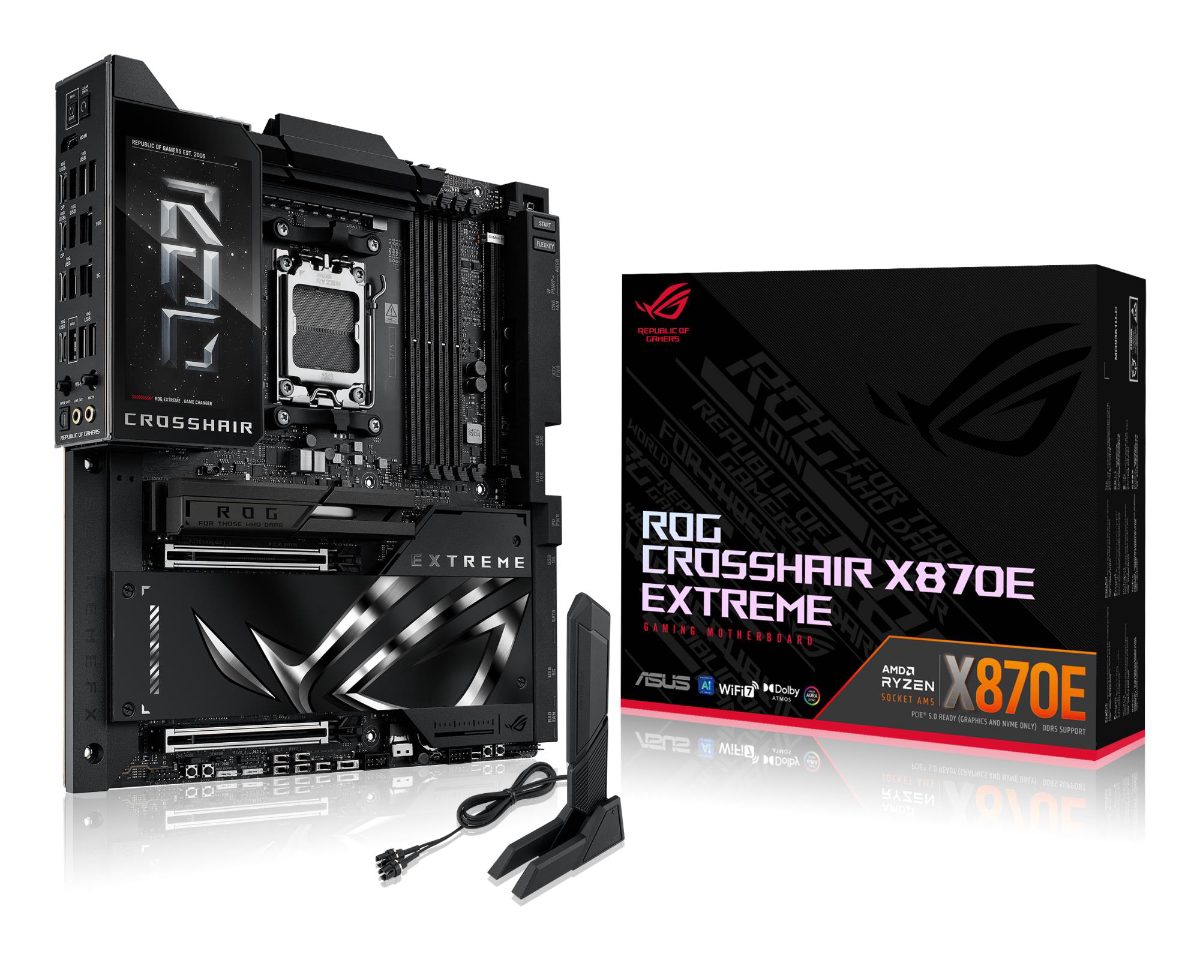

Mainboard, ASUS, AMD X870E, SAM5, EATX, Memory DDR5, Memory slots 4
Mainboard, ASUS, AMD X870E, SAM5, EATX, Memory DDR5, Memory slots 4, CROSSHAIRX870EEXTREME
ASUS · 4711387984963
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 36 mo.
- Invoice: with every order
- EAN
- 4711387984963
- Brand
- ASUS
Description

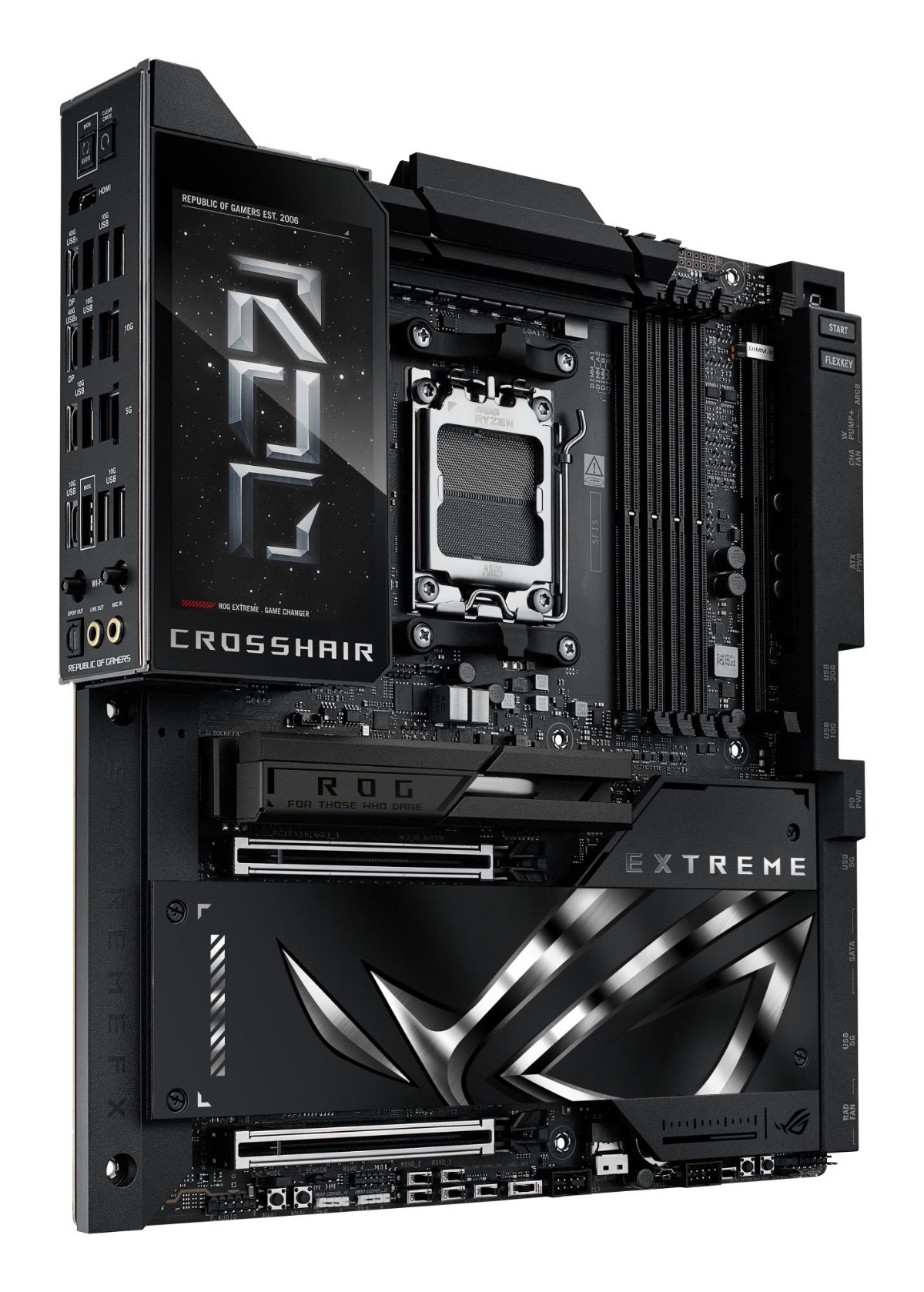

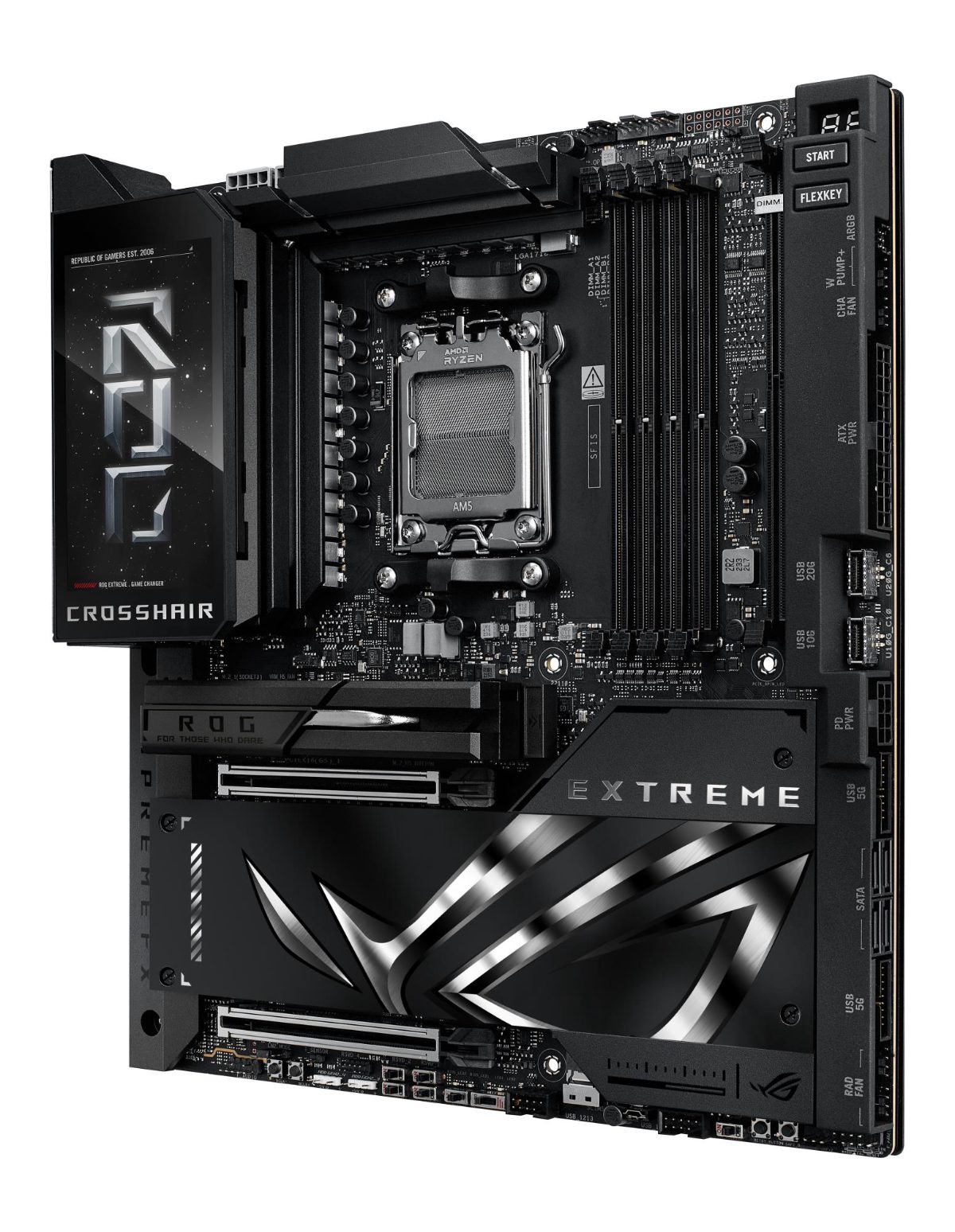

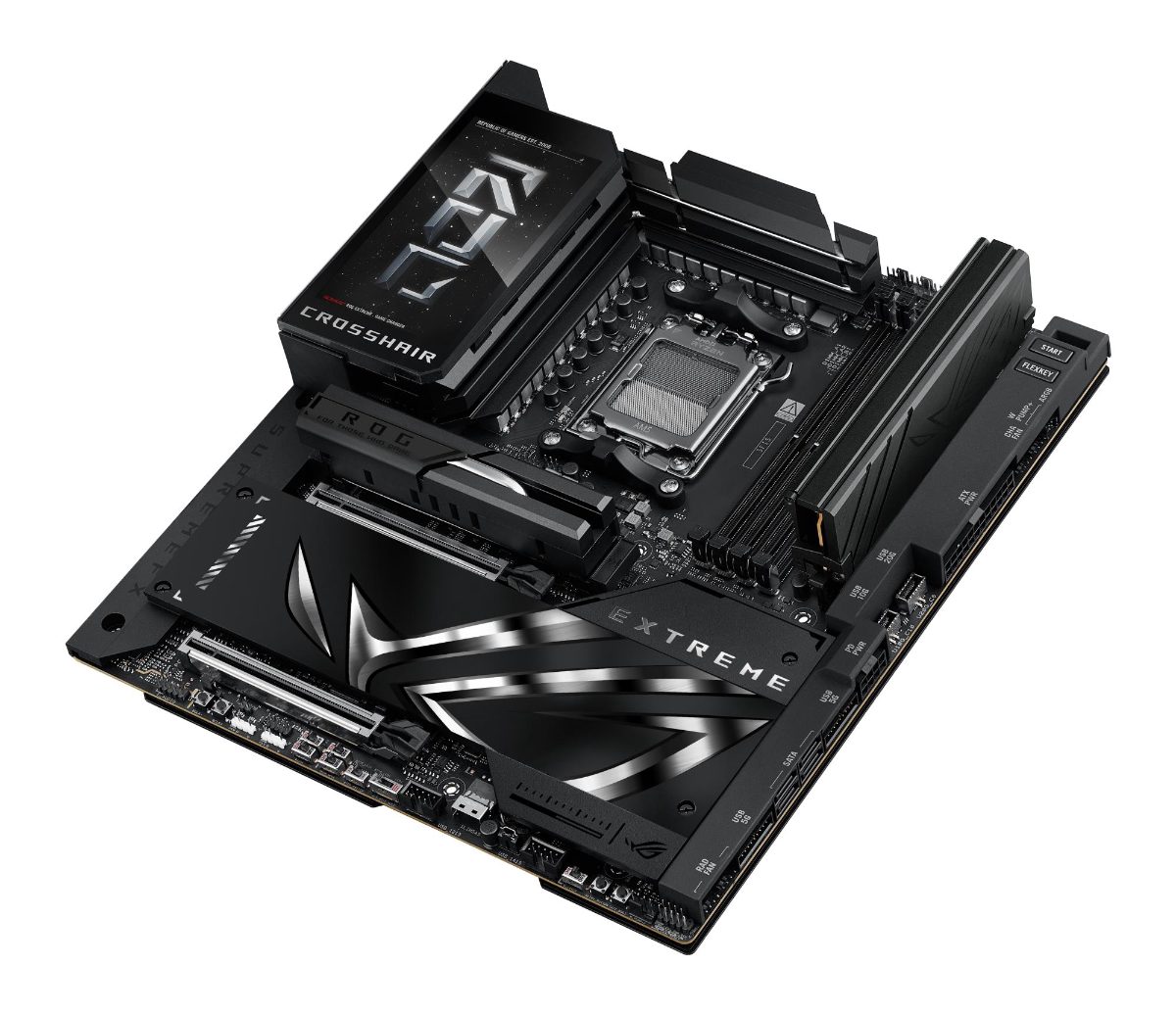

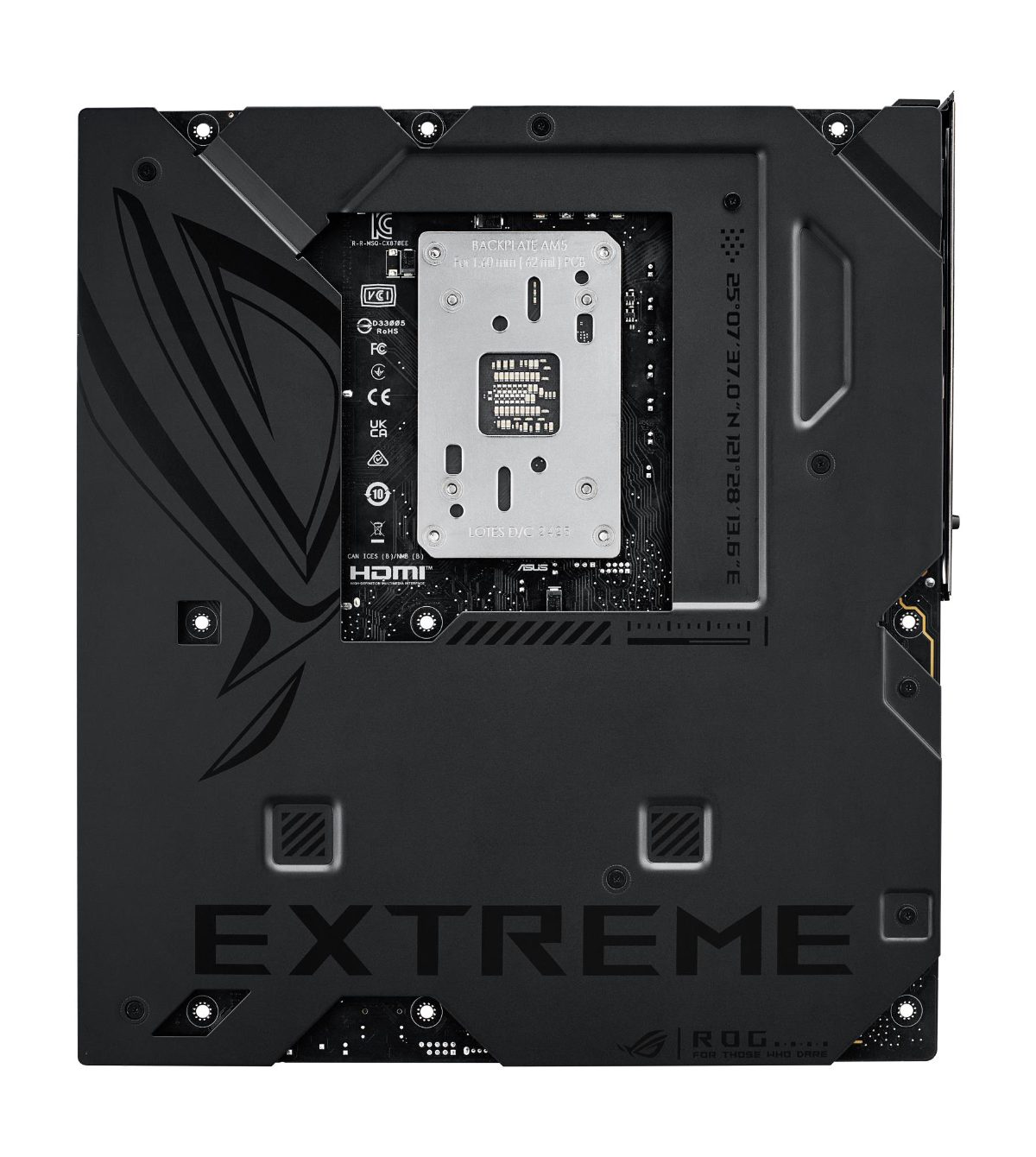

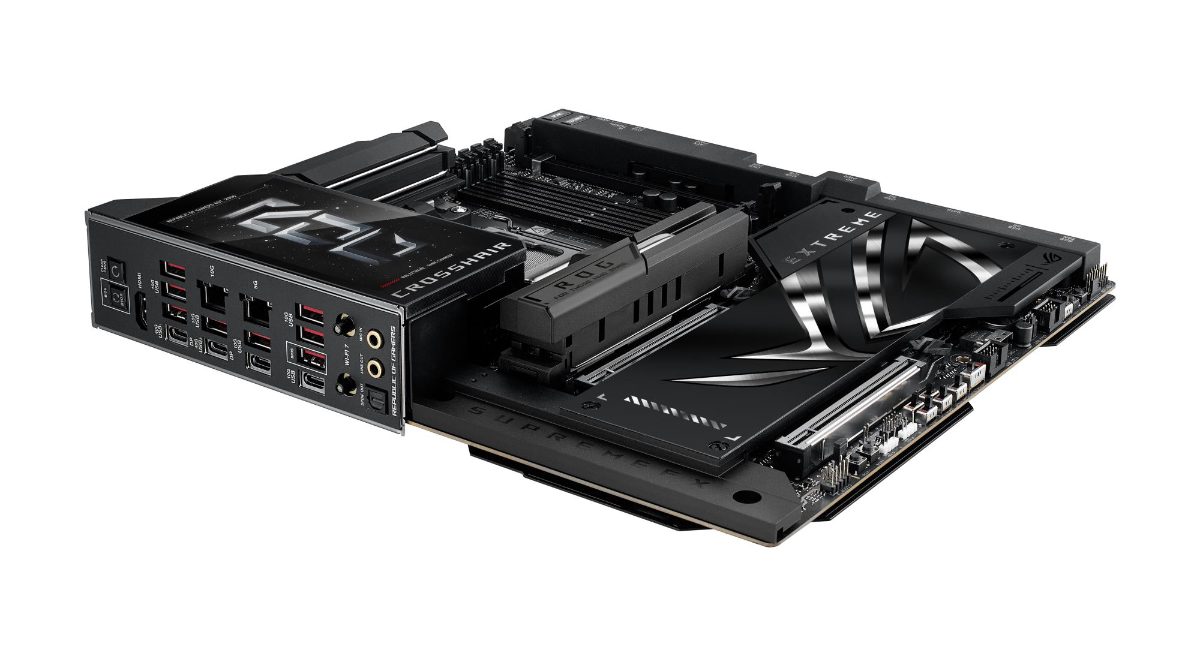

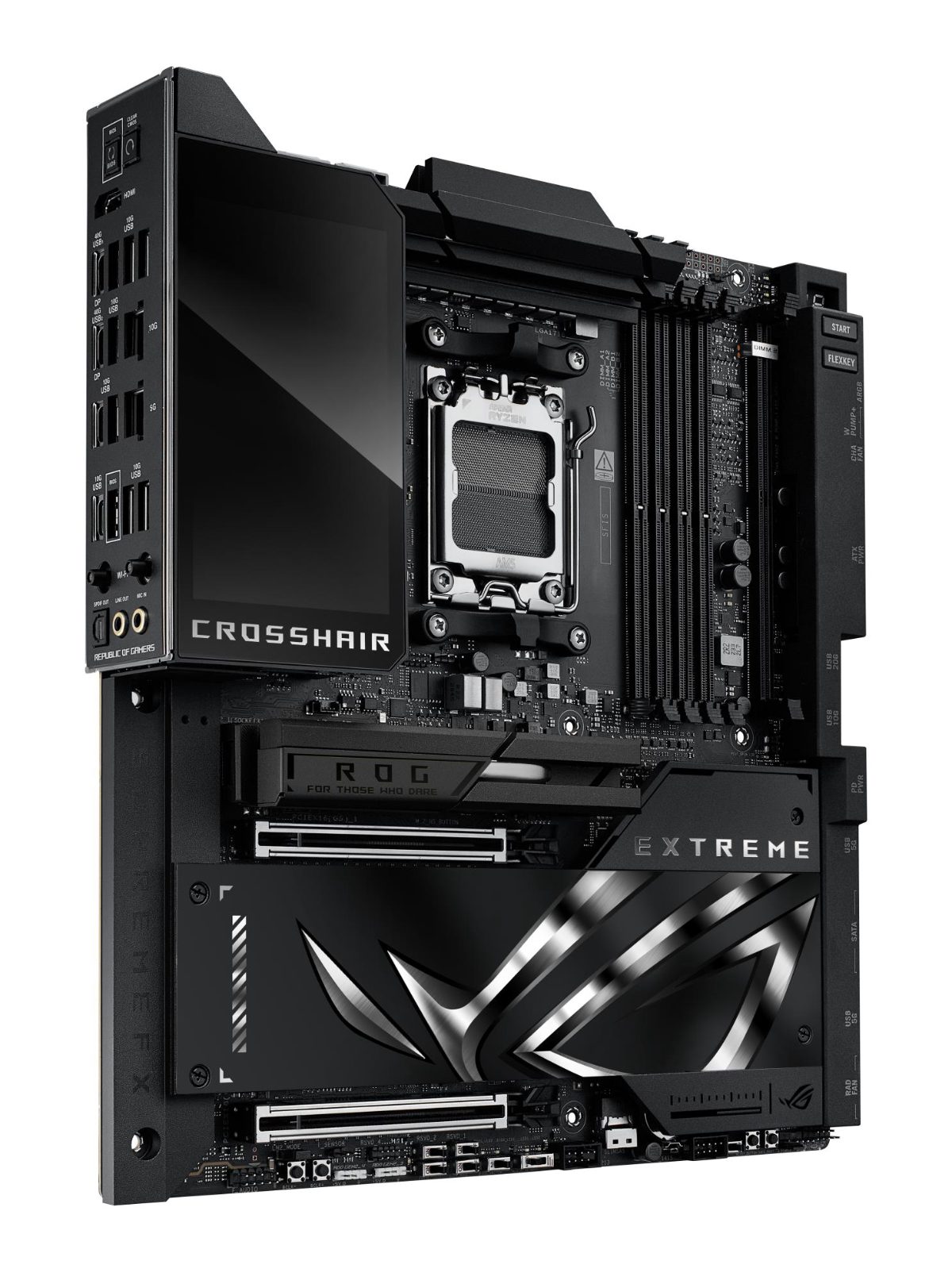

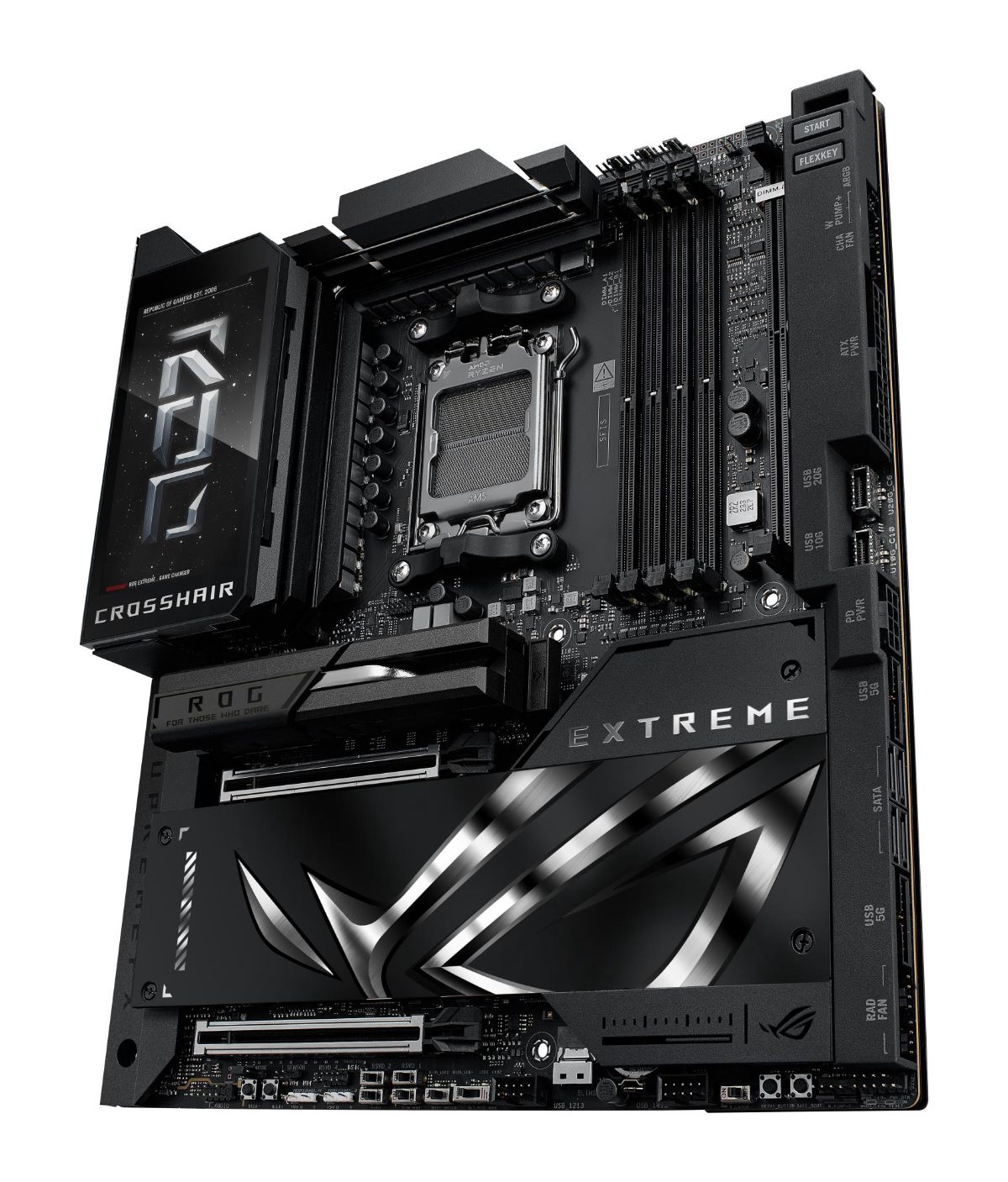

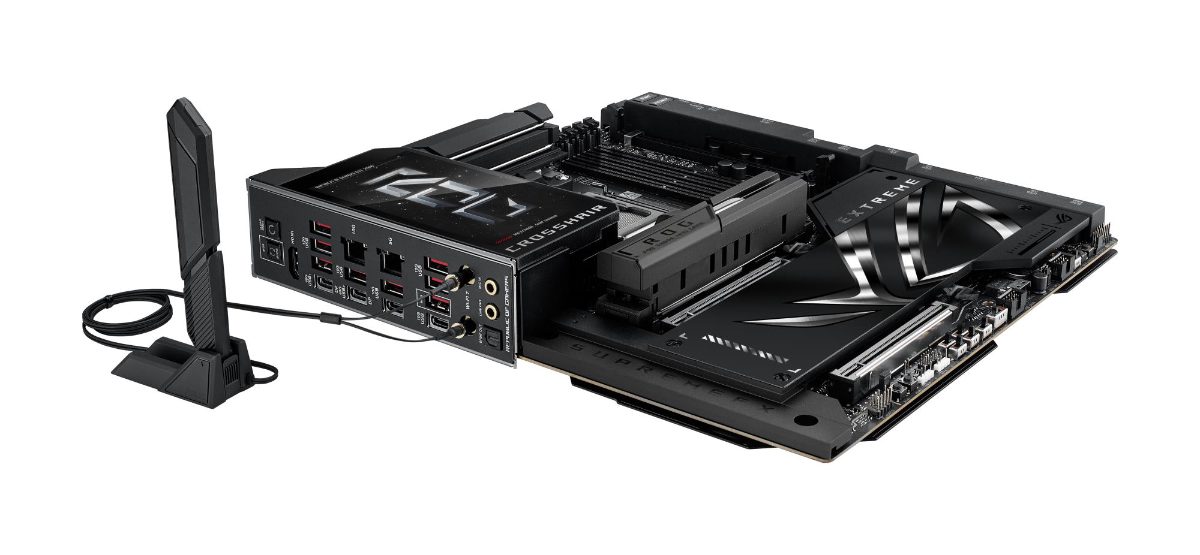

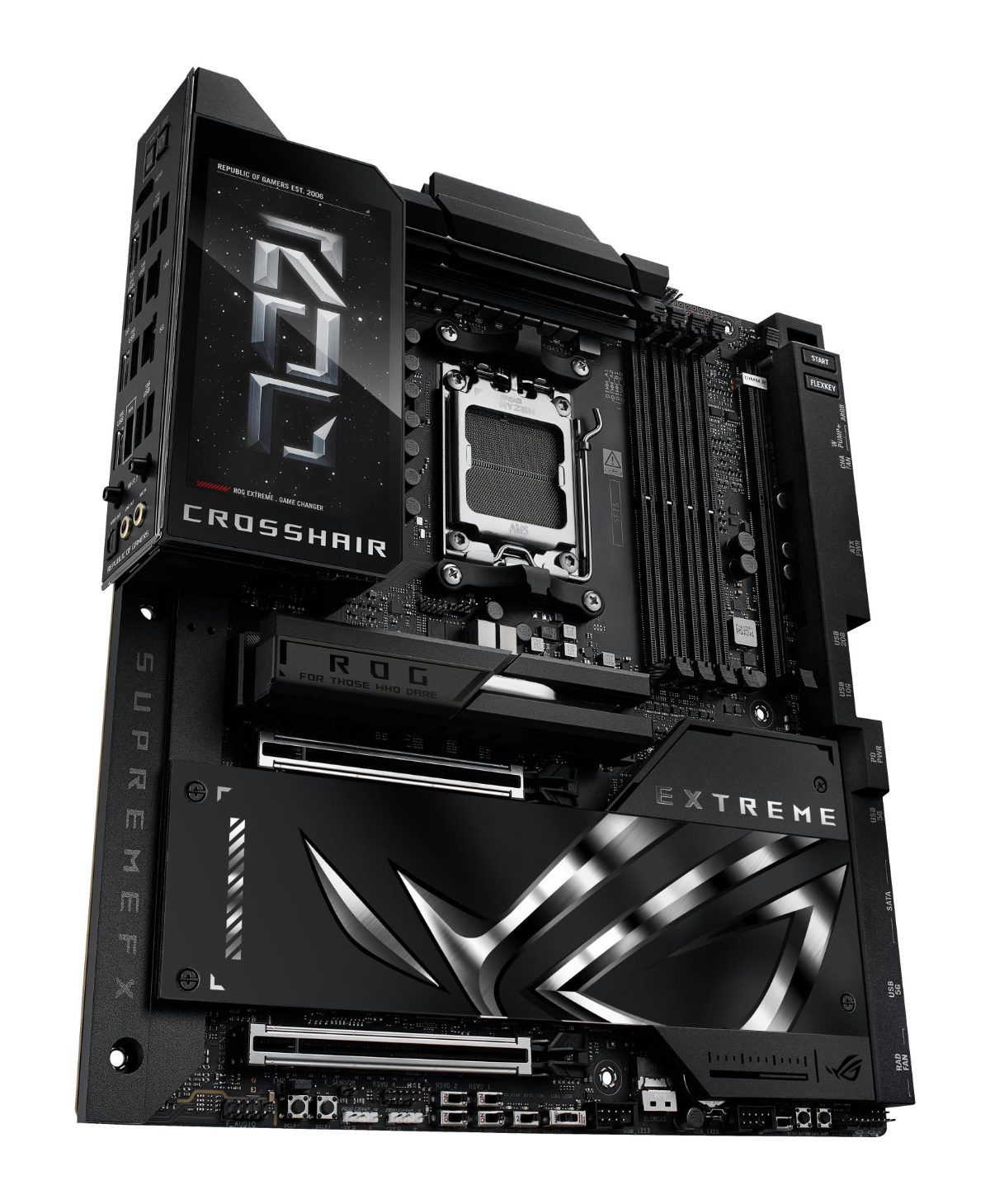

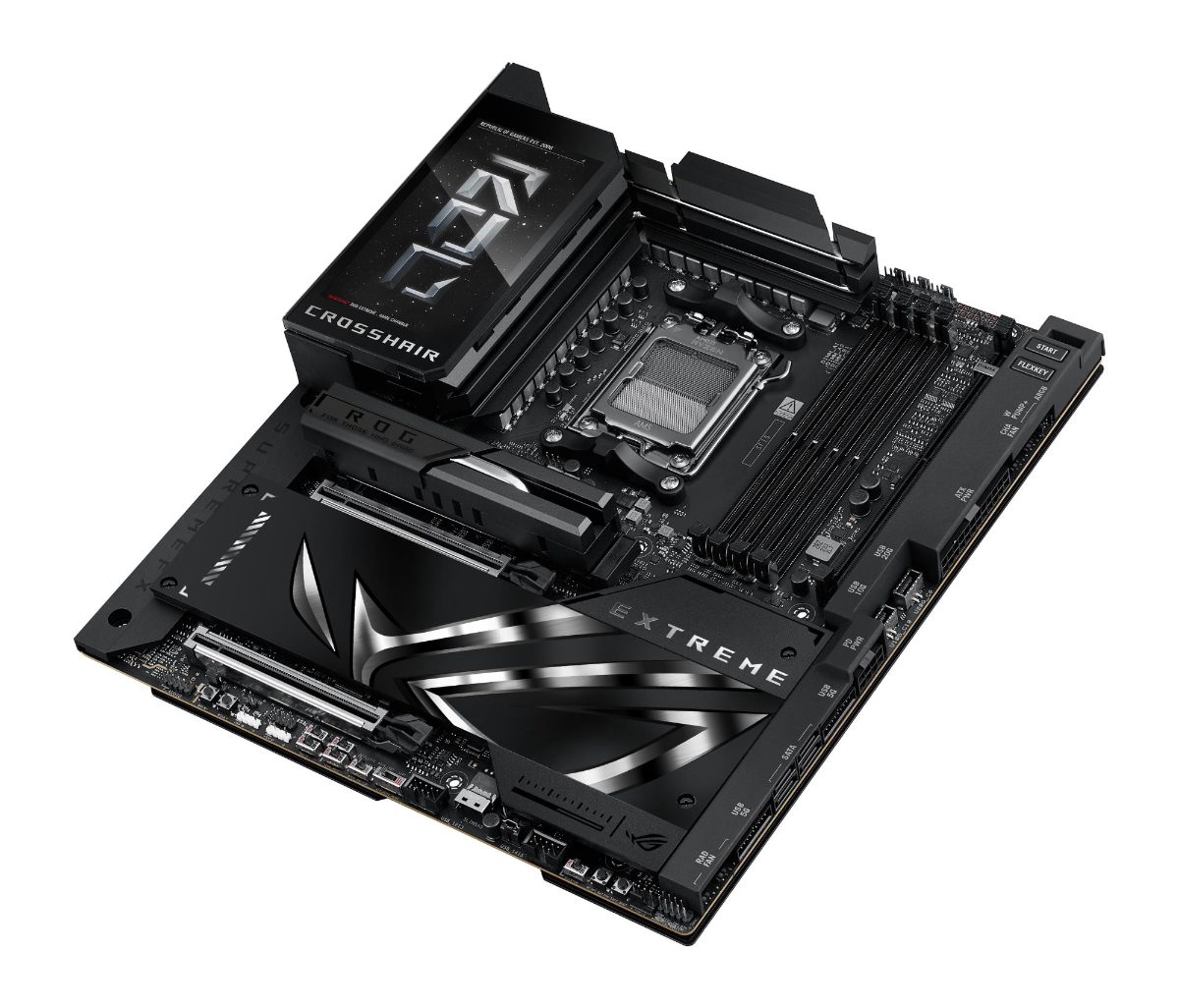

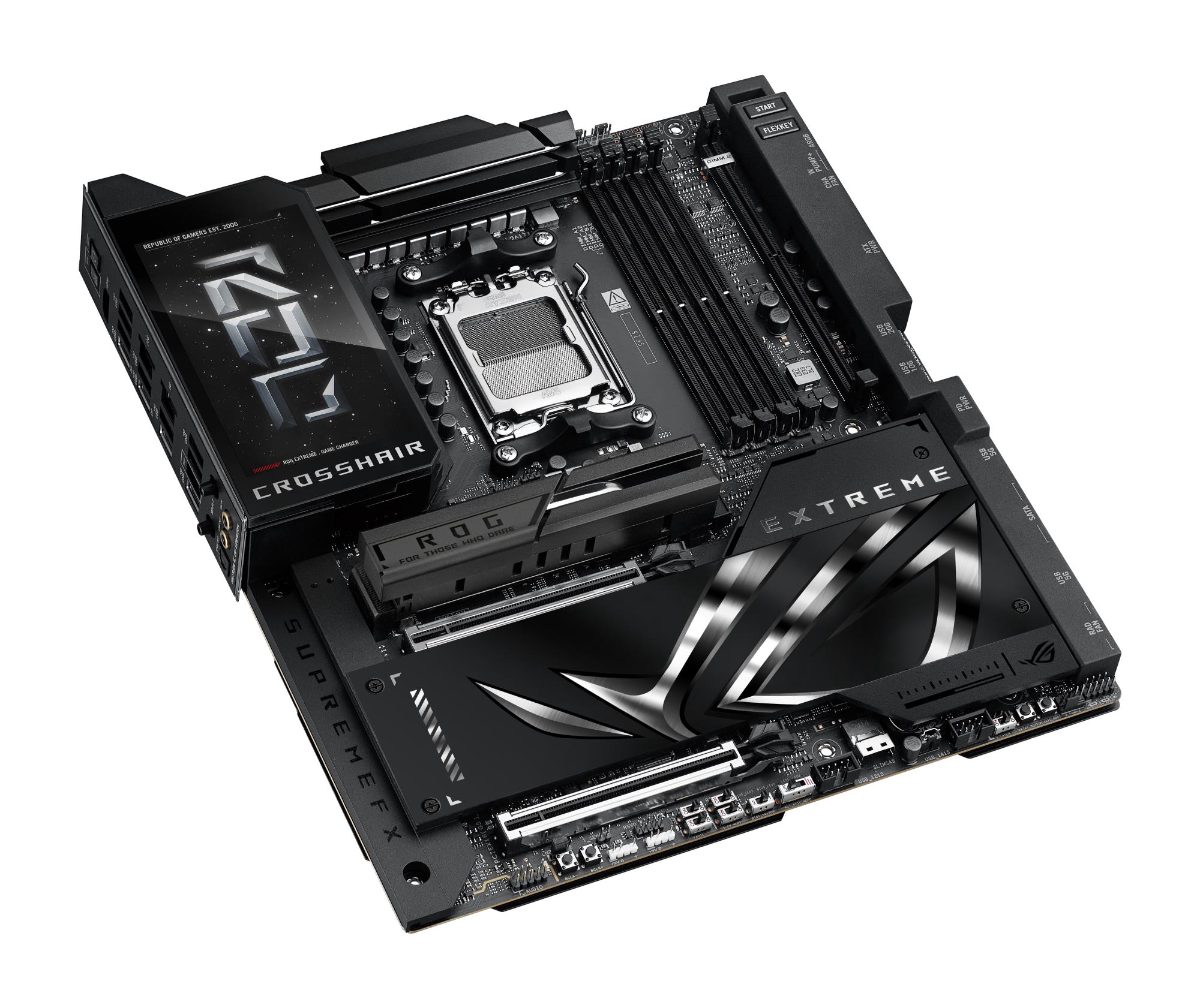

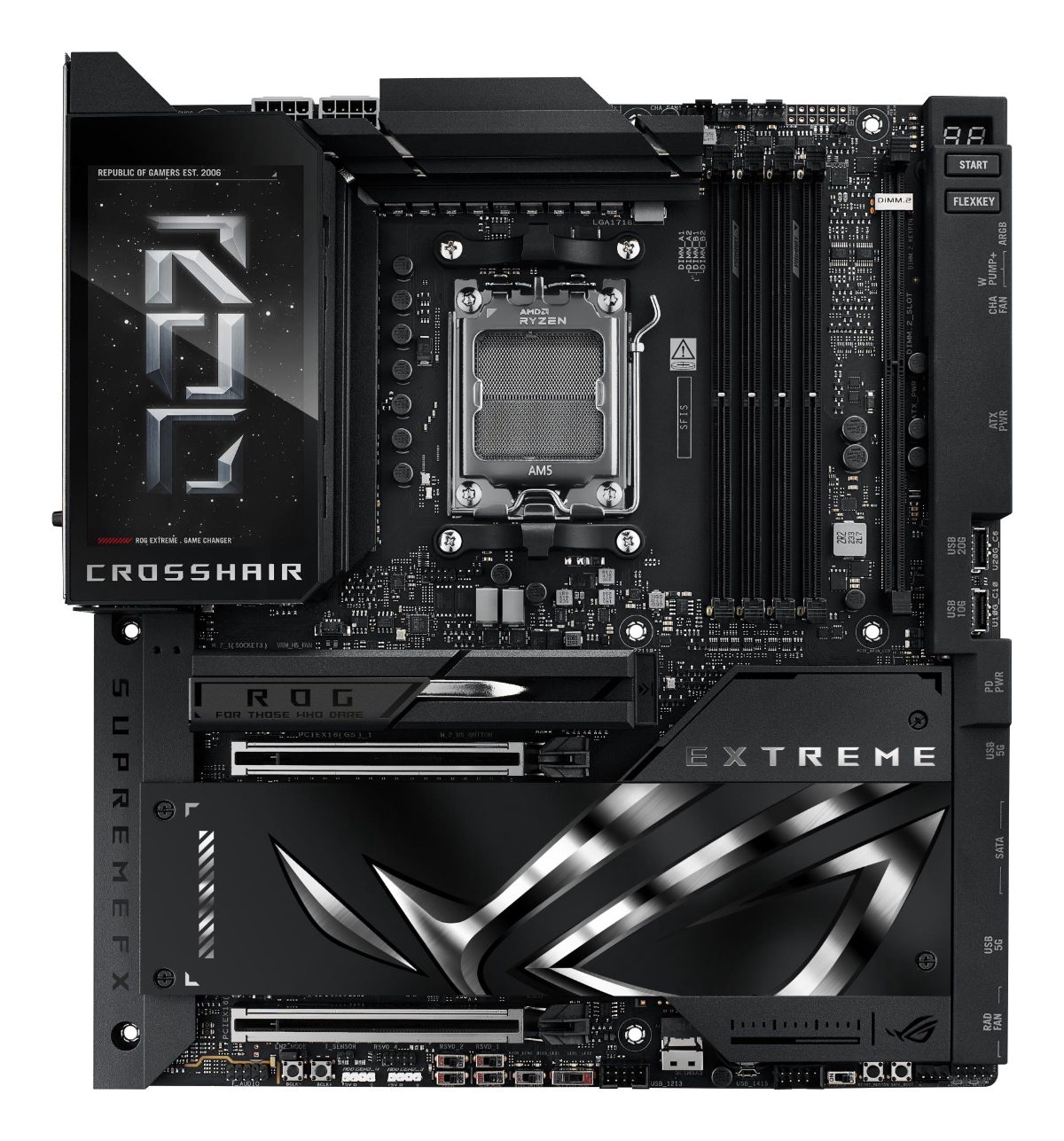

ROG Crosshair X870E Extreme
The ROG Crosshair X870E Extreme is the flagship AMD Ryzen™ 9000 series motherboard, designed for the most discerning users. It provides the ultimate foundation for AM5 CPUs, DDR5 memory, and PCIe® 5.0 components to ensure maximum performance and future-readiness. Its comprehensive connectivity includes USB4®, and the integrated 5-inch LCD offers a unique way to monitor system performance or add a touch of personalized style.
ASUS AI CACHE BOOST
Supercharge your large language model(LLM) workflows with AI Cache Boost. Exclusive to ASUS AMD 800 Series and 600 Series motherboards using AMD Ryzen™ 9000 Series Granite Ridge CPUs, this BIOS feature intelligently enhances cache efficiency, delivering up to 12.75% faster performance for your LLM tasks.
Specifications
| Audio chip | Realtek ALC4082 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Chipset | AMD X870E |
| Chipset family | AMD |
| Form factor | Extended ATX |
| Colour | Black |
| Supported Windows operating systems | Windows 11 |
| Compatible processor series | AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| ECC compatibility | ECC & Non-ECC |
| Maximum memory | 256 GB |
| Memory channels | Dual-channel |
| Memory form factor | DIMM |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Unbuffered memory | Yes |
| Supported storage drives | 10 |
| RAID levels | 0/1/10/5 |
| RAID support | Yes |
| Supported drive interfaces | M.2,SATA III,SlimSAS |
| Supported drive types | HDD & SSD |
| Integrated graphics | No |
| Multi-GPU technology | Not supported |
| 12V power connector | Yes |
| ATX power connector | Yes |
| CPU fan connector | Yes |
| EPS power connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Fan connector count | 2 |
| SATA connectors | 4 |
| RGB LED pin header | Yes |
| Internal USB 2.0 connectors | 2 |
| Internal USB 3.2 Gen 1 connectors | 2 |
| USB 3.2 Gen 2 connectors | 1 |
| USB 3.2 Gen 2x2 connectors | 1 |
| Ethernet (RJ-45) ports | 2 |
| HDMI ports | 1 |
| PS/2 ports | 1 |
| S/PDIF out connector | Yes |
| USB 3.2 Gen 2 Type-A ports | 8 |
| USB 3.2 Gen 2 Type-C ports | 2 |
| USB4 Gen 3x2 ports | 2 |
| Wi-Fi AP antenna jack | 1 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Ethernet type | 10 Gigabit Ethernet/5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| 1st M.2 highest PCI Express generation | 5.0 |
| 1st M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 5.0 |
| 3rd M.2 largest key size | 22110 |
| 4th M.2 highest PCI Express generation | 4.0 |
| Fourth M.2 key size | 22110 |
| 5th M.2 highest PCI Express generation | 4.0 |
| M.2 slot 5 key size | 22110 |
| M.2 slot count | 5 |
| PCI Express x16 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| BIOS memory size | 512 Mbit |
| BIOS type | UEFI AMI |
| Depth | 277 mm |
| Width | 305 mm |
| Antenna included | Yes |

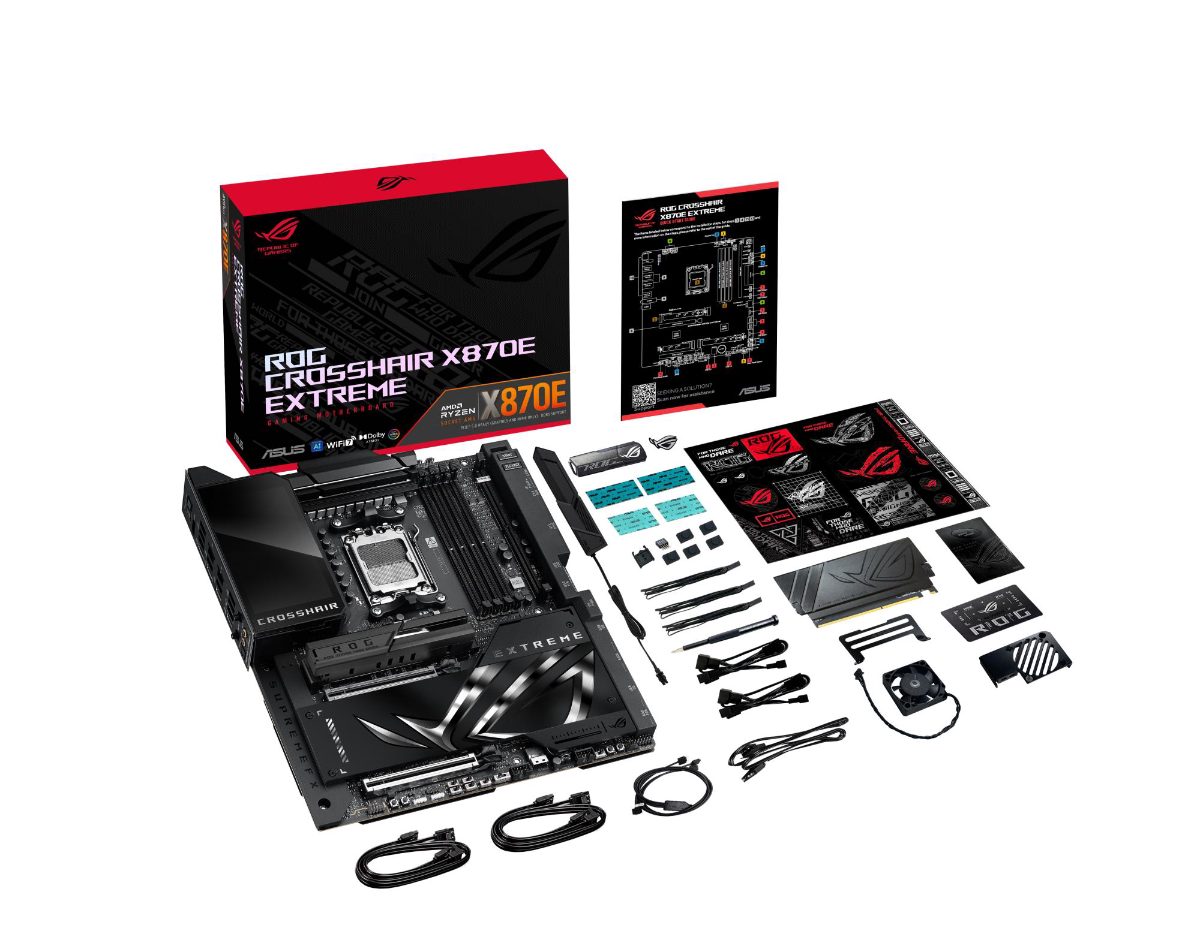

| Cables included | SATA |
| Drivers included | Yes |
| Model | ROG CROSSHAIR X870E EXTREME |
