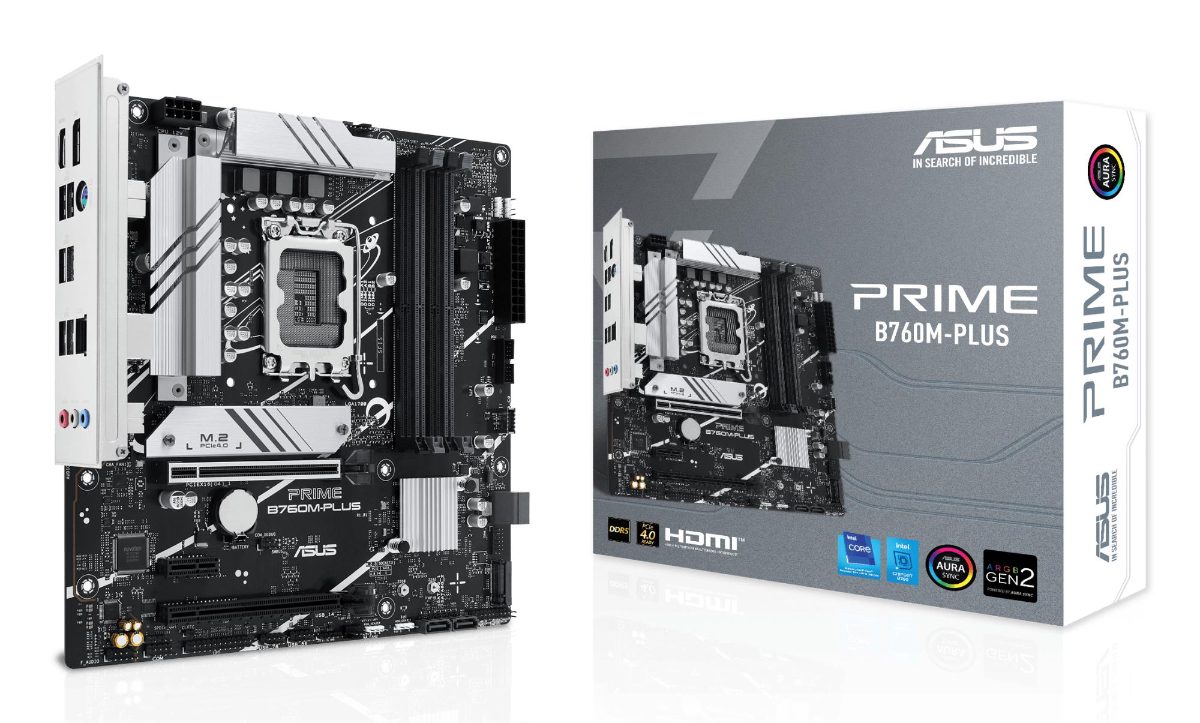

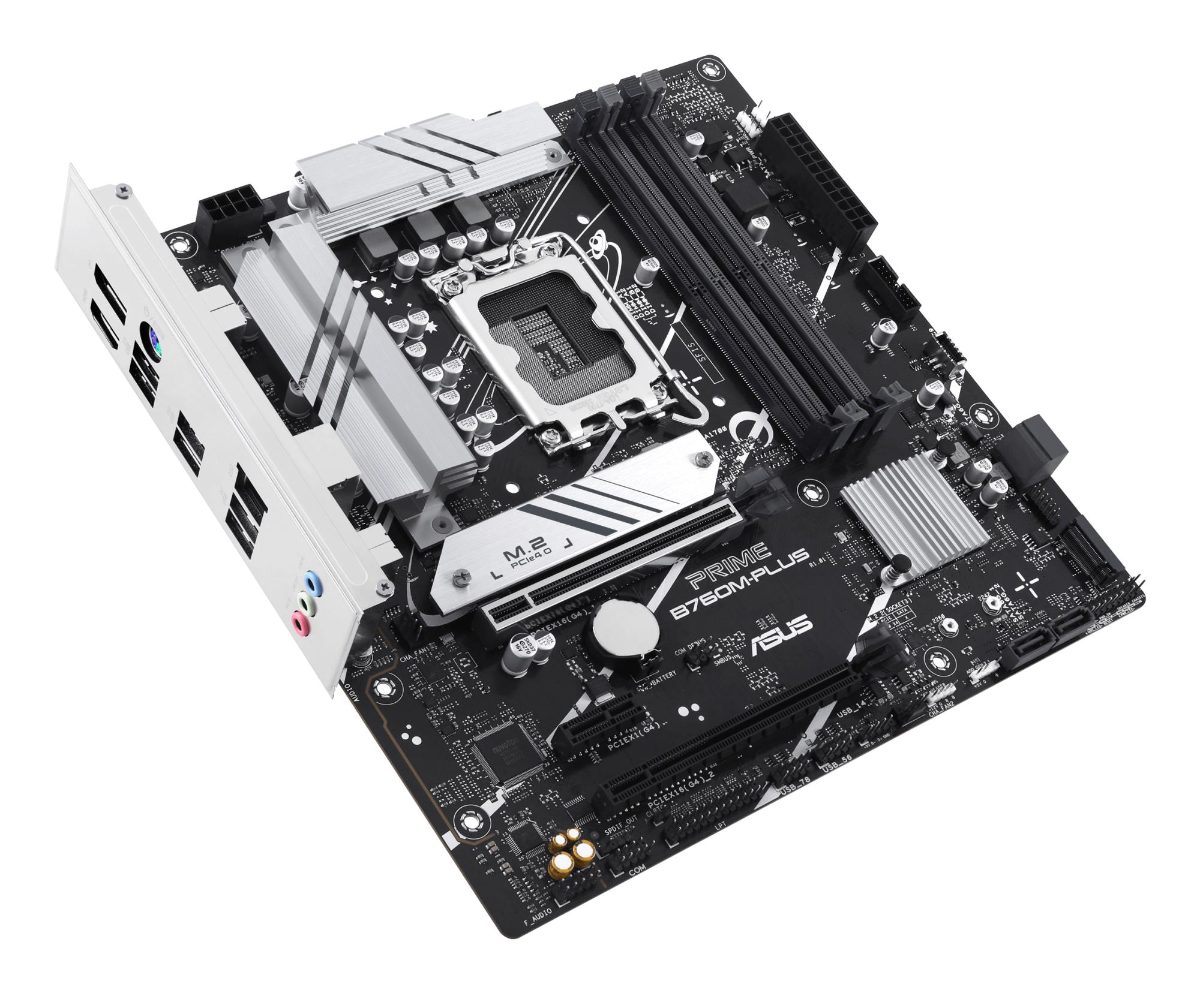

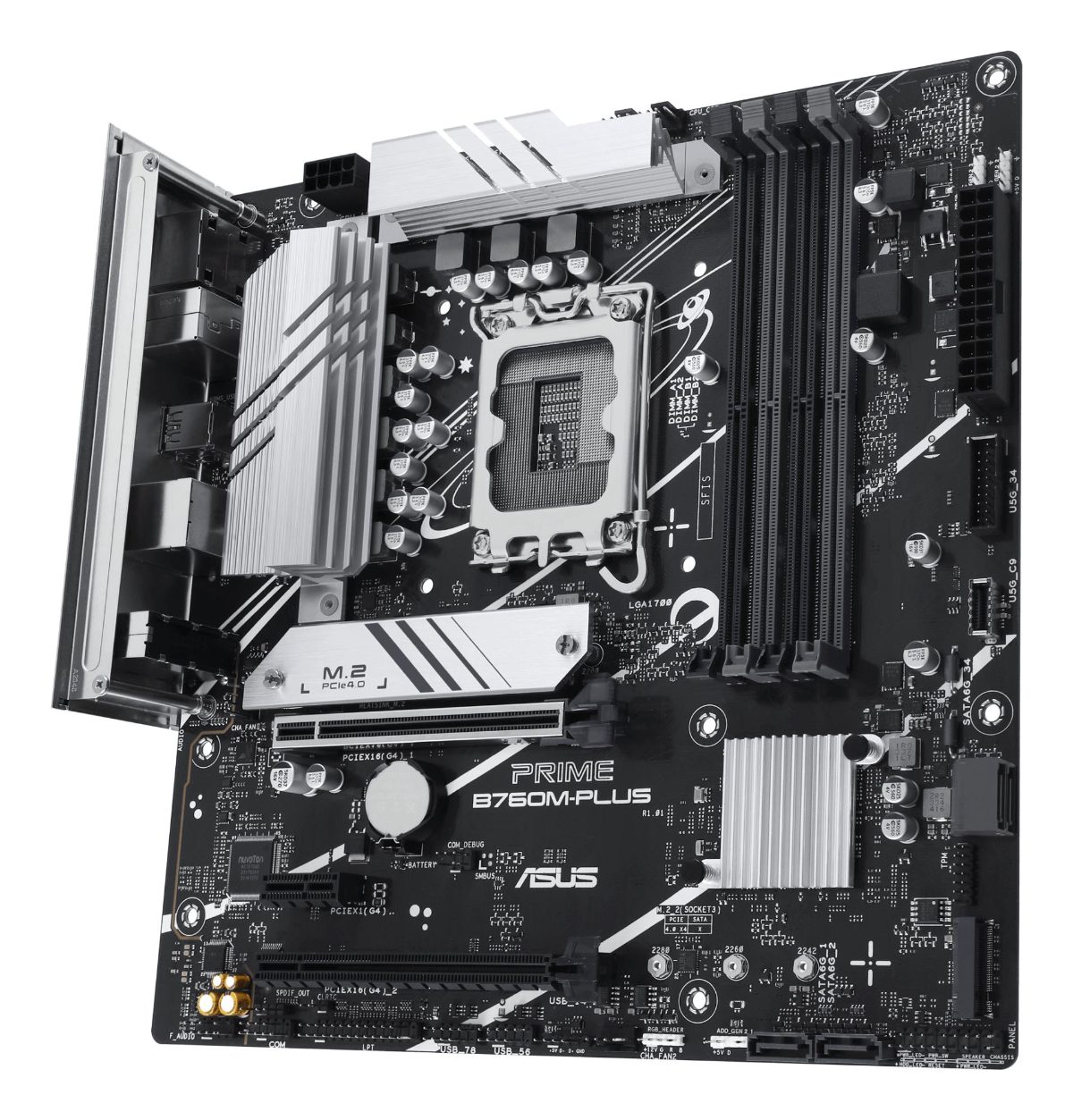

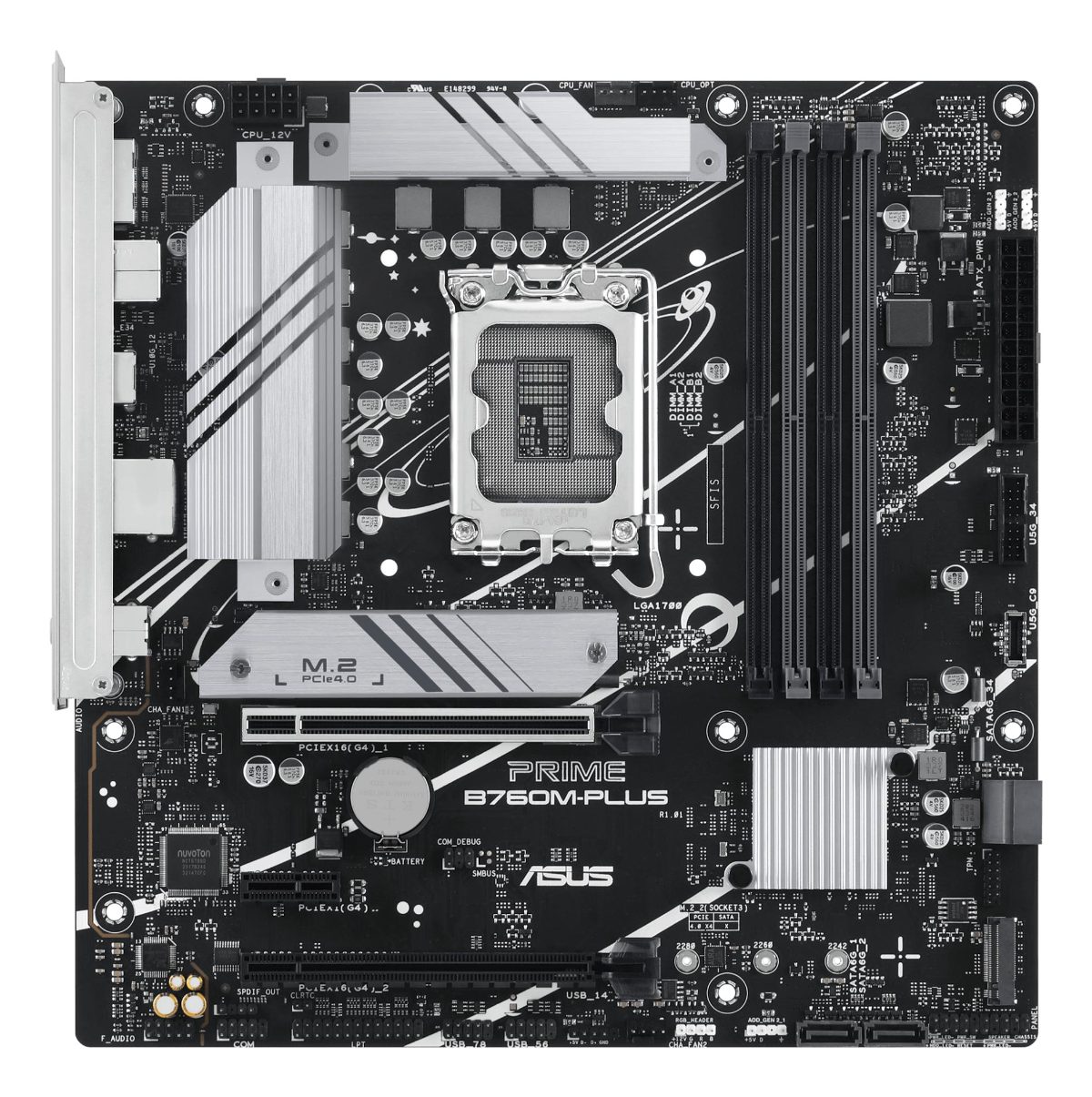

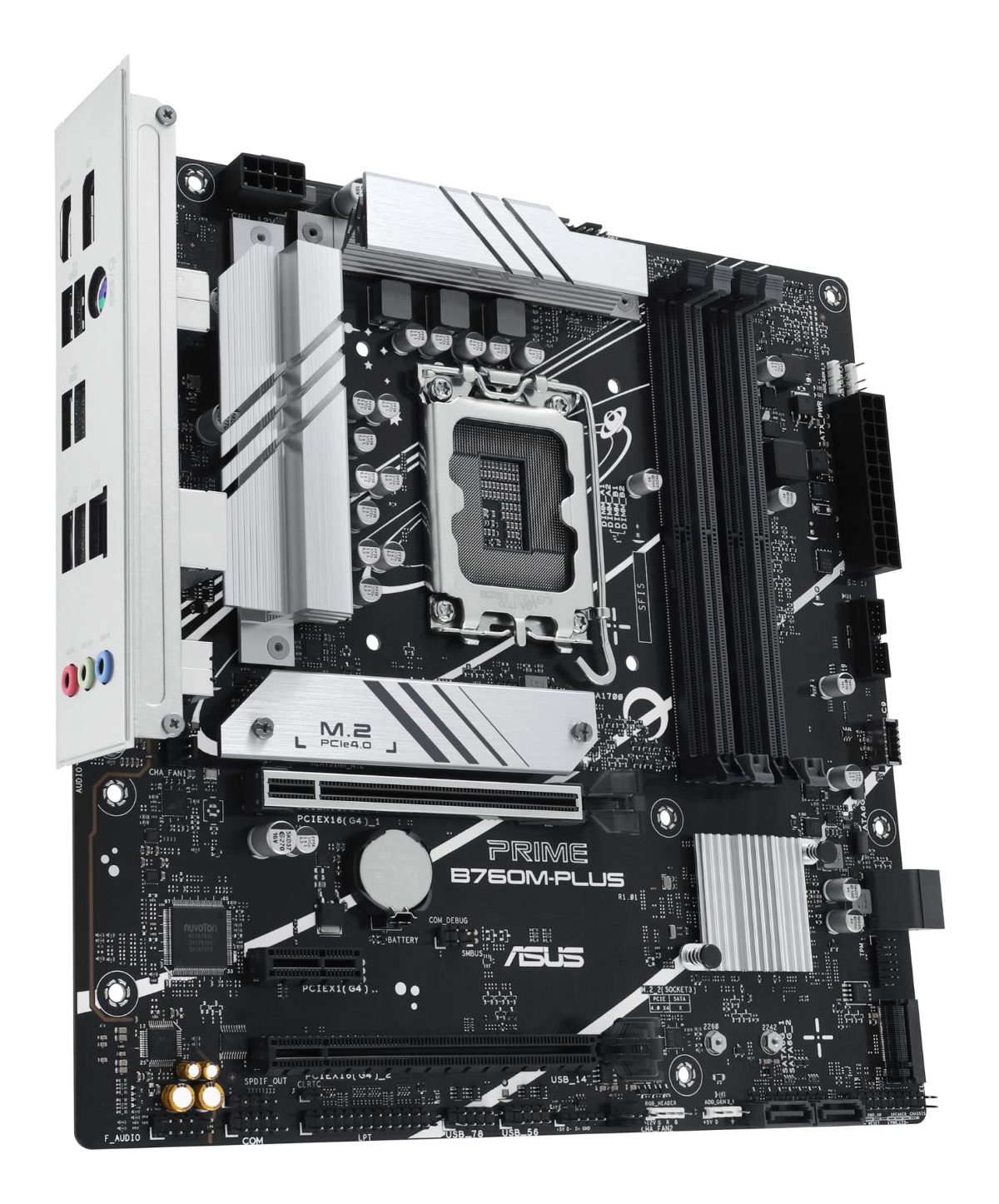

Mainboard, ASUS, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR5
Mainboard, ASUS, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR5, Memory slots 4, 1xPCI-Express 4.0 1x, 2xPCI-Express 4.0 16x, 2xM.2, 1xHDMI, 1xDisplayPort, 4xUSB 2.0, 2xUSB 3.2, 1xPS/2, 1xRJ45, 3xAudio port, PRIMEB760M-PLUS
ASUS · 4711387469910
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 36 mo.
- Invoice: with every order
- EAN
- 4711387469910
- Brand
- ASUS
Description
B760M-PLUS
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 14th & 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-PLUS provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Intelligent Control
ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
All-Around Energy Efficiency
The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
- Intel® LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel® processors
- Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 10Gbps, front USB 5Gbps Type-C®
- Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
- Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
Specifications
| Audio output channels | 7.1 channels |
| Component for | PC |
| Chipset | Intel B760 |
| Chipset family | Intel |
| Form factor | micro ATX |
| Supported Windows operating systems | Windows 10 x64/Windows 11 |
| Compatible processor series | Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| ECC compatibility | Non-ECC |
| Maximum memory | 192 GB |
| Memory channels | Dual-channel |
| Memory form factor | DIMM |
| Number of memory slots | 4 |
| Memory frequency (max) | 7200 MHz |
| Supported memory clock speeds | 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200 MHz |
| Supported memory types | DDR5-SDRAM |
| Unbuffered memory | Yes |
| Supported storage drives | 6 |
| RAID levels | 0/1/10/5 |
| RAID support | Yes |
| Supported drive interfaces | M.2,SATA III |
| Supported drive types | HDD & SSD |
| Multi-GPU technology | Not supported |
| 12V power connector | Yes |
| ATX power connector | Yes |
| CPU fan connector | Yes |
| EPS power connector | Yes |
| Front panel audio connector | Yes |
| Fan connector count | 2 |
| COM ports | 1 |
| SATA connectors | 4 |
| RGB LED pin header | Yes |
| S/PDIF out connector | Yes |
| TPM header | Yes |
| Internal USB 2.0 connectors | 3 |
| Internal USB 3.2 Gen 1 connectors | 2 |
| DisplayPorts | 1 |
| Ethernet (RJ-45) ports | 1 |
| HDMI ports | 1 |
| Microphone input | Yes |
| PS/2 ports | 1 |
| USB 2.0 ports | 4 |
| USB 3.2 Gen 2 Type-A ports | 2 |
| Ethernet type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| M.2 slot count | 2 |
| PCI Express x1 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 2 |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Depth | 244 mm |
| Width | 244 mm |
| Cables included | SATA |
| Screws included | Yes |
| Model | PRIME B760M-PLUS |
