Mainboard, ASUS, Intel B860 Express, LGA1851, Micro-ATX, Memory DDR5
Mainboard, ASUS, Intel B860 Express, LGA1851, Micro-ATX, Memory DDR5, Memory slots 2, 2xPCI-Express 4.0 1x, 1xPCI-Express 4.0 16x, 2xM.2, 1xHDMI, 1xDisplayPort, 1xAudio-In, 1xAudio-Out, 1xMicrophone, 3xUSB 2.0, 2xUSB 3.0, 1xUSB 3.2, 1xPS/2, 1xRJ45, PRIMEB860M-K
ASUS · 4711387808498
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 36 mo.
- Invoice: with every order
- EAN
- 4711387808498
- Brand
- ASUS
Description
B860M-K
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860M-K motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Specifications
| Audio output channels | 7.1 channels |
| Component for | PC |
| Chipset | Intel B860 |
| Chipset family | Intel |
| Form factor | micro ATX |
| Supported Windows operating systems | Windows 10 x64/Windows 11 |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| ECC compatibility | Non-ECC |
| Maximum memory | 128 GB |
| Memory channels | Dual-channel |
| Memory form factor | DIMM |
| Number of memory slots | 2 |
| Supported memory types | DDR5-SDRAM |
| Unbuffered memory | Yes |
| Supported HDDs | 4 |
| Supported storage drives | 6 |
| RAID levels | 0/1/10/5 |
| RAID support | Yes |
| Supported drive interfaces | M.2,SATA III |
| Supported drive types | HDD & SSD |
| Multi-GPU technology | Not supported |
| 12V power connector | Yes |
| ATX power connector | Yes |
| CPU fan connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Fan connector count | 2 |
| COM ports | 1 |
| SATA connectors | 4 |
| RGB LED pin header | Yes |
| S/PDIF out connector | Yes |
| TPM header | Yes |
| Internal USB 2.0 connectors | 2 |
| Internal USB 3.2 Gen 1 connectors | 2 |

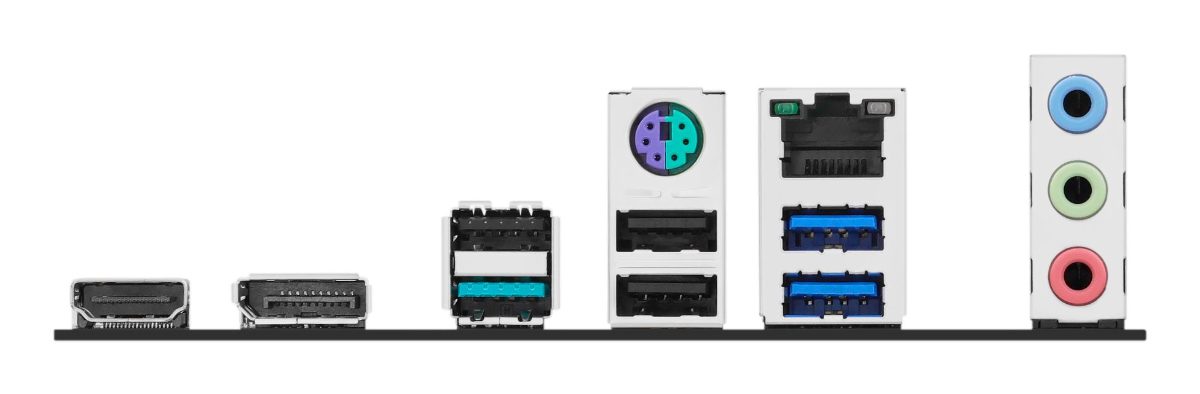

| DisplayPorts | 1 |
| Ethernet (RJ-45) ports | 1 |
| HDMI ports | 1 |
| PS/2 ports | 1 |
| USB 2.0 ports | 2 |
| USB 3.2 Gen 1 Type-A ports | 2 |
| USB 3.2 Gen 2 Type-A ports | 1 |
| Ethernet type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| 1st M.2 highest PCI Express generation | 5.0 |
| 1st M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| M.2 slot count | 2 |
| PCI Express x1 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Depth | 222 mm |
| Width | 244 mm |

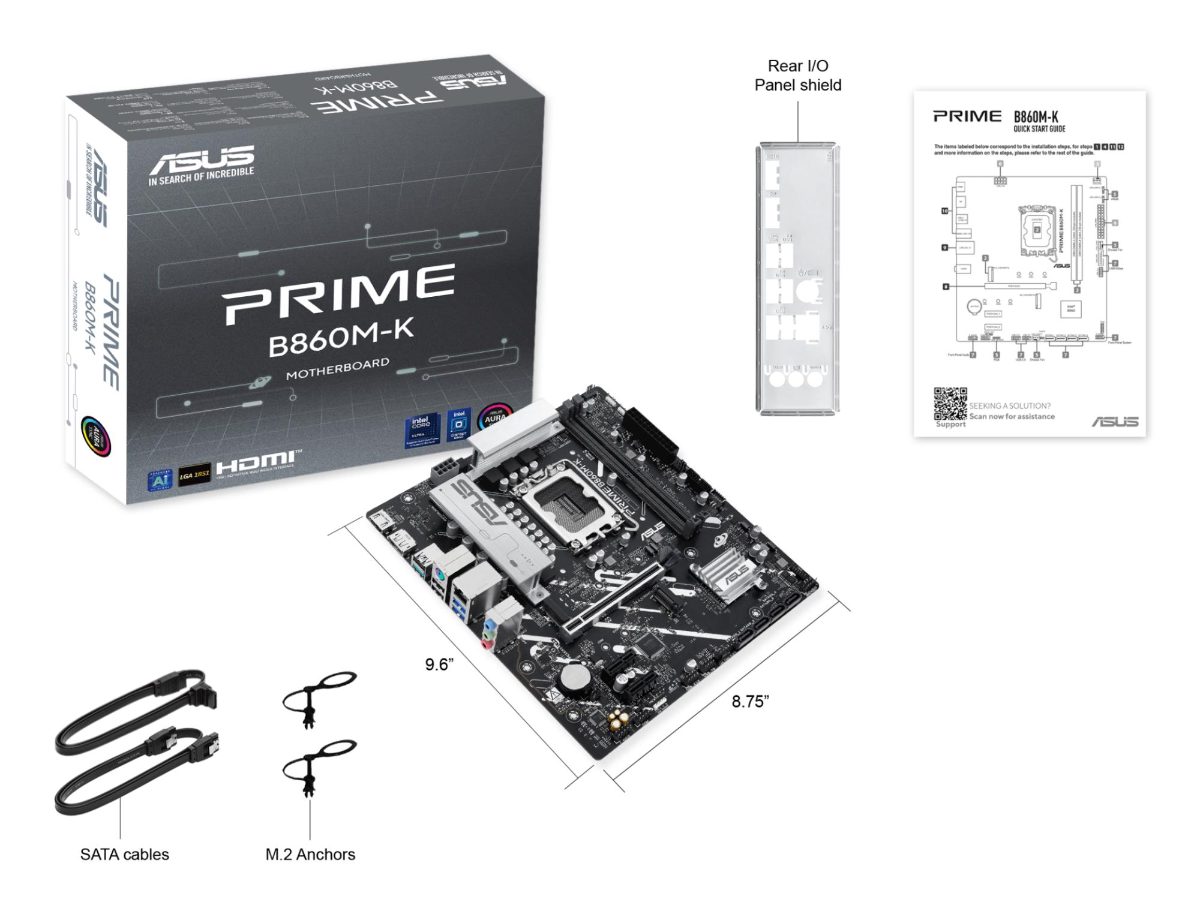

| Cables included | SATA |
| Model | PRIME B860M-K |
