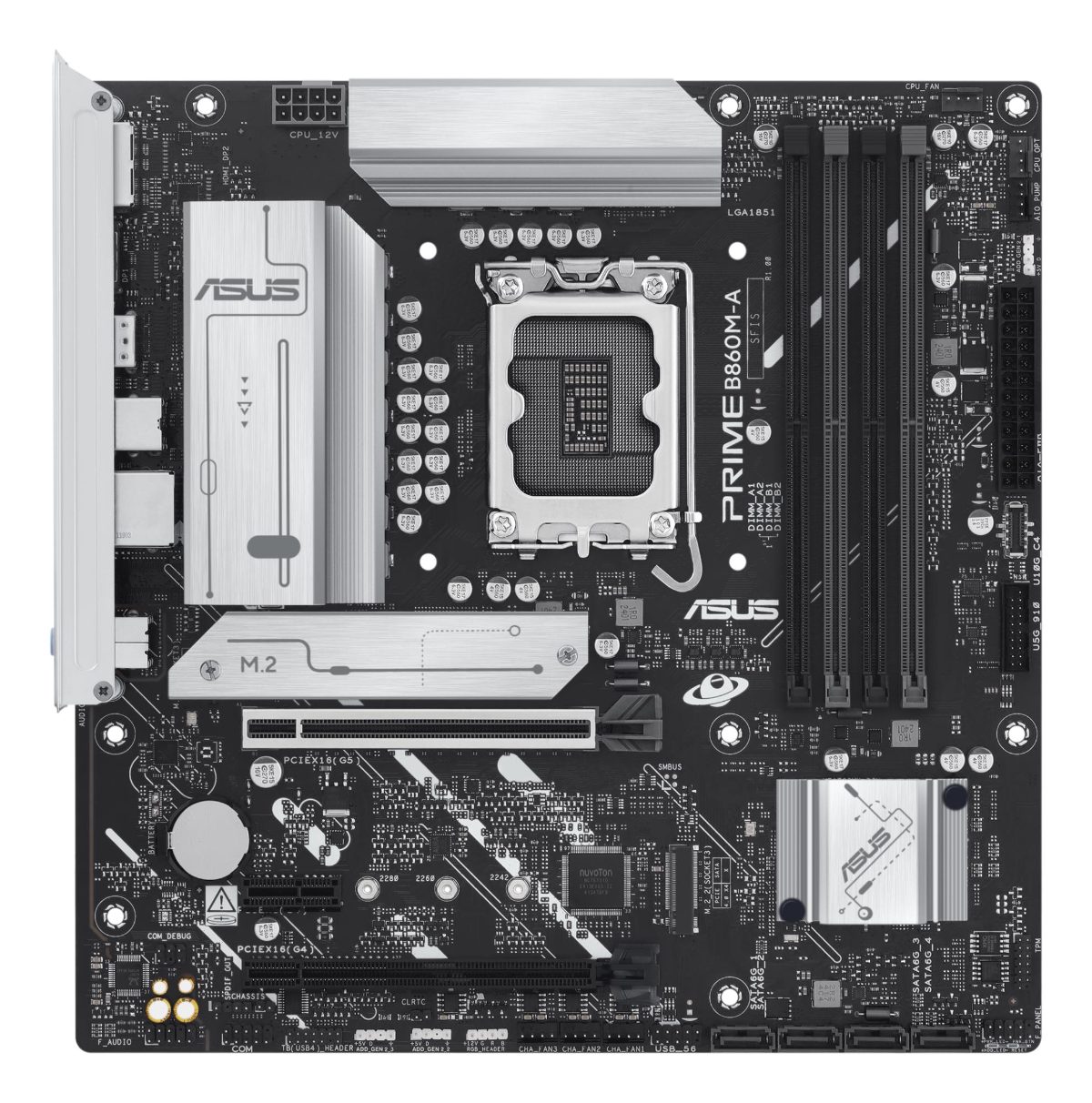

Mainboard, ASUS, Intel B860 Express, LGA1851, Micro-ATX, Memory DDR5
Mainboard, ASUS, Intel B860 Express, LGA1851, Micro-ATX, Memory DDR5, Memory slots 4, PRIMEB860M-A-CSM
ASUS · 4711387819869
—
The invoice is sent as soon as you order.
Out of stock
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 36 mo.
- Invoice: with every order
- EAN
- 4711387819869
- Brand
- ASUS
Description
PRIME B860M-A-CSM
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860M-A-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Specifications
| Audio output channels | 7.1 channels |
| Component for | PC |
| Chipset | Intel B860 |
| Chipset family | Intel |
| Form factor | micro ATX |
| Colour | Multicolour |
| Supported Windows operating systems | Windows 10 x64/Windows 11 |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| ECC compatibility | Non-ECC |
| Maximum memory | 256 GB |
| Memory channels | Dual-channel |
| Memory form factor | DIMM |
| Number of memory slots | 4 |
| Memory frequency (max) | 8666 MHz |
| Supported memory types | DDR5-SDRAM |
| Unbuffered memory | Yes |
| Supported HDDs | 4 |
| Supported storage drives | 6 |
| RAID levels | 0/1/10/5 |
| RAID support | Yes |
| Supported drive interfaces | M.2,SATA III |
| Supported drive types | HDD & SSD |
| Multi-GPU technology | Not supported |
| 12V power connector | Yes |
| ATX power connector | Yes |
| Chassis intrusion connector | Yes |
| CPU fan connector | Yes |
| EPS power connector | Yes |
| Front panel audio connector | Yes |
| Fan connector count | 3 |
| COM ports | 1 |
| Number of CPU fan connectors | 1 |
| SATA connectors | 4 |
| S/PDIF out connector | Yes |
| Thunderbolt headers | 1 |
| TPM header | Yes |
| Internal USB 2.0 connectors | 1 |
| Internal USB 3.2 Gen 1 connectors | 1 |
| USB 3.2 Gen 2 connectors | 1 |
| DisplayPorts | 2 |
| Ethernet (RJ-45) ports | 1 |
| HDMI ports | 1 |
| Line in | Yes |
| Microphone input | Yes |
| USB 2.0 ports | 4 |
| USB 3.2 Gen 1 Type-A ports | 2 |
| USB 3.2 Gen 2 Type-A ports | 1 |
| USB 3.2 Gen 2x2 Type-C ports | 1 |
| Ethernet type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| PCI Express x1 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Depth | 244 mm |
| Height | 50 mm |
| Width | 244 mm |
| Weight | 815 g |
| Model | PRIME B860M-A-CSM |
