Mainboard, GIGABYTE, AMD B650, Socket AM5, ATX, RAM DDR5-SDRAM, 4xSlots
Mainboard, GIGABYTE, AMD B650, Socket AM5, ATX, RAM DDR5-SDRAM, 4xSlots, 3xNumber of M.2 (M) slots, B650 EAGLE AX (rev. 1.2), B650EAGLE1.2
GIGABYTE · 4719331863081
—
The invoice is sent as soon as you order.
Out of stock
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 36 mo.
- Invoice: with every order
- EAN
- 4719331863081
- Brand
- GIGABYTE
Description

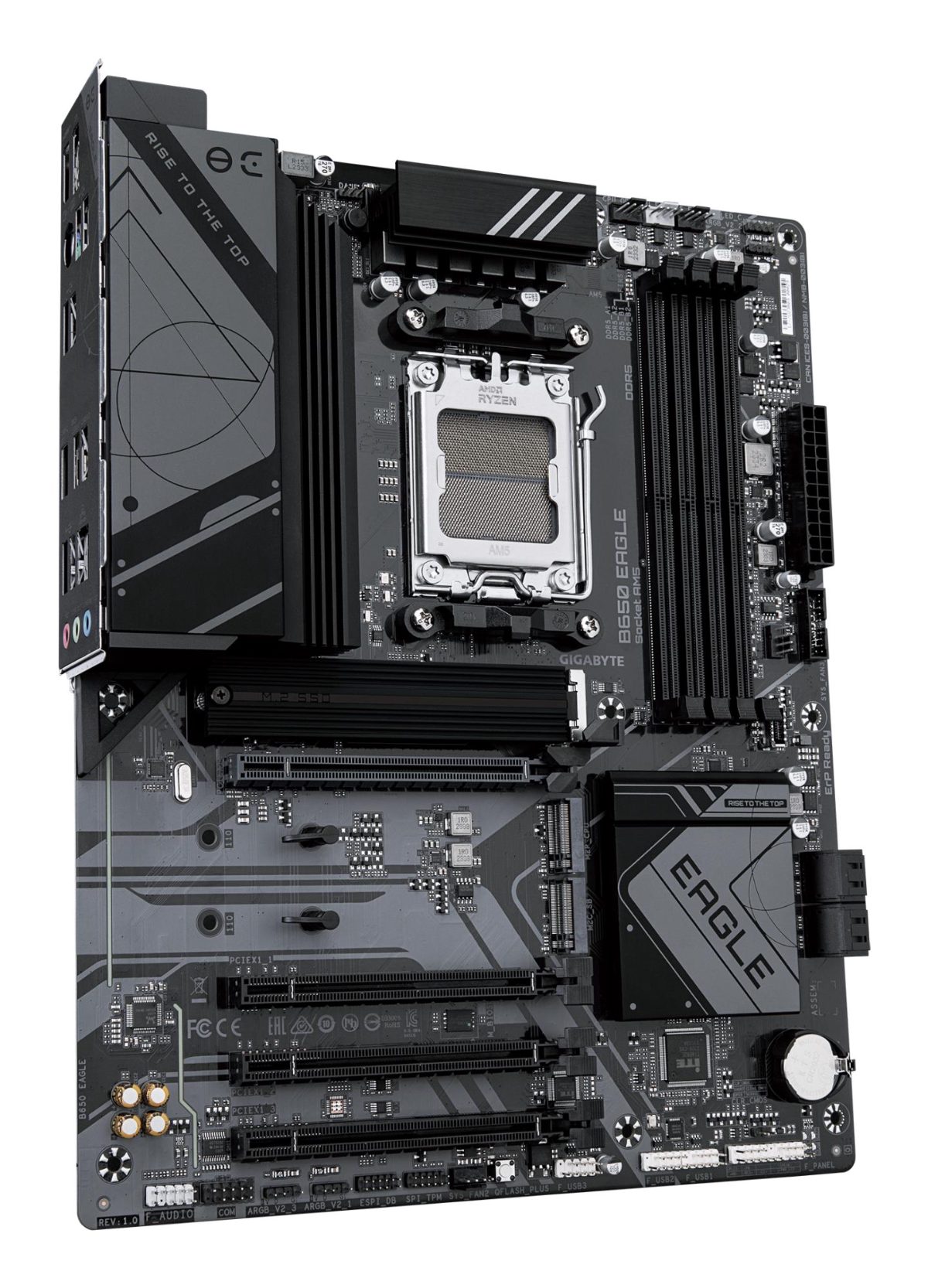

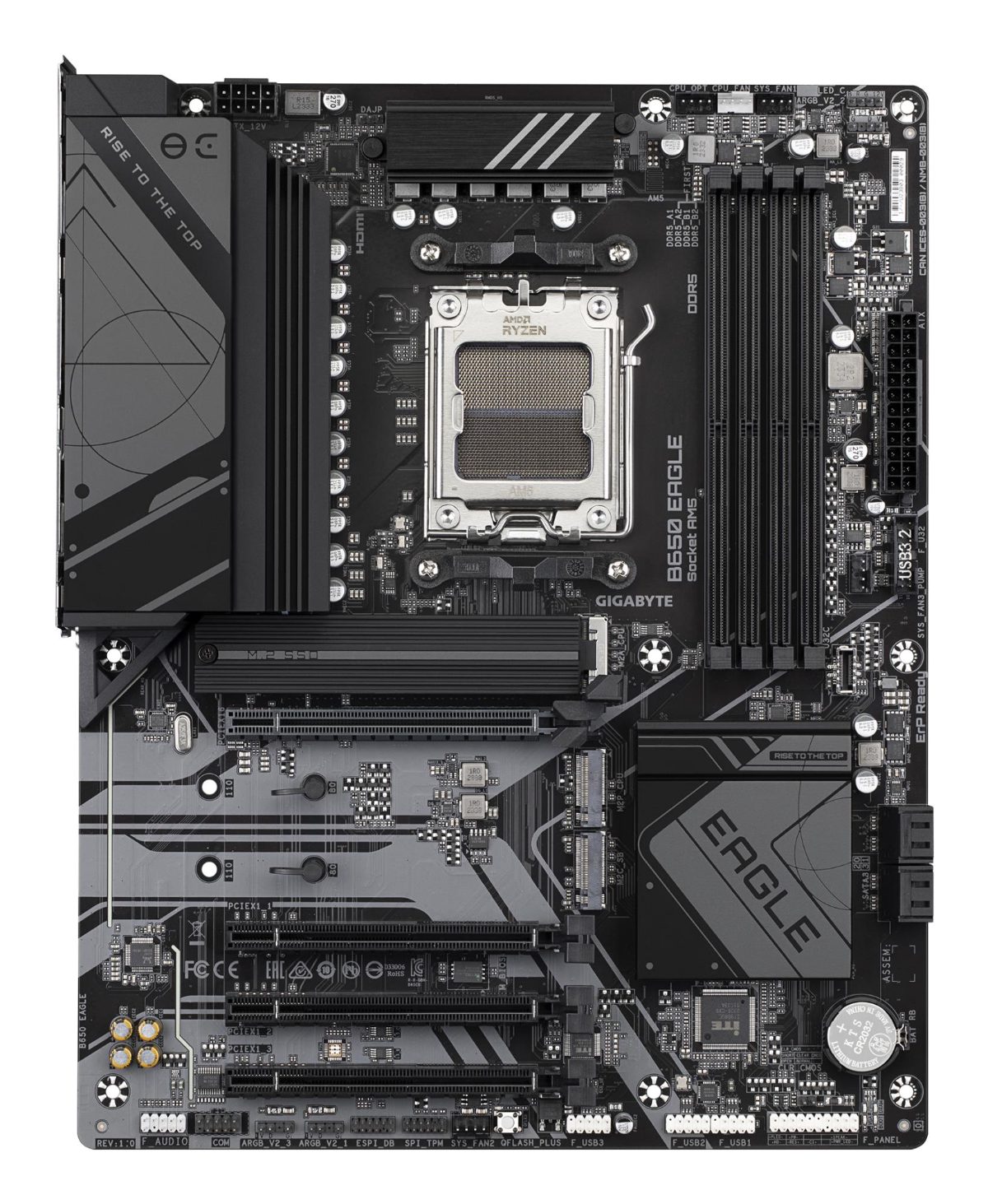

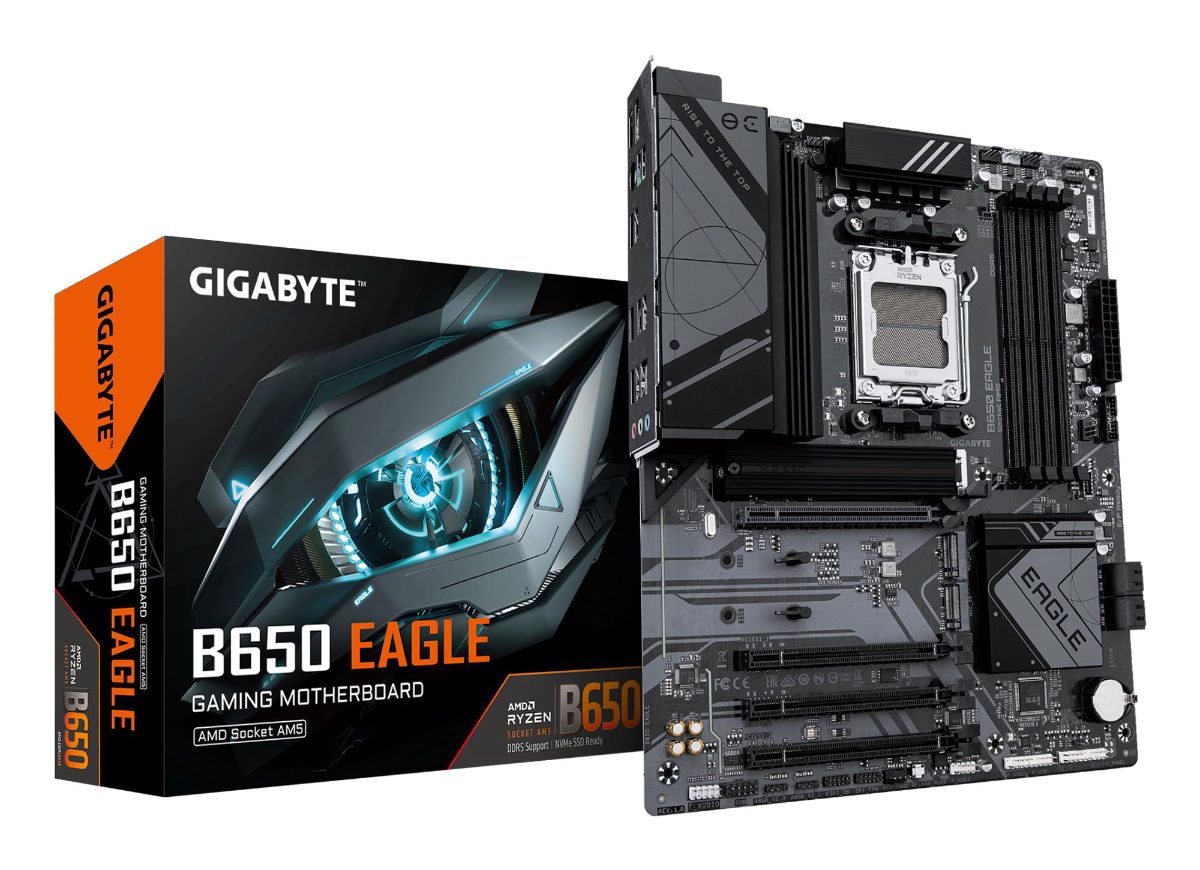

GIGABYTE B650 EAGLE AX (rev. 1.2)
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- AMD Socket AM5：Supports AMD Ryzen 7000/ Ryzen 8000/ Ryzen 9000 Series Processors
- Unparalleled Performance：12+2+2 Phases Digital VRM Solution
- Dual Channel DDR5：4*SMD DIMMs with AMD EXPO & Intel® XMP Memory Module Support
- SuperSpeed Storage：1*PCIe 5.0 + 2*PCIe 4.0 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
- EZ-Latch：PCIe x16 Slot with Quick Release Design
- Fast Networks：GbE LAN

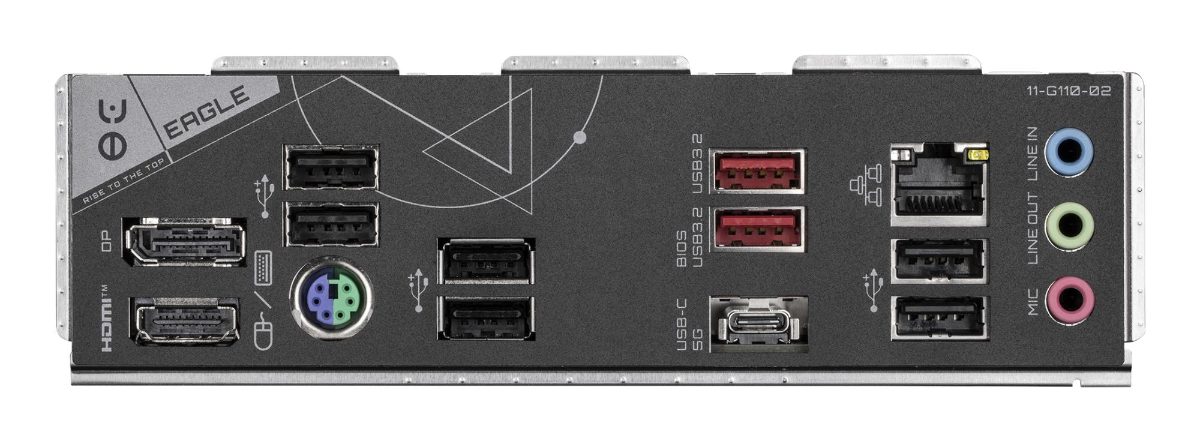

- Extended Connectivity：DP, HDMI, Rear USB 10Gb/s
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Specifications
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Chipset | AMD B650 |
| Chipset family | AMD |
| Form factor | ATX |
| PC health monitoring | Fan/Temperature/Voltage/Water cooling |
| Power source | ATX |
| Colour | Brown |
| Supported Windows operating systems | Windows 10 x64/Windows 11 x64 |
| Compatible processor series | AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| ECC compatibility | Non-ECC |
| Maximum memory | 256 GB |
| Maximum internal memory per slot | 64 GB |
| Memory channels | Dual-channel |
| Memory form factor | DIMM |
| Number of memory slots | 4 |
| Memory frequency (max) | 7600 MHz |
| Supported memory clock speeds | 4400/4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600 MHz |
| Supported memory types | DDR5-SDRAM |
| Unbuffered memory | Yes |
| Supported HDDs | 4 |
| Supported storage drives | 7 |
| RAID levels | 0/1/10 |
| RAID support | Yes |
| Supported drive interfaces | M.2,SATA III |
| Supported drive types | HDD & SSD |
| DirectX version | 12.0 |
| Discrete graphics card | Yes |
| HDCP | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Multi-GPU technology | Not supported |
| 12V power connector | Yes |
| ATX power connector | Yes |
| CPU fan connector | Yes |
| EPS power connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Fan connector count | 3 |
| Number of CPU fan connectors | 2 |
| Number of RGB LED pin headers | 4 |
| SATA connectors | 4 |
| Number of water pump connectors | 2 |
| RGB LED pin header | Yes |
| Serial port headers | 1 |
| TPM header | Yes |
| Internal USB 2.0 connectors | 3 |
| Internal USB 3.2 Gen 1 connectors | 1 |
| USB 3.2 Gen 2 connectors | 1 |
| DisplayPort out version | 1.4 |
| DisplayPorts | 1 |
| Ethernet (RJ-45) ports | 1 |
| HDMI ports | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 1 |
| Line in | Yes |
| Microphone input | Yes |
| PS/2 ports | 1 |
| USB 2.0 ports | 6 |
| USB 3.2 Gen 1 Type-C ports | 1 |
| USB 3.2 Gen 2 Type-A ports | 2 |
| Ethernet type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| LAN controller | Realtek RTL8111H |
| Wi-Fi | No |
| 1st M.2 highest PCI Express generation | 5.0 |
| 1st M.2 largest key size | 25110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 22110 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 22110 |
| M.2 slot count | 3 |
| PCI Express x16 (Gen 3.x) slots | 3 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| ACPI version | 5.0 |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| SMBIOS version | 2.7 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Battery weight | 3 g |
| Country of origin | China |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Depth | 244 mm |
| Height | 35 mm |
| Width | 305 mm |
| Batteries included | Yes |
| Bundled software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Screws included | Yes |
| Warranty | 3 year(s) |
| Model | B650 EAGLE AX (rev. 1.2) |
