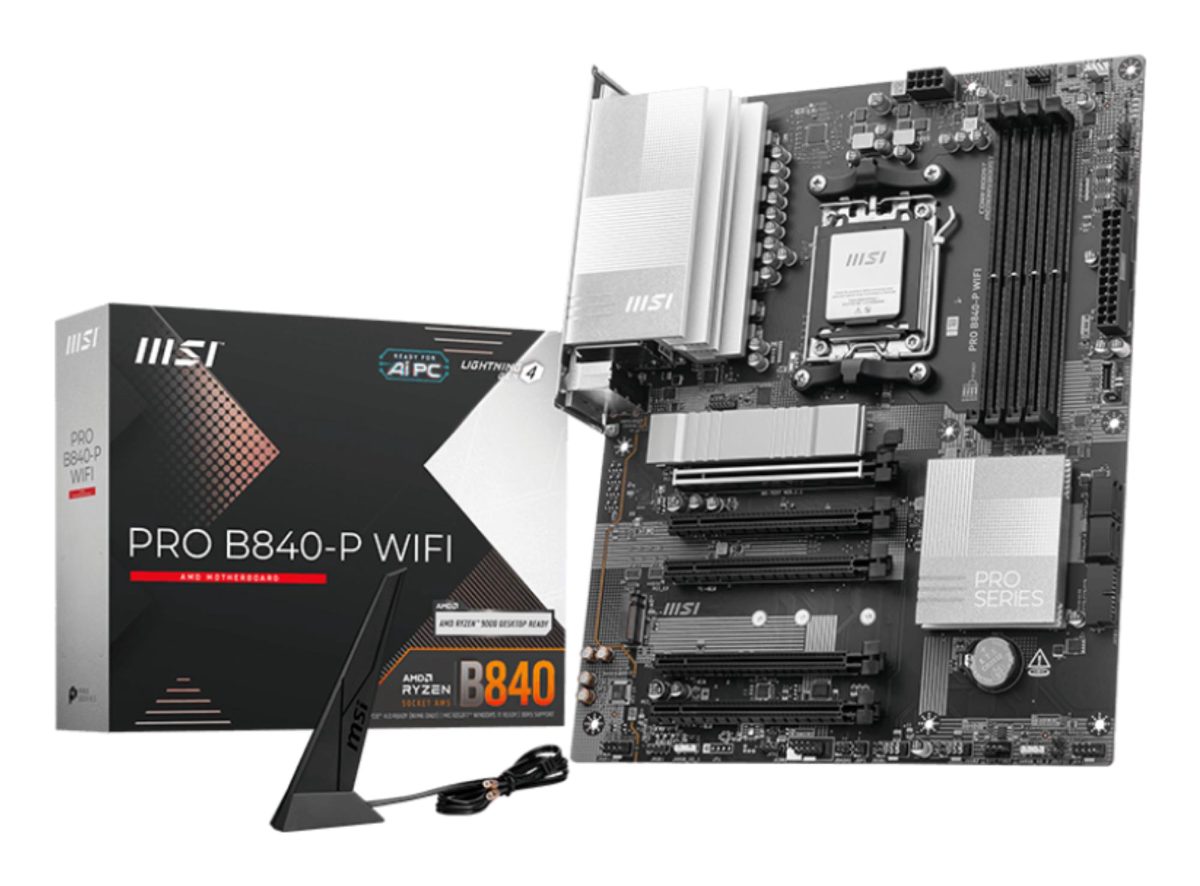

Mainboard, MSI, AMD B840, SAM5, ATX, Memory DDR5, Memory slots 4
Mainboard, MSI, AMD B840, SAM5, ATX, Memory DDR5, Memory slots 4, 5xPCI-Express 16x, 2xM.2, 1xHDMI, 1xAudio-In, 1xAudio-Out, 1xMicrophone, 4xUSB 2.0, 3xUSB 3.2, 1xUSB-C, 1xRJ45, PROB840-PWIFI
MSI · 4711377286596
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 36 mo.
- Invoice: with every order
- EAN
- 4711377286596
- Brand
- MSI
Description

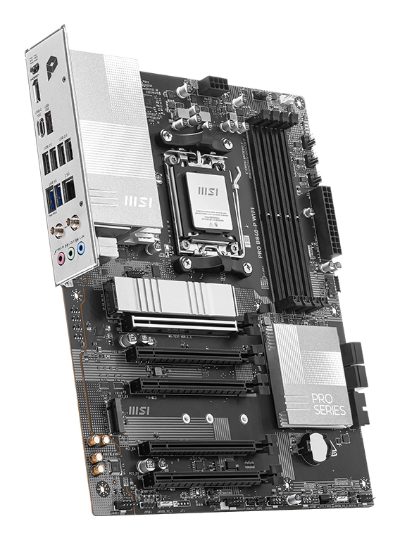

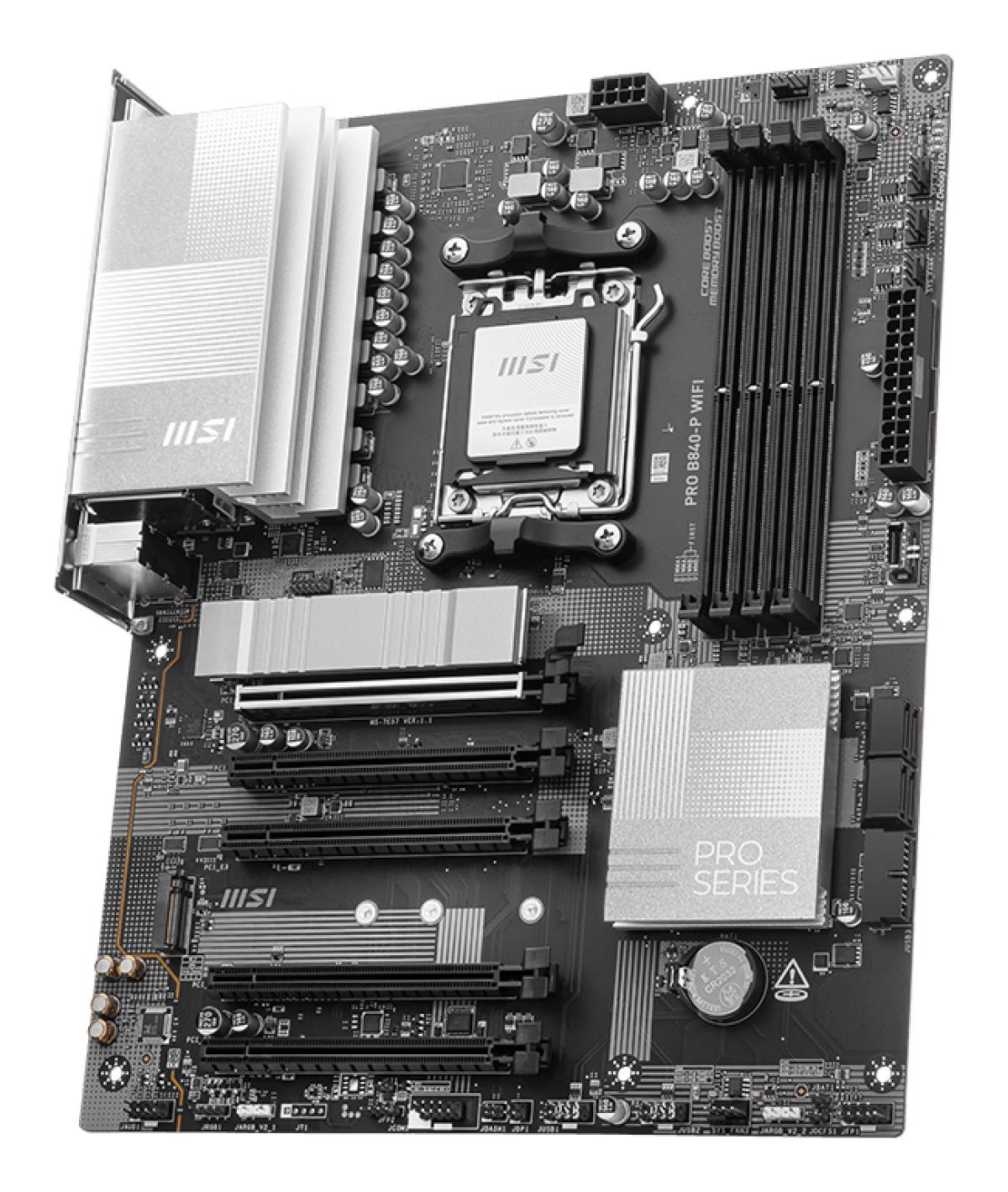

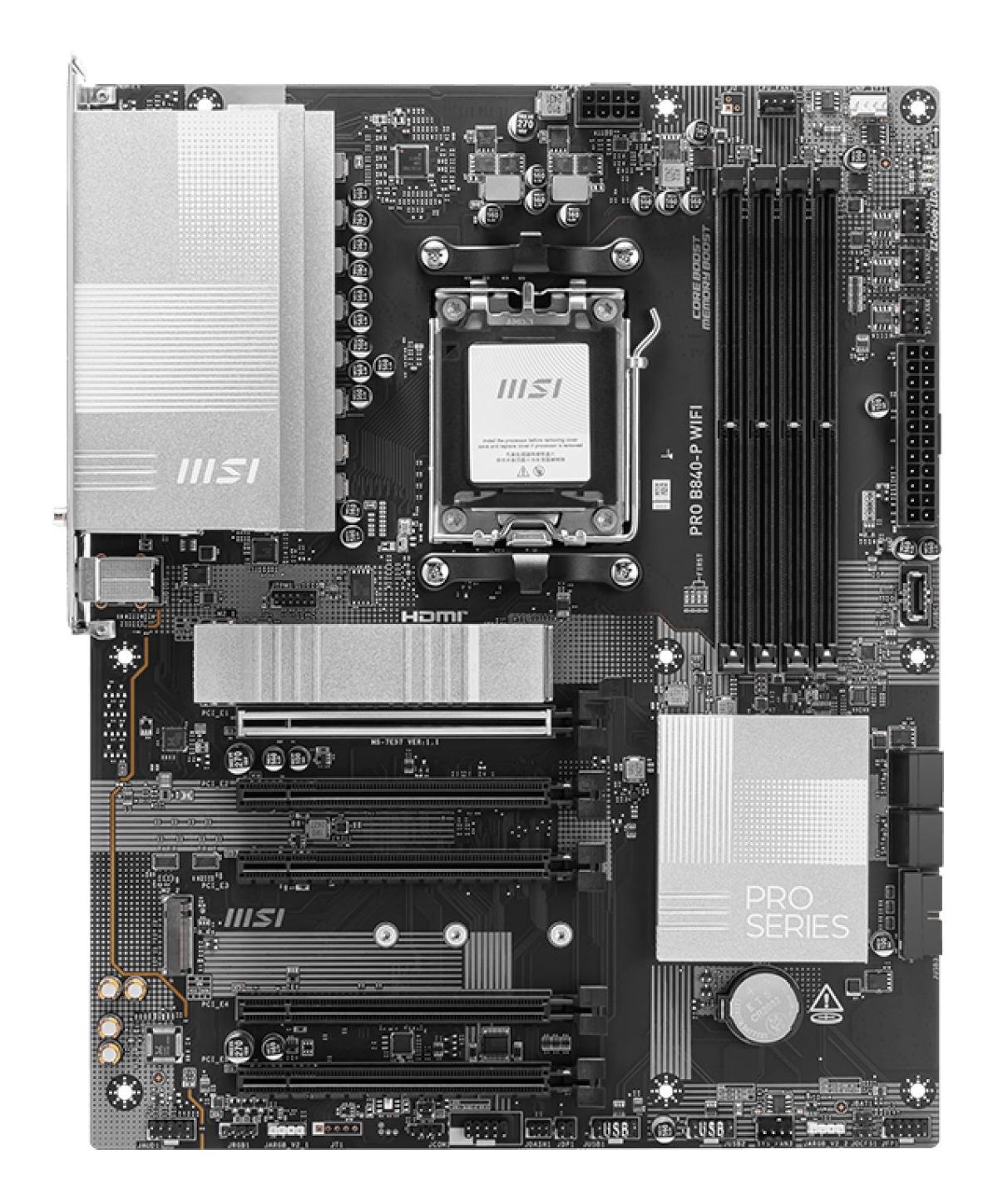

PRO B840-P WIFI
PRO B840-P WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 2.5G LAN, and PCIe 4.0 M.2 with EZ M.2 Shield Frozr II, ready for the AMD Ryzen™ 9000 series processors.
BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
DIRECT 7+2+1 POWER DESIGN
Unleash and sustain the maximum performance with a VRM design built with a total of 7+2+1 digital power phases. With an 8-pin power connector, PRO B840-P WIFI is ready for the challenge of heavy-loading tasks.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.
Enlarged Chipset Heatsink
The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
BUILD FOR THE MOST ADVANCED PC FOR GAMING AND CREATING
When only the fastest will do, an AMD X800-series motherboard delivers. With USB 4.0 onboard along with robust overclocking1 capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an AMD X800-series motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8000+ MT/s (OC)
- Ultra Performance: Direct 7+2+1 Power System with P-PAK, 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 4.0 slot and Lightning Gen 4 x4 M.2
- 2.5G LAN with Wi-Fi 7 Solution: the remarkable solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Specifications
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Chipset | AMD B840 |
| Chipset family | AMD |
| Form factor | ATX |
| Colour | Black |
| Supported Windows operating systems | Windows 11 x64 |
| Compatible processor series | AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series |
| Maximum memory | 256 GB |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| ECC compatibility | Non-ECC |
| Memory channels | Dual-channel |
| Memory form factor | DIMM |
| Number of memory slots | 4 |
| Memory frequency (max) | 8000 MHz |
| Supported memory clock speeds | 4800/5600/8000 MHz |
| Supported memory types | DDR5-SDRAM |
| Supported HDDs | 4 |
| Supported storage drives | 6 |
| RAID levels | 0/1/10 |
| RAID support | Yes |
| Supported drive interfaces | M.2,Micro SATA III |
| Supported drive types | HDD & SSD |
| Integrated graphics | No |
| Fan connector count | 5 |
| Number of CPU fan connectors | 1 |
| Number of RGB LED pin headers | 3 |
| SATA connectors | 4 |
| Number of water pump connectors | 1 |
| RGB LED pin header | Yes |
| Internal USB 2.0 connectors | 4 |
| Internal USB 3.2 Gen 1 connectors | 2 |
| USB 3.2 Gen 2 connectors | 1 |
| Ethernet (RJ-45) ports | 1 |
| HDMI ports | 1 |
| HDMI version | 2.1 |
| USB 2.0 ports | 4 |
| USB 3.2 Gen 1 Type-A ports | 2 |
| USB 3.2 Gen 2 Type-A ports | 1 |
| USB 3.2 Gen 2 Type-C ports | 1 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Ethernet type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be) |
| 1st M.2 highest PCI Express generation | 4.0 |
| 1st M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 22110 |
| M.2 slot count | 2 |
| PCI Express x16 (Gen 3.x) slots | 4 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| ACPI version | 6.5 |
| BIOS type | UEFI AMI |
| SMBIOS version | 3.7 |
| Depth | 304.8 mm |
| Width | 243.84 mm |
| Model | PRO B840-P WIFI |
