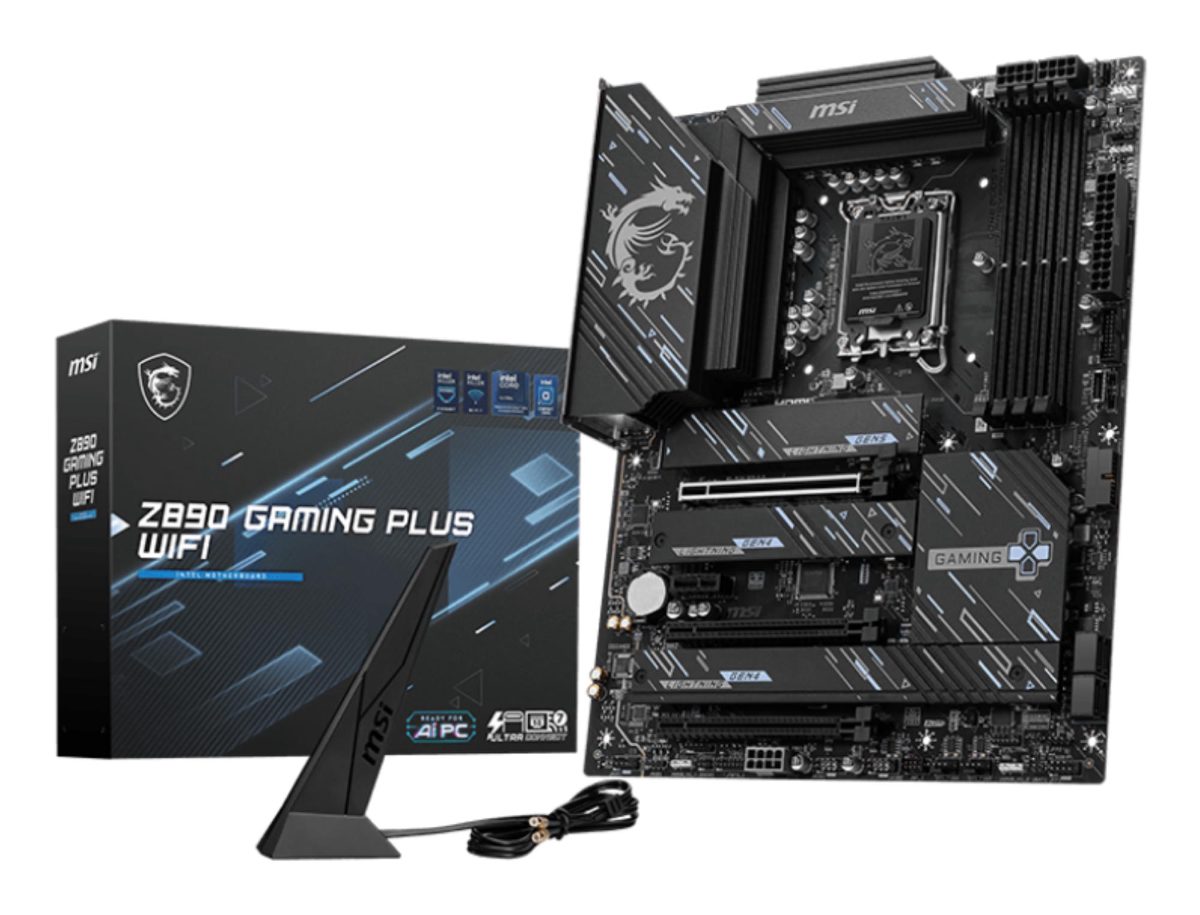

Mainboard, MSI, Intel Z890, LGA1851, ATX, Memory DDR4, Memory slots 4
Mainboard, MSI, Intel Z890, LGA1851, ATX, Memory DDR4, Memory slots 4, 1xPCI-Express 4.0 1x, 2xPCI-Express 4.0 4x, 1xPCI-Express 5.0 16x, 4xM.2, 1xHDMI, 1xDisplayPort, 4xUSB 2.0, 3xUSB 3.2, 1xUSB-C, 1xUSB-C w/Thunderbolt, 1xPS/2, 1xRJ45, 3xAudio port, Z890GAMINGPLUSWIFI
MSI · 4711377257718
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 36 mo.
- Invoice: with every order
- EAN
- 4711377257718
- Brand
- MSI
Description
Z890 GAMING PLUS WIFI
Z890 GAMING PLUS WIFI is designed with durable components to provide great gaming experience. Designed with Killer Wi-Fi 7 and 5G LAN, Thunderbolt 4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for 24/7 non-stop gaming of Intel Core Ultra processors.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
14+1+1+1 DRPS POWER DESIGN
Unleash and sustain maximum performance with a flagship VRM design built with a total of 14+1+1+1 digital power phases. Combining dual power connectors and 55A DrMOS, Z890 GAMING PLUS WIFI is ready for the challenge of high-end processors.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
- Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
- Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)
- Ultra Performance: 14+1+1+1 Duet Rail Power System 55A DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
- Ultra Connect: Thunderbolt™ 4 port, Intel® Killer™ 5G LAN & Intel® Killer™ Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Specifications
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Chipset | Intel Z890 |
| Chipset family | Intel |
| Form factor | ATX |
| Colour | Black |
| Supported Windows operating systems | Windows 11 |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Maximum memory | 256 GB |
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| ECC compatibility | Non-ECC |
| Memory channels | Dual-channel |
| Memory form factor | DIMM |
| Number of memory slots | 4 |
| Memory frequency (max) | 9200 MHz |
| Supported memory clock speeds | 6400/9200 MHz |
| Supported memory types | DDR5-SDRAM |
| Supported HDDs | 8 |
| Supported storage drives | 4 |
| RAID levels | 0/1/10/5 |
| RAID support | Yes |
| Supported drive interfaces | M.2,SATA III |
| Supported drive types | HDD & SSD |
| Integrated graphics | No |
| ATX power connector | Yes |
| EPS power connector | Yes |
| EPS power connector count | 1 |
| SATA connectors | 4 |
| Internal USB 2.0 connectors | 4 |
| Internal USB 3.2 Gen 1 connectors | 4 |
| USB 3.2 Gen 2 connectors | 1 |
| DisplayPort out version | 1.4 |
| DisplayPorts | 1 |
| Ethernet (RJ-45) ports | 1 |
| HDMI ports | 1 |
| HDMI version | 2.1 |
| Thunderbolt ports | 1 |
| USB 2.0 ports | 4 |
| USB 3.2 Gen 1 Type-A ports | 2 |
| USB 3.2 Gen 2 Type-A ports | 1 |
| USB 3.2 Gen 2 Type-C ports | 1 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Ethernet type | 5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be) |
| Wi-Fi chipset | Killer Wi-Fi 7 BE1750 |
| M.2 slot count | 4 |
| PCI Express x1 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x4 (Gen 4.x) slots | 2 |
| Depth | 304.8 mm |
| Width | 243.84 mm |
| Model | Z890 GAMING PLUS WIFI |
