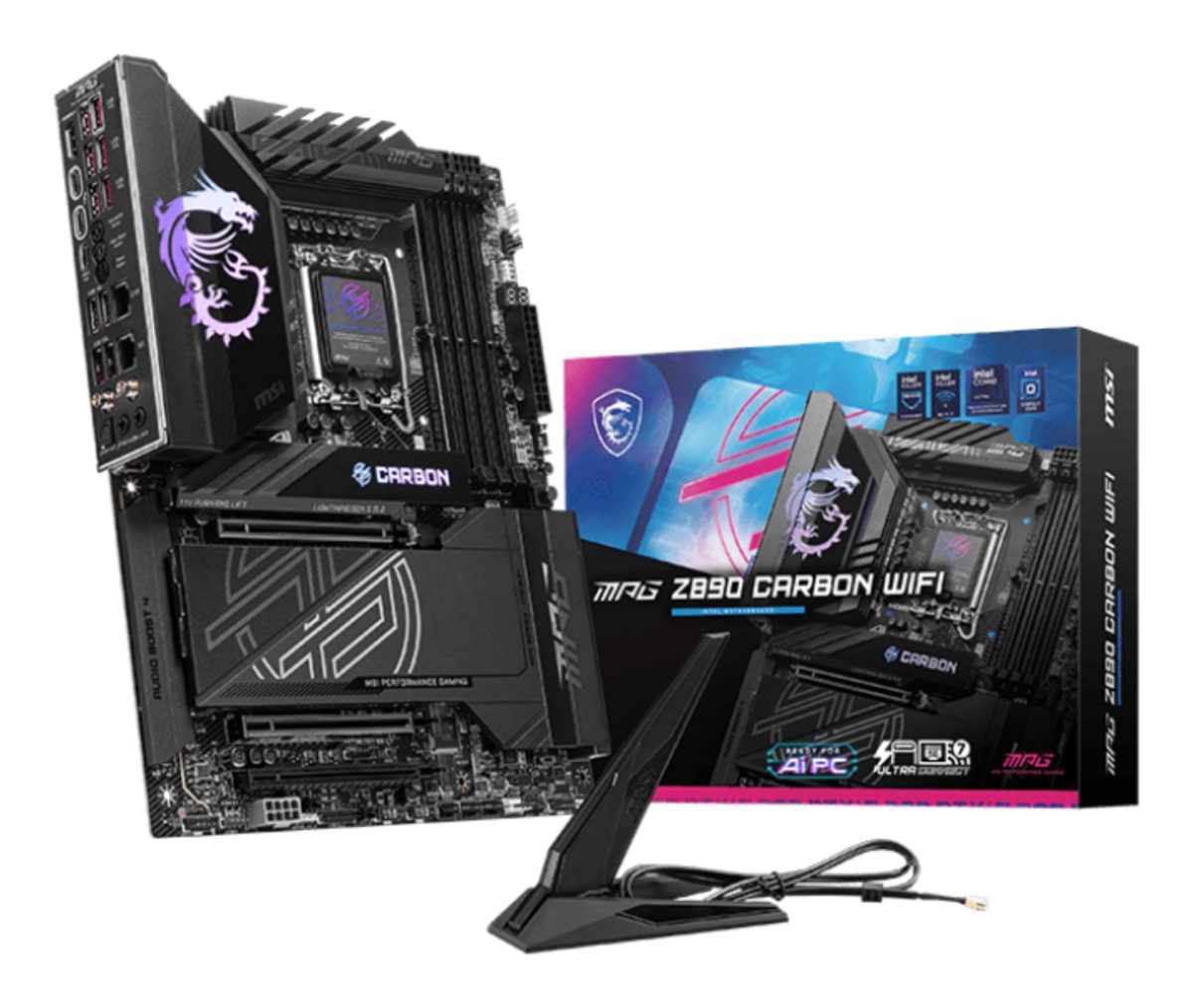

Mainboard, MSI, Intel Z890, LGA1851, ATX, Memory DDR5, Memory slots 4
Mainboard, MSI, Intel Z890, LGA1851, ATX, Memory DDR5, Memory slots 4, 1xPCI-Express 4.0 4x, 1xPCI-Express 5.0 8x, 1xPCI-Express 5.0 16x, 5xM.2, 1xHDMI, 10xUSB 3.2, 1xUSB-C, 2xUSB-C w/Thunderbolt, 1xOptical S/PDIF, 2xRJ45, 2xAudio port, MPGZ890CARBONWIFI
MSI · 4711377260794
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 36 mo.
- Invoice: with every order
- EAN
- 4711377260794
- Brand
- MSI
Description

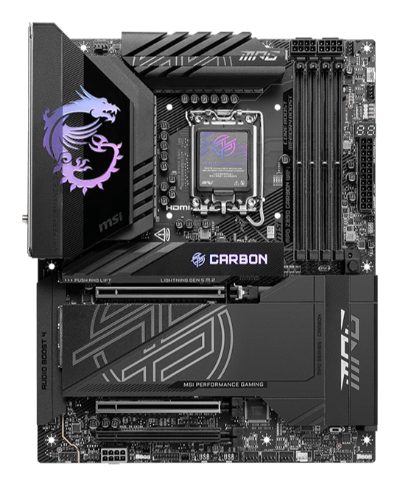

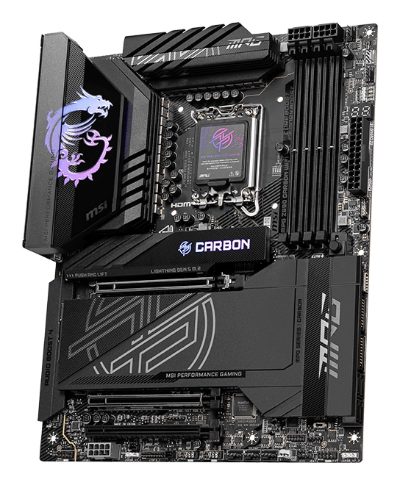

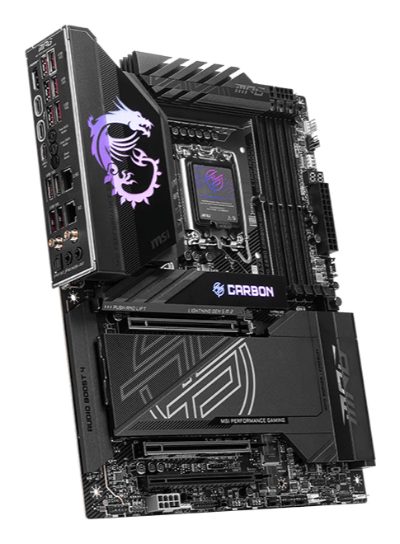

MPG Z890 CARBON WIFI
MPG Z890 CARBON WIFI employs a carbon black color scheme and stylish pattern over Mystic light RGB lighting to show a different identity. It is also powerful inside by featuring Killer 5G LAN and Wi-Fi 7 solution, Thunderbolt 4, Supplemental PCIe Power and the effortless EZ DIY designs, making this motherboard definetly one of the best Z890 ATX motherboards for Intel Core Ultra processors.
MSI's premium MPG (MSI PERFORMANCE GAMING) series is engineered for gamers who demand strong performance and sleek design. Each product showcases cutting-edge aesthetics and vibrant colors, reflecting MPG's commitment to exceptional design. With optimized configurations, MPG creates a visually striking and powerful gaming experience that leads the trends.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
DIRECT 20+1+1+1 POWER DESIGN
Unleash and sustain the maximum performance with a flagship VRM design built with a total of Direct 20+1+1+1 Power Phases. Combining dual power connectors and 110A Smart Power Stage, MPG Z890 CARBON WIFI is ready for the challenge of high-end processors.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
- Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
- Supports DDR5 Memory, up to 9200+ MT/s (OC)
- Ultra Performance: Direct 20+1+1+1 phases power, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2

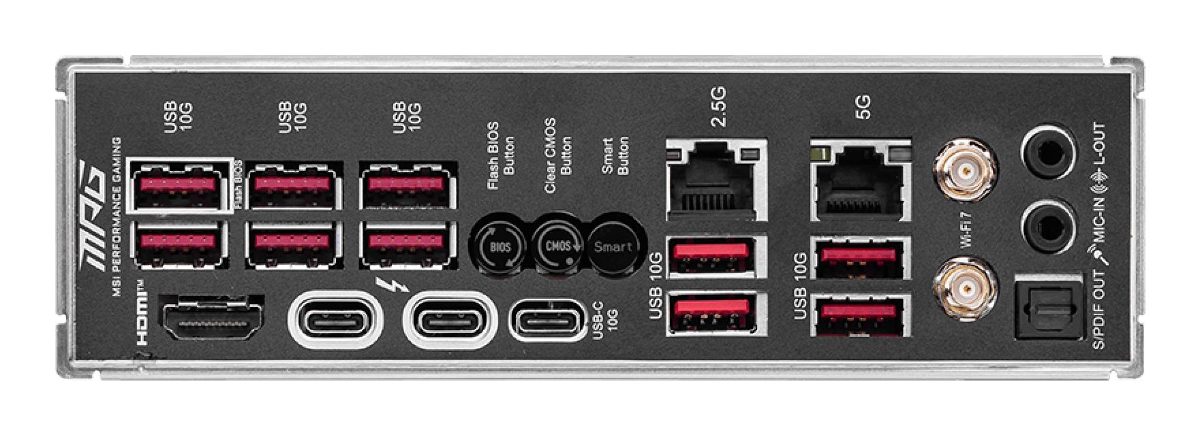

- Ultra Connect: Thunderbolt™ 4 and Intel® Killer™ 5G LAN + 2.5G LAN with Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost 4: Reward your ears with studio grade sound quality for the most immersive gaming experience
Specifications
| Audio chip | Realtek ALC1220P |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Chipset | Intel Z890 |
| Chipset family | Intel |
| Form factor | ATX |
| Colour | Black |
| Supported Windows operating systems | Windows 11 x64 |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Maximum memory | 256 GB |
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Memory channels | Dual-channel |
| Memory form factor | DIMM |
| Number of memory slots | 4 |
| Memory frequency (max) | 9200 MHz |
| Supported memory clock speeds | 4800/6400/9200 MHz |
| Supported memory types | DDR5-SDRAM |
| Supported HDDs | 9 |
| Supported storage drives | 4 |
| RAID levels | 0/10/5 |
| RAID support | Yes |
| Supported drive interfaces | M.2,SATA III |
| Supported drive types | HDD & SSD |
| CPU fan connector | Yes |
| SATA connectors | 4 |
| Internal USB 2.0 connectors | 4 |
| USB 3.2 Gen 2 connectors | 1 |
| Ethernet (RJ-45) ports | 2 |
| HDMI ports | 1 |
| HDMI version | 2.1 |
| Thunderbolt ports | 2 |
| USB 3.2 Gen 1 Type-A ports | 10 |
| USB 3.2 Gen 1 Type-C ports | 1 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Ethernet type | 2.5 Gigabit Ethernet/5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be) |
| Wi-Fi chipset | Killer Wi-Fi 7 BE1750 |
| M.2 slot count | 5 |
| PCI Express x16 slots | 3 |
| Depth | 304.8 mm |
| Width | 243.84 mm |
| Model | MPG Z890 CARBON WIFI |
