Mainboard, NZXT, Intel Z790, LGA1700, ATX, Memory DDR5, Memory slots 4
Mainboard, NZXT, Intel Z790, LGA1700, ATX, Memory DDR5, Memory slots 4, 2xPCI-Express 3.0 1x, 2xPCI-Express 4.0 16x, 1xPCI-Express 5.0 16x, 1xM.2, 1xHDMI, 2xUSB 2.0, 2xUSB 3.2 type B, 3xUSB 3.2, 1xUSB-C, 1xOptical S/PDIF, 1xRJ12, 5xAudio port, N7-Z79XT-B1
NZXT · 5056547202952
—
The invoice is sent as soon as you order.
Out of stock
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 36 mo.
- Invoice: with every order
- EAN
- 5056547202952
- Brand
- NZXT
Description
This motherboard enables a visually seamless backdrop for any build with all the features of the new Intel Z790 chipset.
- 16+1+2 DrMOS Power Phase Design with 2oz Copper PCB

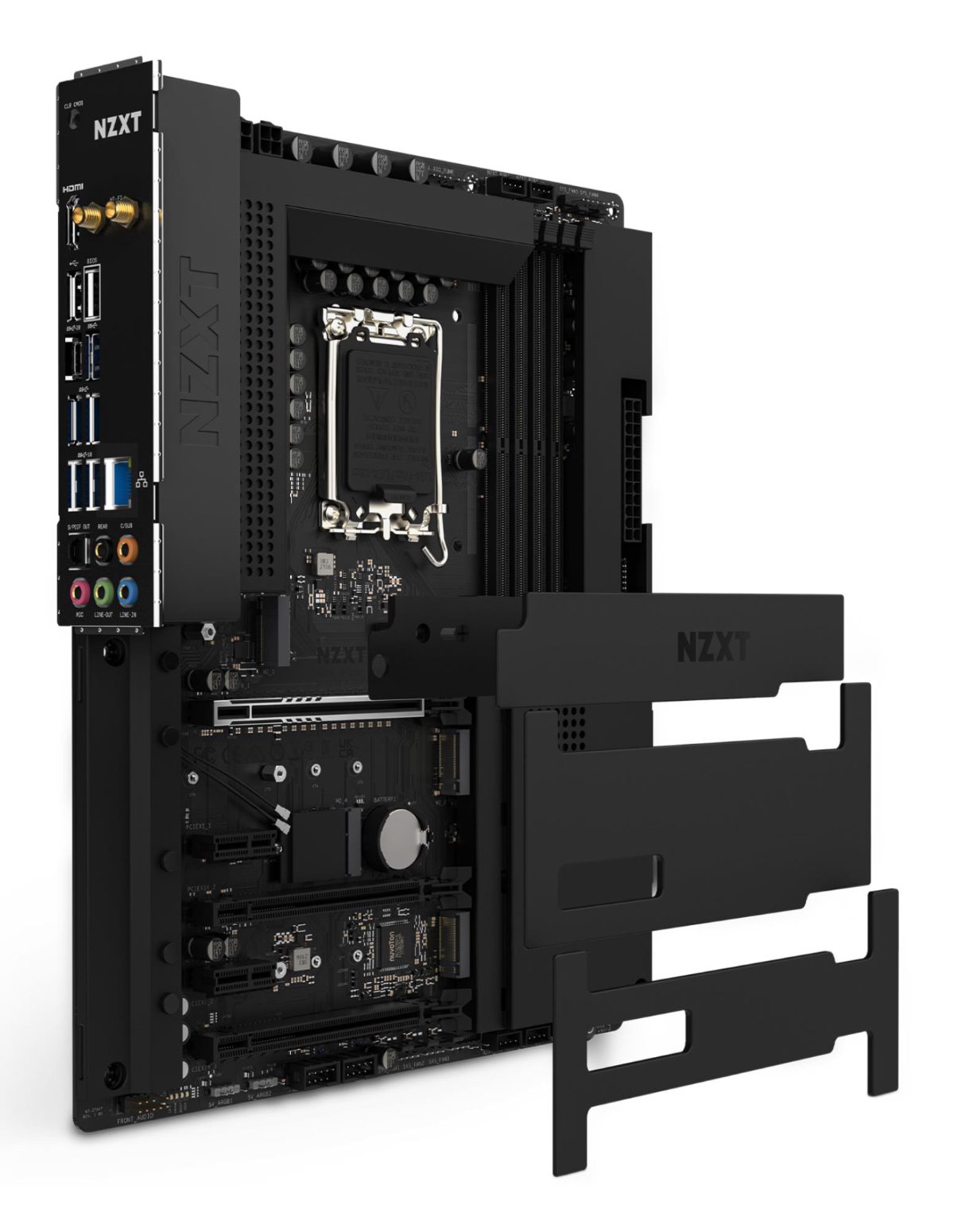

- Full cover in black or white with integrated heat spreader for the top-most M.2 slot
- Numerous presets and custom modes via NZXT CAM software
- Convenient fan profiles within NZXT CAM for seven independent fan channels

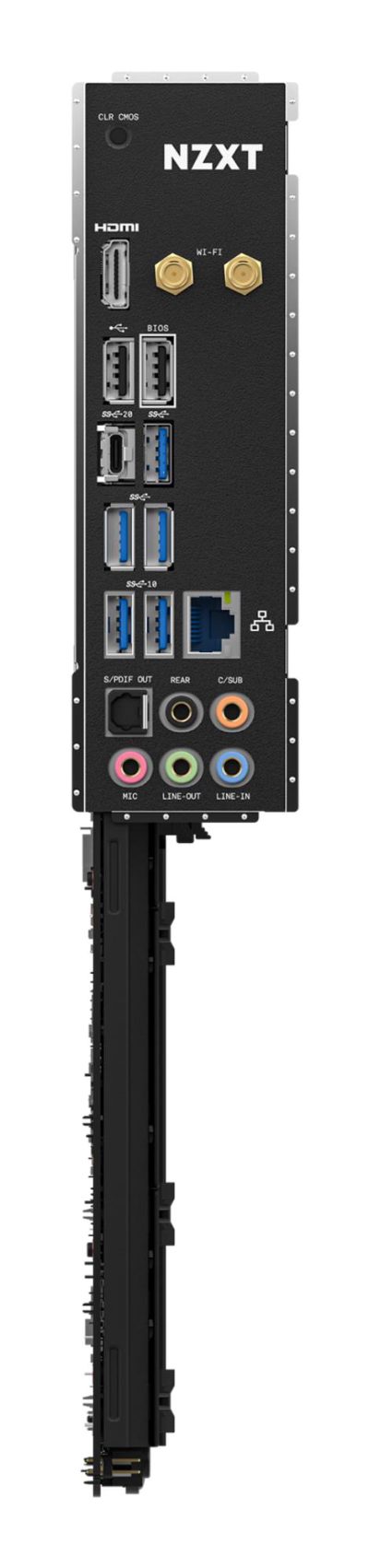

- Integrated rear I/O shield and efficient layout for optimal setup
- Compatible with Intel® 13th and 12th Generation Core™ i9, Core™ i7, Core™ i5 processors
- Designed with Intel® Z790 Express Chipset with Wi-Fi 6E wireless connectivity and Bluetooth V5.2
- Three M.2 connectors for storage devices
- Supports memory overclocking speeds of up to 6000 MHz and Intel® XMP 3.0
- 8-channel high-definition audio
Specifications
| Audio chip | Realtek ALC1220 |
| Audio output channels | 8 channels |
| Component for | PC |
| Chipset | Intel Z790 |
| Chipset family | Intel |
| Form factor | ATX |
| Supported Windows operating systems | Windows 10 x64/Windows 11 x64 |
| Compatible processor series | Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| ECC compatibility | Non-ECC |
| Maximum memory | 128 GB |
| Memory channels | Dual-channel |
| Memory form factor | DIMM |
| Number of memory slots | 4 |
| Supported memory clock speeds | 5000/5066/5100/5133/5200/5300/5333/5400/5600/5800/6000/6200/6400/6600/6666/6800/7000/7200/7400/7600/7800/7900/7950/8000/8333 MHz |
| Supported memory types | DDR5-SDRAM |
| Unbuffered memory | Yes |
| Supported storage drives | 7 |
| RAID levels | 0/1/10 |
| RAID support | Yes |
| Supported drive interfaces | M.2,PCI Express 4.0,SATA III |
| Supported drive types | HDD & SSD |
| HDCP | Yes |
| Multi-GPU technology | Not supported |
| 12V power connector | Yes |
| ATX power connector | Yes |
| CPU fan connector | Yes |
| Front panel audio connector | Yes |
| SATA connectors | 4 |
| RGB LED pin header | Yes |
| Internal USB 2.0 connectors | 2 |
| Internal USB 3.2 Gen 1 connectors | 1 |
| USB 3.2 Gen 2 connectors | 1 |
| Digital audio optical outputs | 1 |
| Ethernet (RJ-45) ports | 1 |
| HDMI ports | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 5 |
| Microphone input | Yes |
| S/PDIF out connector | Yes |
| USB 2.0 ports | 2 |
| USB 3.2 Gen 1 Type-A ports | 3 |
| USB 3.2 Gen 2 Type-A ports | 2 |
| USB 3.2 Gen 2x2 Type-C ports | 1 |
| USB connector type | USB Type-A/USB Type-C |
| Wi-Fi AP antenna jack | 2 |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Ethernet type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| LAN controller | Dragon RTL8125BG |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax) |
| M.2 slot count | 1 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Clear CMOS button | Yes |
| Cables included | SATA |
| Model | N7-Z79XT-B1 |
