MikroTik Wired Ethernet Router RB5009UG+S+IN, Quad core 1.4 GHz CPU
MikroTik Wired Ethernet Router RB5009UG+S+IN, Quad core 1.4 GHz CPU, 1xSFP+, 7xGigabit LAN, 1x2.5G LAN, 1xUSB, Can be powered in 3 different ways, CPU temperature monitor, Mounts FOUR of these Routers in a Single 1U Rackmount Space, RouterOS L5, MikroTik, Wired Ethernet Router, RB5009UG+S+IN, No Wi-Fi, 10/100/1000 Mbit/s, Ethernet LAN (RJ-45) ports 7, Mesh Support No, MU-MiMO No, No mobile broadband, 1, 12 month(s)
MikroTik · 4752224007148
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 12 mo.
- Invoice: with every order
- EAN
- 4752224007148
- Brand
- MikroTik
Description
Double the usual performance: we took your feedback from the MikroTik User Meetings to create the perfect home lab router: compact, powerful, with multiple powering options and efficient cooling.RB5009 has it all, and even more!

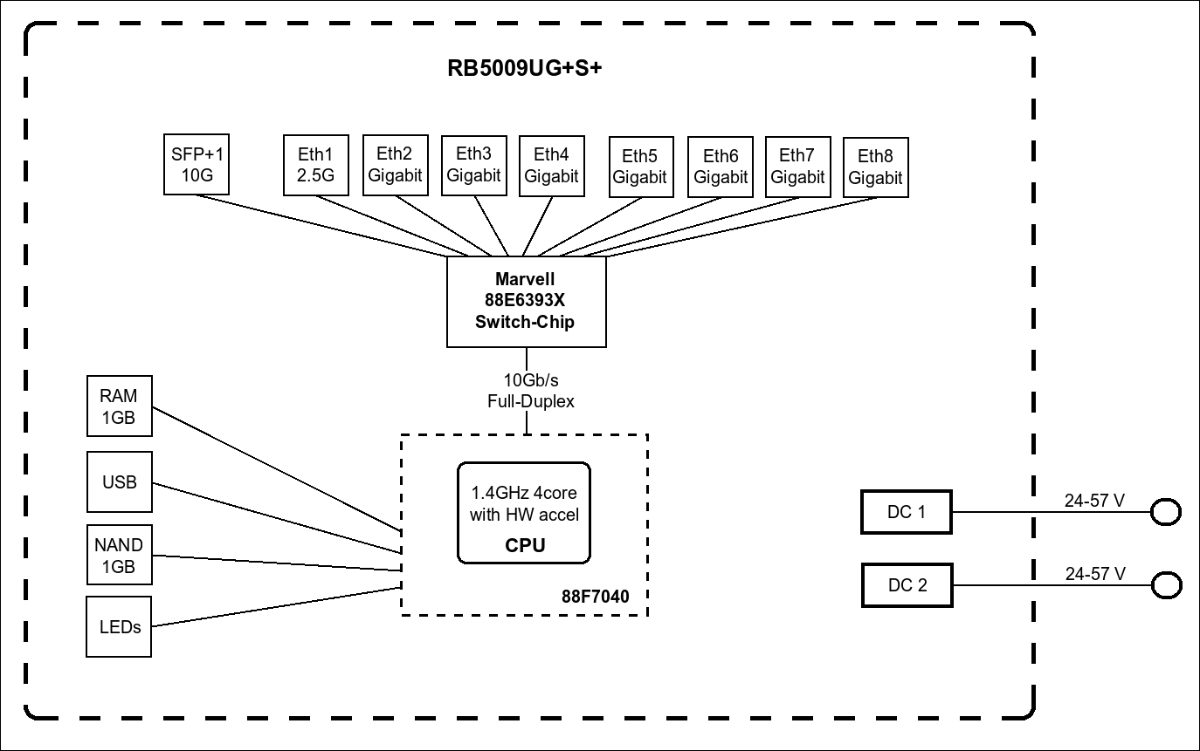

The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board – so the case acts as a massive heat-sink!
RB5009UG+S+IN can be powered in 3 different ways:
a) PoE-in from Ethernet port #1
b) DC Jack
c) 2-pin terminal on the side
Boards come with 1GB of DDR4 RAM and 1GB NAND storage. This combination of ports and components, compared to our other products in a similar form factor, provides almost double the performance in configurations with heavy CPU loads.
With a simple set of mounting accessories, you can mount FOUR of these routers in a single 1U rackmount space! No more server-room-Tetris, just pure productivity.
Specifications
| Net weight | 0.454 kg |
| Model name | RB5009UG+S+IN |
| Product family | Wired Ethernet Router |
| Processor model | 88F7040 |
| Storage capacity | 1 GB |
| PoE in type | 802.3af/at |
| Processor frequency | 350-1400 (auto) MHz |
| Power consumption (max) | 20 W |
| Operating temperature | -40°C to 60°C |
| Input voltage | (PoE in input Voltage) 24-57 V |
| SFP/SFP+ slots | 1 |
| Ethernet (RJ-45) ports | 7 |
| Platform | RouterOS (v7 only) |
| Number of USB ports | 1 |
| Other features | Double the usual performance: we took your feedback from the MikroTik User Meetings to create the perfect home lab router: compact, powerful, with multiple powering options and efficient cooling.RB5009 has it all, and even more! The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board – so the case acts as a massive heat-sink! RB5009UG+S+IN can be powered in 3 different ways: a) PoE-in from Ethernet port #1 b) DC Jack c) 2-pin terminal on the side Boards come with 1GB of DDR4 RAM and 1GB NAND storage. This combination of ports and components, compared to our other products in a similar form factor, provides almost double the performance in configurations with heavy CPU loads. With a simple set of mounting accessories, you can mount FOUR of these routers in a single 1U rackmount space! No more server-room-Tetris, just pure productivity. |
| Reset button | Yes |
| USB hub version | USB 3.0 type A |
| Ethernet data rates | 10/100/1000 Mbit/s |
| Top Wi-Fi standard | No Wi-Fi |
| Mesh support | No |
| Mobile network generation | No mobile broadband |
| MU-MiMO | No |
| Number of antennas | No antenna |
| Number of cores | 4 |
| Wi-Fi | No |
| Warranty | 12 month(s) |
| Certification | CE, EAC, ROHS |
| Memory capacity | 1000 MB |
| Memory type | NAND |

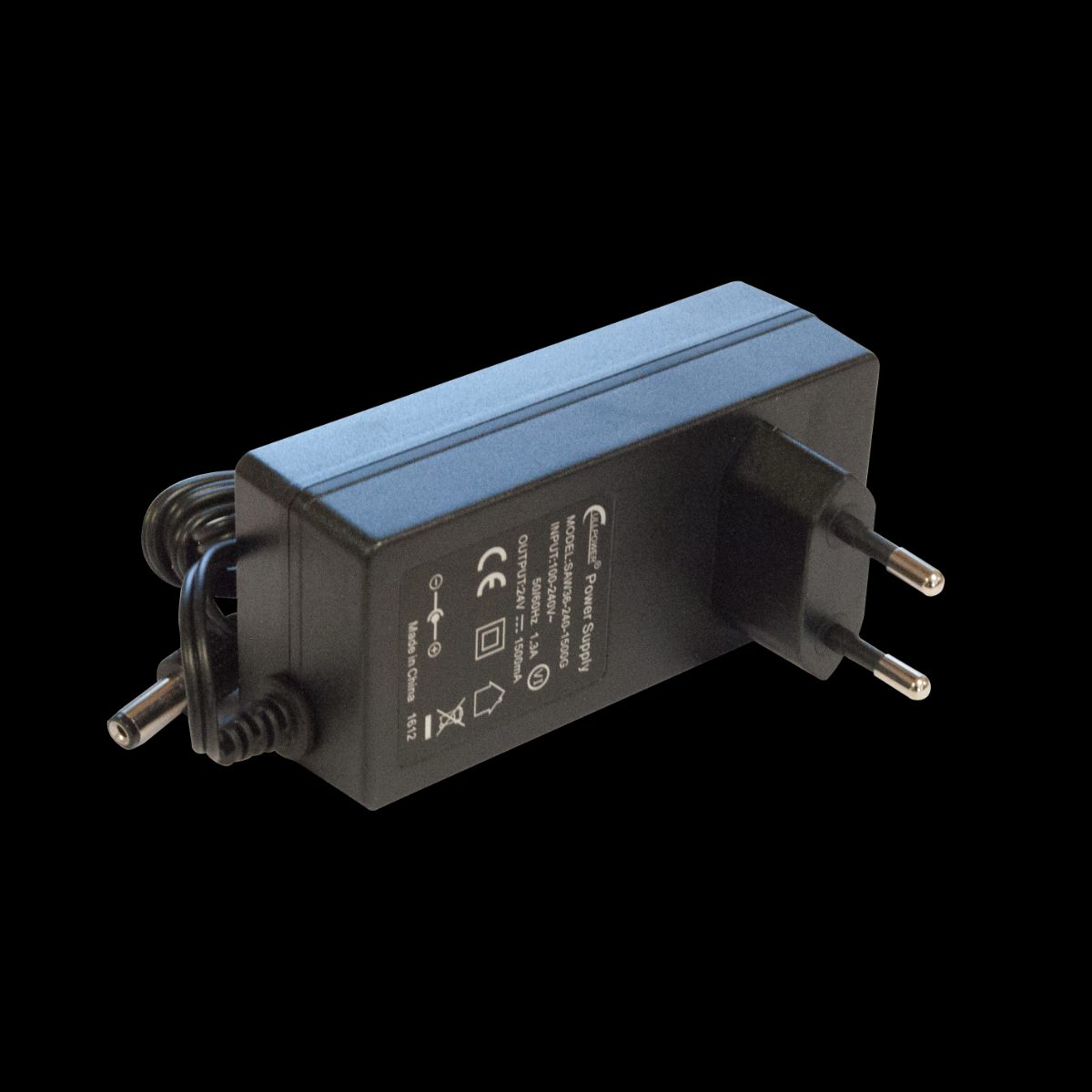

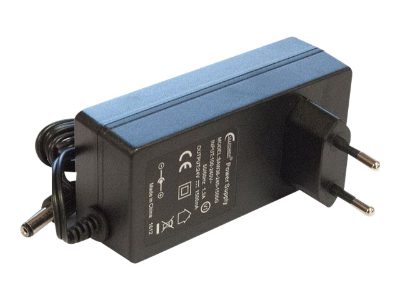

| AC adapter included | Yes (24V 1.5A power adapter) |
| Brand | MikroTik |
