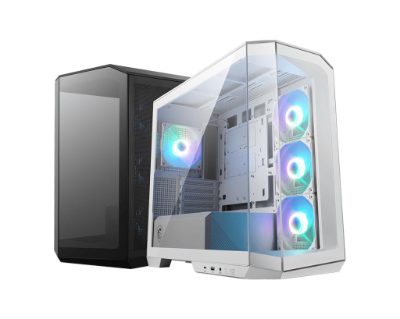

MSI Case, MAG PANO M100R PZ, Black, Micro ATX Tower, ATX
MSI · 4711377136471
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 24 mo.
- Invoice: with every order
- EAN
- 4711377136471
- Brand
- MSI
Description
Pre-build with Reverse-blade Fan
Pre-installed on the side are reverse blade fans, allowing the unobstructed display of the ARGB fan's beauty without any interference from fan frames.
Support Back-Connect Motherboard
Supporting back-connect motherboards enables easy installation without the worry of forgetting to connect cables, which might otherwise require disassembling graphics cards and coolers.
270-degree Panoramic Display
Drawing inspiration from the MAG logo, create a distinctive chassis design that embodies the unique MAG characteristics. The front interior of the chassis incorporates a space for displaying figurines, complemented by a 270-degree panoramic tempered glass, transforming it into a showcase-style chassis.
GPU Support Stand
Equipped with a level indicator to ensure effortless adjustment of the support height during installation, preventing sagging. Meanwhile, its magnetic base secures more stability within the
chassis.
1 to 4 ARGB-FAN Control Board
This fan control board supports up to 4 x ARGB fan function. Allow you to use the LED switch button to adjust the ARGB lighting intuitionally.
- Micro-ATX Back-connect PROJECT ZERO motherboard supported
- Supports up to 360 mm AIO liquid cooler on the top
- 270-degree panoramic tempered glass
- Supports up to 10 x 120 mm system fans
- Built-in 1-to-4 ARGB-PWM fans and control board, providing striking lighting and vivid lighting effects
- The Magnetic Dust Filter at the bottom being easily removed for cleaning
- DIY Friendly cables make your DIY process easier and create more possibilities to your system
Specifications
| Form factor | Micro Tower |
| Illumination | Yes |
| Illumination colour | Multi |
| Illumination location | Case fans |
| LED indicators | Yes |
| Maximum CPU cooler height | 175 mm |
| Maximum graphics card length | 390 mm |
| Maximum PSU length | 200 mm |
| Number of 2.5" bays | 1 |
| Number of 3.5" bays | 1 |
| Expansion slots | 5 |
| On/off switch | Yes |
| Colour | Black |
| Side window | Yes |
| Intended use | Gaming |
| Supported motherboard form factors | ITX/micro ATX |
| Product type | PC |
| Power supply location | Bottom |
| Audio input | Yes |
| Audio output | Yes |
| USB 3.2 Gen 1 Type-A ports | 1 |
| USB 3.2 Gen 2 Type-C ports | 1 |
| Bottom fan diameters supported | 120 mm |
| Maximum bottom fans | 1 |
| Maximum rear fans | 1 |
| Maximum side fans | 3 |
| Maximum top fans | 3 |
| Rear fan diameters supported | 120/140 mm |
| Rear fans installed | 1x 120 mm |
| Rear radiator sizes supported | 120/140 mm |
| Side fan diameters supported | 120 mm |
| Side fans installed | 3x 120 mm |
| Supported top fan diameter | 120/140 mm |
| Top radiator sizes supported | 120/240/360 mm |
| Supported HDD sizes | 2.5/3.5 " |
| Depth | 440 mm |
| Height | 405 mm |
| Weight | 8660 g |
| Width | 235 mm |
| Model name | MAG PANO M100R PZ |
| Case product features | Transparent panel |
| Model | MAG PANO M100R PZ |
