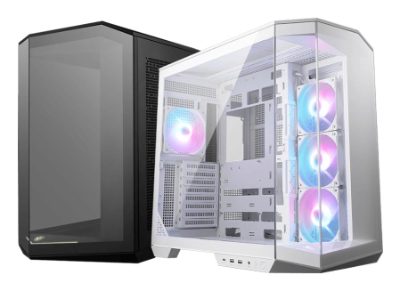

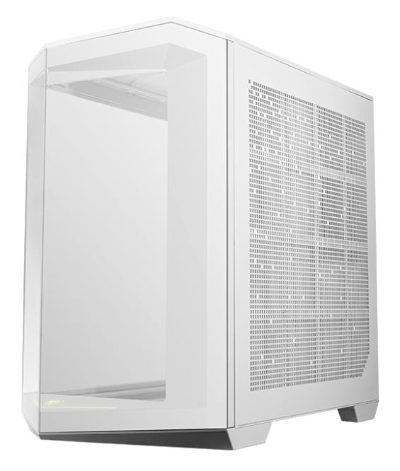

MSI MAG PANO 100R PZ, Side window, White, Mid-Tower, ATX
MSI · 4711377231572
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 24 mo.
- Invoice: with every order
- EAN
- 4711377231572
- Brand
- MSI
Description
The MSI ARSENAL GAMING (MAG) series is engineered to give gamers the edge they need to dominate on the virtual battlefield. Inspired by the rugged durability and unwavering reliability of military-grade equipment, the MAG series is built to provide an unwavering defense in every gaming scenario.
However, MAG isn't just about performance; it's a design language that conveys ruggedness and toughness, embodying the very essence of the MAG style. For gamers who are determined to dominate their digital battlegrounds, the MAG series is here to stand with you, establishing the ultimate defense.
Drawing inspiration from the MAG logo, create a distinctive chassis design that embodies the unique MAG characteristics. The appearance design of the case adopts the MAG series brand symbol lines.
To meet the desire to show the ARGB PC build, the MAG PANO 100 Series comes with a 270-degree panoramic display, get more enhancement of aesthetically pleasing and cleanliness.
Chamfering Technique
Each piece of 4 mm tempered glass is cut at an angle to minimize every edge gap to make case appearance look more beautiful.
HARDWARE COMPATIBILITY
The gaming cases offers extensive support for the installation of your hardware components.
At the side, supports the flexibility of mounting radiator in a push-pull configuration or the thicker radiator and fans.
EASY TO INSTALL
The gaming case has many features that make the installation process all the easier.
Removable panel design
The front, side and top panels are tool-free to remove, when installing side fans and radiators, there are no obstacles to hinder your progress.
- Supported ATX and Micro-ATX Back-connect motherboard
- Supports 360 mm radiator on the top, side and bottom
- 270-degree panoramic tempered glass
- Pre-installed with 3 x 120 mm ARGB Reverse-blade fan at the side and 1 x 120 mm ARGB fan at the rear
- 1-to-4 ARGB-Fan control board
- Synergize with a compatible MSI motherboard through bridging with a USB 20Gbps Type-C (20Gbps) port for high speed data transmission
- Removable dust filter at the top, side and bottom being easily removed for cleaning
- UNI front panel cable make your DIY process easier and create more possibilities to your system
Specifications
| Form factor | Midi Tower |
| Illumination | Yes |
| Illumination colour | Multi |
| Illumination location | Case fans |
| LED indicators | Yes |
| Maximum CPU cooler height | 166 mm |
| Maximum graphics card length | 380 mm |
| Maximum PSU length | 200 mm |
| Number of 2.5" bays | 3 |
| Number of 3.5" bays | 2 |
| Expansion slots | 8 |
| On/off switch | Yes |
| Colour | White |
| Side window | Yes |
| Intended use | Gaming |
| Supported motherboard form factors | ATX/micro ATX/Mini-ATX |
| Product type | PC |
| Power supply included | No |
| Display | No |
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 Type-A ports | 2 |
| USB 3.2 Gen 2 Type-C ports | 1 |
| Bottom fan diameters supported | 120/140/160 mm |
| Bottom radiator sizes supported | 120/240/360 mm |
| Maximum bottom fans | 3 |
| Maximum rear fans | 1 |
| Maximum side fans | 3 |
| Maximum top fans | 3 |
| Rear fan diameters supported | 120 mm |
| Rear fans installed | 1x 120 mm |
| Rear radiator sizes supported | 120 mm |
| Side fan diameters supported | 120/140 mm |
| Side fans installed | 3x 120 mm |
| Side radiator sizes supported | 120/240/360 mm |
| Supported top fan diameter | 120/140 mm |
| Top radiator sizes supported | 120/240/360 mm |
| Supported HDD sizes | 2.5/3.5 " |
| VESA mounting | No |
| Depth | 518.7 mm |
| Height | 482 mm |
| Width | 290 mm |
| Model name | MAG PANO 100R PZ |
| Case product features | Transparent panel |
