Neomounts Pillar Mount, WL40S-910BL16, Levelling, tilt, swivel, depth
Neomounts Pillar Mount, WL40S-910BL16, Levelling, tilt, swivel, depth, 40-70 ", Maximum weight (capacity) 45 kg, Black
Neomounts · 8717371449544
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 60 mo.
- Invoice: with every order
- EAN
- 8717371449544
- Brand
- Neomounts
Description

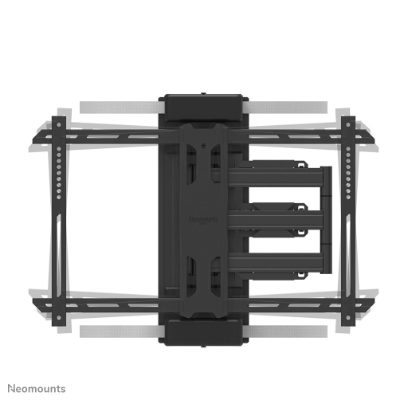

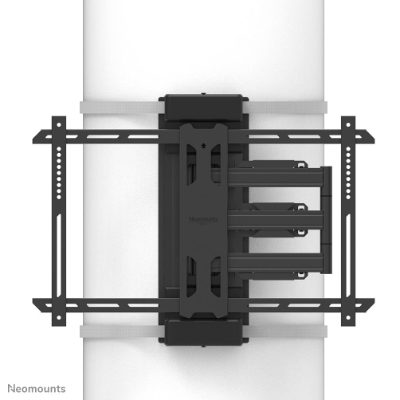

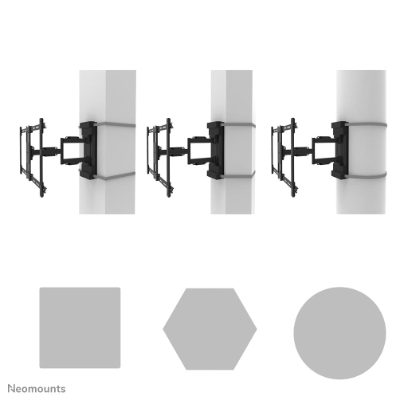

The Neomounts WL40S-910BL16 is a full motion pillar mount for screens up to 70" with a maximum weight capacity of 45 kg. The versatile tilt (14°) and swivel (90°) technology allows you to create the optimum viewing angle. The mount is suitable for Ø25-100 cm cylinder, square and rectangular pillars. Level adjustment is available for the perfect installation.

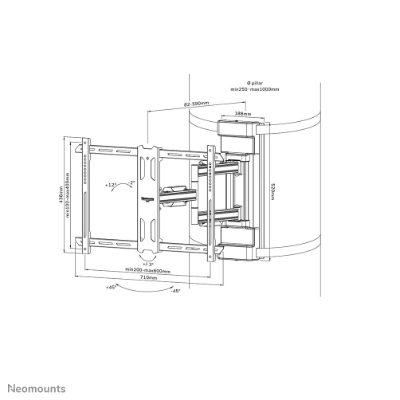

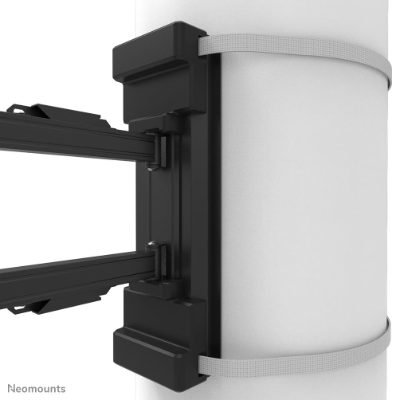

The WL40S-910BL16 has a depth of 8,2-59 cm and is suitable for screens that meet VESA hole pattern 200x100 to 600x400 mm. The pillar mount has a strap of 350 cm.

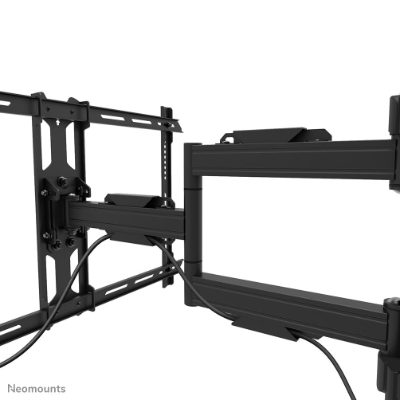

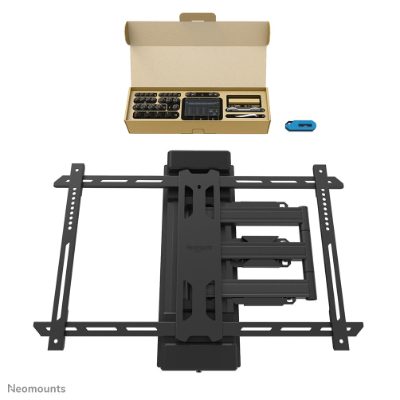

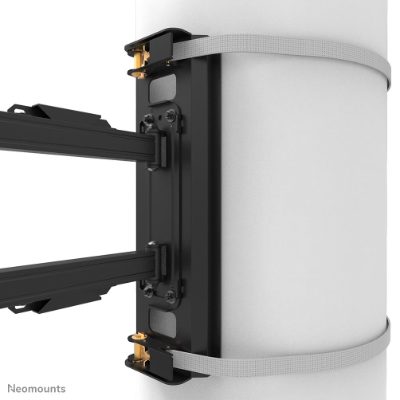

The mount is equipped with metal cable management to secure any loose cables. The ratchet clamp ensures easy installation, as well as the separate magnetic spirit level tool that is included.
Specifications
| Maximum screen size | 70 " |
| Maximum VESA pattern | 600 x 400 mm |
| Maximum load | 45 kg |
| Maximum load per display | 45 kg |
| Minimum screen size | 40 " |
| Minimum VESA pattern | 200 x 100 mm |
| Mounting type | Pole |
| Supported displays | 1 |
| VESA pattern | 200 x 100/200 x 150/200 x 200/200 x 300/200 x 400/300 x 100/300 x 200/300 x 300/300 x 400/350 x 350/400 x 200/400 x 300/400 x 400/440 x 400/600 x 200/600 x 300/600 x 400 mm |
| Adjustable depth | Yes |
| Rotation angle | 6 ° |
| Cable management | Yes |
| Maximum distance to wall | 590 mm |
| Minimum distance to wall | 82 mm |
| Pivot angle range | -3 - 3 ° |
| Swivel | Yes |
| Swivel angle range | -45 - 45 ° |
| Tilt adjustment | Yes |
| Tilt angle range | -2 - 12 ° |
| Product type | Full motion |
| Material | Steel |
| Colour | Black |
| Compatible pole diameter (max) | 1000 mm |
| Compatible pole diameter (min) | 250 mm |
| Country of origin | China |
| Lockable | Not lockable |
| Mounting kit included | Yes |
| Warranty | 5 year(s) |
| Depth | 590 mm |
| Depth (max) | 590 mm |
| Depth (min) | 82 mm |
| Height | 520 mm |
| Weight | 9500 g |
| Width | 710 mm |
| Depth adjustment range | 82 - 590 mm |
