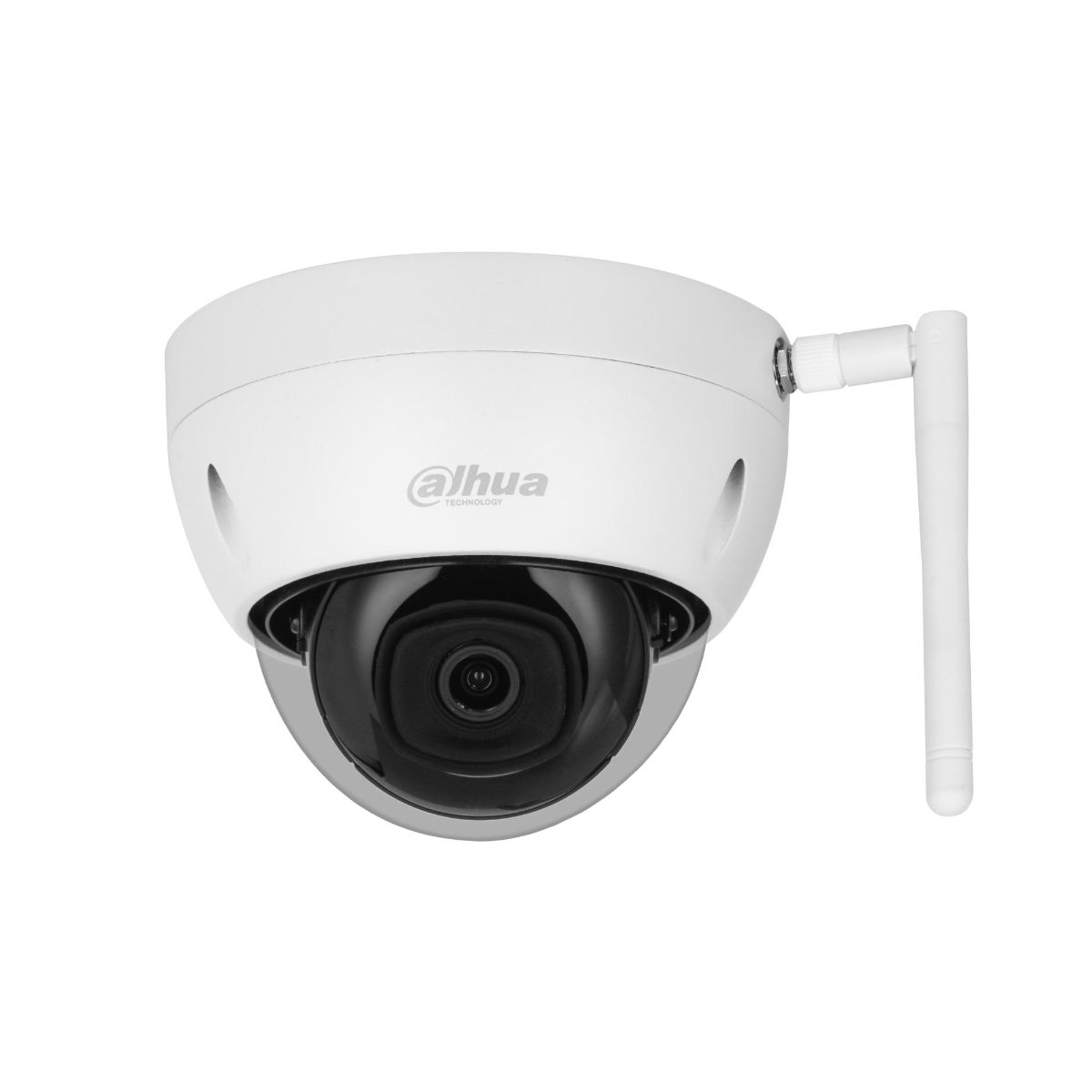

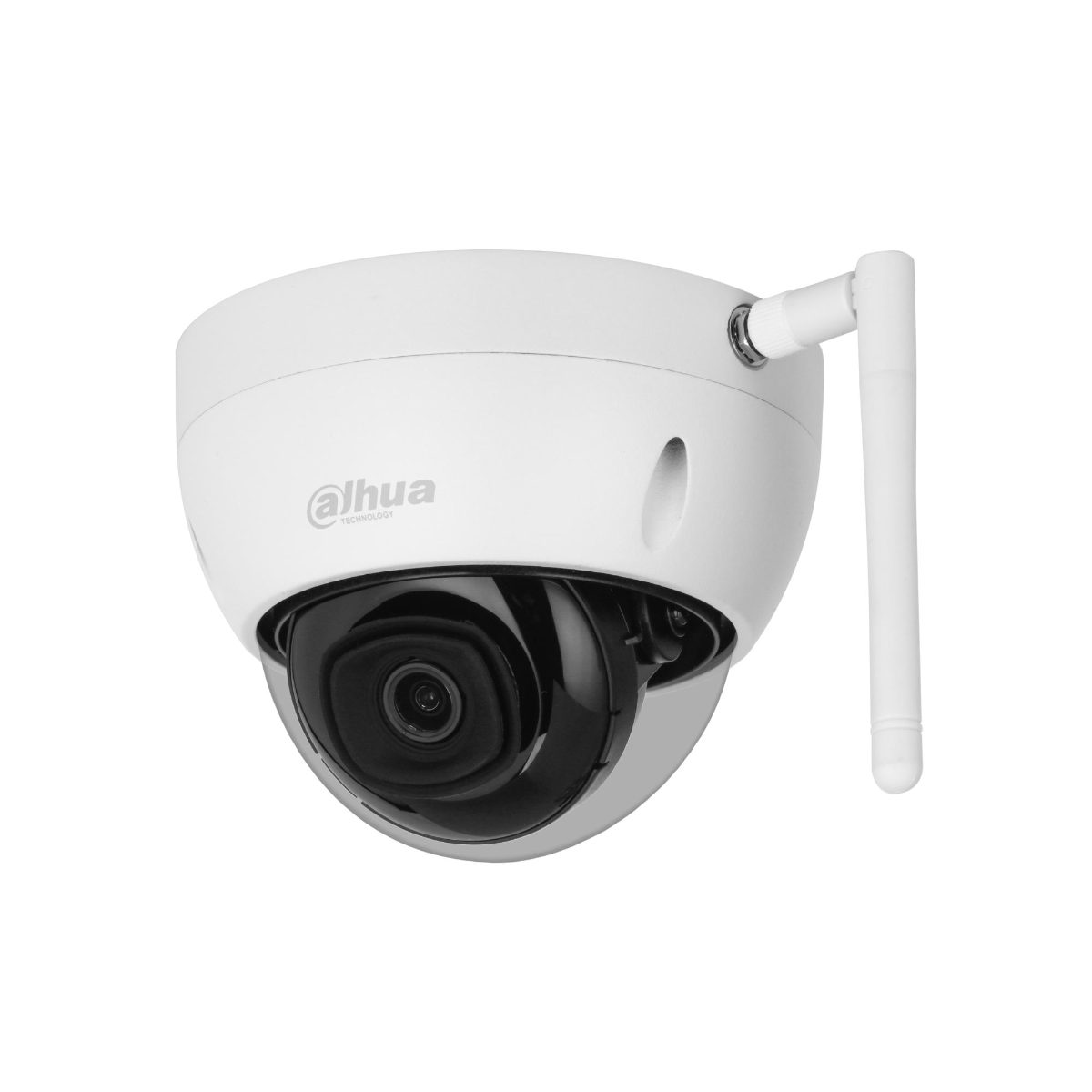

NET CAMERA 2MP IR DOME WIFI/IPC-HDBW1230DE-SW-0280B DAHUA
DAHUA · 6923172539960
117,37 €
The invoice is sent as soon as you order.
Available · 4 pcs
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 36 mo.
- Invoice: with every order
- EAN
- 6923172539960
- Brand
- DAHUA
Description
> 2-MP 1/3" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 2 MP (1920 × 1080)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED.
> SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> DWDR, 3D NR, BLC, digital watermarking, applicable to various monitoring scenes.
> Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, SMD (human).
> Supports single antenna 2.4G Wi-Fi that covers a range of up to 80 m in an open area.
> Supports max. 256 G Micro SD card.
> 12 VDC power supply.
> IP67, IK10 protection.
Specifications
| Form factor | Dome |
| Material | Metal |
| IK impact rating | IK10 |
| IP rating | IP67 |
| Mounting type | Ceiling |
| Colour | White |
| Antenna type | External |
| Number of antennas | 1 |
| Connection technology | Wired & Wireless |
| Dynamic range | 56 dB |
| Luminous flux | 0.0025 lm |
| Placement | Outdoor |
| Product type | IP security camera |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Shutter speed adjustment | Auto/Manual |
| Rotation angle | 355 ° |
| Camera pan control | Yes |
| Shutter speed | 1/3 s-1/100,000 s |
| Camera shutter type | Electronic |
| Camera tilt control | Yes |
| Field of view (FOV) angle | 120 ° |
| Lens viewing angle, diagonal | 120 ° |
| Lens viewing angle, horizontal | 100 ° |
| Lens viewing angle, vertical | 53 ° |
| Minimum illumination | 0.0025 lx |
| Pan range | 0 - 355 ° |
| Tilt angle range | 0 - 75 ° |
| White balance | Custom modes/Manual/Natural/Outdoor/Street lamp |
| Number of sensors | 1 |
| Optical sensor size | 1/2.8 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Detection distance | 46.9 m |
| Fixed focus | Yes |
| Focal length range | 2.8 mm |
| Identify distance | 4.7 m |
| Lens diameter | 2.8 mm |
| Maximum aperture | 2 |
| Number of lenses | 1 |
| Observe distance | 18.8 m |
| Recognition distance | 9.4 m |
| Zoom capability | No |
| IR LED type | IR |
| Night vision | Yes |
| Number of illumination LEDs | 3 |
| Backlight compensation | Yes |
| Bit rate | 9 - 4096 |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Flip & mirror | Yes |
| Frame rate | 30 fps |
| Gain control type | Auto |
| Maximum resolution | 1920 x 1080 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Privacy masking | Yes |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
| Supported resolutions | 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080) |
| Supported video modes | 1080p/720p/960p |
| Total megapixels | 2 MP |
| Video compression formats | H.264/H.264B/H.264H/H.265 |
| Supported video formats | H.264/H.264B/H.265 |
| Video recording | Yes |
| Video streaming | Yes |
| Signal-to-noise ratio (SNR) | 56 dB |
| Bluetooth | No |
| Channel bandwidth | 36 MHz |
| Ethernet type | Fast Ethernet |
| Ethernet LAN | Yes |
| Live view | Yes |
| Number of users | 6 user(s) |
| Network protocols | IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast; RTMP |
| Wi-Fi | Yes |
| Wi-Fi data rate (max) | 2400 Mbit/s |
| Wi-Fi standards | 802.11b/802.11g/Wi-Fi 4 (802.11n) |
| Built-in HDD | No |
| Card reader | Yes |
| Supported memory cards | MicroSD (TransFlash) |
| Flash memory | 64 MB |
| Maximum memory card size | 256 GB |
| Storage capacity | 16 MB |
| Ethernet (RJ-45) ports | 1 |
| HTTPS encryption | Yes |
| Motion detection | Yes |
| Security algorithms | HTTPS |
| Firmware upgradeable | Yes |
| Management software | Smart PSS; DSS; DMSS |
| Remote app support | Yes |
| Web browser | Yes |
| Web-based management | Yes |
| Output voltage | 12 |
| Power consumption (max) | 4.9 W |
| Power consumption (typical) | 2 W |
| Power source | DC |
| Operating humidity | 0 - 95 % |
| Operating temperature | -40 - 60 °C |
| Storage temperature | -30 - 60 °C |
| Mobile OS support | Android/iOS |
| Diameter | 110.7 mm |
| Height | 88.7 mm |
| Weight | 414 g |
| Certificates | CE/Federal Communications Commission (FCC) |
| Number of cameras | 1 |
| Model | IPC-HDBW1230DE-SW-0280B |
