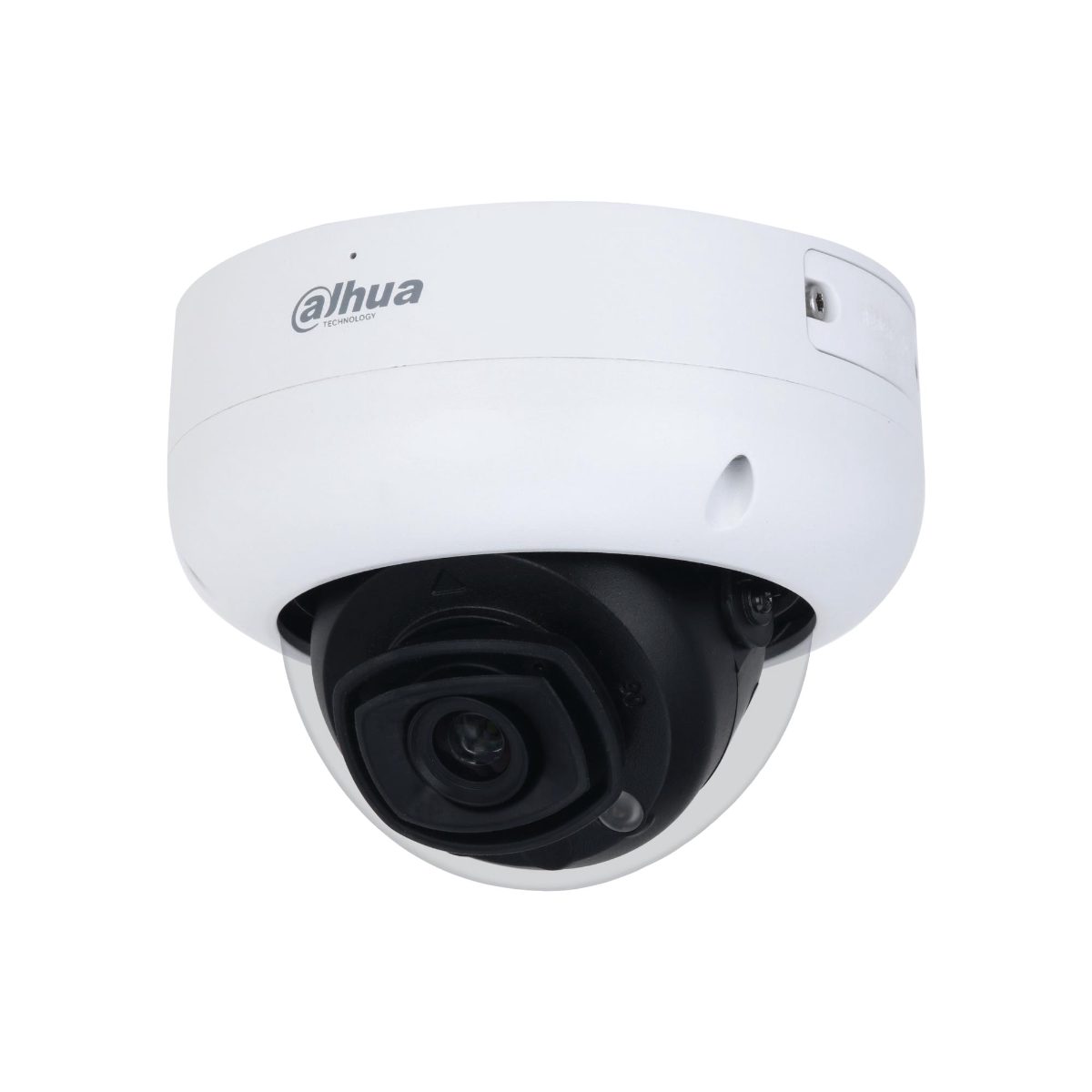

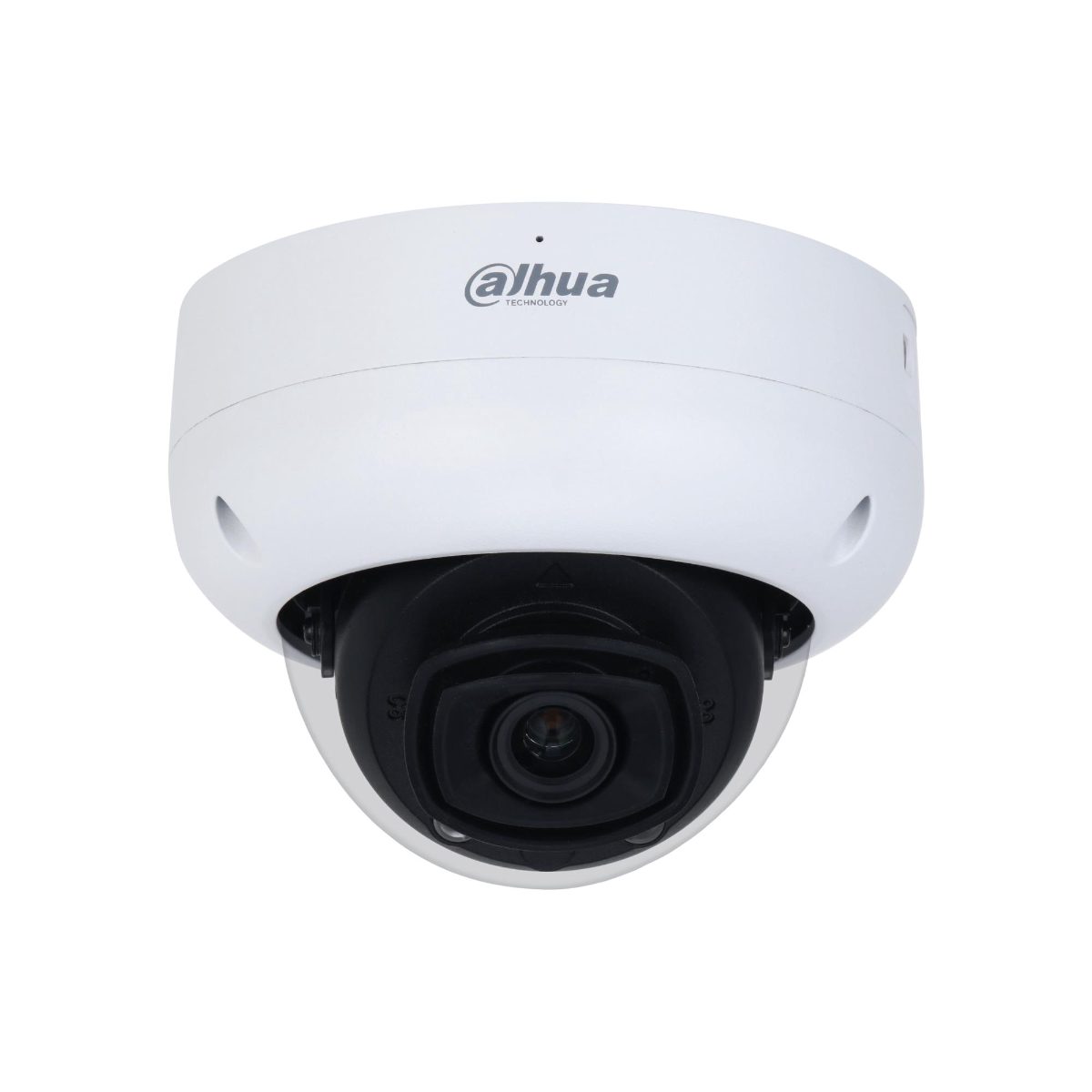

NET CAMERA 4MP IR DOME/HDBW5442R-ASE-0280B-S3 DAHUA
DAHUA · 6923172588227
—
The invoice is sent as soon as you order.
Out of stock
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 36 mo.
- Invoice: with every order
- EAN
- 6923172588227
- Brand
- DAHUA
Description
Launched by Dahua Technology, Dahua WizMind is a full portfolio of solutions composed of project-oriented products including IPC, IVSS,NVR, PTZ, XVR, Thermal and software platform which adopts
industry-leading deep learning algorithms. Focusing on customer's requirements, WizMind provides precise, reliable and comprehensive AI solutions for verticals.
- Outputs max. 4 MP (2688×1520) @25/30fps
- Built-in IR LED, and the max. illumination distance is 50 m
- ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 GB Micro SD card, built-in MIC
- 12 VDC/PoE power supply; ePoE
- IP67 and IK10 protection
- SMD 3.0
Specifications
| Form factor | Dome |
| Material | Metal |
| IK impact rating | IK10 |
| IP rating | IP67 |
| Mounting type | Ceiling/wall |
| Colour | White |
| Alarm input/output | Yes |
| Certification | CE-LVD: EN60950-1 CE-EMC: 2014/30/EU FCC: 47 CFR FCC 15, B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
| Connection technology | Wired |
| Day/night mode | Yes |
| Placement | Outdoor |
| Product type | IP security camera |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Shutter speed adjustment | Auto/Manual |
| Rotation angle | 355 ° |
| Camera pan control | Yes |
| Shutter speed | 1/3 - 1/100000 s |
| Camera shutter type | Electronic |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 89 ° |
| Lens viewing angle, vertical | 48 ° |
| Minimum illumination | 0.002 lx |
| Pan range | 0 - 355 ° |
| Tilt angle range | 0 - 75 ° |
| Effective pixels | 2688 x 1520 pixels |
| Number of sensors | 1 |
| Optical sensor size | 1/1.8 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Closest focusing distance | 1.3 m |
| Detection distance | 50 m |
| Focal length | 3.6 mm |
| Identify distance | 9.7 m |
| Maximum aperture | 1.6 |
| Number of lenses | 1 |
| Observe distance | 38.6 m |
| Recognition distance | 19.3 m |
| IR LED type | IR |
| Night vision | Yes |
| Infrared night vision range | 50 m |
| Number of illumination LEDs | 1 |
| Backlight compensation | Yes |
| Bit rate | 32 - 8192, 19 - 8192 Kbps |
| Bit rate control | Constant Bit Rate (CBR),Variable Bit Rate (VBR) |
| Flip & mirror | Yes |
| Frame rate | 30 fps |
| Gain control type | Auto/Manual |
| Highlight compensation | Yes |
| Maximum resolution | 2688 x 1520 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Privacy masking | Yes |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
| Supported resolutions | 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2560 x 1440/2688 x 1520/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576 |
| Total megapixels | 4 MP |
| Video compression formats | H.264/H.265/M-JPEG |
| Video streaming | Yes |
| Supported audio formats | AAC |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Voice codecs | G.711a/G.711Mu/G.723/G.726 |
| Bluetooth | No |
| Ethernet type | Fast Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1x/IEEE 802.3af |
| Number of users | 20 user(s) |
| Streaming method | Multicast/Unicast |
| Network protocols | IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP ;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP ;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP |
| Wi-Fi | No |
| Built-in HDD | No |
| Card reader | Yes |
| Supported memory cards | MicroSD (TransFlash) |
| Memory capacity | 512 MB |
| Maximum memory card size | 256 GB |
| Storage capacity | 128 MB |
| Ethernet (RJ-45) ports | 1 |
| Intelligent video surveillance features | Abandoned object/Face detection/Missing object/People counting/Scene change/Tripwire |
| Motion detection | Yes |
| Behavior analysis | Intrusion detection,Line crossing detection |
| Web browser | Yes |
| Web-based management | Yes |
| Output voltage | 12 |
| Power consumption (max) | 6.1 W |
| Power source | DC,PoE |
| Operating humidity | 0 - 95 % |
| Operating temperature | -30 - 60 °C |
| Mobile OS support | Android/iOS |
| Depth | 122 mm |
| Diameter | 122 mm |
| Height | 94 mm |
| Weight | 712.9 g |
| Width | 122 mm |
| Number of cameras | 1 |
| Model | IPC-HDBW5442R-ASE-0280B-S3 |
