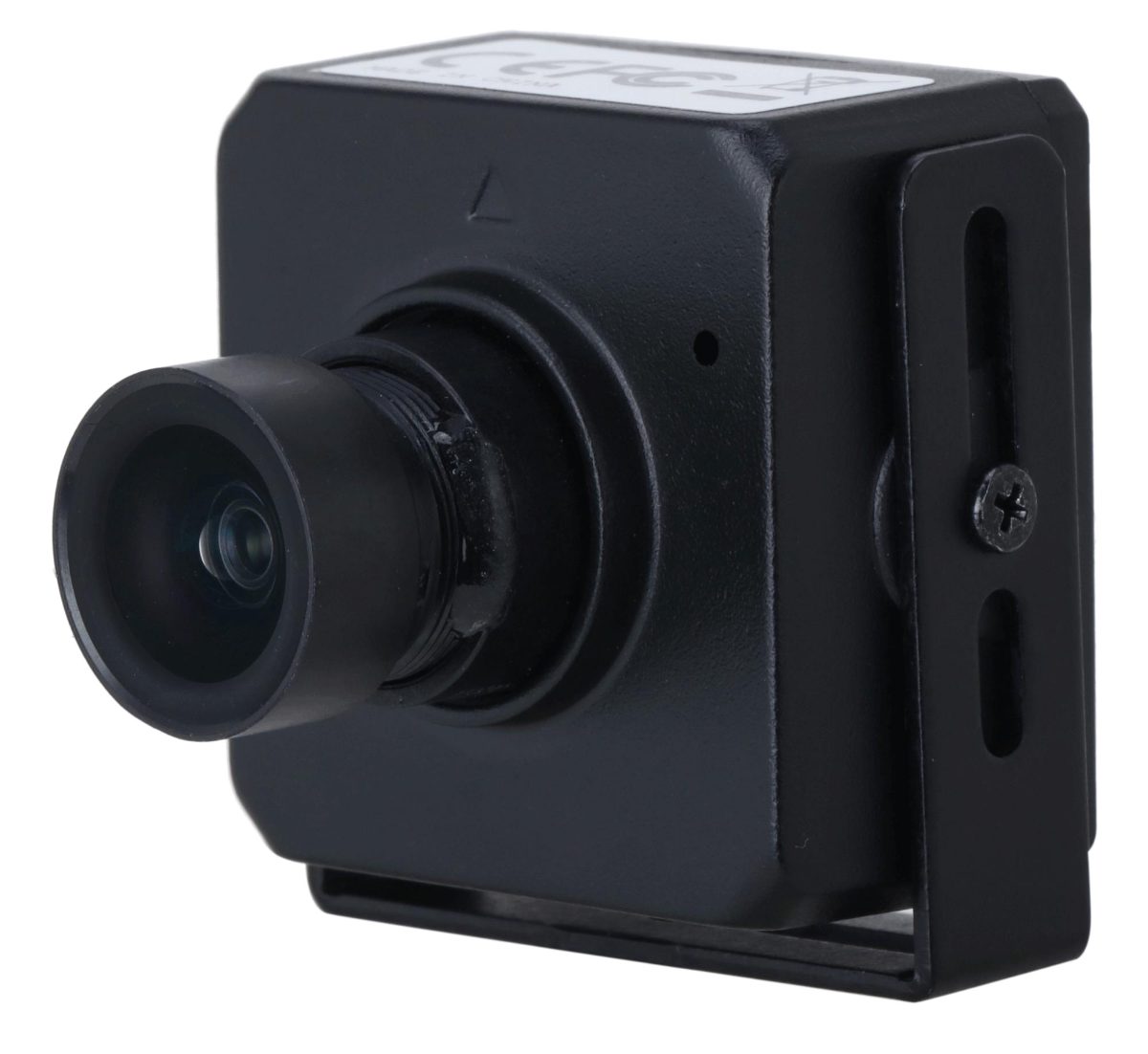

NET CAMERA 4MP PINHOLE/IPC-HUM4431S-L5-0280B DAHUA
DAHUA · 6923172536532
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 36 mo.
- Invoice: with every order
- EAN
- 6923172536532
- Brand
- DAHUA
Description
Dahua Pinhole series network camera includes one-in-all camera and separated camera. Separated camera can work with different lens to meet the requirements in different installation scenes. Pinhole Series camera is widely applied in hidden or small scenes such as banks and advertising screen.
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
IVS
With advanced video algorithm, Dahua IVS technology supports intelligent functions, such as tripwire and intrusion.
WDR
With advanced Wide Dynamic Range (WDR) technology, Dahua network camera provides clear details in the environment of strong brightness contrast. The bright and dark area can get clear video even in high brightness environment or with backlight shadow.
Starlight
With advanced image processing technology and optical technology, Dahua Starlight technology can provide clear colorful video in the environment of low illuminance. It widely applies to various environments of low illuminance.
Protection (Wide Voltage)
Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
Cyber Security
Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera's defense against external cyber threats and prevent malicious programs from comprising the device.
- High-Quality Imaging with 4 MP Resolution
- 120dB WDR Ensures Clear Details in Strong Backlight Conditions
- Built-in Mic for Real-Time Audio Security
- Focal Length: 2.0 mm, 2.8 mm, 3.6 mm, 8 mm optional
Specifications
| Form factor | Cube |
| Material | Metal |
| Mounting type | Ceiling |
| Colour | Black |
| Connection technology | Wired |
| Day/night mode | Yes |
| Dynamic range | 120 dB |
| Placement | Indoor |
| Product type | IP security camera |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Shutter speed | 1/3 - 1/100000 s |
| Camera shutter type | Electronic |
| Lens viewing angle, diagonal | 114 ° |
| Lens viewing angle, horizontal | 95 ° |
| Lens viewing angle, vertical | 52 ° |
| Minimum illumination | 0.001 lx |
| Number of privacy masking areas | 4 |
| White balance | Auto/Manual/Natural/Outdoor/Regional custom/Street lamp |
| Optical sensor size | 1/3 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Closest focusing distance | 1.1 m |
| Detection distance | 63.6 m |
| Focal length | 2.8 mm |
| Identify distance | 6.4 m |
| Maximum aperture | 1.6 |
| Observe distance | 25.4 m |
| Recognition distance | 12.7 m |
| Night vision | Yes |
| Backlight compensation | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Frame rate | 30 fps |
| Gain control type | Auto/Manual |
| Highlight compensation | Yes |
| Maximum resolution | 2688 x 1520 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Region of Interest (ROI) encoding | Yes |
| Total megapixels | 4 MP |
| Video compression formats | H.264/H.264B/H.265/M-JPEG |
| Video streaming | Yes |
| Supported audio formats | G.711 µ-law/G.711 A-law/G.726/PCM |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Bit rate range | 3 - 6144 Kbit/s |
| Built-in microphone | Yes |
| Signal-to-noise ratio (SNR) | 56 dB |
| Bluetooth | No |
| Ethernet type | Fast Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1x |
| Number of users | 20 user(s) |
| Quality of Service (QoS) | Yes |
| Streaming method | Multicast |
| Network protocols | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, ICMP, IGMP, NFS, PPPoE |
| Wi-Fi | No |
| Built-in HDD | No |
| Memory capacity | 128 MB |
| Storage capacity | 128 MB |
| DC-in jack | Yes |
| Ethernet (RJ-45) ports | 1 |
| HTTPS encryption | Yes |
| Intelligent video surveillance features | Intrusion/Tripwire |
| Mirror | Yes |
| Network access storage (NAS) | Yes |
| Motion detection | Yes |
| Output voltage | 12 |
| Power consumption (max) | 1.8 W |
| Power consumption (typical) | 1.4 W |
| Power source | DC |
| Operating temperature | -40 - 60 °C |
| Storage temperature | -40 - 60 °C |
| Mobile OS support | Android/iOS |
| Depth | 31 mm |
| Height | 37.1 mm |
| Weight | 81 g |
| Width | 31 mm |
| Certificates | CE |
| Manual included | Yes |
| Number of cameras | 1 |
