NET CAMERA M4228-LVE DOME/02816-001 AXIS
AXIS · 7331021084445
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 60 mo.
- Invoice: with every order
- EAN
- 7331021084445
- Brand
- AXIS
Description

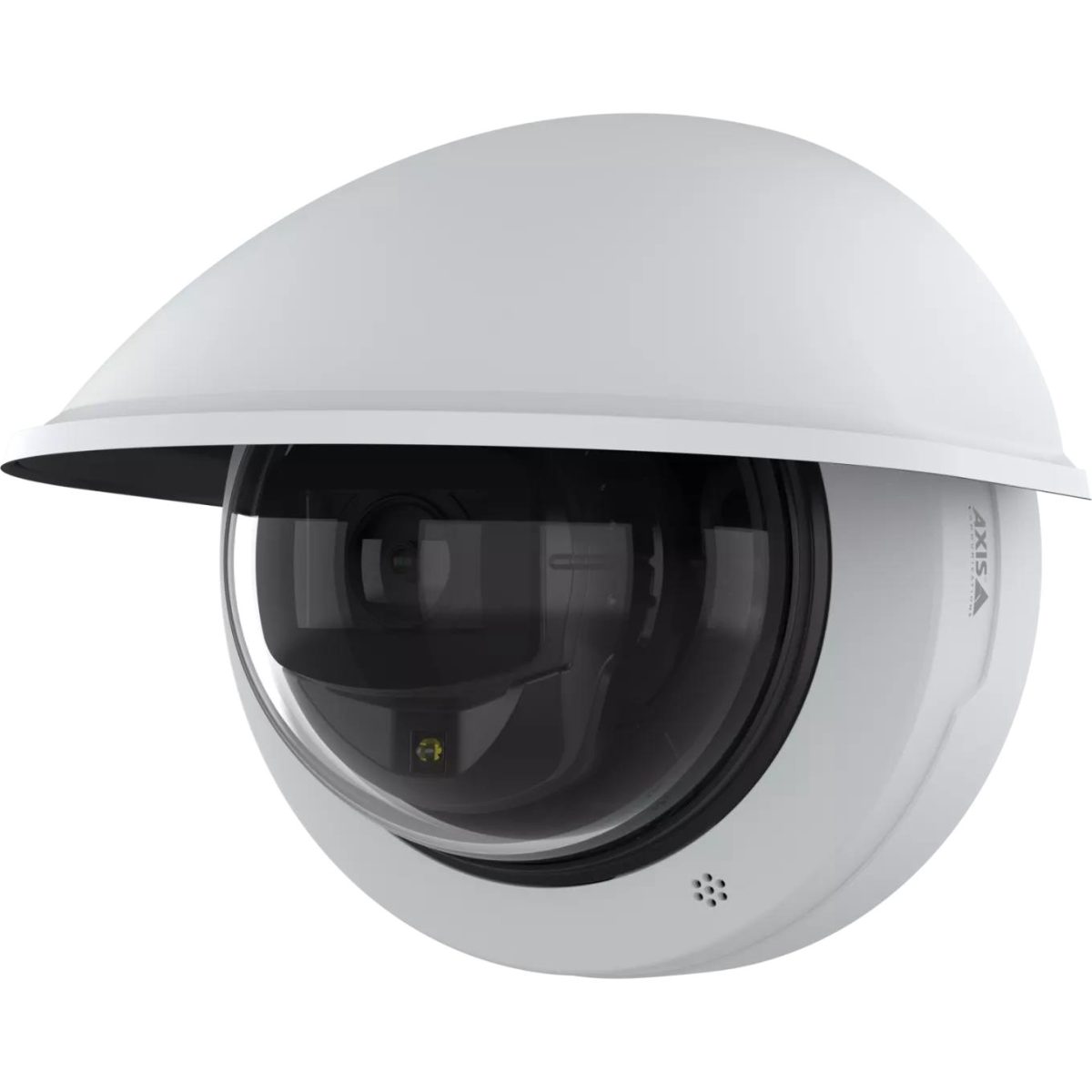

AXIS M4228-LVE Dome Camera
This compact, varifocal dome camera offers great images in 8 MP. It comes preinstalled with AXIS Object Analytics, as well as AXIS Audio Analytics to detect and classify specific sounds as well as sudden changes in sound volume.
Great images, every time
AXIS M4228-LVE delivers great image quality in 4K. Featuring a varifocal lens with 100°-38° field of view and remote zoom and focus capabilities, it can be adapted for close-ups and overviews without the need for hands-on fine tuning. Thanks to Lightfinder 2.0 and Forensic WDR, it provides details even in challenging light conditions. Plus, OptimizedIR allows for surveillance in total darkness without the need for extra lighting. Furthermore, Axis Zipstream with support for H.264 and H.265 significantly reduces bandwidth and storage requirements without compromising image quality.
Powerful with strong security
Featuring a deep learning processing unit (DLPU), AXIS M4228-LVE lets you run advanced features and powerful analytics on the edge. For instance, it comes preinstalled with AXIS Object Analytics to detect, classify, track, and count objects such as humans and vehicles. It includes an acoustic sensor, so it’s out-of-the-box-ready for AXIS Audio Analytics, which can detect and classify specific sounds as well as sudden changes in sound volume. In addition, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-3 Level 3 certified, secure cryptographic key storage and operations.
Small and discreet
This compact and discreet dome camera blends in with any environment. There’s also a smoked dome available as an accessory, so you can disguise which way the camera is pointing. This IP66- and IK10-rated camera has an operating temperature range from -30°C to 50°C (-22°F to 122°F). Plus, the included weathershield offers extra protection.
- Great image quality in 8 MP
- Varifocal lens with remote zoom and focus
- Lightfinder 2.0, Forensic WDR, and OptimizedIR
- AI-based audio and video analytics
- Built-in cybersecurity with Axis Edge Vault
Specifications
| Form factor | Dome |
| Material | Plastic/Polycarbonate (PC) |
| IK impact rating | IK10 |
| IP rating | IP66 |
| LED indicators | Yes |
| Mounting type | Wall |
| Colour | Black/White |
| Weatherproof | Yes |
| Auto-tracking | Yes |
| Connection technology | Wired |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Placement | Outdoor |
| Preset points | Yes |
| PTZ control | Yes |
| PTZ modes | Digital PTZ |
| Tour recording | Yes |
| Product type | IP security camera |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Rotation angle | 360 ° |
| Camera pan control | Yes |
| Camera pixel size | 1.45 µm |
| Shutter speed | 1/16000 - 2 s |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 100 ° |
| Lens viewing angle, vertical | 52 ° |
| Minimum illumination | 0.03 lx |
| Pan range | -180 - 180 ° |
| Tilt angle range | -10 - 65 ° |
| Number of sensors | 1 |
| Optical sensor size | 1/2.8 " |
| Sensor type | CMOS |
| Signal-to-noise ratio | 55 dB |
| Autofocus | Yes |
| Closest focusing distance | 1 m |
| Detect distance, tele | 101.8 m |
| Detect distance (wide) | 43.7 m |
| Focal length range | 3.2 - 7.2 mm |
| Identify distance, tele | 10.2 m |
| Identify distance, wide | 4.4 m |
| Maximum aperture | 2.7 |
| Minimum aperture | 2.9 |
| Number of lenses | 1 |
| Observe distance, tele | 40.4 m |
| Observe distance (wide) | 17.4 m |
| Recognize distance, tele | 20.4 m |
| Recognize distance (wide) | 8.8 m |
| Zoom capability | Yes |
| Infrared wavelength | 850 nm |
| IR LED type | IR |
| Night vision | Yes |
| Infrared night vision range | 20 m |
| Bit rate control | Variable Bit Rate (VBR) |
| Flip & mirror | Yes |
| Frame rate | 30 fps |
| Image quality adjustment | Brightness/Contrast/Saturation/Sharpness |
| Maximum resolution | 3840 x 2160 pixels |
| Supported resolutions | 2592 x 1944/320 x 240/3840 x 2160/640 x 360 |
| Text caption overlay | Yes |
| Total megapixels | 8 MP |
| Supported video formats | AVC/H.264/H.265/HEVC/M-JPEG/MPEG4 |
| Video streaming | Yes |
| Audio detection | Yes |
| Ethernet type | Fast Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1x/IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt |
| Streaming method | Multicast |
| Network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4 |
| Supported memory cards | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Flash memory | 8000 MB |
| Memory capacity | 2000 MB |
| Human and vehicle targets classification | Yes |
| Intelligent video surveillance features | Abandoned object/Line crossing detection/Moving object |
| Privacy protection | Yes |
| Security algorithms | EAP-TLS/HTTPS/MSCHAPv2/PEAP/TLS |
| Cloud-managed | Yes |
| Power consumption (max) | 12.9 W |
| Power consumption (typical) | 3.6 W |
| Power source | PoE |
| Operating humidity | 10 - 100 % |
| Operating temperature | -30 - 50 °C |
| Non-operating relative humidity | 5 - 95 % |
| Storage temperature | -40 - 65 °C |
| Depth | 112 mm |
| Height | 126 mm |
| Weight | 540 g |
| Width | 140 mm |
| Certificates | BSMI/CE/cUL/EAC/RCM/REACH/RoHS/Trade Agreements Act (TAA)/UKCA/UL/VCCI |
| Manual included | Yes |
| Number of cameras | 1 |
| Sun shield included | Yes |
| Free from | Brominated Flame Retardant (BFR)/CFR/PVC |
