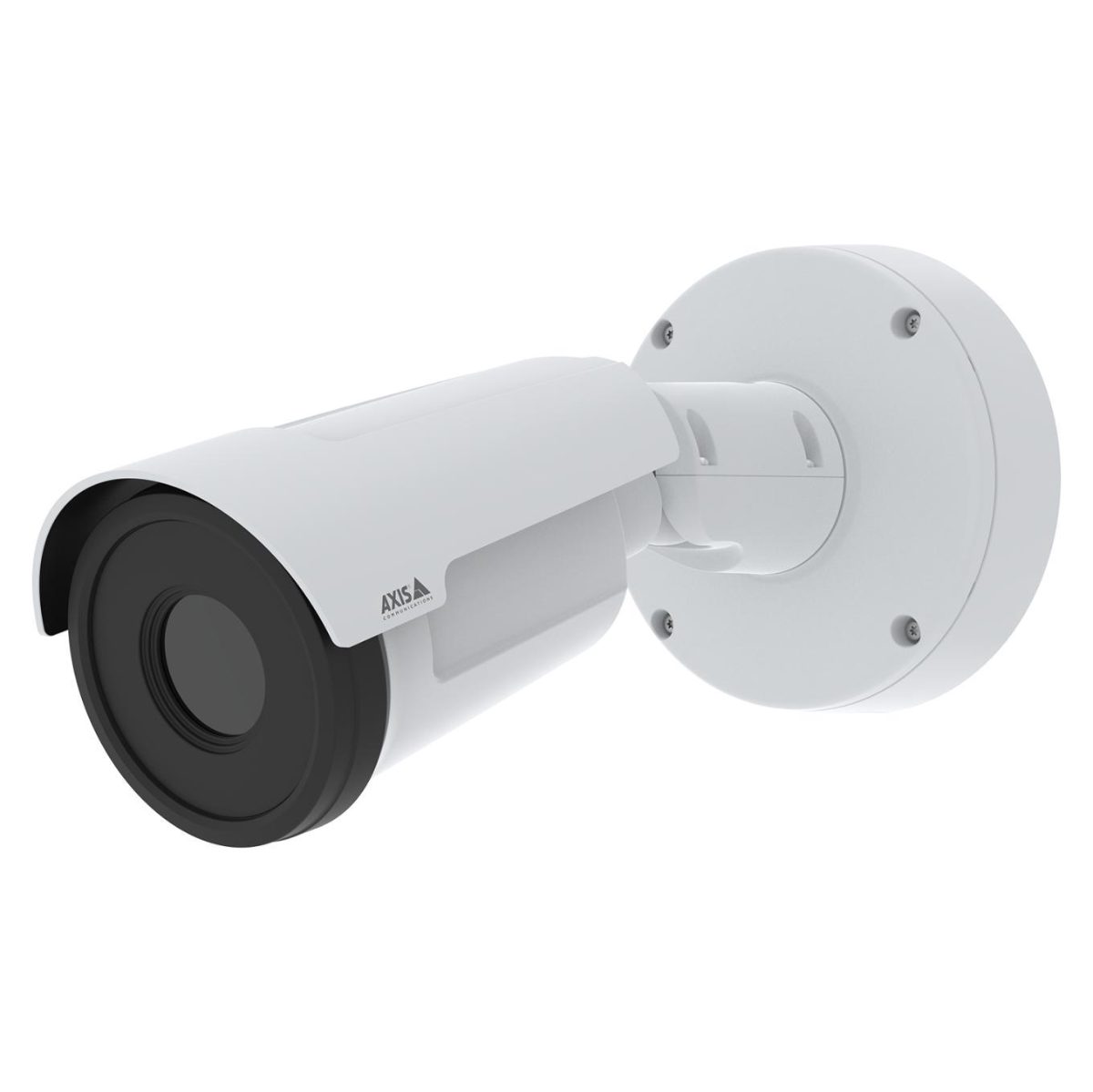

NET CAMERA Q1961-TE 7MM 30FPS/THERMAL 02174-001 AXIS
AXIS · 7331021074224
—
The invoice is sent as soon as you order.
Out of stock
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 60 mo.
- Invoice: with every order
- EAN
- 7331021074224
- Brand
- AXIS
Description
Ideal to improve operational efficiency, this thermometric camera lets you remotely monitor temperatures from -40 °C to 350 °C (-40 °F to 660 °F). You’ll know if your equipment is close to overheating and can act to avoid unwanted downtime. Supporting up to 10 configurable polygonal detection areas, you can monitor for specific temperature levels or change-rates. With early fire detection analytics, it’s possible to monitor early signs of fire with smart filtering of potential false alarms. AXIS Q1961-TE includes built-in cybersecurity features to help safeguard your system. Furthermore, edge-to-edge technology lets you connect network speakers to enable audio alarms.
- Built-in cybersecurity features; Early fire detection analytics; IP66-, IP67-, IK10- and NEMA 4X -rated; Polygonal temperature monitoring areas; Spot temperature reading
Specifications
| Form factor | Bullet |
| Material | Aluminium/Polycarbonate (PC) |
| IK impact rating | IK10 |
| IP rating | IP66, IP67 |
| Mounting type | Wall |
| Colour | White |
| Built-in processor | Yes |
| Certification | CSA, UL/cUL, UKCA, CE, KC |
| Connection technology | Wired |
| Languages support | Czech/Dutch/English/Finnish/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Swedish/Thai/Traditional Chinese/Turkish/Vietnamese |
| Language count | 19 |
| Placement | Outdoor |
| Processor model | ARTPEC-8 |
| Thermal module | Yes |
| Thermal sensitivity (NETD) | 40 mK |
| Product type | IP security camera |
| Camera pixel size | 17 µm |
| Lens viewing angle, horizontal | 55 ° |
| Sensor type | Microbolometer |
| Thermal sensor type | Noise equivalent temperature difference (NETD) |
| Lens diameter | 7 mm |
| Maximum aperture | 1.18 |
| Night vision | No |
| Frame rate | 30 fps |
| Gain control type | Auto |
| Maximum resolution | 384 x 288 pixels |
| Privacy masking | Yes |
| Video compression formats | H.264/H.265/M-JPEG |
| Video recording | Yes |
| Video streaming | Yes |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Audio system | 1-way |
| Bluetooth | No |
| Ethernet type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1x/IEEE 802.3af/IEEE 802.3at |
| Quality of Service (QoS) | Yes |
| Network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, SSH, LLDP |
| Wi-Fi | No |
| Built-in HDD | No |
| Card reader | Yes |
| Supported memory cards | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Flash memory | 8192 MB |
| Memory capacity | 2048 MB |
| DC-in jack | Yes |
| Ethernet (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Terminal block port | Yes |
| Active tampering alarm | Yes |
| Digest authentication | Yes |
| Fire detection | Yes |
| IP address filtering | Yes |
| Mirror | Yes |
| Network access storage (NAS) | Yes |
| Password protection | Yes |
| Pixel counter | Yes |
| Temperature measurement accuracy | 5 °C |
| Temperature measurement range | -40 - 350 °C |
| Temperature sensor | Yes |
| Motion detection | Yes |
| Output voltage | 10,12,15,16,24,28 |
| Power consumption (max) | 12.95 W |
| Power consumption (PoE) | 4.3 W |
| Power consumption (typical) | 4.1 W |
| Power source | DC,PoE |
| Operating humidity | 10 - 100 % |
| Operating temperature | -40 - 60 °C |
| Non-operating relative humidity | 5 - 95 % |
| Storage temperature | -40 - 65 °C |
| Diameter | 132 mm |
| Length | 272 mm |
| Weight | 1400 g |
| Manual included | Yes |
| Number of cameras | 1 |
| In the box | Drill template, TORX L-keys, terminal block connectors, connector guard, cable gaskets, owner authentication key |
| Model | Q1961-TE |
