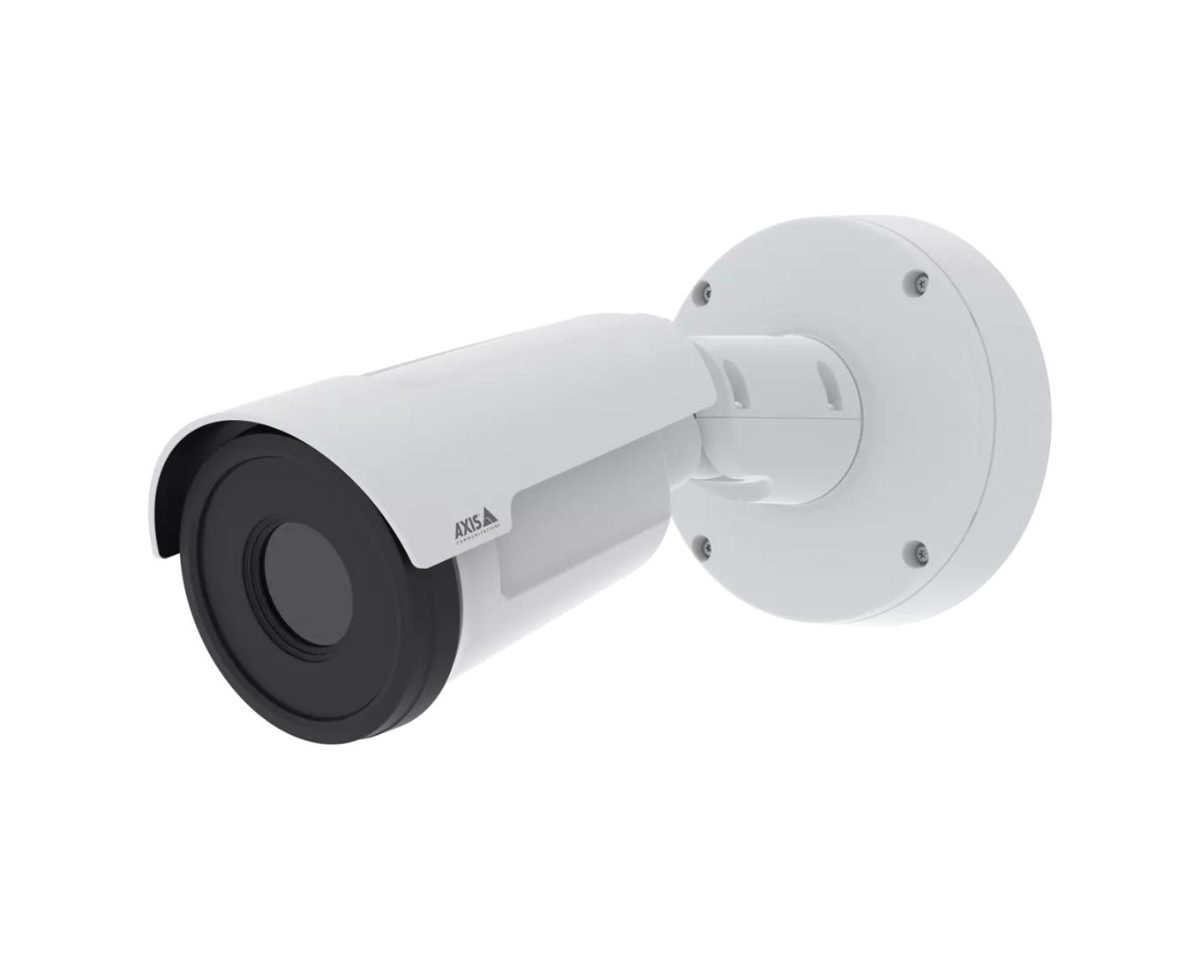

NET CAMERA Q1972-E 35MM 30 FPS/THERMAL 03033-001 AXIS
AXIS · 7331021088054
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 60 mo.
- Invoice: with every order
- EAN
- 7331021088054
- Brand
- AXIS
Description
Reliable detection and visual verification- always

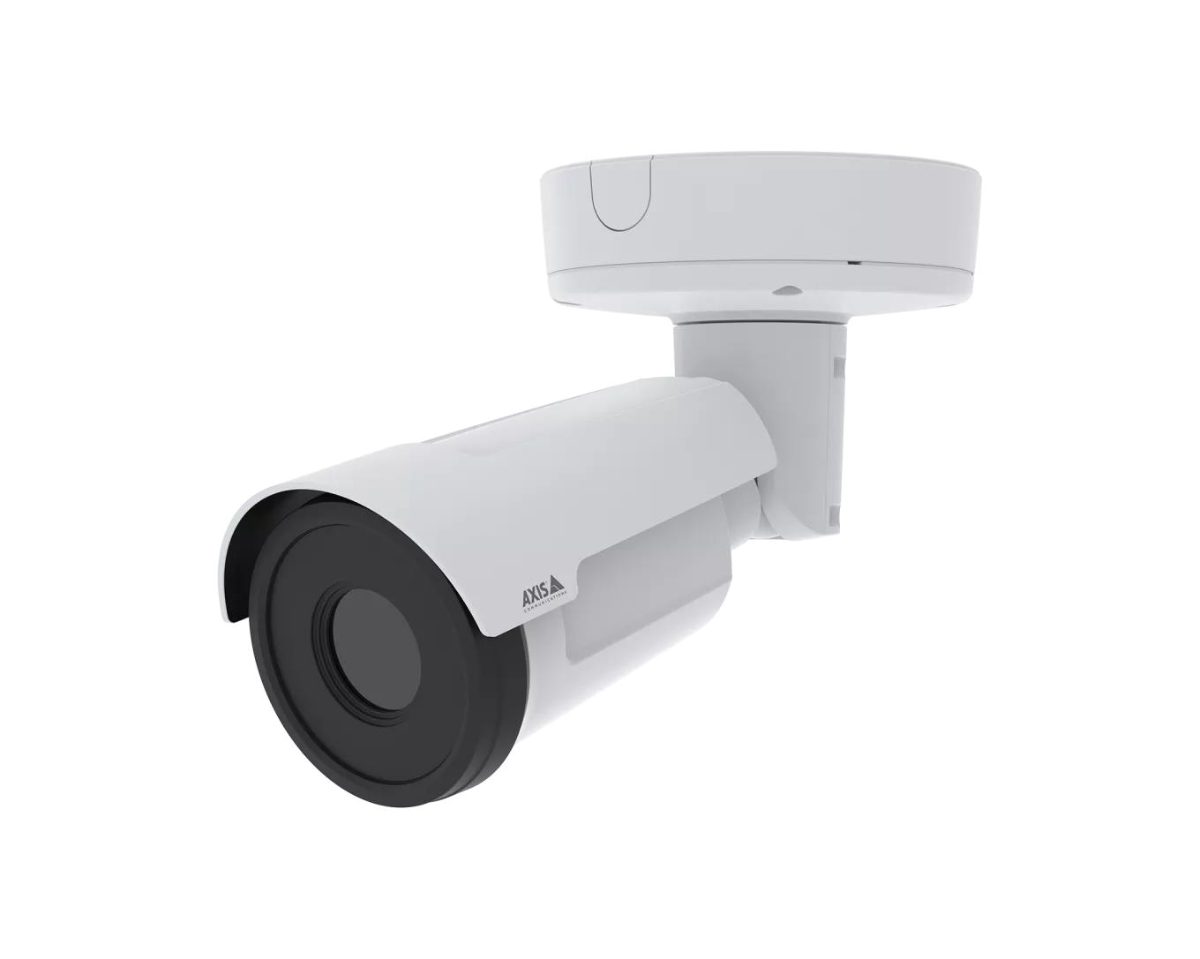

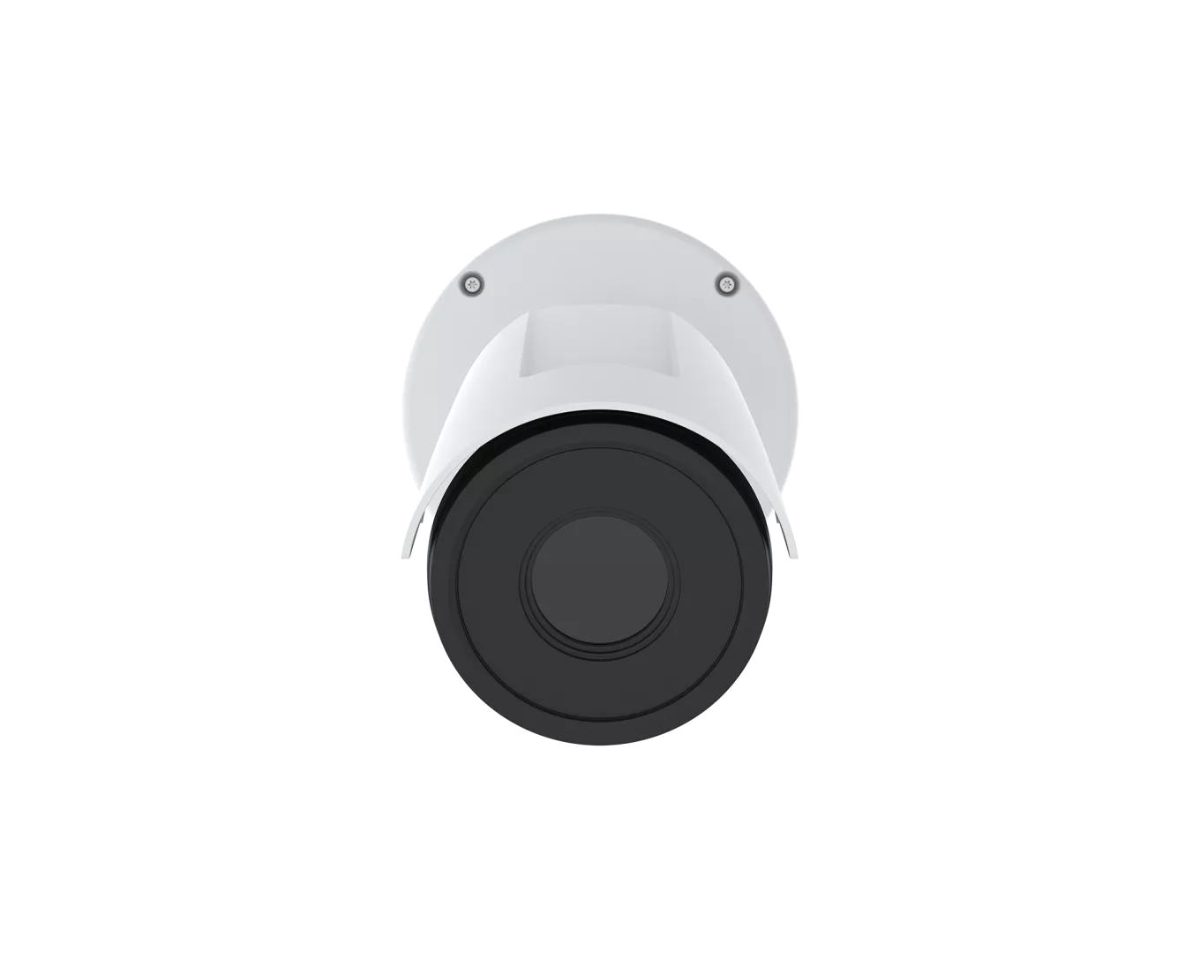

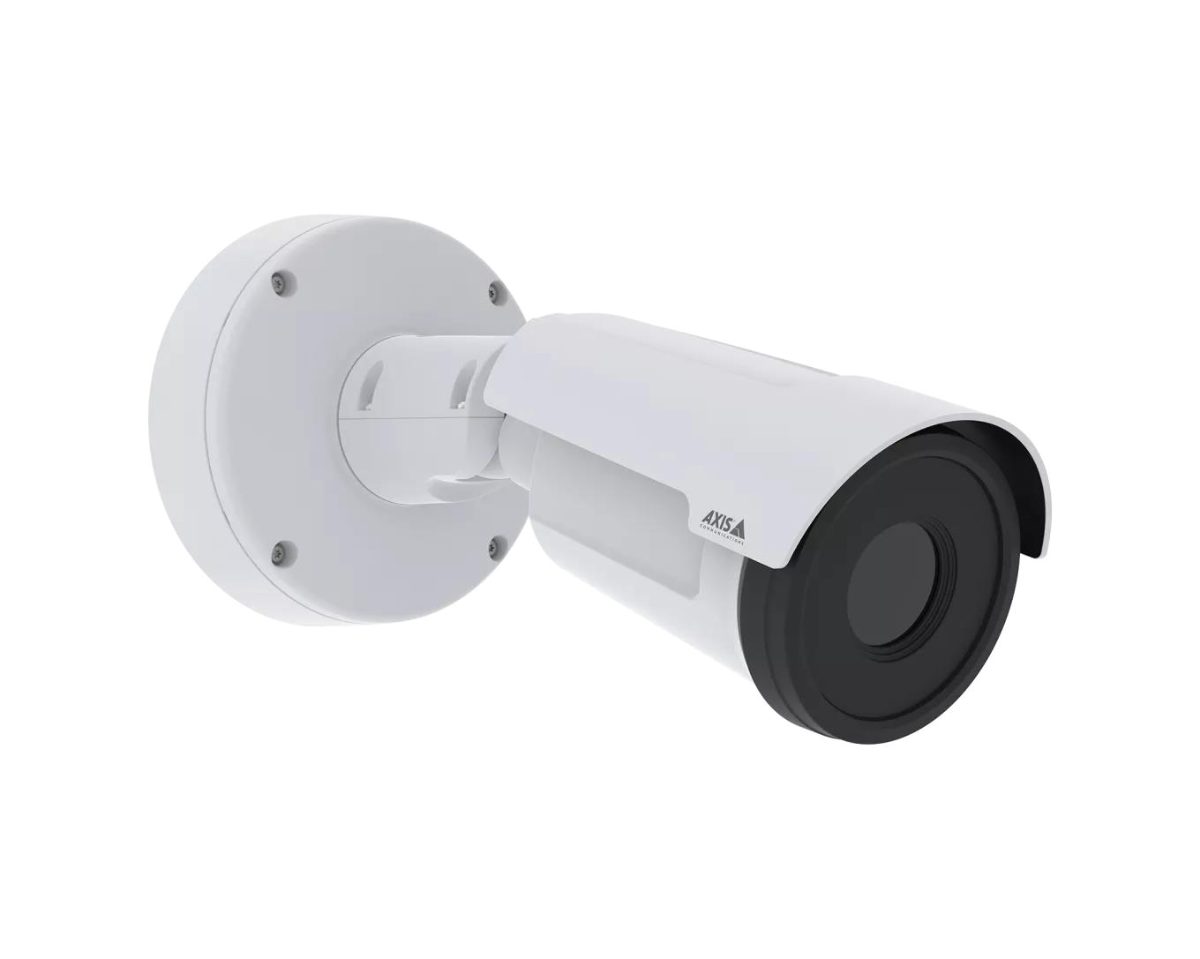

Using thermal technology, AXIS Q1972-E offers reliable detection and verification 24/7 even in low contrast scenes. It isn’t impacted by weather or light conditions ensuring a lower false alarm rate. With four lens alternatives (10 mm, 19 mm, 25 mm, and 35 mm), it offers optimal installation possibilities. Thermal palettes help you visually identify different heat sources making it easier and more efficient to interpret a scene. And electronic image stabilization (EIS) ensures stable, reliable video in all environments. Furthermore, because thermal imaging doesn’t deliver images that allow for identification, privacy is always guaranteed.
Powerful analytics platform
AXIS Q1972-E comes with AXIS Motion Guard, AXIS Fence Guard, and AXIS Loitering Guard preinstalled for proactive surveillance. Plus, you can buy AXIS Perimeter Defender with AI-based functionality for enhanced detection capabilities allowing you to detect and classify humans and other objects. Built on a powerful platform, it’s possible to add third-party analytics to trigger events. It comes with two I/O ports for connecting external devices. Furthermore, edge-to-edge technology lets you connect, for instance, a hornspeaker to enable audio alarms that deter, warn, and notify. You can also connect a strobe siren to deter intruders with the power of light and sound.
Secure, robust, and sustainable
This powerful thermal camera includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. Plus, it offers secure key storage with FIPS 140-2 Level 2 certified, secure cryptographic key storage and operations. With IK10-, IP66/67-, NEMA TS2, and NEMA 4x ratings, it’s impact- and weather-resistant. What’s more, this robust, sustainable device offers a low carbon footprint. It’s made from halogen-free materials and there’s no need for lighting in dark scenes, ensuring lower system power consumption.
Specifications
| Form factor | Bullet |
| Material | Aluminium/Polycarbonate (PC) |
| IK impact rating | IK10 |
| IP rating | IP66, IP67 |
| LED indicators | Yes |
| Mounting type | Wall |
| Colour | Black/White |
| Weatherproof | Yes |
| Certification | CSA, UL/cUL, CE, KC, TAA, CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, ICES(A)/NMB(A), VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 Subpart B Class A, IEC 62236-4, C |
| Connection technology | Wired |
| Placement | Outdoor |
| Preset points | Yes |
| Thermal sensitivity (NETD) | 20 mK |
| Product type | IP security camera |
| Camera pixel size | 17 µm |
| Lens viewing angle, horizontal | 17 ° |
| Thermal camera resolution | 640 x 480 pixels |
| Number of sensors | 1 |
| Sensor type | Microbolometer |
| Closest focusing distance | 33 m |
| Infrared spectral band | 8 - 14 µm |
| Lens diameter | 35 mm |
| Maximum aperture | 1.2 |
| Number of lenses | 1 |
| Bit rate control | Variable Bit Rate (VBR) |
| Flip & mirror | Yes |
| Frame rate | 30 fps |
| Gain control type | Auto |
| Image quality adjustment | Brightness/Contrast/Sharpness |
| Image stabilisation | Yes |
| Maximum resolution | 640 x 480 pixels |
| Text caption overlay | Yes |
| Video compression formats | AVC/H.264/H.265/HEVC/M-JPEG/MPEG4 |
| Video streaming | Yes |
| Audio detection | Yes |
| Supported audio formats | AAC-LC/ADPCM/G.711/G.726/LPCM/OPUS/PCM |
| Full duplex audio system | Yes |
| Supported sample rates | 8 - 48 kHz |
| Ethernet type | Fast Ethernet/Gigabit Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1AE/IEEE 802.1x/IEEE 802.3af/IEEE 802.3at |
| Quality of Service (QoS) | Yes |
| Streaming method | Multicast |
| Network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSc , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH, |
| Card reader | Yes |
| Supported memory cards | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Flash memory | 8192 MB |
| Memory capacity | 2048 MB |
| DC-in jack | Yes |
| Ethernet (RJ-45) ports | 1 |
| Microphone input | Yes |
| RS-422 ports | 1 |
| RS-485 count | 1 |
| Terminal block port | Yes |
| Active tampering alarm | Yes |
| Alert notification type | |
| Digest authentication | Yes |
| Pixel counter | Yes |
| Privacy protection | Yes |
| Security algorithms | 256-bit AES-XTS/EAP-TLS/FIPS 140-2/MSCHAPv2/PEAP |
| Motion detection | Yes |
| Power consumption (max) | 12.95 W |
| Power consumption (PoE) | 12.95 W |
| Power consumption (typical) | 5 W |
| Power source | DC,PoE |
| Operating humidity | 10 - 100 % |
| Operating temperature | -40 - 60 °C |
| Non-operating relative humidity | 5 - 95 % |
| Storage temperature | -40 - 65 °C |
| Depth | 264 mm |
| Height | 132 mm |
| Weight | 1400 g |
| Width | 132 mm |
| Certificates | REACH/RoHS |
| Manual included | Yes |
| Number of cameras | 1 |
| Free from | CFR/PVC/BFR |
| Model | Q1972-E 35MM 30 FPS |
