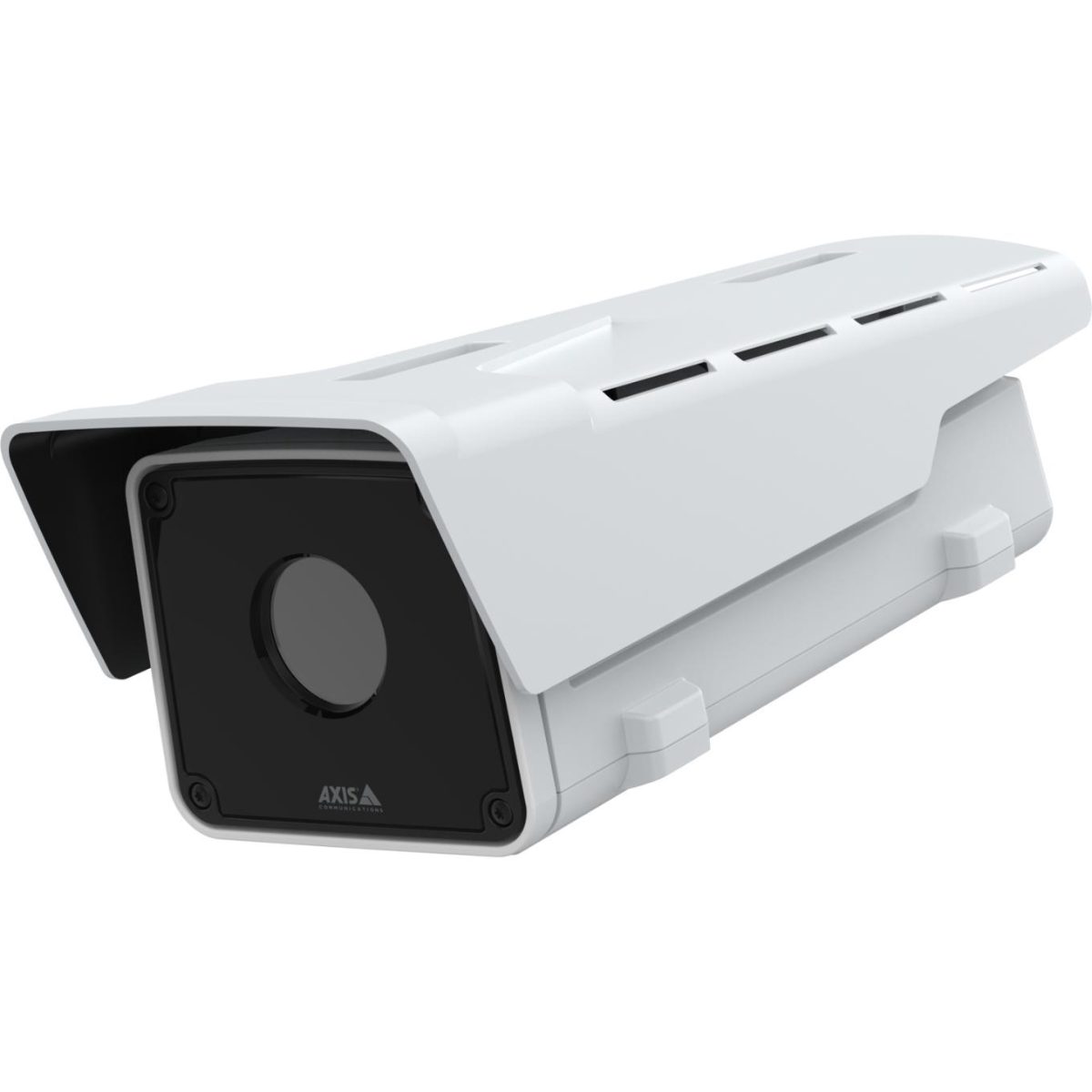

NET CAMERA Q2101-TE THERMAL/7MM 8.3FPS 02649-001 AXIS
AXIS · 7331021081079
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 60 mo.
- Invoice: with every order
- EAN
- 7331021081079
- Brand
- AXIS
Description
Ideal for patrolling large sites, this robust thermal camera lets you remotely monitor temperatures and trigger temperature-based events. It offers early fire detection analytics and built-in cybersecurity features.
What’s the temperature?

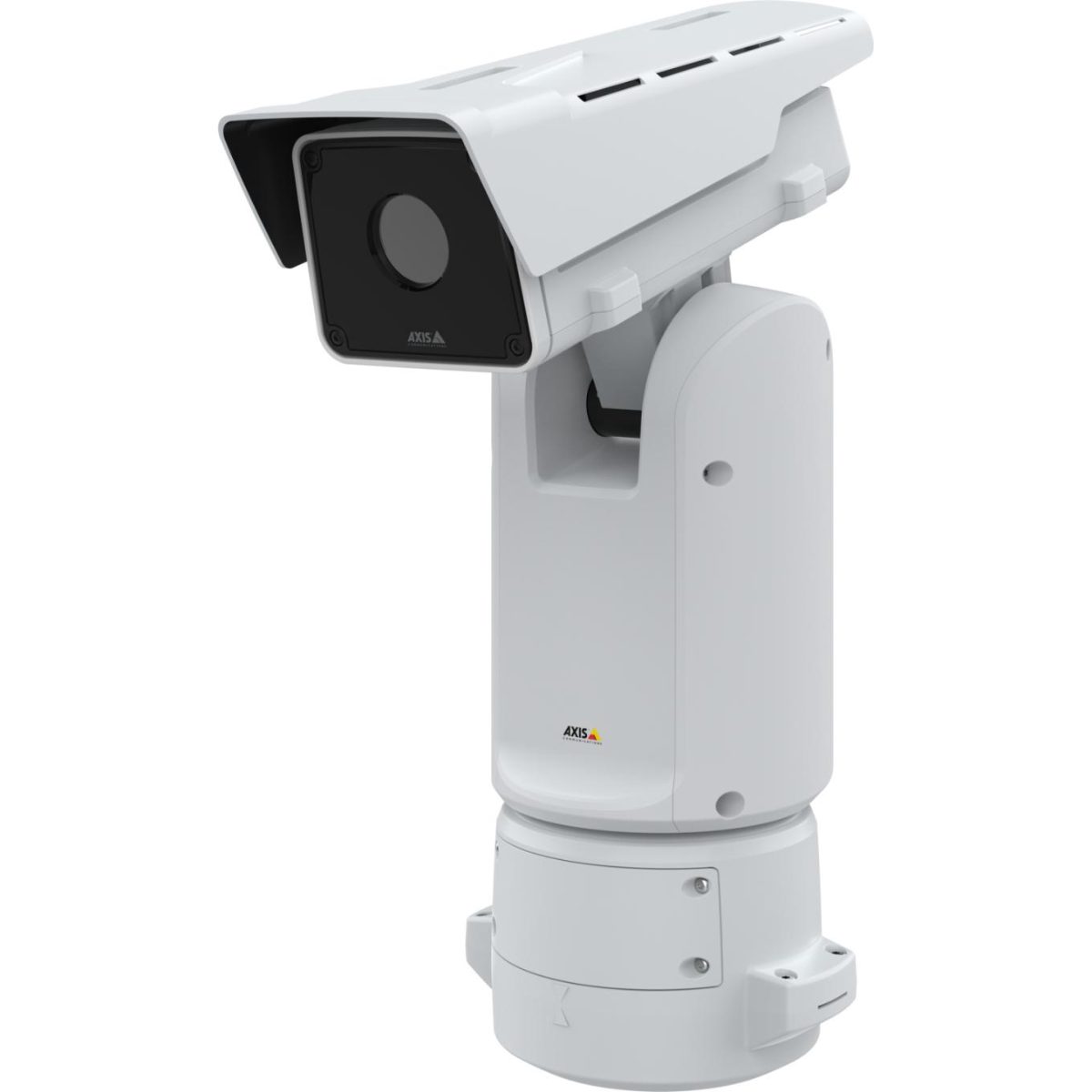

AXIS Q2101-TE lets you remotely monitor temperatures over large areas—automatically or manually with just one camera. It can monitor temperatures from -40 °C to 350 °C (-40 °F to 660 °F) with several trigger types such as lowest and highest temperature or temperature gradient. When mounted on a positioning unit (sold separately), this robust camera provides a 360° unobstructed field of view. This also enables thermometric guard tour with support for up to 256 presets with 10 polygonal detection areas each. Spot temperature reading acts as a visual aid and lets you see the exact temperature in a specific area. Additionally, temperature metadata enables statistics, follow up, and process analysis.
Detect early signs of fire
Built on ARTPEC 8, the latest Axis system-on-chip (SoC), AXIS Q2101-TE offers powerful analytics capabilities. It comes with early fire detection analytics preinstalled making it possible to set triggers and get warnings about early signs of fire or potential overheating. Using smart filtering, the analytics can disregard uninteresting hot objects such as the warm exhausts of passing work vehicles for reduced false alarms.
Depend on it - robust and secure
This reliable, IK10-, NEMA 4X-rated thermal camera is ideal for monitoring critical assets. It includes built-in cybersecurity features to help prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network. It also includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified. Thanks to electronic image stabilization (EIS), this robust camera provides smooth video even in scenes with vibrations. And, with four I/O ports and support for edge-to-edge technology it’s possible to connect a network speaker to enable audio alarms.
- Thermometric guard tour capabilities
- Early fire detection analytics
- Spot temperature reading
- Built-in cybersecurity features
- Support for edge-to-edge technology
Specifications
| Form factor | Box |
| Material | Aluminium |
| IK impact rating | IK10 |
| IP rating | IP66, IP67 |
| Mounting type | Wall |
| Colour | White |
| Built-in processor | Yes |
| Certification | CSA, UL/cUL, UKCA, CE, KC, VCCI, RCM |
| Connection technology | Wired |
| Languages support | English/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese |
| Language count | 12 |
| Placement | Indoor |
| Processor model | ARTPEC-8 |
| Thermal module | Yes |
| Thermal sensitivity (NETD) | 40 mK |
| Product type | IP security camera |
| Camera pan control | Yes |
| Camera pixel size | 17 µm |
| Camera tilt control | Yes |
| Field of view (FOV) angle | 55 ° |
| Sensor type | Microbolometer |
| Thermal sensor type | Noise equivalent temperature difference (NETD) |
| Lens diameter | 7 mm |
| Maximum aperture | 1.18 |
| Night vision | No |
| Frame rate | 8.3 fps |
| Gain control type | Auto |
| Maximum resolution | 768 x 576 pixels |
| Privacy masking | Yes |
| Video compression formats | H.264/H.265/M-JPEG |
| Video recording | Yes |
| Video streaming | Yes |
| Audio system | 2-way |
| Full duplex audio system | Yes |
| Bluetooth | No |
| Ethernet type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1x/IEEE 802.3af/IEEE 802.3at |
| Quality of Service (QoS) | Yes |
| Wi-Fi | No |
| Built-in HDD | No |
| Card reader | Yes |
| Supported memory cards | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Flash memory | 8192 MB |
| Memory capacity | 2048 MB |
| DC-in jack | Yes |
| Ethernet (RJ-45) ports | 1 |
| Headphone outputs | 2 |
| RS-485 count | 2 |
| Terminal block port | Yes |
| Active tampering alarm | Yes |
| Digest authentication | Yes |
| Fire detection | Yes |
| IP address filtering | Yes |
| Mirror | Yes |
| Network access storage (NAS) | Yes |
| Password protection | Yes |
| Pixel counter | Yes |
| Temperature measurement accuracy | 5 °C |
| Temperature measurement range | -40 - 350 °C |
| Temperature sensor | Yes |
| Motion detection | Yes |
| Output voltage | 8,9,10,12,15,16,24,28 |
| Power consumption (max) | 25.5 W |
| Power consumption (PoE) | 4.6 W |
| Power consumption (typical) | 4.1 W |
| Power source | DC,PoE |
| Operating humidity | 10 - 100 % |
| Operating temperature | -40 - 50 °C |
| Non-operating relative humidity | 5 - 95 % |
| Storage temperature | -40 - 65 °C |
| Depth | 404 mm |
| Height | 159 mm |
| Weight | 3300 g |
| Width | 150 mm |
| Manual included | Yes |
| Number of cameras | 1 |
| In the box | TORX T30 bit, TORX T20 screwdriver, terminal block connectors, connector guard, cable gaskets, owner authentication key |
| Model | Q2101-TE 7 mm 8.3 fps |
