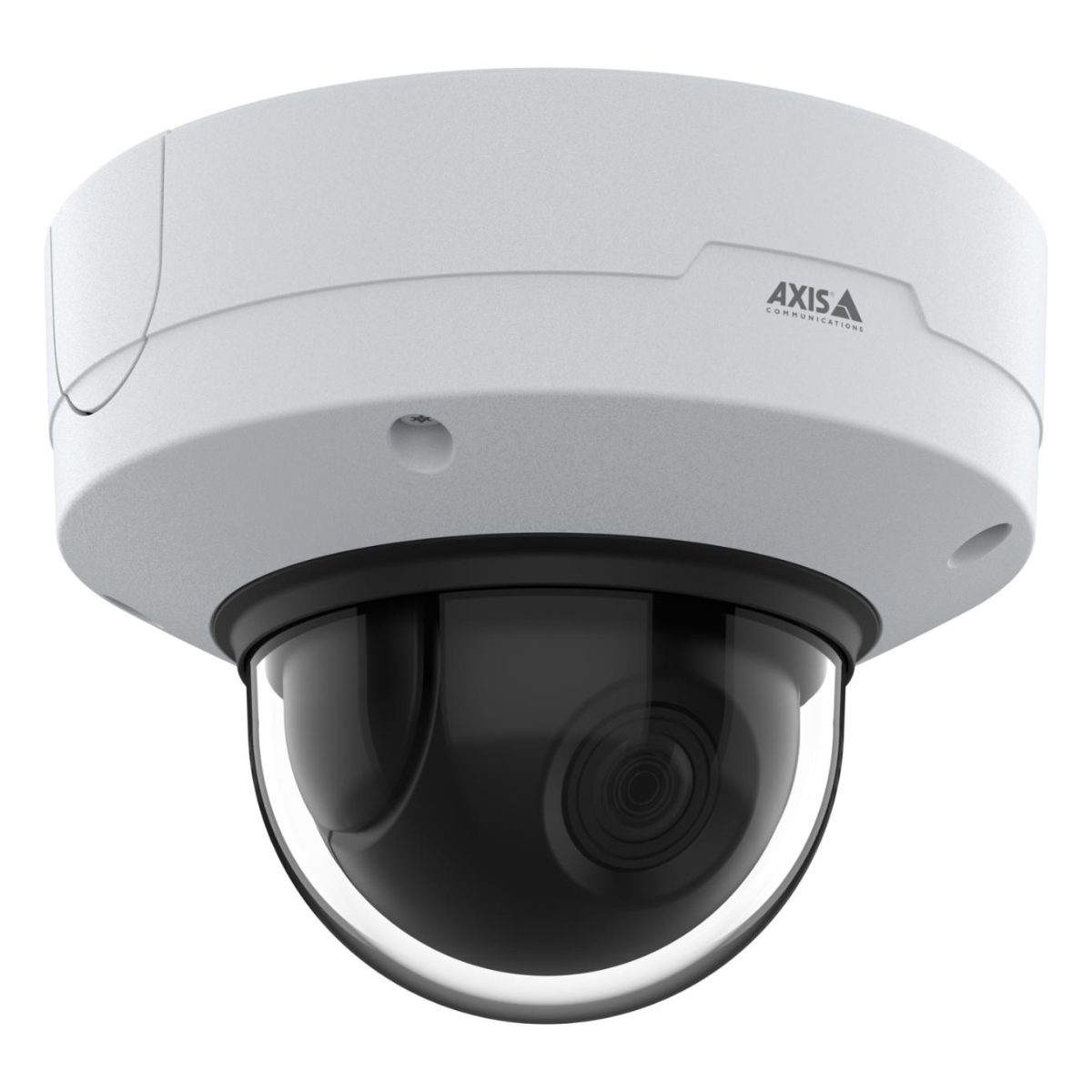

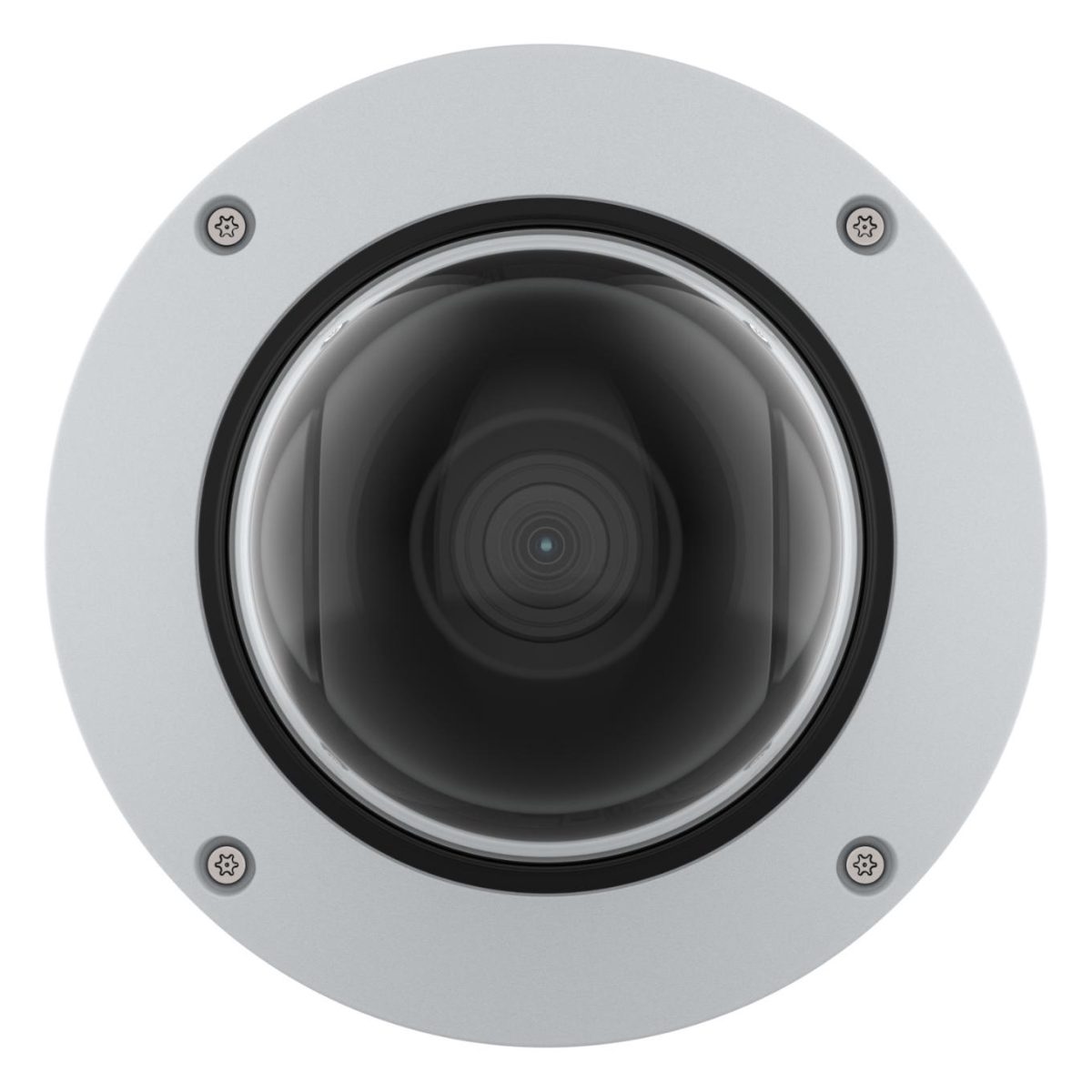

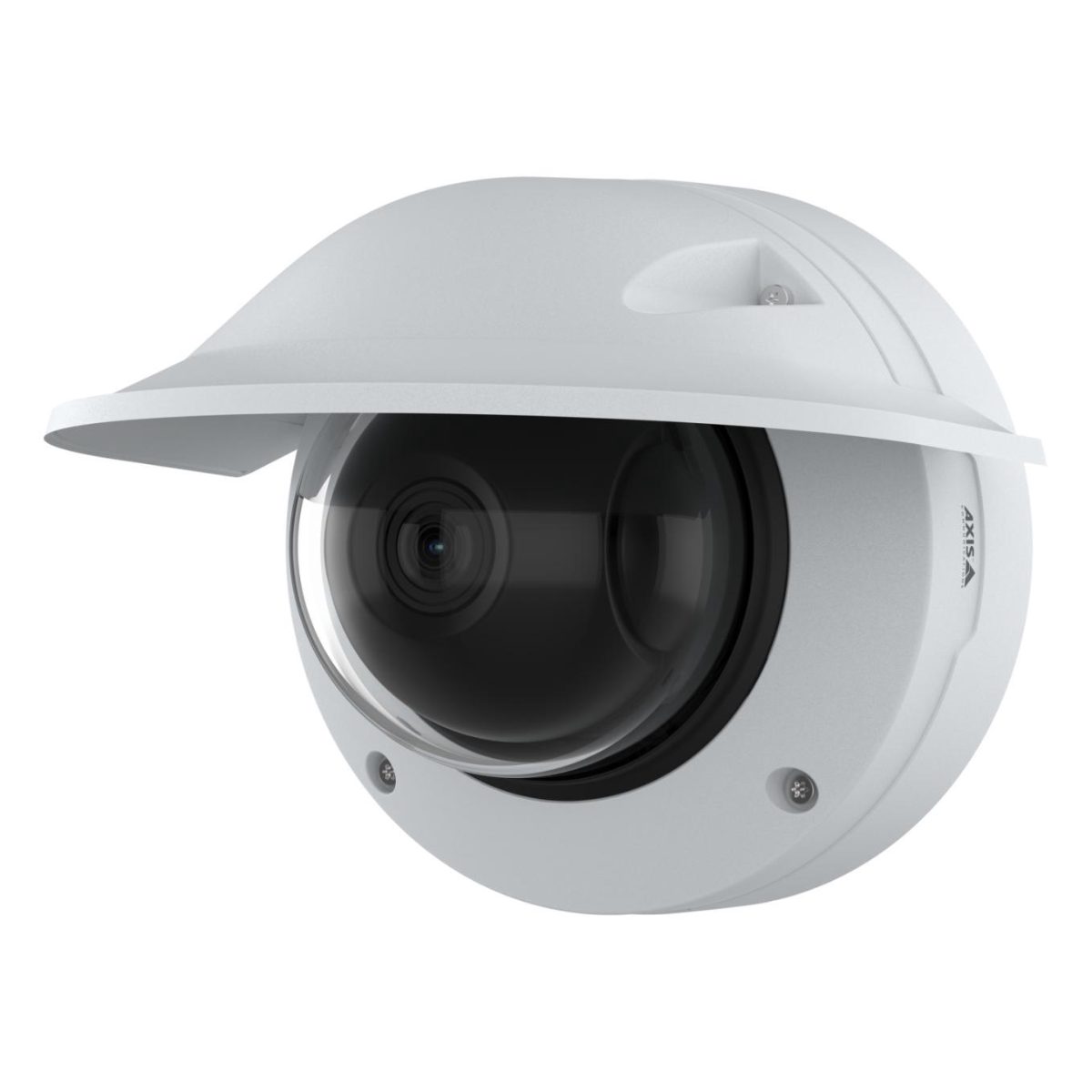

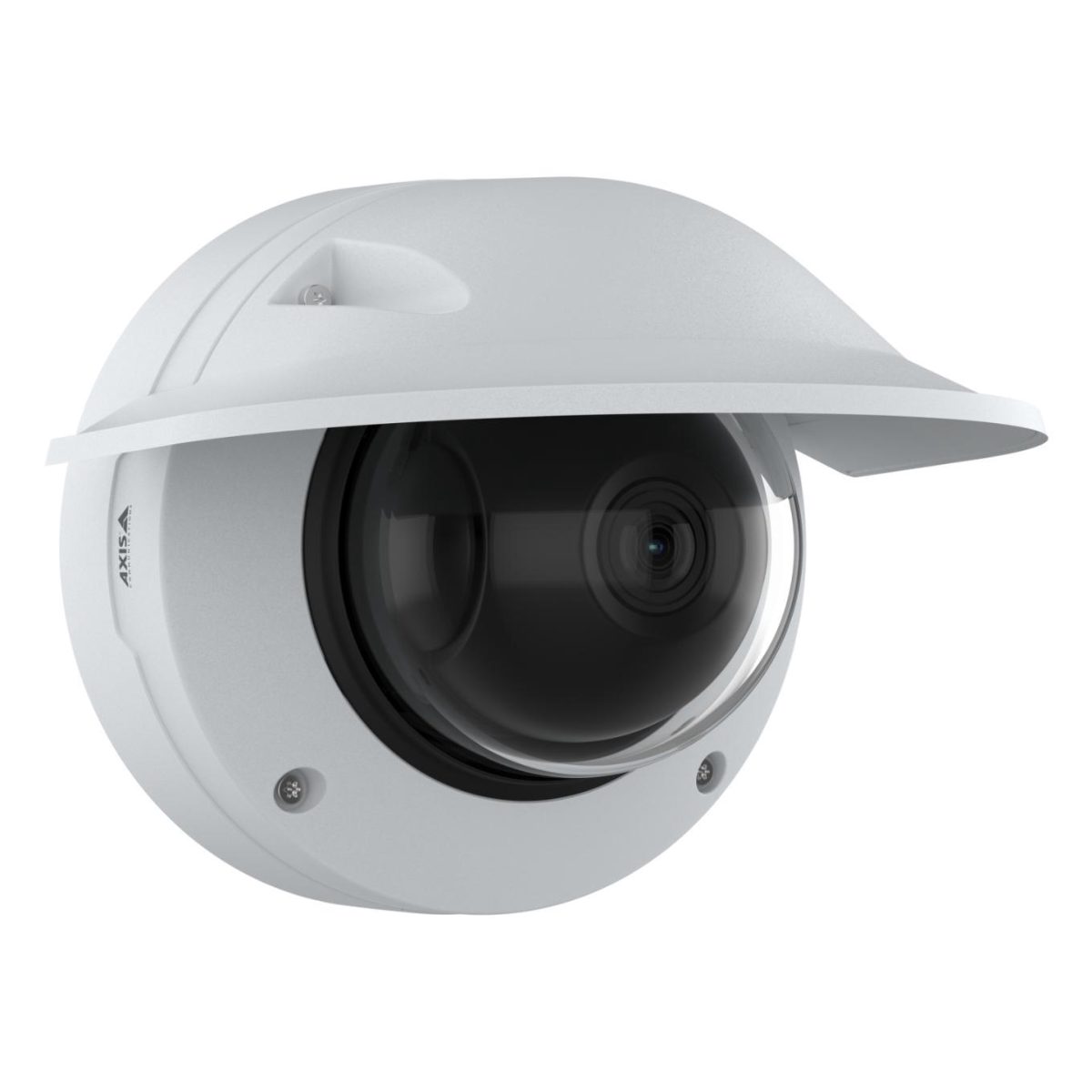

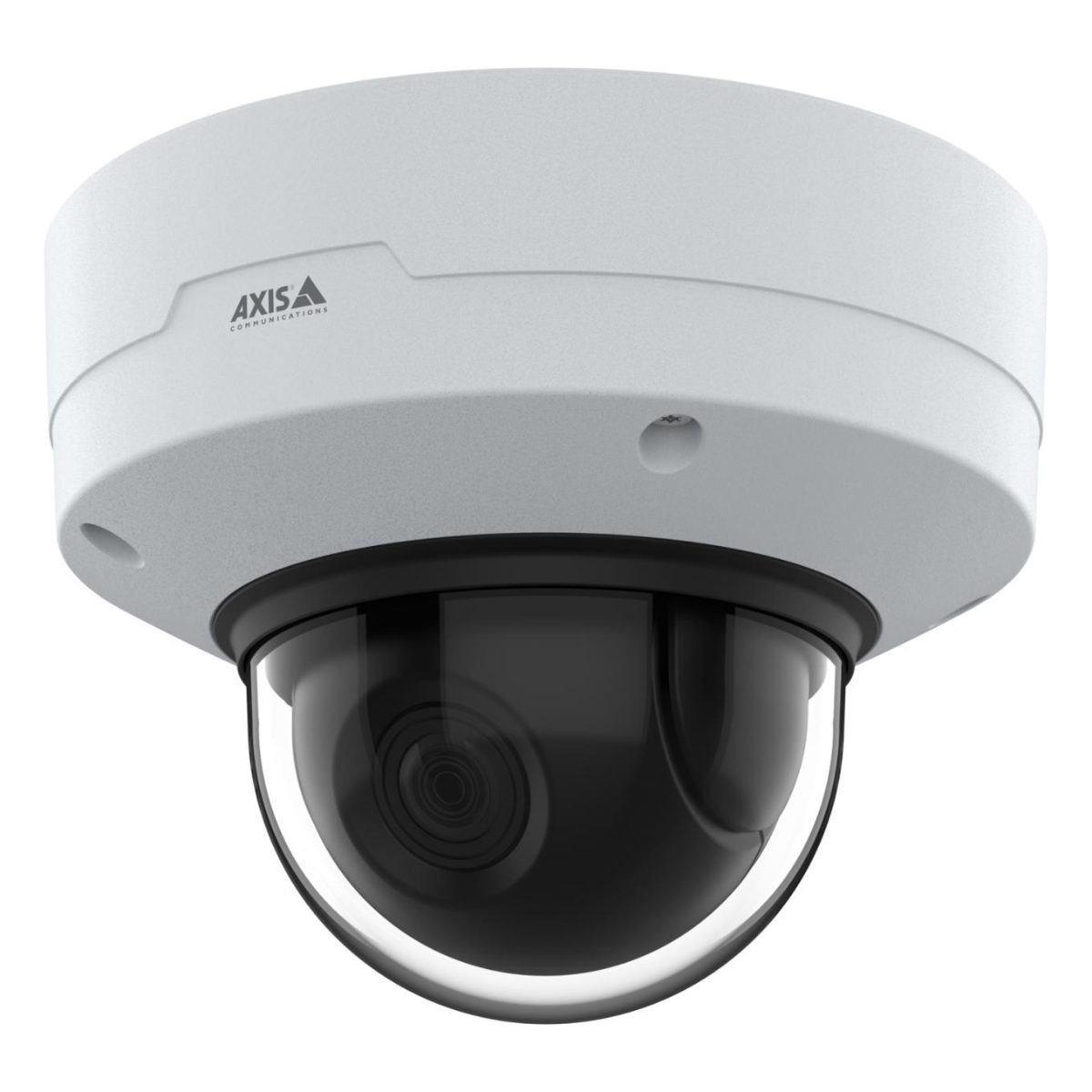

NET CAMERA Q3628-VE DOME/02617-001 AXIS
AXIS · 7331021080140
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 60 mo.
- Invoice: with every order
- EAN
- 7331021080140
- Brand
- AXIS
Description
This top-of-the-line camera offers remote pan-tilt-roll-zoom functionality so it’s quick and easy to adjust and later readjust the camera view. Plus, it offers support for advanced analytics based on deep learning on the edge.
Remotely adjust the field of view
This advanced camera offers easy installation, maintenance, and operation. Thanks to remote pan-tilt-roll-zoom (PTRZ) functionality you can quickly adjust and later readjust the camera view remotely over the network saving time and effort. Remote PTRZ also gives you the flexibility and possibility to respond to future changes- without the need to dispatch a technician ensuring less disruption and downtime.
Outstanding image quality
AXIS Q3628-VE offers outstanding image quality and forensic details in 8 MP resolution—even in low light. Plus, Lightfinder 2.0 and Forensic WDR ensure true colors and great detail in challenging light or near darkness. Built on the latest Axis system-on-chip (SoC), it features a deep learning processing unit for improved processing capabilities. This allows you to collect and analyze even more data than before—on the edge. It also delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities. Furthermore, AXIS Object Analytics makes it possible to detect and classify moving objects.
Robust and ready for tough environments
This robust, IK10-rated, vandal-resistant camera is ideal for tough environments and rough weather. Electronic image stabilization ensures smooth video in situations where the camera is subject to vibrations. Plus, it includes sensors for shock-, vibration-, and case-open detection. And a conduit connection ensures flexible cable management. Furthermore, built-in cybersecurity features help prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network. Plus, it offers secure key storage with FIPS 140-2 level 2 certification.
- Outstanding image quality in 8 MP
- Remote adjustment of the camera angle
- Analytics with deep learning
- Electronic image stabilization
- Axis Edge Vault
Specifications
| Form factor | Dome |
| Material | Aluminium/Polycarbonate (PC) |
| IK impact rating | IK10 |
| IP rating | IP66 |
| Mounting type | Wall/Pole |
| Colour | White |
| Connection technology | Wired |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Languages support | Czech/Dutch/English/Finnish/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Swedish/Thai/Traditional Chinese/Turkish/Vietnamese |
| Language count | 19 |
| Placement | Outdoor |
| Preset points | Yes |
| Processor model | ARTPEC-8 |
| PTZ control | Yes |
| PTZ modes | Digital PTZ |
| Product type | IP security camera |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Camera pan control | Yes |
| Shutter speed | 1/66500 - 2 s |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 103 - 48 ° |
| Lens viewing angle, vertical | 56.4 - 27.4 ° |
| Minimum illumination | 0.07 lx |
| Pan range | 0 - 190 ° |
| Tilt angle range | -8 - 75 ° |
| Number of sensors | 1 |
| Optical sensor size | 1/1.2 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Signal-to-noise ratio | 55 dB |
| Focal length range | 6.2-12.9 mm |
| Maximum aperture | 2.9 |
| Minimum aperture | 1.6 |
| Night vision | Yes |
| Frame rate | 30 fps |
| Image quality adjustment | Brightness/Contrast/Saturation/Sharpness |
| Image stabilisation | Yes |
| Maximum resolution | 3840 x 2160 pixels |
| Privacy masking | Yes |
| Supported resolutions | 1280 x 800/160 x 120/160 x 90/2880 x 2160/3840 x 2160 |
| Text caption overlay | Yes |
| Total megapixels | 8 MP |
| Video compression formats | H.264/H.265/M-JPEG |
| Video streaming | Yes |
| Audio detection | Yes |
| Supported audio formats | AAC-LC/ADPCM/G.711/G.726/LPCM/OPUS |
| Audio system | 2-way |
| Full duplex audio system | Yes |
| Supported sample rates | 48 kHz |
| Voice codecs | AGC |
| Bluetooth | No |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3at |
| Quality of Service (QoS) | Yes |
| Network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSb , HTTP/2, TLSb , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v |
| Wi-Fi | No |
| Built-in HDD | No |
| Card reader | Yes |
| Supported memory cards | MicroSD (TransFlash)/MicroSDHC/MicroSDXC/SD |
| Flash memory | 8192 MB |
| Memory capacity | 2048 MB |
| DC-in jack | Yes |
| Ethernet (RJ-45) ports | 1 |
| Microphone input | Yes |
| Terminal block port | Yes |
| Alert notification type | |
| Digest authentication | Yes |
| HTTPS encryption | Yes |
| IP address filtering | Yes |
| Password protection | Yes |
| Pixel counter | Yes |
| Motion detection | Yes |
| Output voltage | 10,28 |
| Power consumption (max) | 25 W |
| Power consumption (typical) | 8 W |
| Power source | DC,PoE |
| Certificates | CE/KC/REACH/RoHS/UKCA |
| Sustainability compliance | Yes |
| Manual included | Yes |
| Mounting brackets included | Yes |
| Number of cameras | 1 |
| Screws included | Yes |
| Free from | BFR/PVC |
| Model | Q3628-VE |
