NET CAMERA Q6086-E PTZ/DOME 03188-002 AXIS
AXIS · 7331021090392
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 60 mo.
- Invoice: with every order
- EAN
- 7331021090392
- Brand
- AXIS
Description

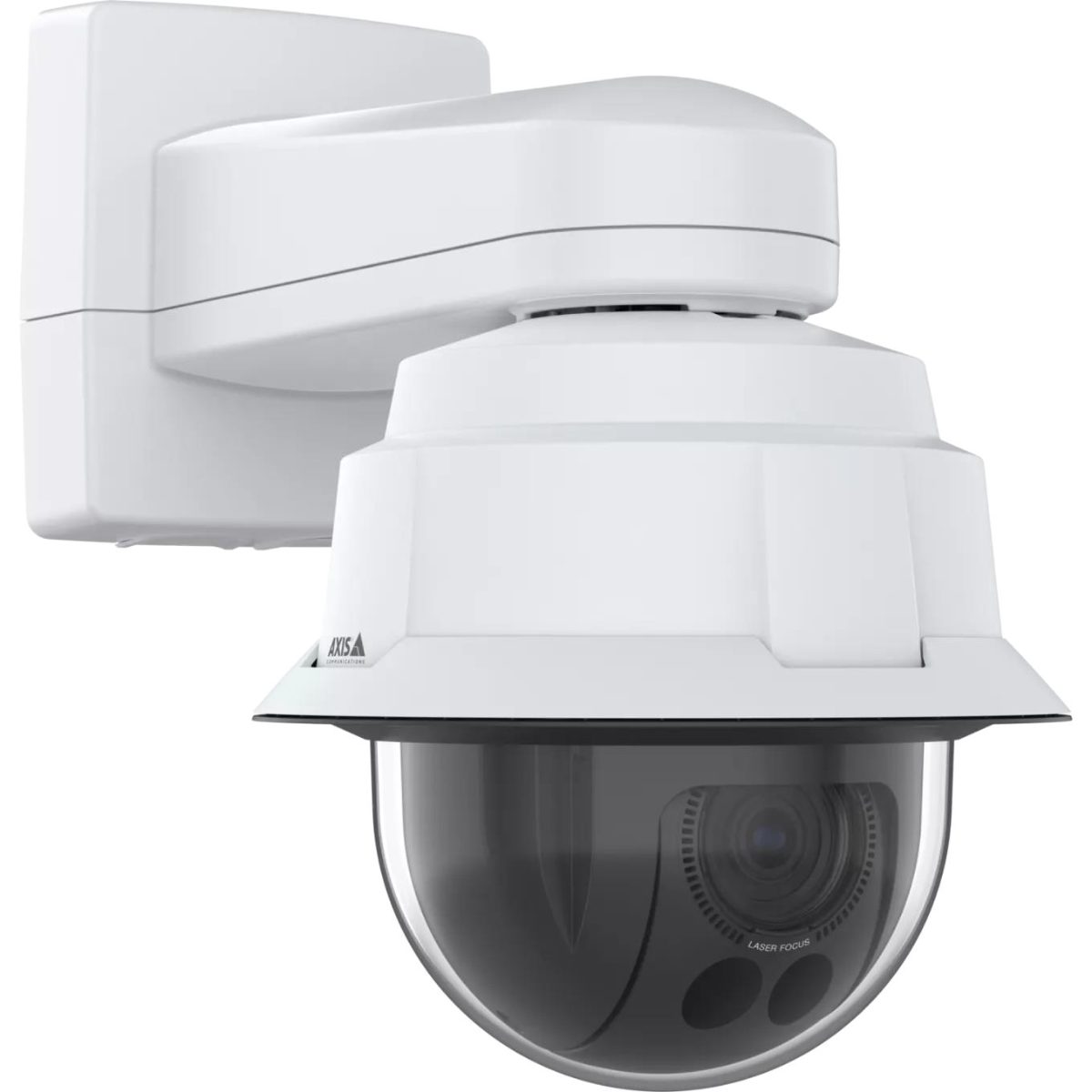

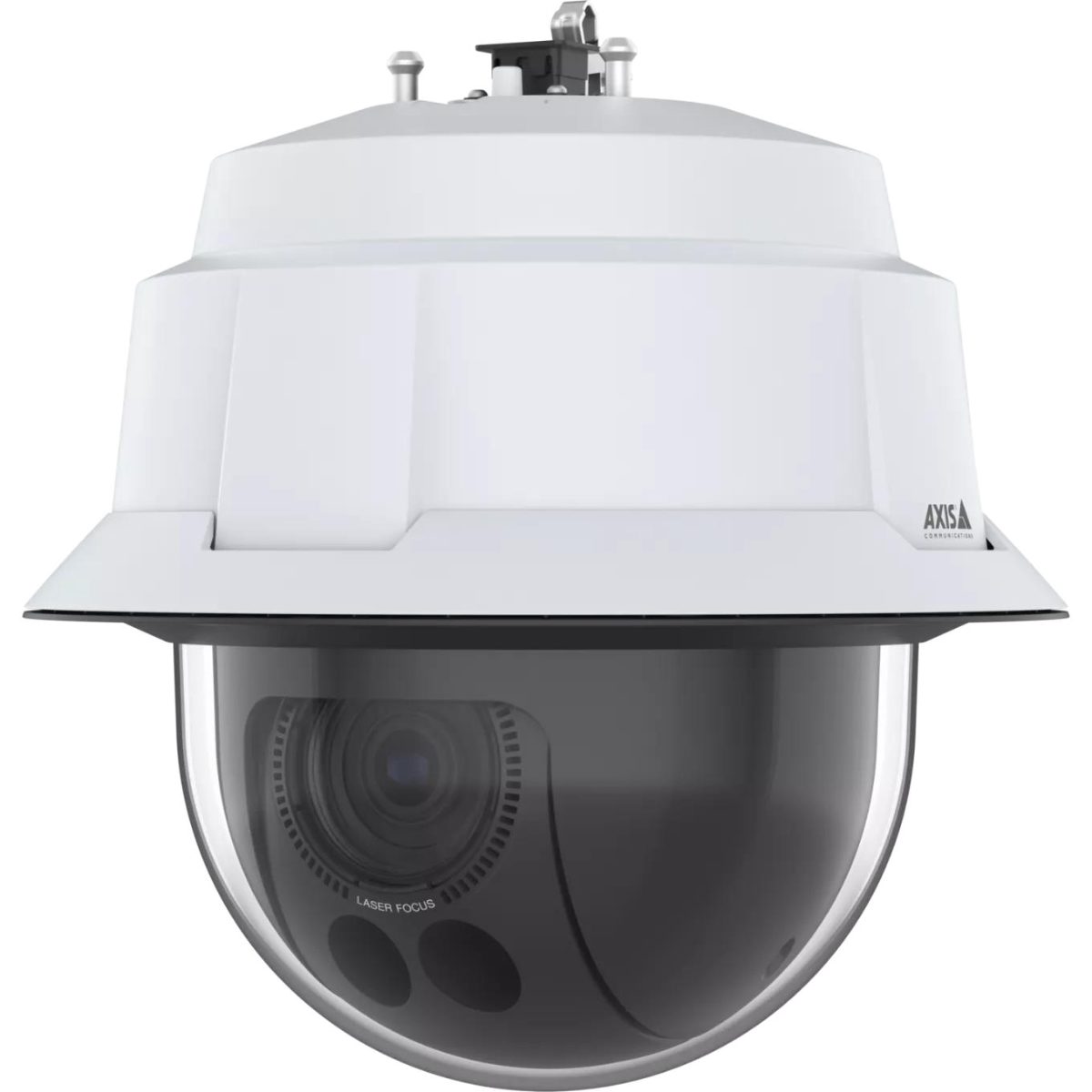

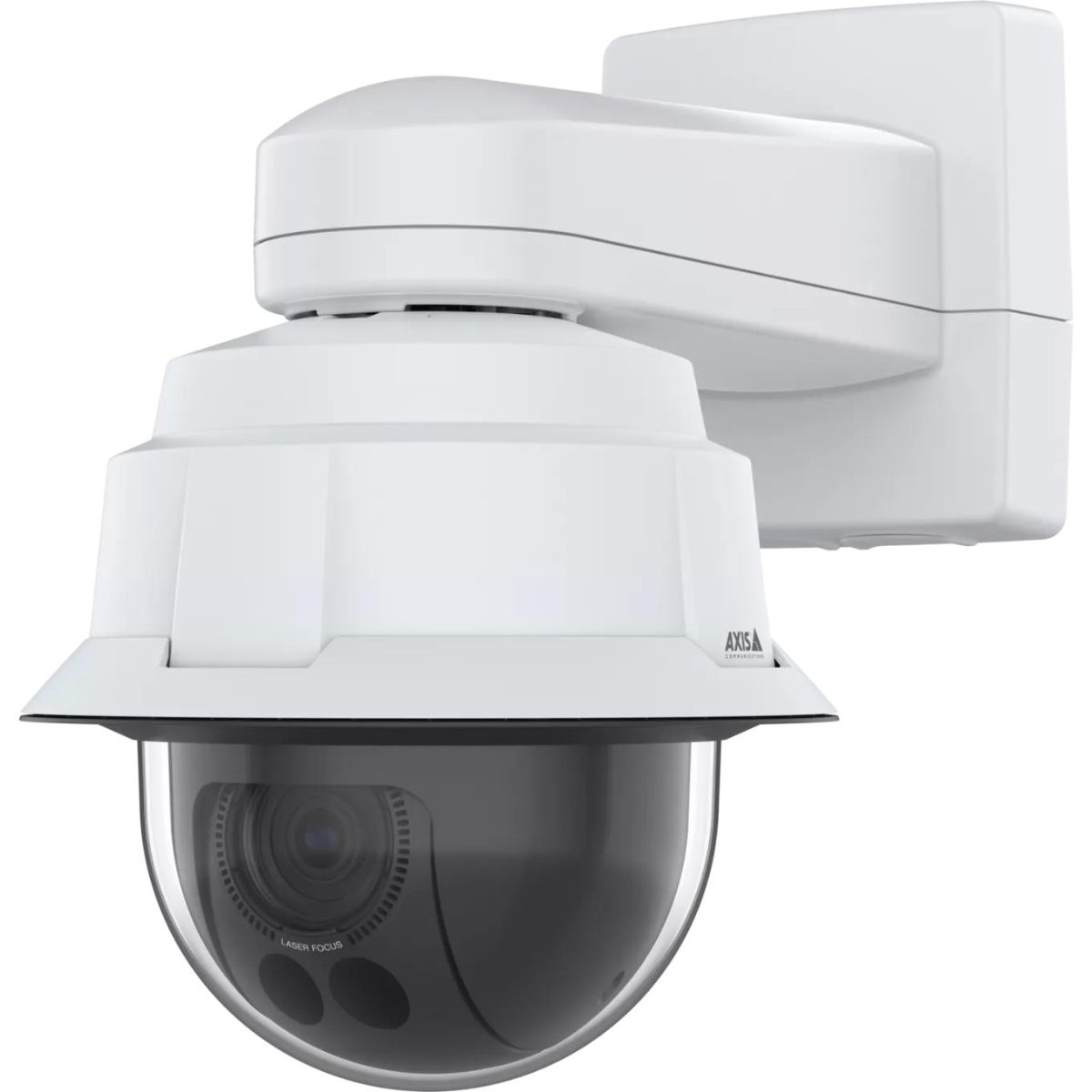

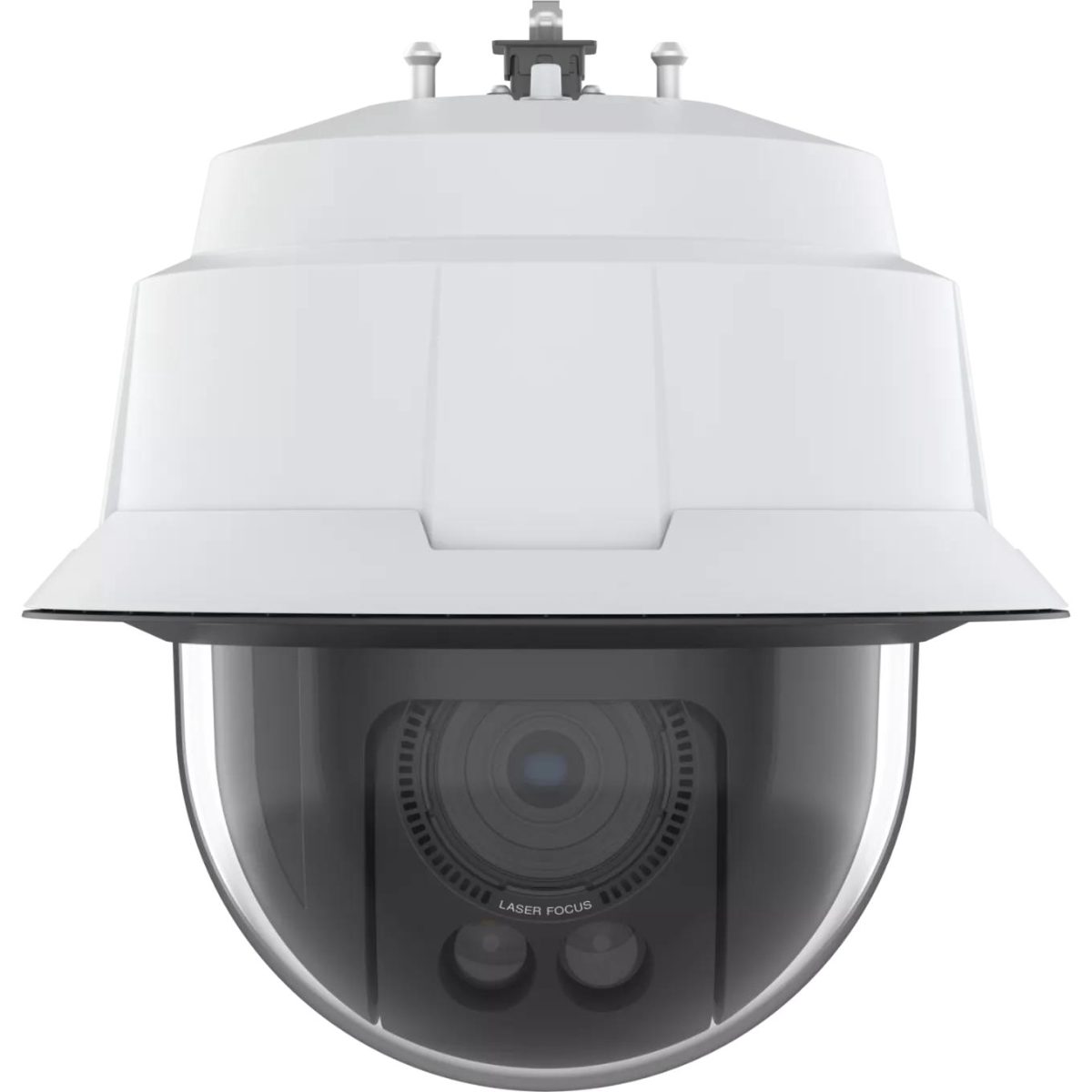

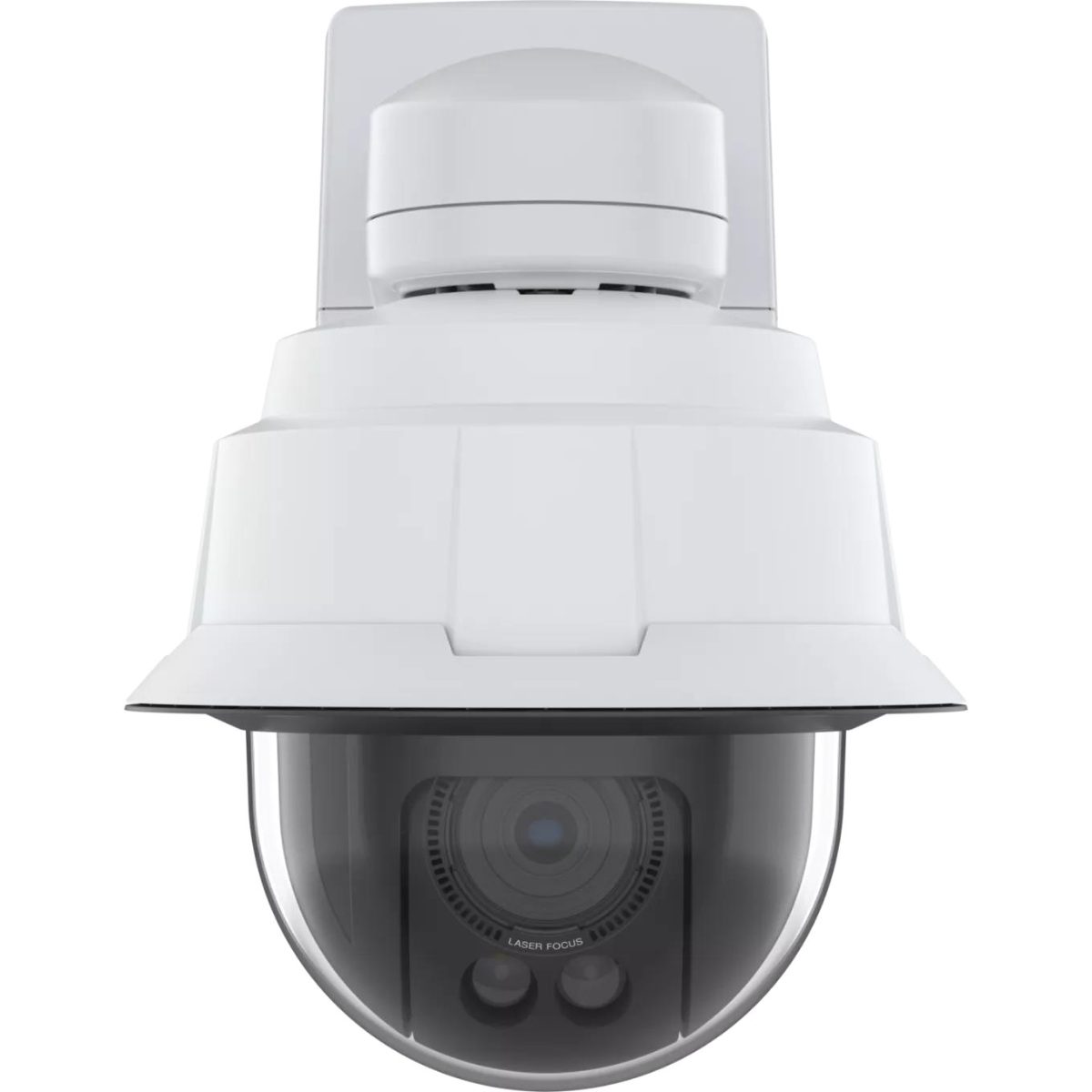

AXIS Q6086-E PTZ Camera
This extremely light-sensitive, AI-powered camera offers excellent image quality and laser focus for precise focus every time. It supports AV1 codec and provides accelerated performance to run impressive analytics applications on the edge.
Superior details and light sensitivity
Built on ARTPEC-9, this next-generation outdoor camera offers outstanding video quality in 4 MP at 60 fps. It features an extremely light-sensitive ½” sensor to deliver clear, bright images and better handling of shadows. With 34x optical zoom, you can easily follow fast-moving objects. Plus, laser focus ensures precise focus every time. Lightfinder 2.0 and Forensic WDR deliver true colors and great detail in challenging light or near darkness. Furthermore, Axis Zipstream with support for AV1, H.264, and H.265 significantly lowers bandwidth and storage requirements.
Powerful, next-generation analytics
Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. It also delivers valuable metadata, facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. AXIS Object Analytics comes preinstalled to detect, classify, track, and count humans, vehicles, and different types of vehicles. It also comes with AXIS Image Health Analytics. Autotracking 2 with click-and-track functionality enables active object tracking, and an orientation aid enables dynamic text overlays. What’s more, chameleon masking safeguards privacy.
Robust with strong cybersecurity
Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and offers FIPS 140-3 Level 3 certified secure key storage and operations. With IP66-, IK10-, NEMA 4x, and NEMA TS2-ratings, it’s both impact and weather-resistant. The camera’s operating temperature is -50 to 50 °C (-58 to 122 °F), while Arctic Temperature Control allows it to power up at as low as -40 °C (-40 °F). With shock detection, you'll be informed if the camera has been hit. And defog functionality ensures clear images despite fog or smog. Furthermore, it offers support for fiber connection, PoE, audio, four I/O ports, and smart restart with the included midspan.
Specifications
| Fog proof | Yes |
| Form factor | Dome |
| Material | Aluminium/Polycarbonate (PC) |
| IK impact rating | IK10 |
| IP rating | IP66 |
| Mounting type | Ceiling |
| Colour | Black/White |
| Protection features | Wear resistant |
| Auto-tracking | Yes |
| Certification | CE, FCC, ICES, KC, VCCI |
| Connection technology | Wired |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Placement | Outdoor |
| Preset points | Yes |
| PTZ control | Yes |
| PTZ modes | Preset point |
| Tour recording | Yes |
| Product type | IP security camera |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Camera pan control | Yes |
| Camera pixel size | 2.9 µm |
| Shutter speed | 1/49500 - 2 s |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 61.5 ° |
| Lens viewing angle, vertical | 37.3 ° |
| Minimum illumination | 0.009 lx |
| Pan range | 0 - 360 ° |
| Pan speed | 500 °/sec |
| Tilt angle range | -90 - 0 ° |
| Tilt speed | 500 °/sec |
| Number of sensors | 1 |
| Optical sensor size | 1/2 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Autofocus | Yes |
| Closest focusing distance | 3 m |
| Detect distance, tele | 3118.4 m |
| Detect distance (wide) | 92.6 m |
| Digital zoom | 12 x |
| Focal length range | 6.64 - 225.5 mm |
| Identify distance, tele | 311.8 m |
| Identify distance, wide | 9.3 m |
| Maximum aperture | 5.1 |
| Minimum aperture | 1.7 |
| Number of lenses | 1 |
| Observe distance, tele | 1237.5 m |
| Observe distance (wide) | 36.7 m |
| Optical zoom | 32 x |
| Recognize distance, tele | 623.6 m |
| Recognize distance (wide) | 18.5 m |
| Zoom capability | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Frame rate | 60 fps |
| Image quality adjustment | Brightness/Contrast/Saturation/Sharpness |
| Maximum resolution | 2688 x 1512 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction,3D noise reduction |
| Supported resolutions | 2688 x 1512/640 x 360 |
| Text caption overlay | Yes |
| Total megapixels | 4 MP |
| Video compression formats | H.262/H.264/H.265/M-JPEG/MPEG4 |
| Video streaming | Yes |
| Ethernet type | Fast Ethernet/Gigabit Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1AE/IEEE 802.1ar/IEEE 802.1x/IEEE 802.3bt |
| Streaming method | Multicast |
| Network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4 |
| Card reader | Yes |
| Supported memory cards | SD/SDHC/SDXC |
| Flash memory | 8192 MB |
| Memory capacity | 4096 MB |
| Ethernet (RJ-45) ports | 1 |
| Alert notification type | |
| HTTPS encryption | Yes |
| Human and vehicle targets classification | Yes |
| Intelligent video surveillance features | Abandoned object/Crossing line |
| Password protection | Yes |
| Pixel counter | Yes |
| Security algorithms | HTTPS/TLS |
| Power consumption (max) | 51 W |
| Power consumption (typical) | 10 W |
| Power source | PoE |
| Operating humidity | 10 - 100 % |
| Operating temperature | -50 - 55 °C |
| Non-operating relative humidity | 5 - 95 % |
| Storage temperature | -40 - 65 °C |
| Depth | 264 mm |
| Height | 279 mm |
| Weight | 4100 g |
| Width | 264 mm |
| Certificates | REACH/RoHS/Trade Agreements Act (TAA) |
| Number of cameras | 1 |
| Free from | CFR/PVC/BFR |
