NET CAMERA Q8752-E MK II 35MM/30FPS 03053-001 AXIS
AXIS · 7331021088276
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 60 mo.
- Invoice: with every order
- EAN
- 7331021088276
- Brand
- AXIS
Description

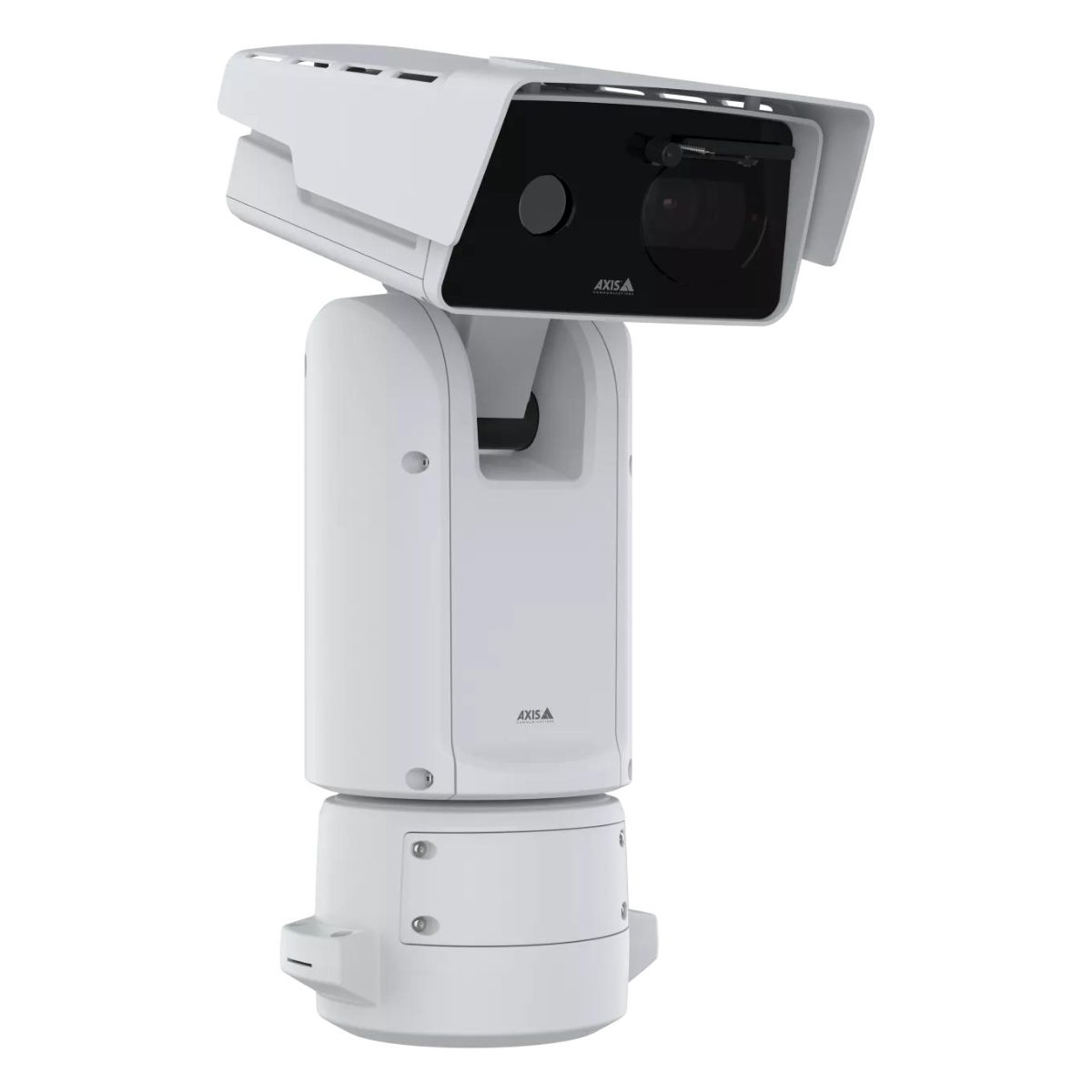

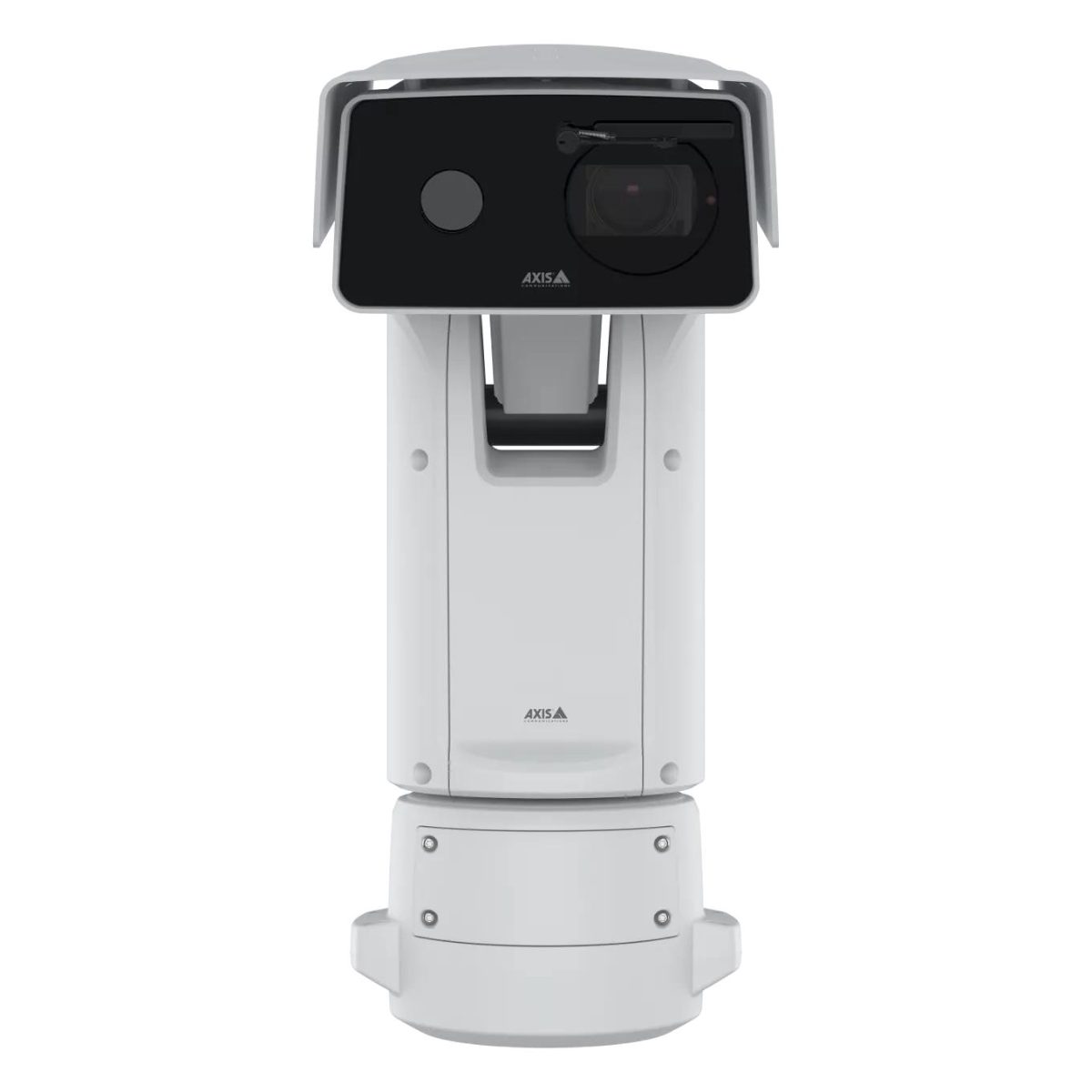

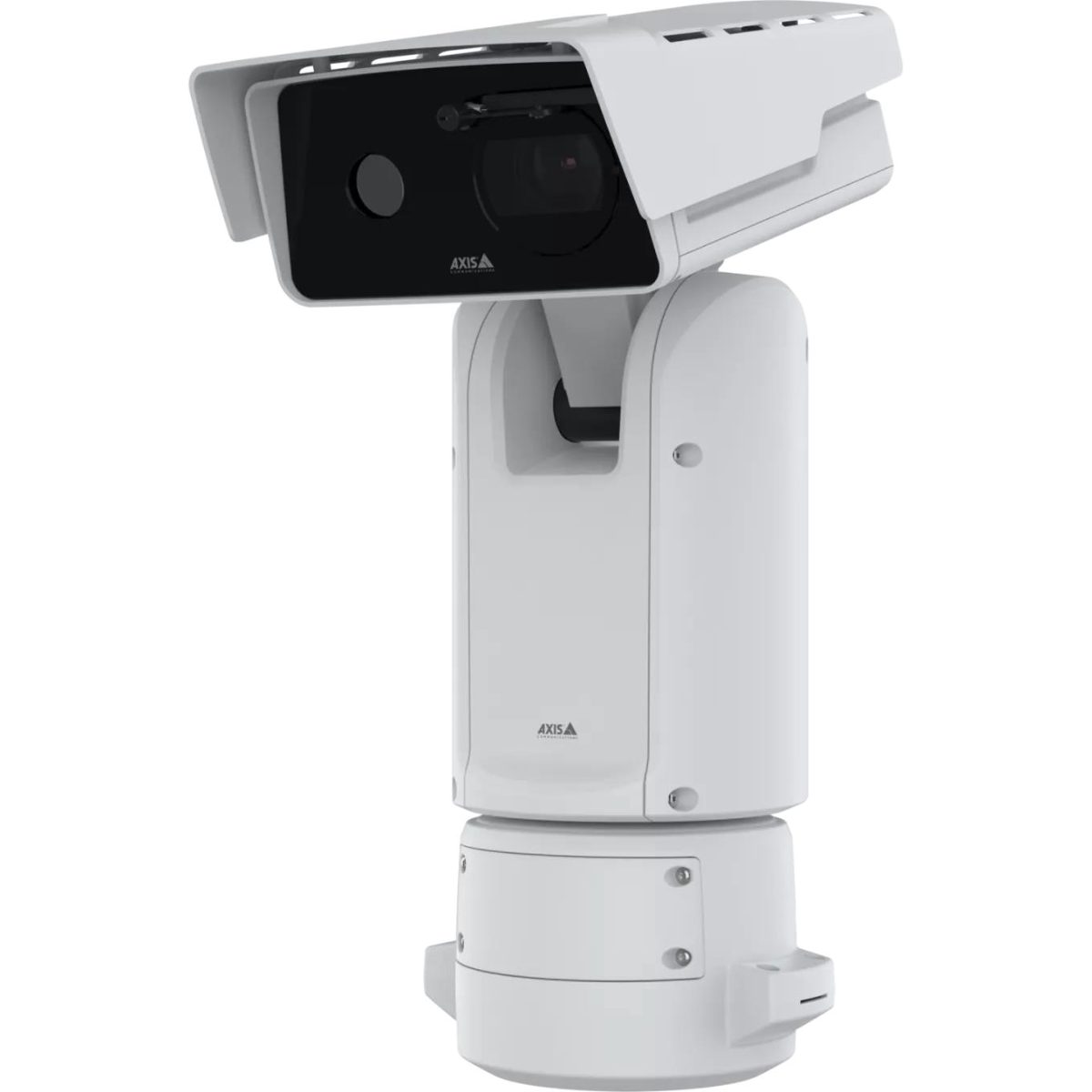

AXIS Q8752-E Mk II Bispectral PTZ Camera
Ideal for perimeter surveillance and border control, this bispectral camera offers reliable thermal detection and visual identification with 32x integrated optical zoom. It’s available in two versions with either 3x thermal zoom or without thermal zoom capabilities.
Always see what you need to see
AXIS Q8752-E Mk II gives you two excellent cameras in one: a thermal camera for reliable detection and verification around-the-clock and in all weather and light conditions, and a visual camera for outstanding visual identification purposes. It offers a ground-to-sky view with a tilt range of -90° to +45° and 360° infinite pan for fast camera repositioning and smooth tracking of objects. Thermal palettes help identify different heat sources emitting the same amount of thermal energy, making it easier and more efficient to interpret a scene. Electronic image stabilization (EIS) on both channels ensures smooth video. Furthermore, Lightfinder 2.0 and Forensic WDR ensure true colors and great detail in challenging light.
Powerful analytics platform
This top-of-the-line camera contains all the functionality you need to track and identify any type of behavior. It includes AXIS Motion Guard, AXIS Fence Guard, and AXIS Loitering Guard for proactive surveillance. Featuring audio and I/O connectivity, you can integrate peripheral equipment, for instance a microphone to extend the value of your system. And edge-to-edge technology lets you connect, for instance, a horn speaker to enable audio alarms that deter, warn, and notify. What’s more, it’s built on a powerful analytics platform, so it’s easy to add Axis as well as custom-made 3rd party analytics.
Robust and secure
This robust camera is packed with advanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantee that the firmware hasn’t been compromised and ensure only authorized firmware is installed. For added peace of mind, it includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified. With IP66, NEMA TS2, and IK10 ratings, you can be sure that the camera housing is resistant to both harsh weather conditions and vandalism. Plus, it’s possible to connect AXIS Q8752-E Mk II using fiber optic cabling to overcome distance and bandwidth limitations. With thermal, visual, and PTZ capabilities in one camera, it reduces the need for additional cameras to protect your premises.
- Thermal and visual camera in one
- 360° infinite pan
- Dual electronic image stabilization
- Built-in cybersecurity
- Thermal palettes
Specifications
| Fog proof | Yes |
| Form factor | Box |
| Material | Aluminium/Glass/Thermoplastic |
| IK impact rating | IK10 |
| IP rating | IP66 |
| Colour | Black/White |
| Auto-tracking | Yes |
| Certification | UL/cUL, CE, KC, VCCI, RCM |
| Connection technology | Wired |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Placement | Indoor & outdoor |
| Preset points | Yes |
| PTZ control | Yes |
| Thermal module | Yes |
| Thermal sensitivity (NETD) | 50 mK |
| Tour recording | Yes |
| Product type | IP security camera |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Shutter speed | 1/66500 - 2 s |
| Horizontal field of view | 17 ° |
| Lens viewing angle, horizontal | 58.5 ° |
| Lens viewing angle, vertical | 35 ° |
| Minimum illumination | 0.01 lx |
| Number of privacy masking areas | 32 |
| Pan range | 0 - 360 ° |
| Pan speed | 120 °/sec |
| Tilt angle range | -90 - 45 ° |
| Tilt speed | 65 °/sec |
| Vertical field of view | 12.8 ° |
| Thermal camera resolution | 640 x 480 pixels |
| Number of sensors | 1 |
| Optical sensor size | 1/2.8 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Aperture number (thermal module) | 1.2 |
| Autofocus | Yes |
| Closest focusing distance | 31 m |
| Digital zoom | 12 x |
| Focal length | 35 mm |
| Focal length range | 4.3 - 137.6 mm |
| Maximum aperture | 4 |
| Minimum aperture | 1.4 |
| Number of lenses | 1 |
| Optical zoom | 32 x |
| Zoom capability | Yes |
| Bit rate control | Variable Bit Rate (VBR) |
| Frame rate | 60 fps |
| Image quality adjustment | Brightness/Contrast/Saturation/Sharpness |
| Image stabilisation | Yes |
| Maximum resolution | 1920 x 1080 pixels |
| Text caption overlay | Yes |
| Supported video formats | AVC/H.264/H.265/HEVC/M-JPEG/MPEG4 |
| Video streaming | Yes |
| Audio detection | Yes |
| Supported audio formats | AAC-LC/ADPCM/G.711/G.726/LPCM/OPUS/PCM |
| Audio system | 1-way |
| Supported sample rates | 8 - 48 kHz |
| Ethernet type | Fast Ethernet/Gigabit Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1AE/IEEE 802.1x |
| Network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/ DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, |
| Supported memory cards | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Flash memory | 512 MB |
| Memory capacity | 2000 MB |
| Microphone input | Yes |
| Terminal block port | Yes |
| Pixel counter | Yes |
| Privacy protection | Yes |
| Motion detection | Yes |
| Power consumption (max) | 185 W |
| Power consumption (typical) | 25 W |
| Power source | DC |
| Operating humidity | 10 - 100 % |
| Operating temperature | -40 - 60 °C |
| Non-operating relative humidity | 5 - 95 % |
| Storage temperature | -40 - 65 °C |
| Depth | 360 mm |
| Height | 581 mm |
| Weight | 14900 g |
| Width | 229 mm |
| Certificates | REACH/RoHS/Trade Agreements Act (TAA) |
| Manual included | Yes |
| Number of cameras | 1 |
| Wiper included | Yes |
| Free from | PVC |
| Model | 03053-001 |
