NET CARD PCIE 10GB/E10G22-T1-MINI SYNOLOGY
SYNOLOGY · 4711174724482
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 60 mo.
- Invoice: with every order
- EAN
- 4711174724482
- Brand
- SYNOLOGY
Description

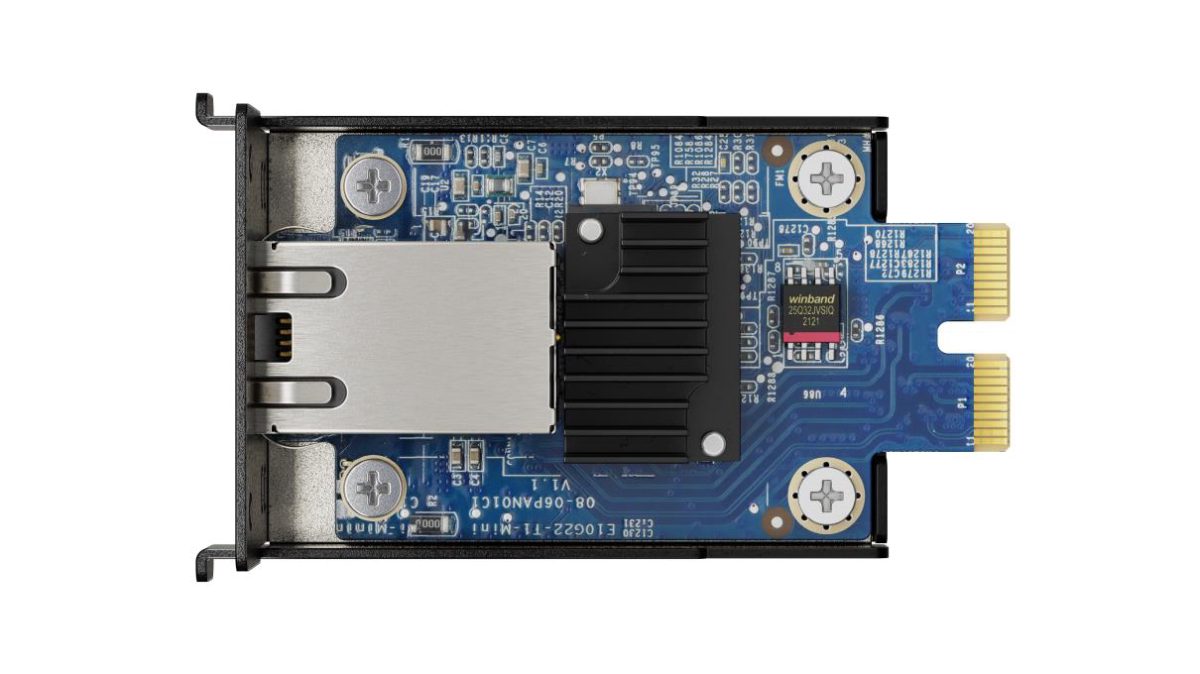

10GbE RJ-45 network upgrade module for compact Synology servers.
Maximize bandwidth to tackle heavy-duty applications
The Synology E10G22-T1-Mini Network Upgrade Module is designed to easily and quickly upgrade your Synology system with 10GbE connectivity. Simple installation, low implementation cost, and support for nearly any network environment makes it the ideal solution for small businesses and home users looking to maximize the performance potential of their deployments.
Throughput
Expand system capabilities with 10GbE connectivity
Flexibility
Integrate easily with support for 10/5/2.5/1 Gbps networks
Compatibility
Designed for maximum performance and reliability in Synology systems.
Simple installation
Install the E10G22-T1-Mini through the dedicated and easily-accessible network upgrade slot to instantly add bandwidth availability in Synology servers featuring compact-size enclosures.
Multi-gig support
Integrate into any RJ-45 network environment with autonegotiation between 10, 5, 2.5, 1 Gbps, and 100 Mbps data rates based on actual network conditions.
Specifications
| Connection technology | Wired |
| Ethernet (RJ-45) ports | 1 |
| Host interface | PCI Express |
| Drive interface | Ethernet |
| Auto-negotiation | Yes |
| Cabling technology | 10GBase-T |
| Ethernet type | 10 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet data rates | 100/1000/10000/2500/5000 Mbit/s |
| Full duplex | Yes |
| Jumbo frame size | 9000 |
| Jumbo frames | Yes |
| Maximum data transfer rate | 10000 Mbit/s |
| Networking standards | IEEE 802.3ab/IEEE 802.3an/IEEE 802.3bz/IEEE 802.3u/IEEE 802.3x |
| Wi-Fi | No |
| Compatible products | Synology RS422+, DS1522+ |
| Component for | NAS/Storage server |
| Internal | Yes |
| Colour | Blue |
| Operating humidity | 5 - 95 % |
| Operating temperature | 0 - 40 °C |
| Storage temperature | -20 - 60 °C |
| Depth | 75.7 mm |
| Height | 26.37 mm |
| Width | 45.38 mm |
| Model | E10G22-T1-Mini |
| Model name | E10G22-T1-Mini |
