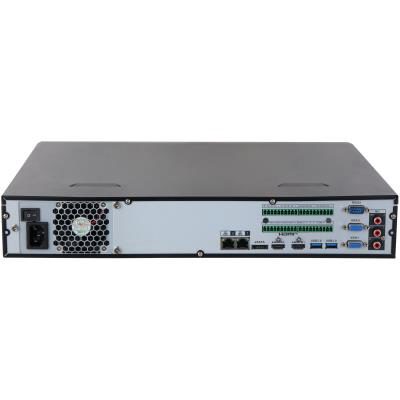

NET VIDEO RECORDER 32CH/NVR5432-XI/PRO DAHUA
DAHUA · 6937552418158
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 36 mo.
- Invoice: with every order
- EAN
- 6937552418158
- Brand
- DAHUA
Description
32CH 1.5U 4HDDs WizMind Network Video Recorder
> Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats.
> Max. decoding capability: 40 × 1080p@30 fps or 20 × 4 MP@30 fps.
> Max. 512/512/384 Mbps incoming/recording/outgoing bandwidth.
> Supports IP cameras with a resolution up to 32 MP.
> Supports 8K HDMI output.
> Intelligent analytics based on Xinghan Large-Scale AI Models
> AI by Recorder supports 8-channel face detection and recognition, up to 20 face databases and 200,000 face images; 8-channel metadata; 8-channel AcuPick; 16-channel perimeter protection;
> AI by Camera supports face detection and recognition, perimeter protection, SMD Plus, metadata, ANPR, stereo analysis, heat map, people counting and AcuPick
> Supports N+M cluster, ISCSI.
> Supports EPTZ, and one-click arming and disarming.
Specifications
| Alarm input channels | 4 |
| Alarm output channels | 2 |
| Supported audio formats | G.711 µ-law/G.711 A-law/G.726 |
| Face detection | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Simultaneous playback channels | 16 channels |
| Operating system | Embedded LINUX |
| Supported resolutions | 1920x1080, 1280x1024, 1280x720, 7680x4320, 3840x2160, 1920x1080 |
| Throughput | 512 Mbit/s |
| Supported video formats | H.264/H.264+/H.265/H.265+/M-JPEG |
| Video input channels | 32 channels |
| Motion detection | Yes |
| Video recording modes | 1080p |
| Drive interface | SATA |
| Maximum storage capacity | 80 TB |
| Supported HDDs | 4 |
| Line inputs (RCA) | 1 |
| Audio RCA outputs | 1 |
| Ethernet (RJ-45) ports | 1 |
| Ethernet data rates | 10/100/1000 Mbit/s |
| HDMI output | Yes |
| HDMI ports | 2 |
| Networking standards | IEEE 802.3af/IEEE 802.3at |
| PoE port count | 16 |
| RS-232 interface | Yes |
| RS-232 ports | 1 |
| RS-485 count | 1 |
| Network protocols | HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.); ISCSI |
| USB 2.0 ports | 1 |
| USB 3.2 Gen 1 Type-A ports | 2 |
| VGA (D-Sub) input ports | 2 |
| Certification | Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CELVD: EN 62368-1:2014 |
| Colour | Black |
| Rack capacity | 1.5U |
| Rack mountable | Yes |
| Built-in processor | Yes |
| Input frequency | 50/60 Hz |
| Input voltage | 100-240 V |
| Power consumption (max) | 18 W |
| Mobile OS support | Android/iOS |
| Operating humidity | 10 - 93 % |
| Operating temperature | -10 - 55 °C |
| Storage temperature | -20 - 60 °C |
| Depth | 411.4 mm |
| Height | 76 mm |
| Weight | 4370 g |
| Width | 440 mm |
| Model | NVR5432-XI/Pro |
| Model name | NVR5432-XI/PRO |
