NET VIDEO RECORDER S2216 MK II/8TB 02809-002 AXIS
AXIS · 7331021084193
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 60 mo.
- Invoice: with every order
- EAN
- 7331021084193
- Brand
- AXIS
Description

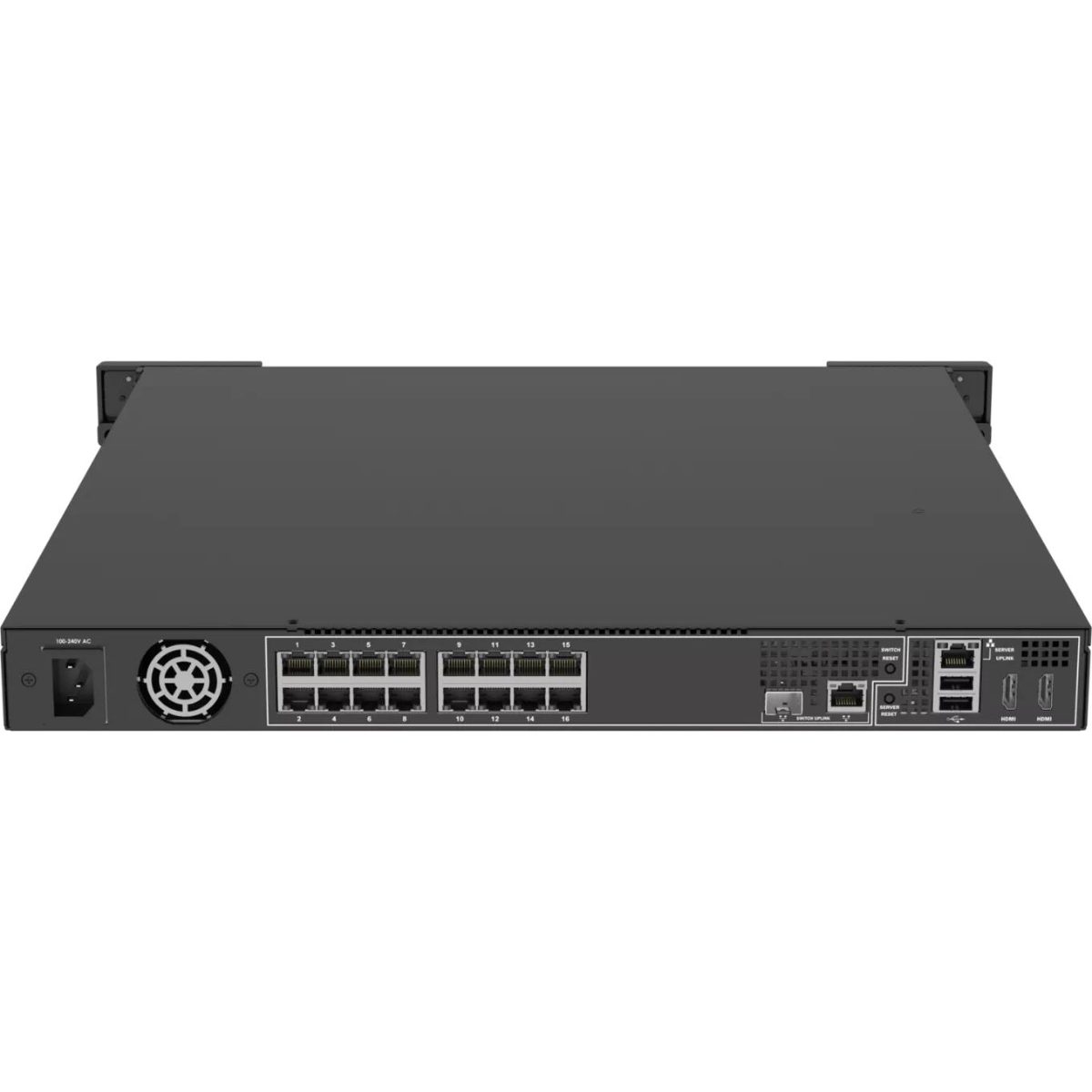

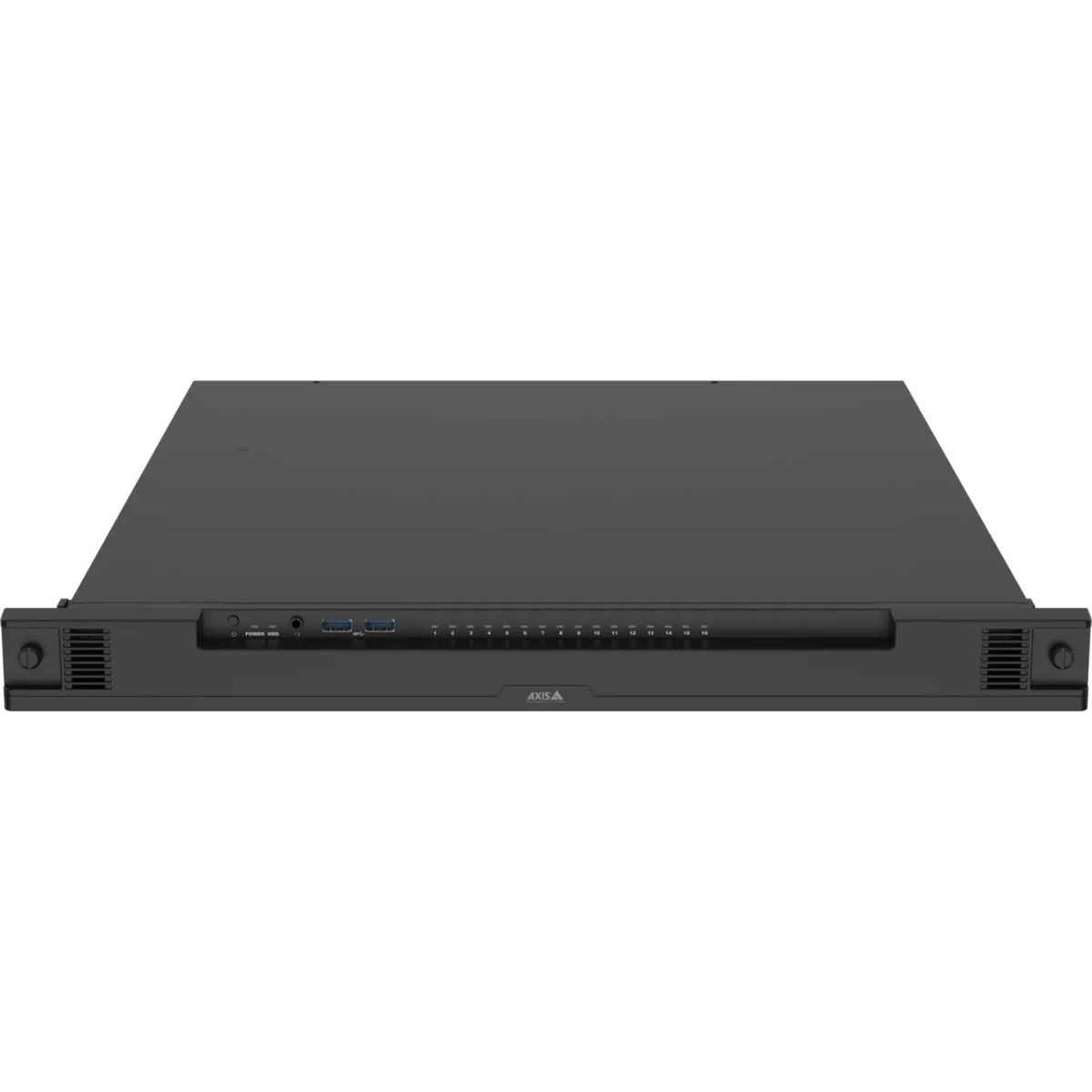

AXIS Camera Station S2216 Mk II Rack Appliance
This 16-channel rack appliance includes everything you need to run your complete surveillance system such as AXIS Camera Station Pro licenses, a 16-port PoE switch, and 8 TB of storage. It comes with pre-loaded software and tools to minimize installation time.
Powerful and versatile
This rack appliance is ideal in larger installations such as manufacturing sites and commercial buildings. With 16 channels and AXIS Camera Station Pro licenses included, it gives you complete control, and you can run your entire solution on-premises. And, it provides 10 AXIS Audio Manager Pro licenses when installing the software to the server. It comes with two empty bays for easy storage expansion, and support for AXIS Camera Station Cloud Storage if recording in the cloud is preferred. Built using powerful components, this powerful recorder supports AI applications such as Smart search 2. Furthermore, the built-in switch features an additional uplink port for easy and cost-efficient system expansion using AXIS S30 Recorder Series.
Easy to install and maintain
It comes preloaded with software and tools to help you set up and maintain your system. For instance, AXIS Recorder Toolbox includes an intuitive wizard to guide you setting up hostname, network settings in different environments, and date and time settings. It also includes a dashboard providing information on the built-in switch configuration, PoE management functions and troubleshooting tools. This all-in-one device provides everything you need to support your operations and update and maintain your system — all from one supplier. What’s more, advanced replacement service (RMA) and a 5-year hardware warranty ensure trouble-free ownership and better control over total costs.
Created with cybersecurity in mind
This reliable recording solution offers high-security features and standards. It offers an encrypted operating system and recordings with a FIPS 140-2 Level 2 certified TPM. Produced in a TAA-designated country, this appliance complies with NDAA FY19 and comes with a Software Bill of Materials (SBOM), ensuring compliance with strict regulations. Secure boot protects the system and ensures the recorder only runs a trusted operating system. Furthermore, the connected devices are physically isolated from the external network, reducing the risk of cyberattacks from the corporate network or the internet.
- All-in-one solution with integrated PoE switch
- 16 AXIS Camera Station Pro licenses included
- Room for storage expansion
- Advance Replacement Service and 5-year hardware warranty
- High cybersecurity features and standards
Specifications
| Memory capacity | 16000 MB |
| Memory type | DDR5 |
| Maximum frame rate | 30 fps |
| Maximum resolution | 7680 x 4320 pixels |
| Throughput | 256 Mbit/s |
| Video input channels | 16 channels |
| Video recording modes | 1080p |
| HDD capacity | 4000 GB |
| Maximum storage capacity | 16 TB |
| HDD count | 2 |
| Supported HDDs | 4 |
| RAID levels | 0/1/10 |
| RAID support | Yes |
| Number of SSDs | 1 |
| SSD capacity | 256 GB |
| Ethernet (RJ-45) ports | 16 |
| Fiber ports | 1 |
| HDMI ports | 2 |
| Power over Ethernet | Yes |
| PoE port count | 16 |
| USB 2.0 ports | 2 |
| USB 3.2 Gen 1 Type-A ports | 2 |
| Certification | FIPS 140-2 Level 2, UL/cUL, BIS, CE, KC, VCCI, RCM, BSMI, FCC, NOM |
| Colour | Black |
| Rack capacity | 1U |
| Rack mountable | Yes |
| Built-in processor | Yes |
| Input frequency | 50/60 Hz |
| Input voltage | 100-240 V |
| Power consumption (max) | 130 W |
| Power consumption (typical) | 110 W |
| Total PoE budget | 520 W |
| Supported Windows operating systems | Windows 11 |
| Operating humidity | -40 - 65 % |
| Operating temperature | 0 - 40 °C |
| Non-operating relative humidity | 10 - 90 % |
| Storage temperature | 10 - 90 °C |
| Certificates | Trade Agreements Act (TAA) |
| Depth | 440 mm |
| Height | 45 mm |
| Weight | 11000 g |
| Width | 483 mm |
| Cables included | AC |
| Model | 02809-002 |
| Model name | S2216 Mk II |
