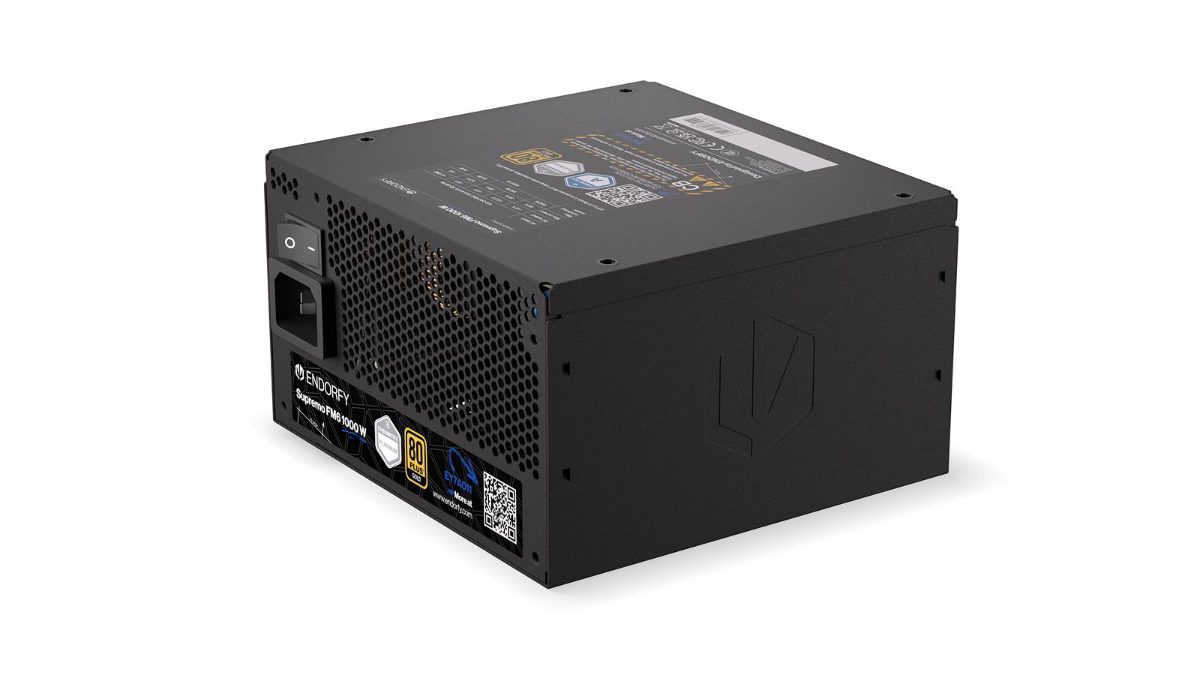

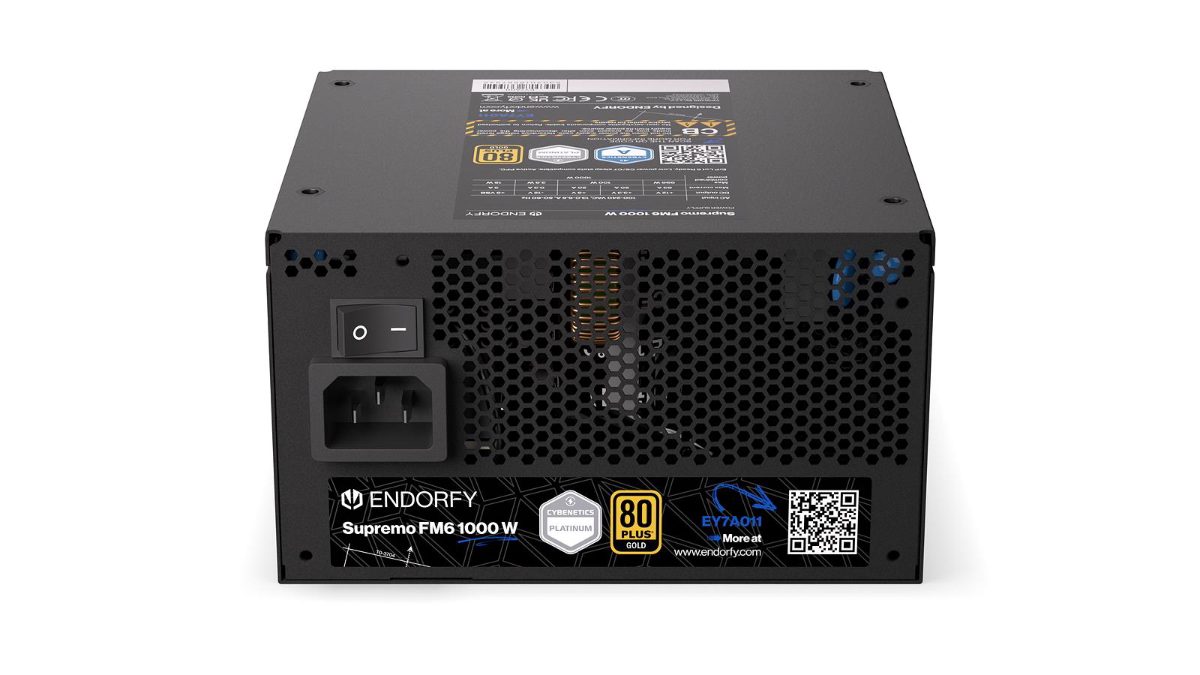

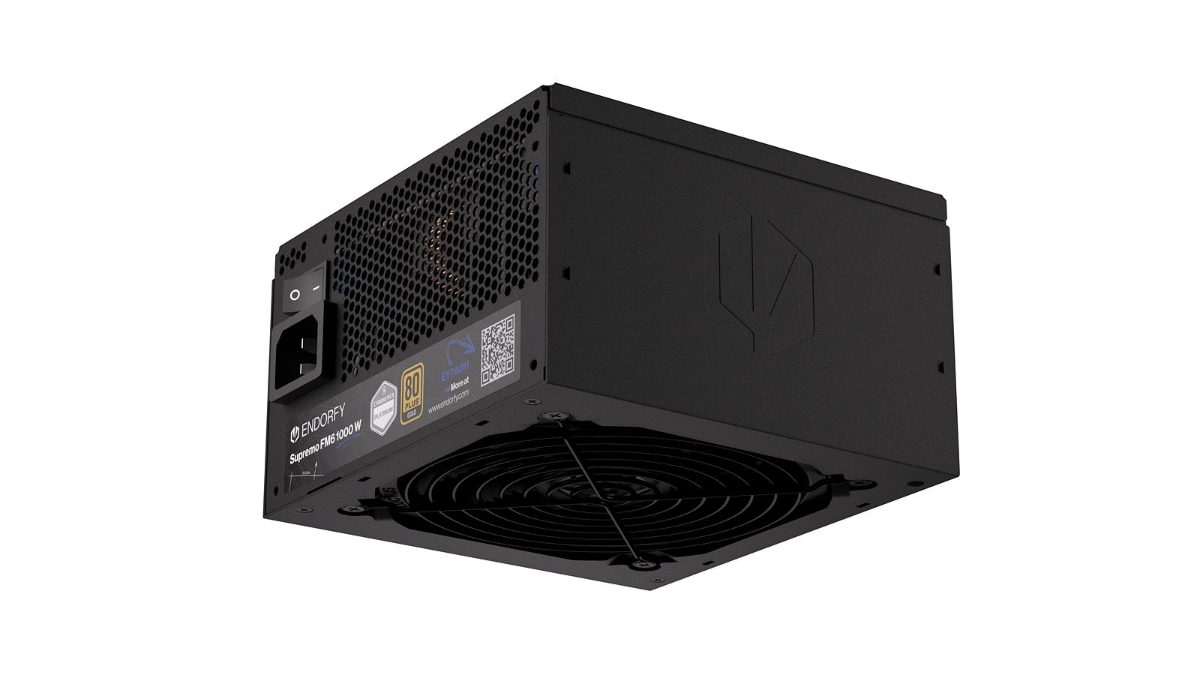

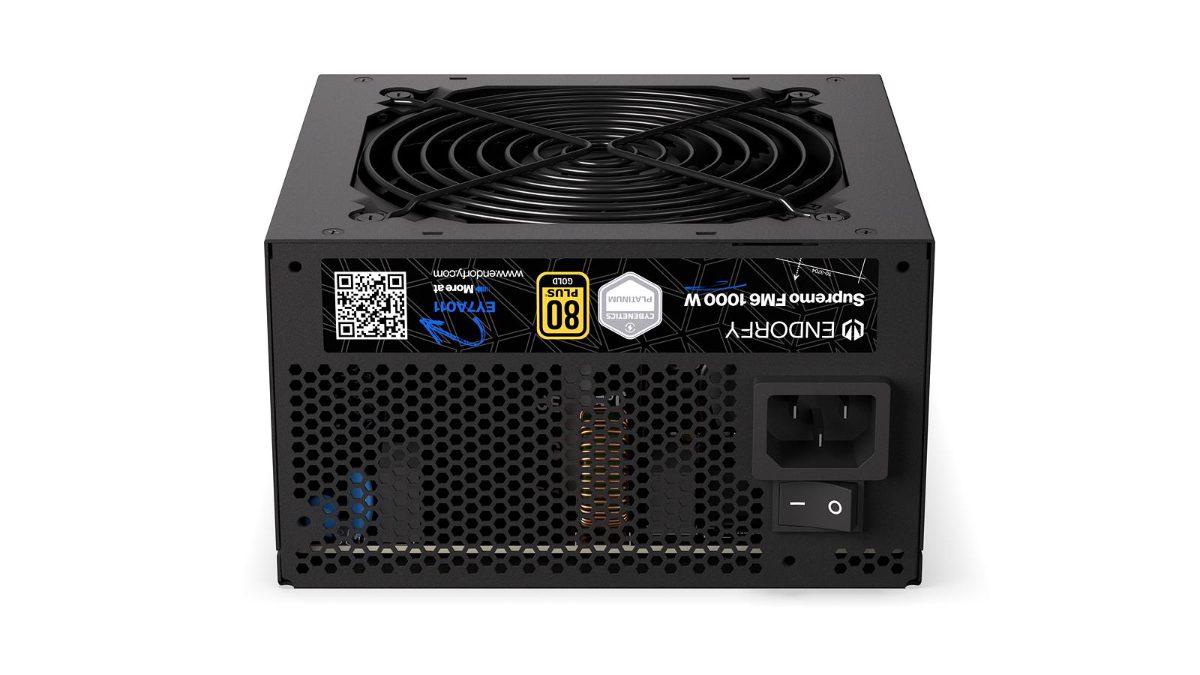

Power Supply, ENDORFY, SUPREMO FM6, 100 - 240 V, 1000 W, EY7A011
ENDORFY · 5903018667942
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 24 mo.
- Invoice: with every order
- EAN
- 5903018667942
- Brand
- ENDORFY
Description
Supremo FM6 1000 W is a fully modular modern ATX 3.1-compliant power supply unit, providing stable operation and supporting PCIe 5.1 GPUs. 80 PLUS® Gold certificate confirms its high efficiency, while a Fluctus fan guarantees quiet work. Thanks to the Japanese capacitors and a 10-year warranty, it’s a reliable solution for avid gamers and professionals alike.

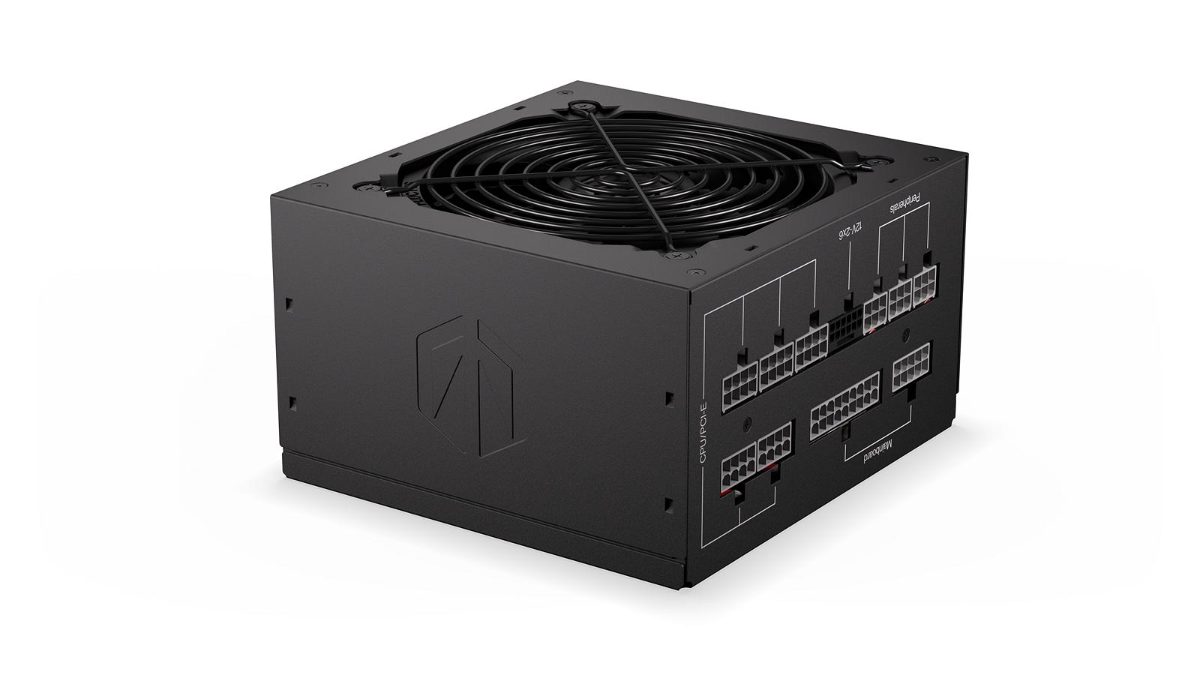

Supremo FM6 1000 W
Supremo FM6 1000 W is a modular ATX 3.1 PSU for demanding users that supports PCIe 5.1 graphics cards. It boasts high power efficiency confirmed by an 80 PLUS® Gold certificate. The power supply’s design utilizes only the Japanese capacitors that guarantee its long service life.

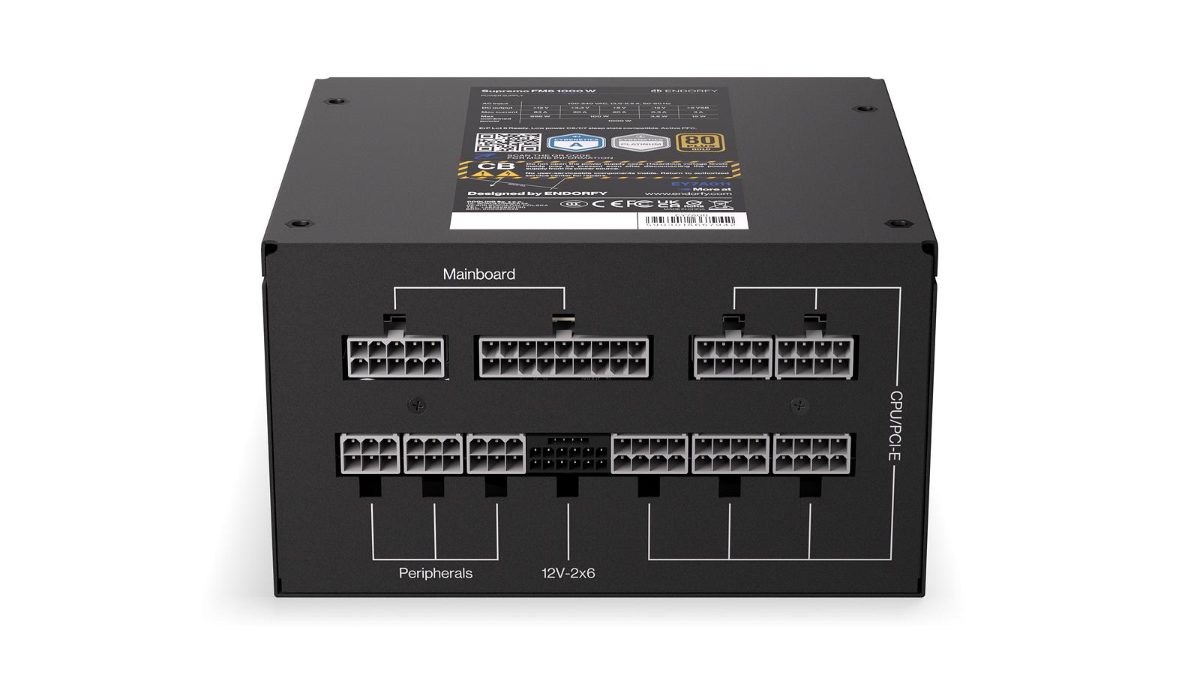

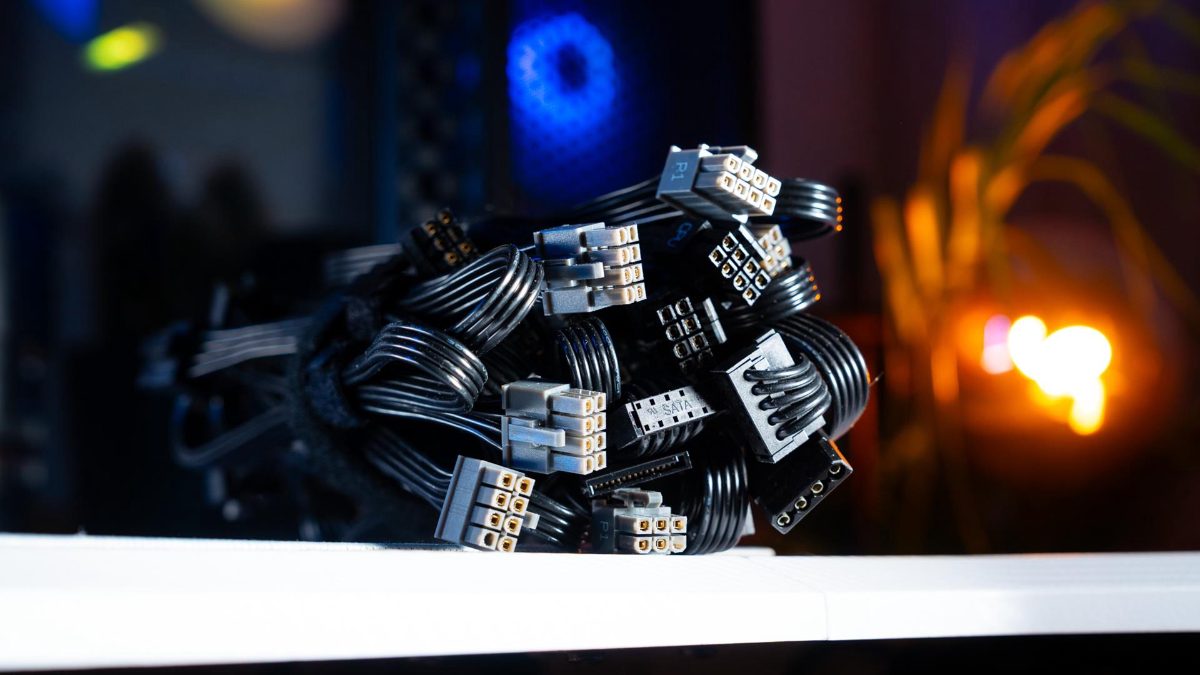

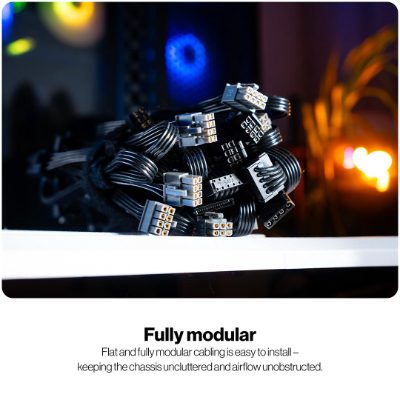

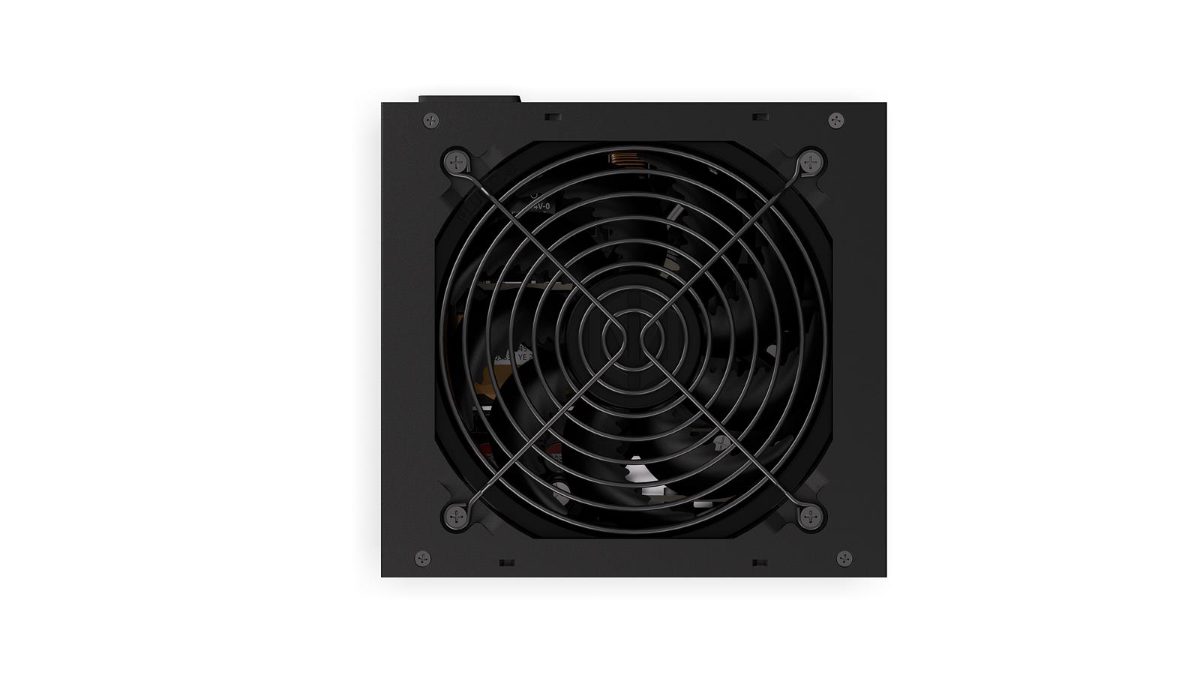

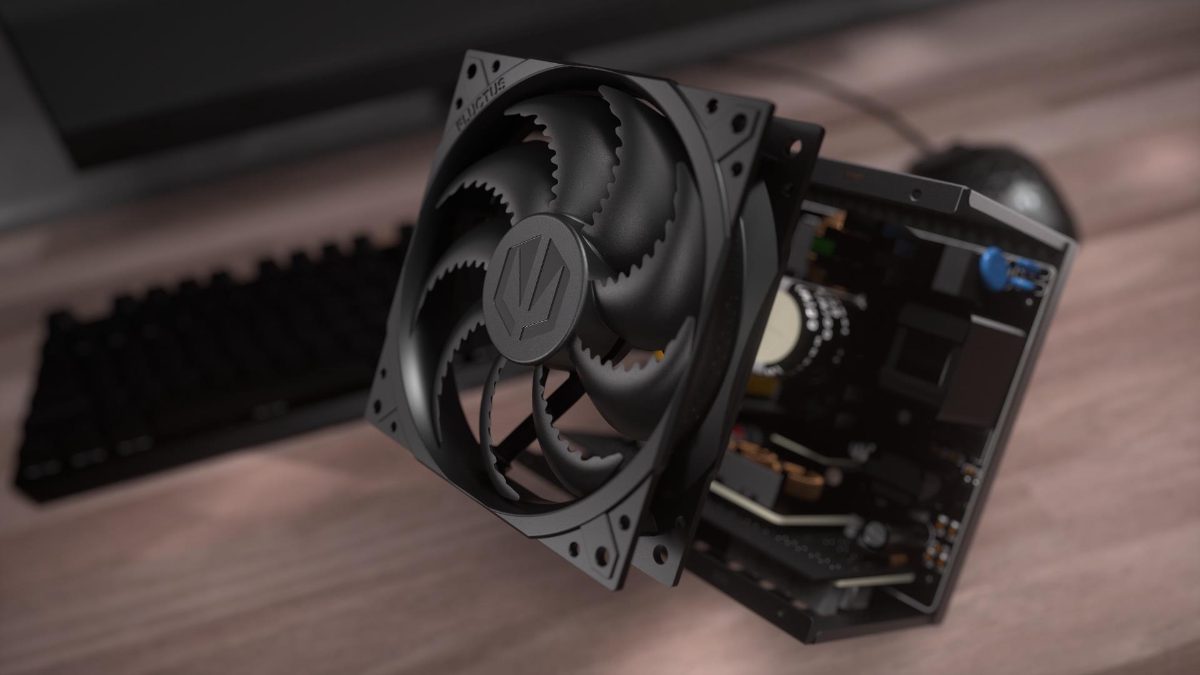

The quiet Fluctus 120 mm fan and optimized component placement ensure low temperatures with almost noiseless operation. Additionally, the modular cables make it easier to keep the surrounding space in order. The PSU also has a security package that protects it from overloading and power surges. Its quality is additionally confirmed by a 10-year warranty.

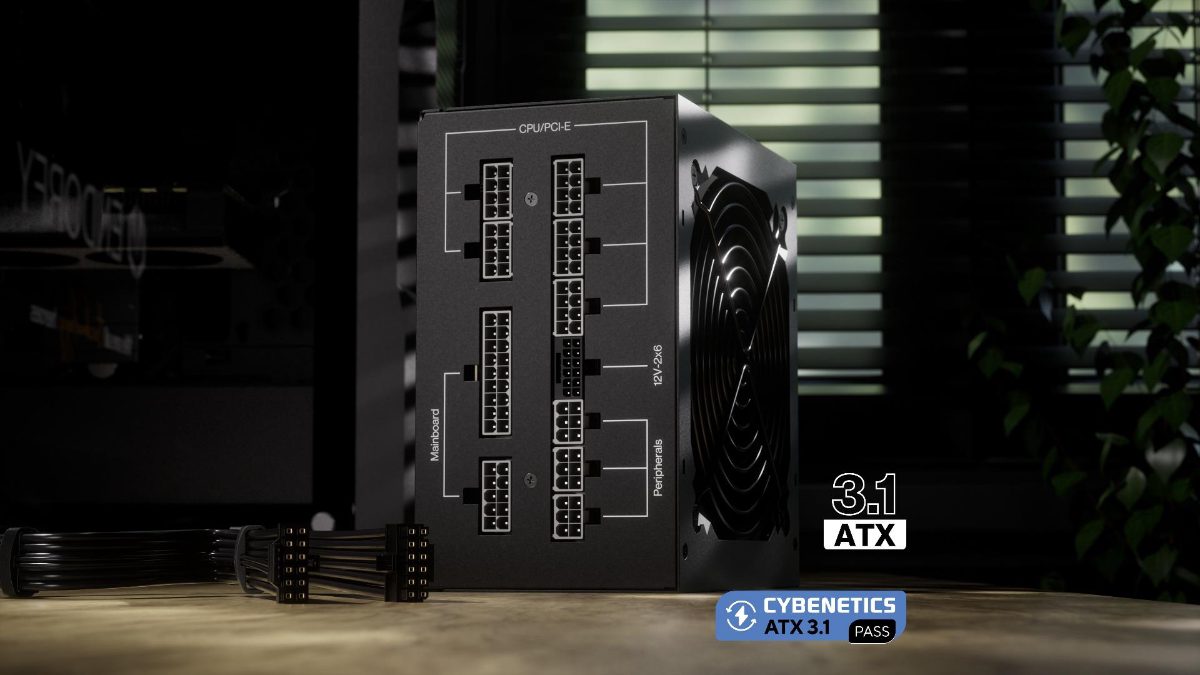

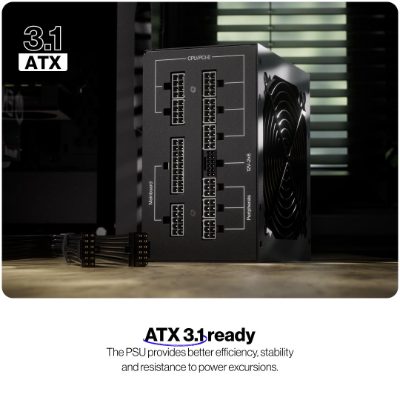

Ready for latest ATX 3.1 standards
Supremo FM6 1000 W is a power supply unit compliant with the ATX 3.1 standard. Its major advantages include even better performance, stability, and resistance to momentary power spikes than previous ATX standards. The set includes the 12V-2x6 cable fully compatible with PCIe 5.1 cards. A traditional PCI-E 6+2 PIN splitter is also included to handle GPUs with classic power supply systems.

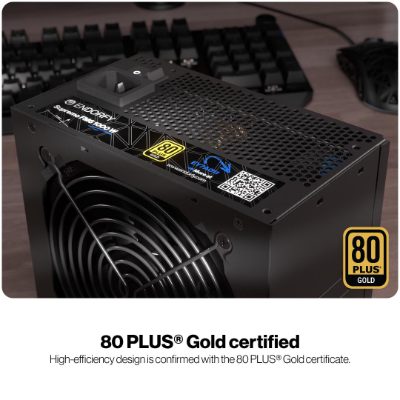

80 PLUS® Gold – supreme performance and reliability
The 80 PLUS® Gold certificate confirms the high efficiency of the Supremo FM6 1000 W power supply unit. Thanks to its excellent quality and refined design, the unit is characterized by low-noise and low-temperature operation, resulting in its extended service life.

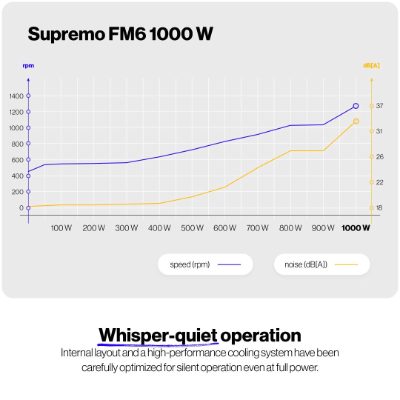

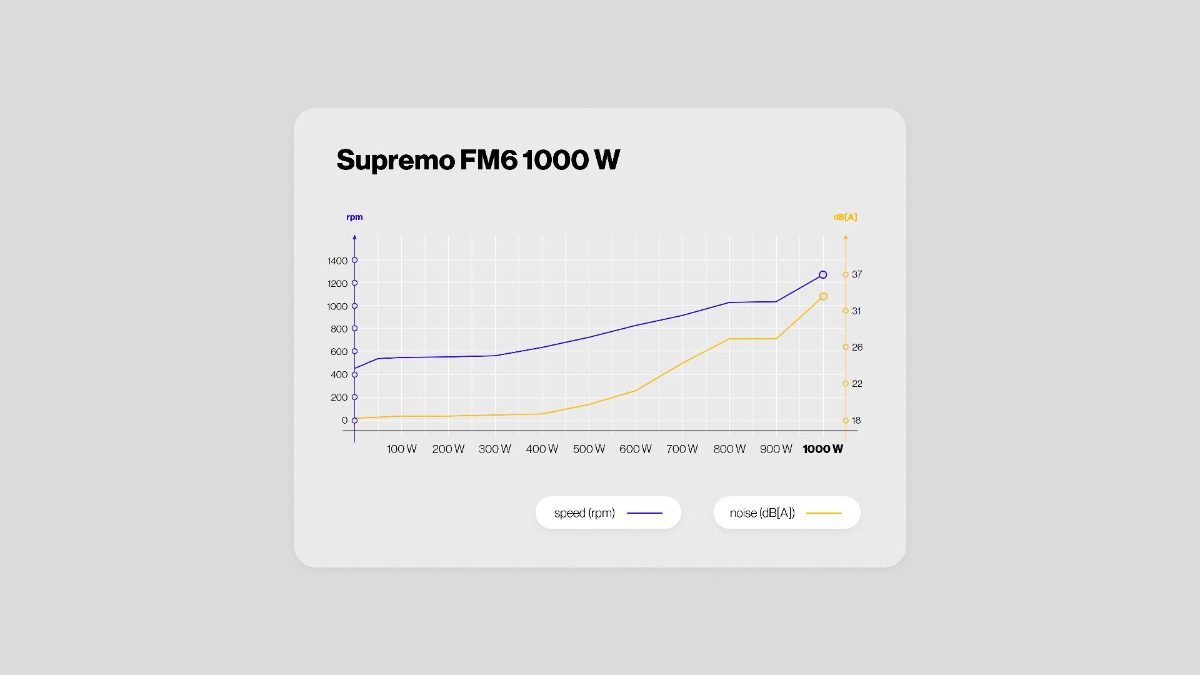

Silence first
Supremo FM6 1000 W has been designed with maximum user comfort in mind. Thanks to the optimized component setup streamlining the air flow and a high-performance cooling system, the PSU runs exceptionally quietly and retains low temperature even under full load.

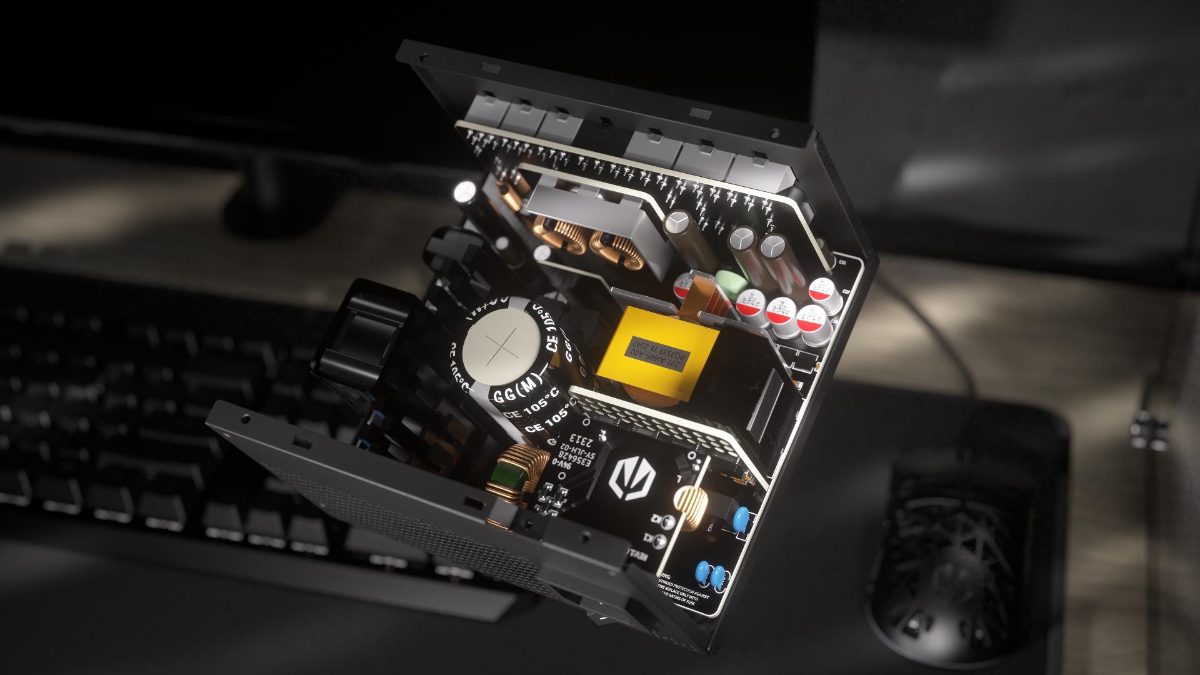

Premium class capacitors made in Japan
All capacitors installed in the Supremo FM6 1000 W power supply unit are reliable, premium-class components made in Japan. They retain their operating parameters even at high temperatures (105 °C), enabling them to perform faultlessly and stably for years to come, even under extremely demanding operating conditions.
Specifications
| Input frequency | 50/60 Hz |
| Input voltage | 100 - 240 V |
| Combined power (+12V rail) | 996 W |
| Combined power (+3.3V) | 100 W |
| Combined power (+5V) | 100 W |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 3.6 W |
| Input current | 13 - 6.5 A |
| Max output current (+12V) | 83 A |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Power Factor Correction (PFC) type | Active |

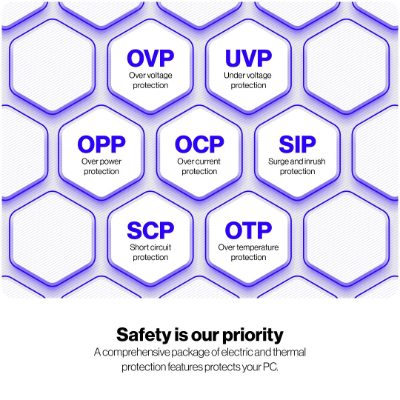

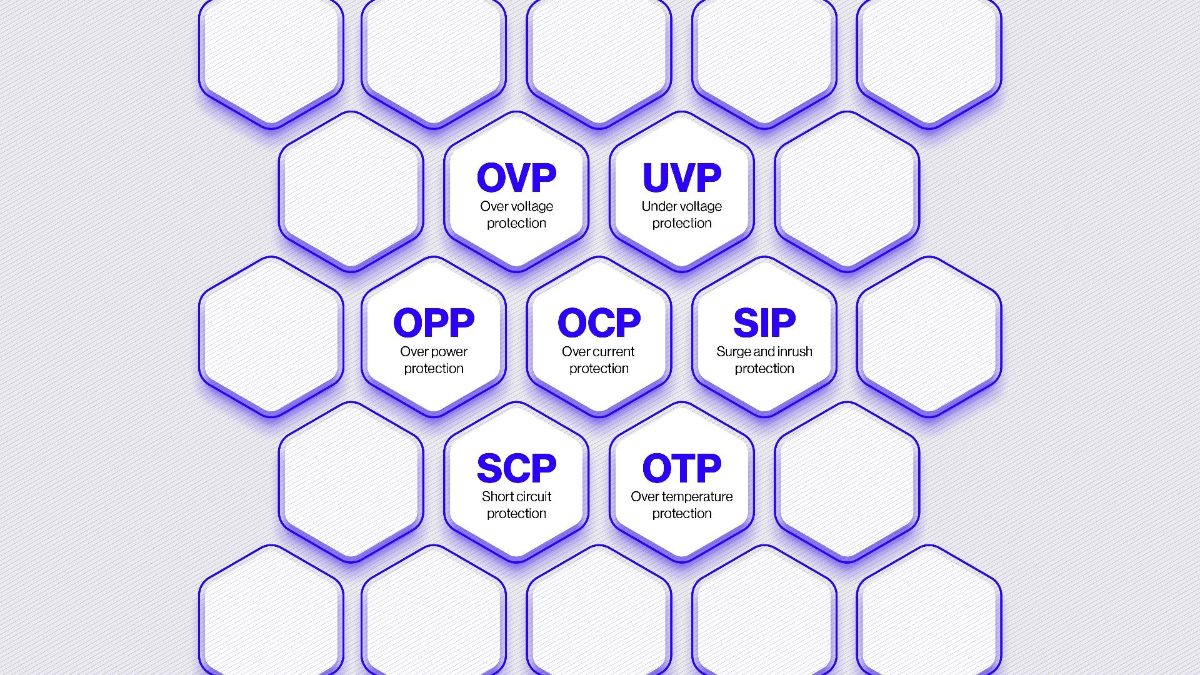

| Power protection | Over current/Over power/Over voltage/Short circuit/Surge & inrush protection (SIP)/Under temperature/Under voltage |
| Rated power | 1000 W |

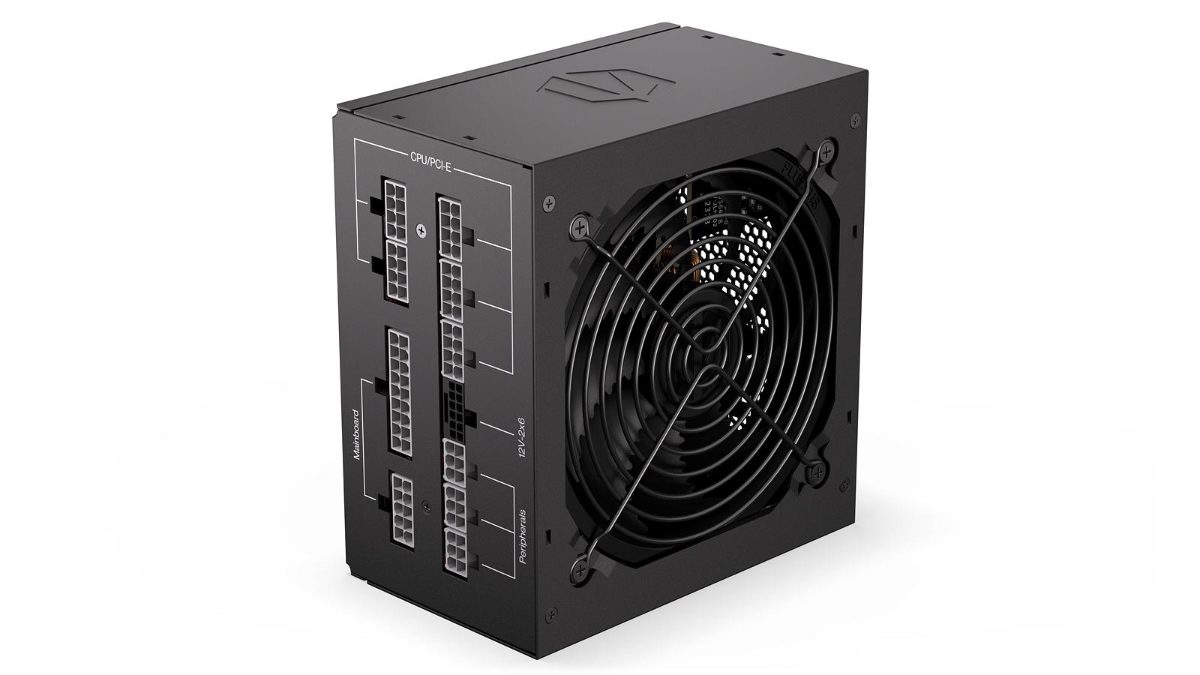

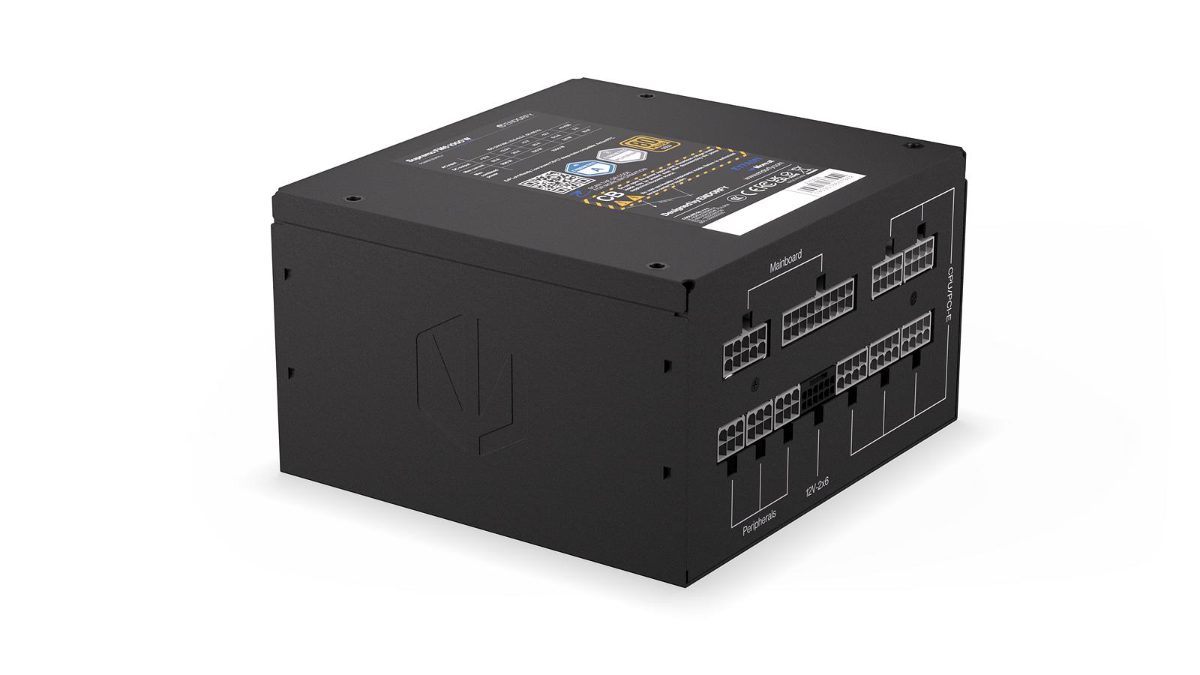

| PSU cabling type | Fully-Modular |
| EPS power connector | Yes |
| Motherboard power cable length | 600 mm |
| Motherboard power connector | 24-pin ATX |
| SATA power cable count | 3 |
| Number of SATA power connectors | 8 |
| PCI Express power cable length | 560 mm |
| PCI Express power connectors (12+4 pin) | 1 |
| Molex power cable length | 880 mm |
| Molex power connectors | 1 |
| SATA power cable length | 560/720/880 mm |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 3.1 |
| Bearing technology | FDB |
| Certificates | Platinum |
| MTBF | 100000 h |
| Form factor | ATX |
| Intended use | PC |
| Cooling type | Active |
| Fan diameter | 120 mm |
| Fan location | Top |
| Illumination | No |
| LED indicators | No |
| Number of fans | 1 fan(s) |
| On/off fan switch | No |
| On/off switch | Yes |
| Colour | Black |
| Cables included | AC |
| Depth | 150 mm |
| Height | 87 mm |
| Width | 140 mm |
| Manual included | Yes |
| Free from | Cadmium/Lead/Mercury |
| Sustainability certificates | ErP |
| Warranty | 10 year(s) |
| Model name | Supremo FM6 1000 W |
