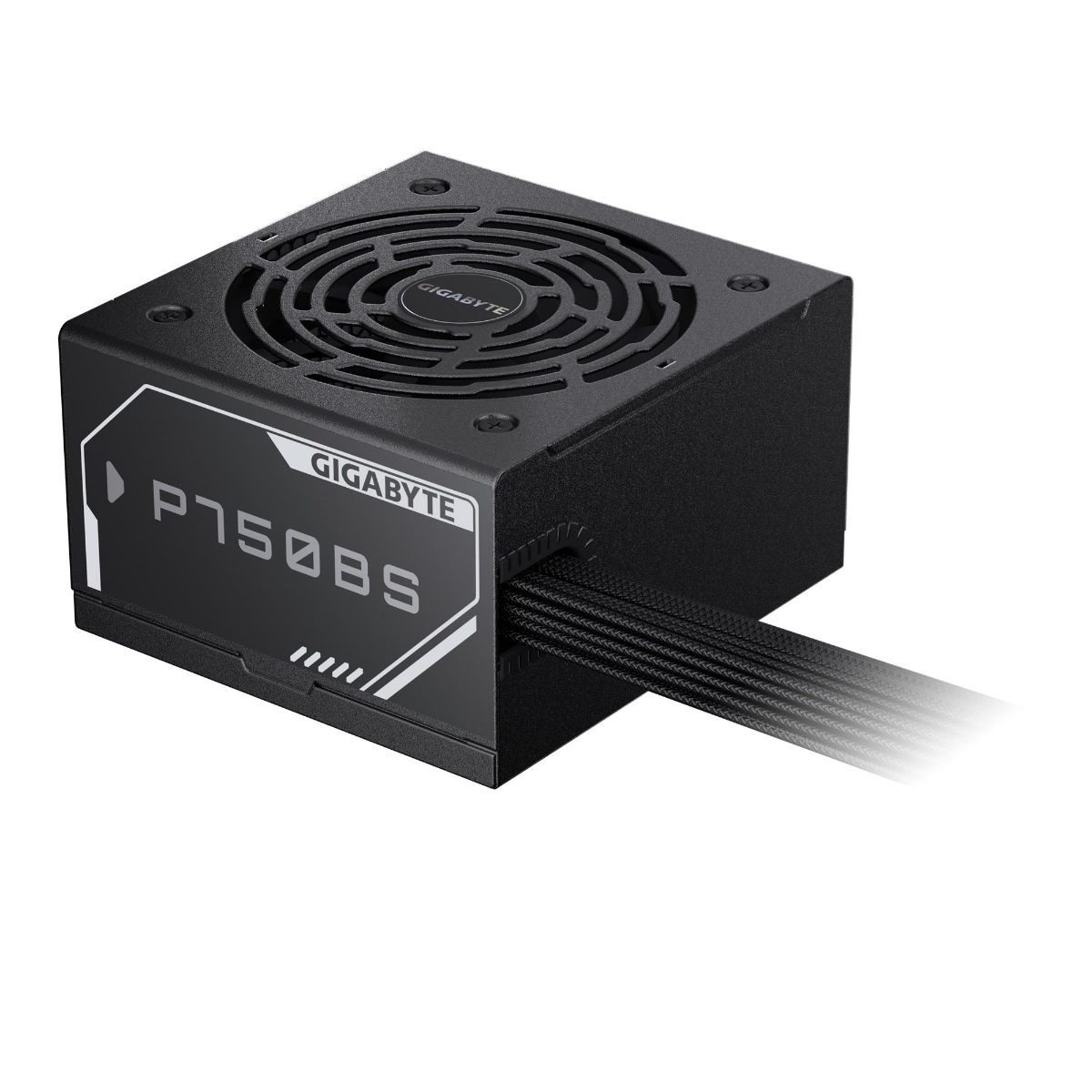

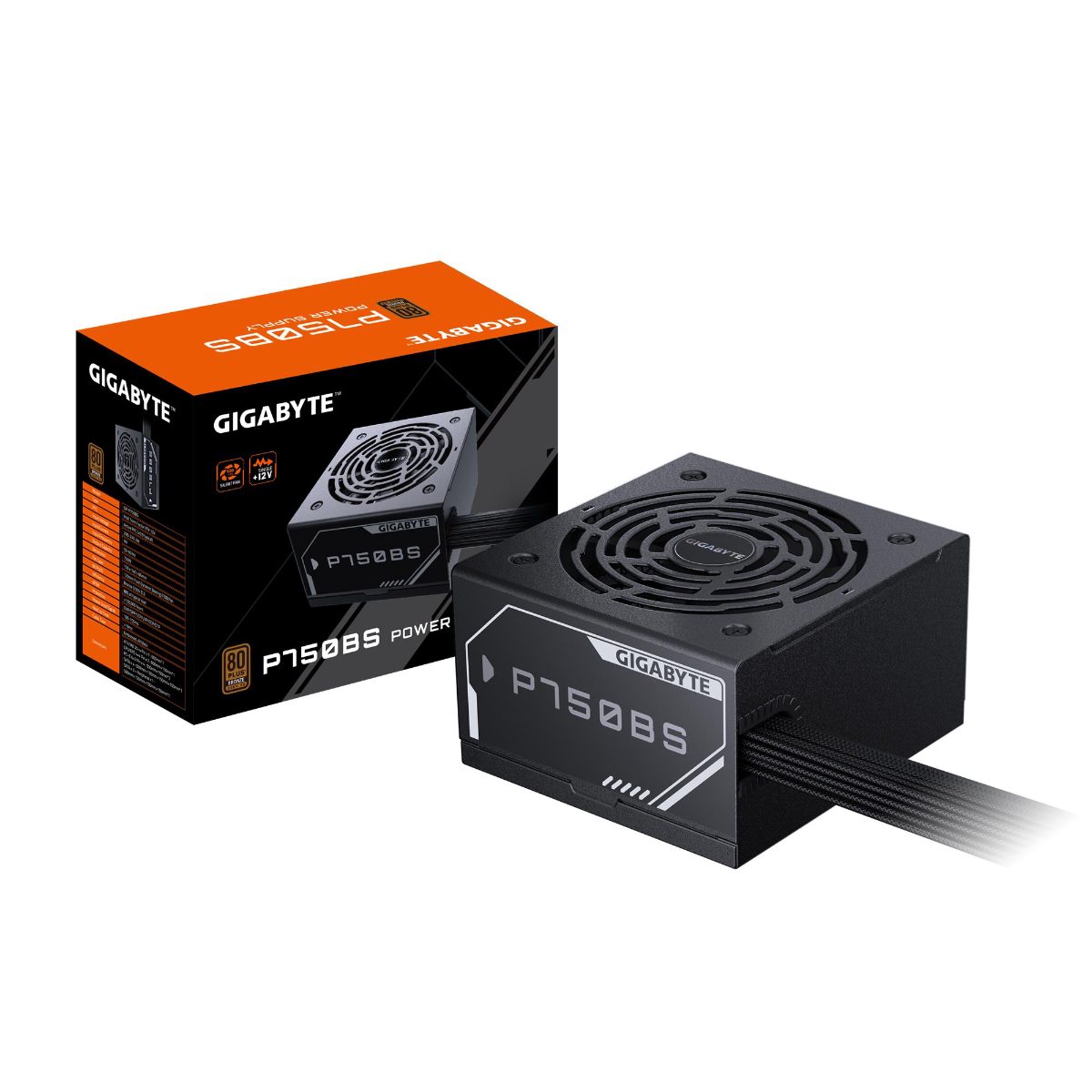

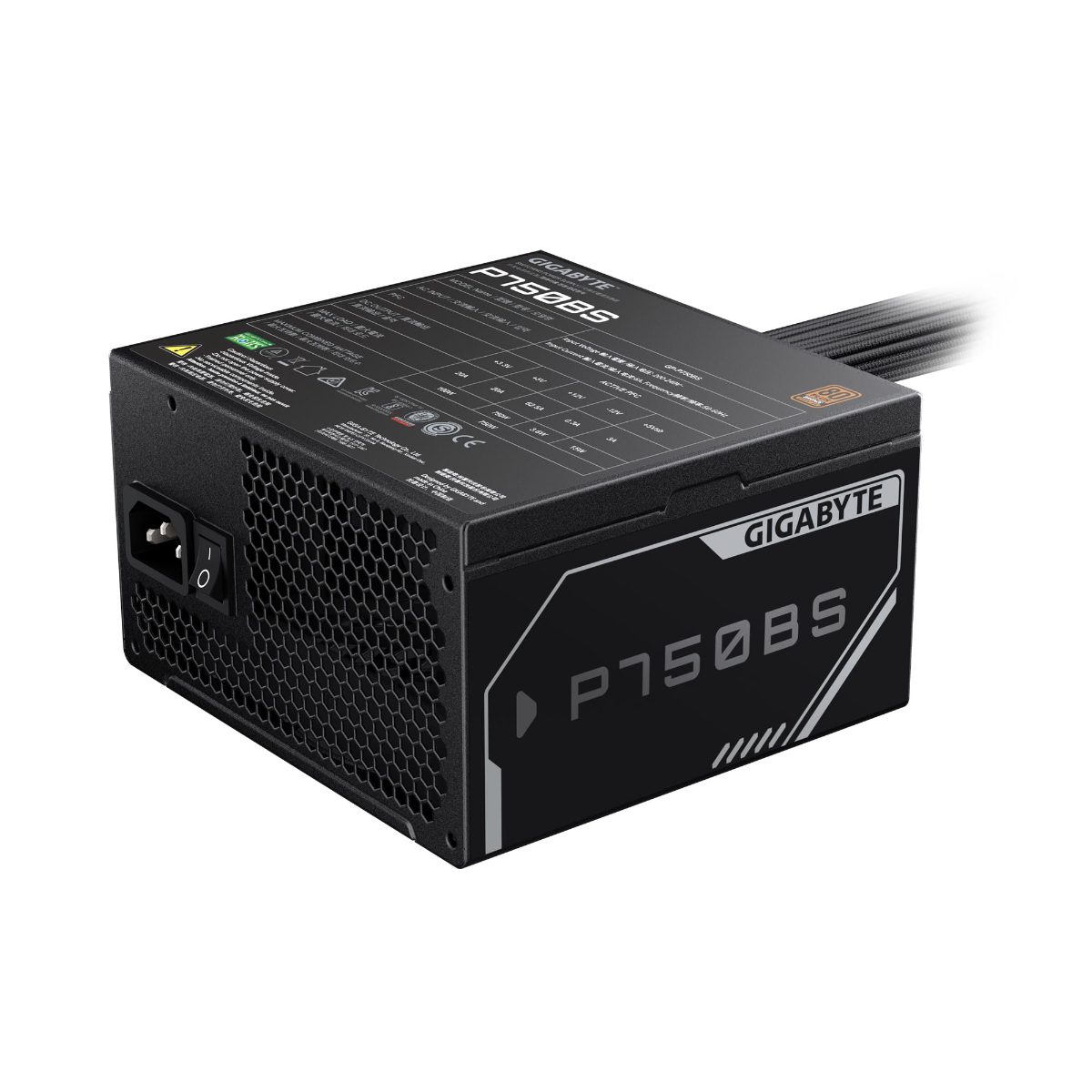

Power Supply, GIGABYTE, GP-P750BS, 750 Watts, Efficiency 80 PLUS BRONZE
Power Supply, GIGABYTE, GP-P750BS, 750 Watts, Efficiency 80 PLUS BRONZE, PFC Active, MTBF 100000 hours
GIGABYTE · 4719331555238
53,06 €
The invoice is sent as soon as you order.
Available · 3 pcs
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 36 mo.
- Invoice: with every order
- EAN
- 4719331555238
- Brand
- GIGABYTE
Description
Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.
- 80 PLUS Bronze certified (230V EU)

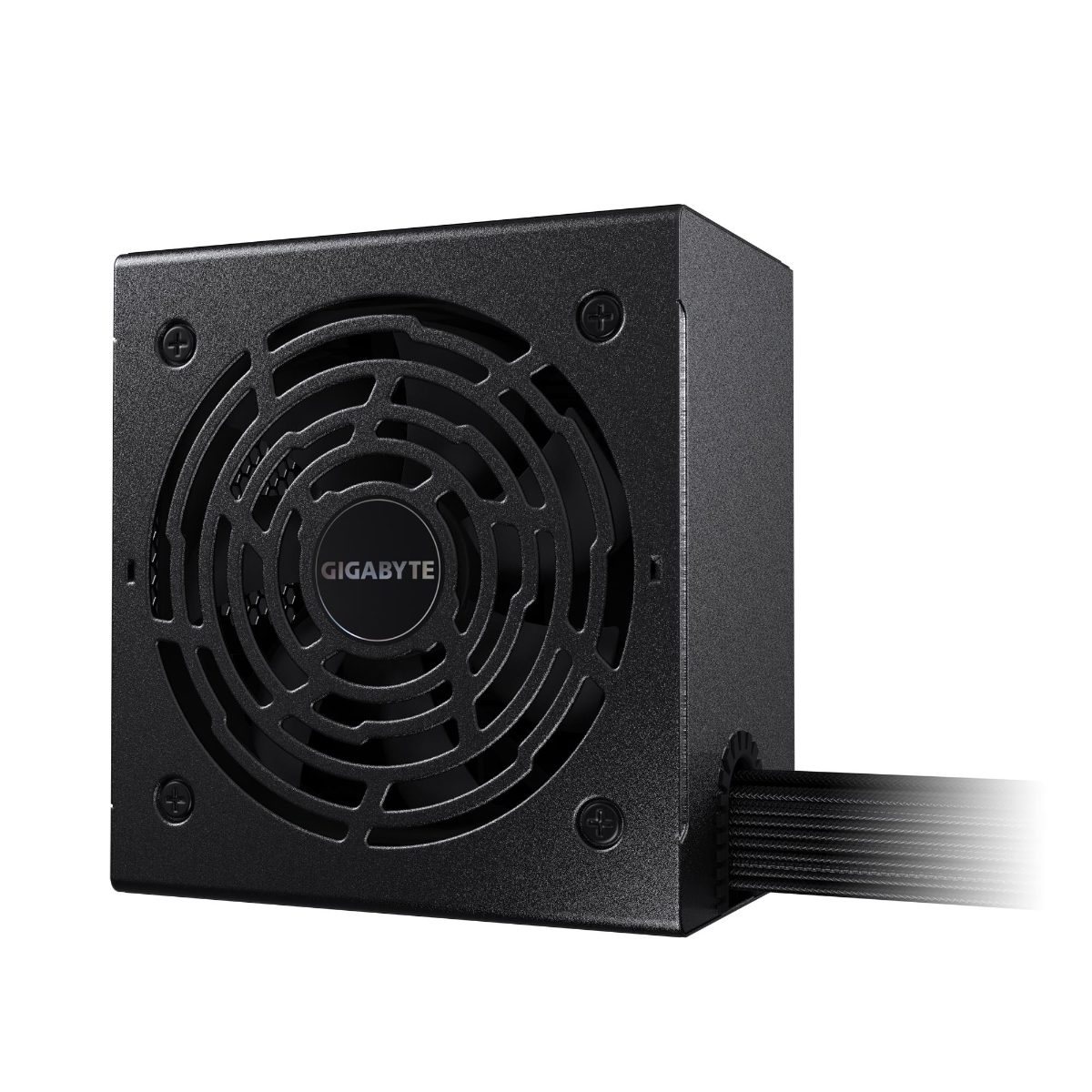

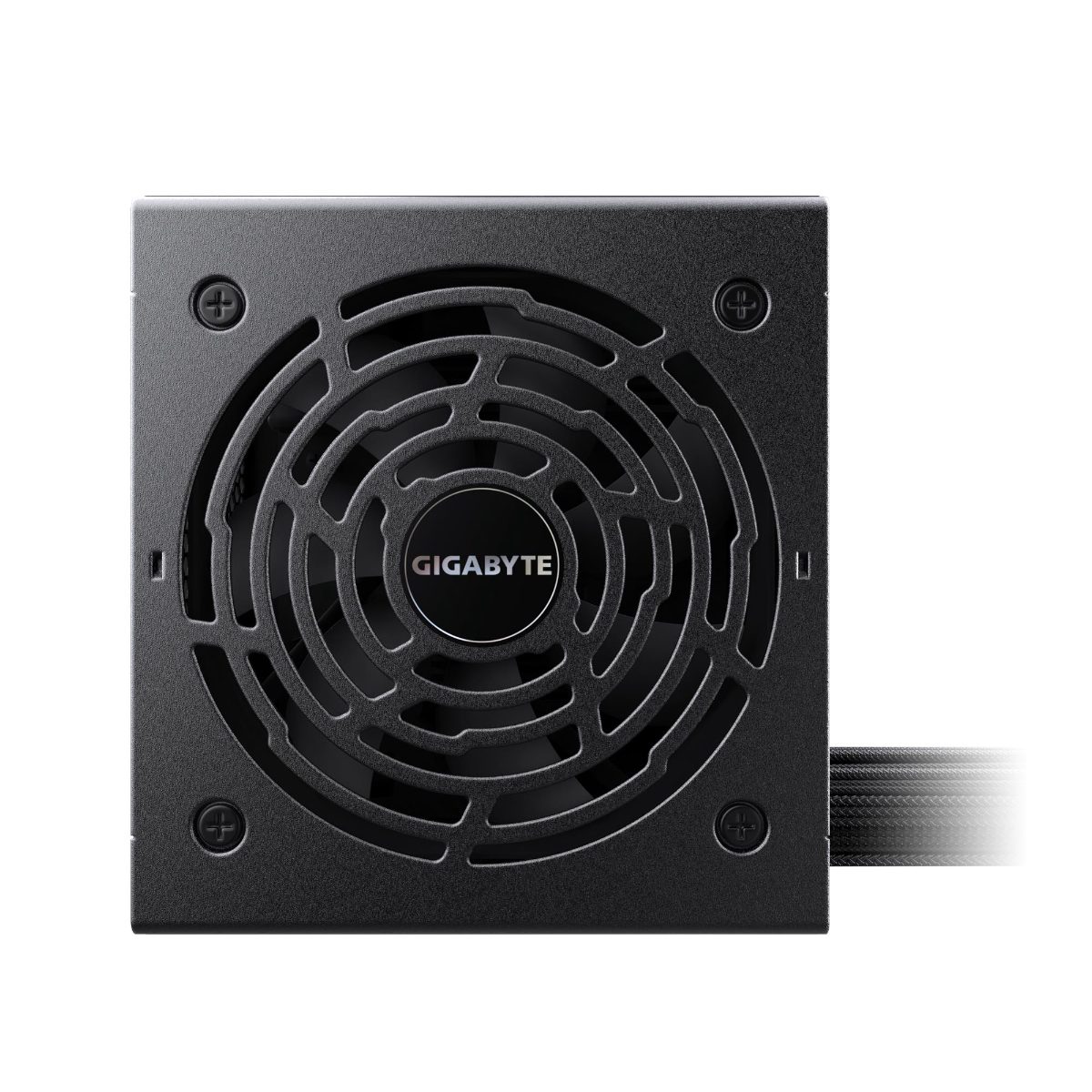

- 120mm Silent Fluid Dynamic Bearing (FDB) fan
- Soft-textured embossed cables
- Single +12V rail
- OVP/OPP/SCP/UVP/OCP/OTP protection
Specifications

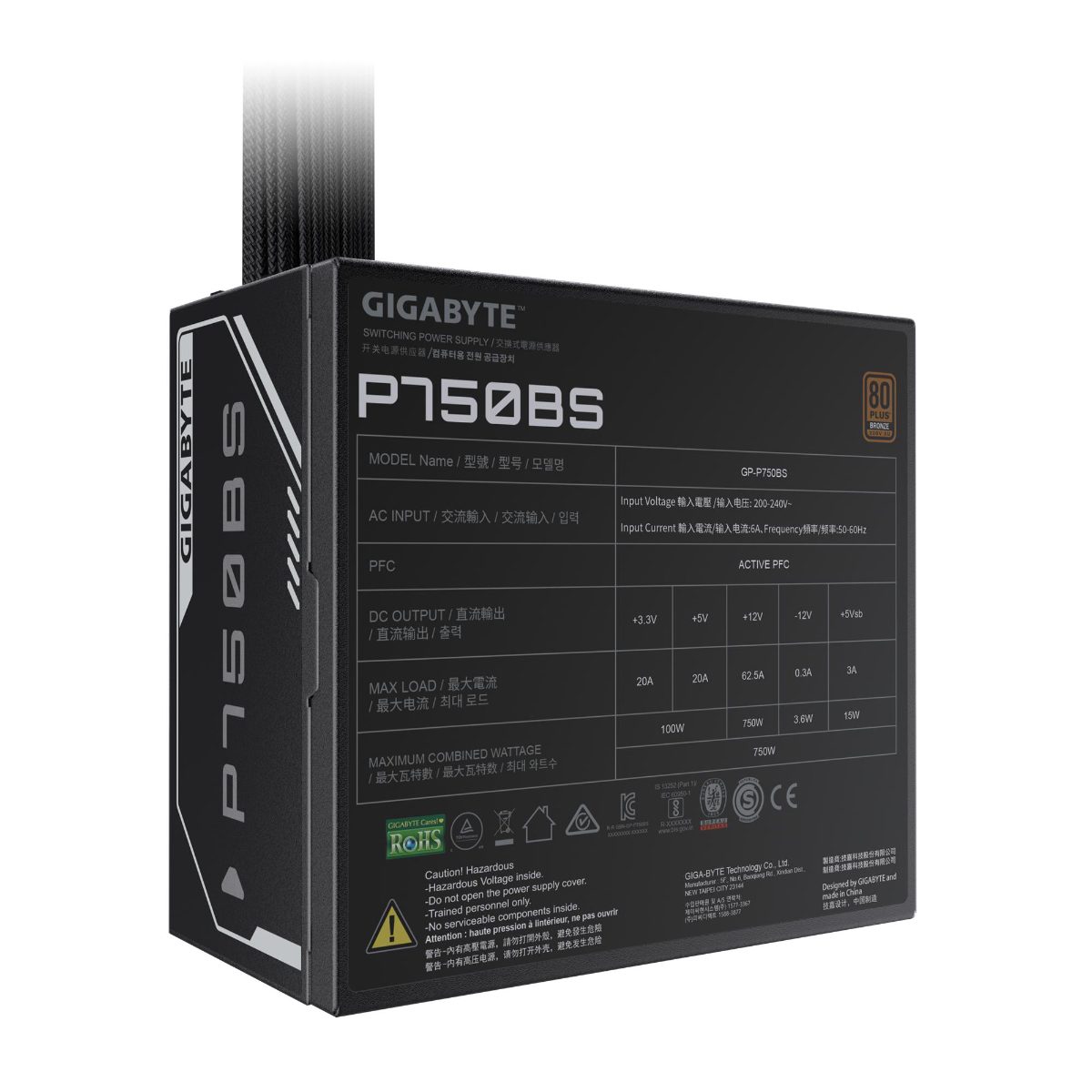

| Input frequency | 50/60 Hz |
| Input voltage | 200 - 240 V |
| Combined power (+12V rail) | 750 W |
| Combined power (+3.3V) | 100 W |
| Combined power (+5V) | 100 W |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 3.6 W |
| Efficiency | 88 % |
| Hold time | 16 ms |
| Input current | 6 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Power Good signal delay range | 100 - 150 ms |
| Power protection | Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage |
| Rated power | 750 W |
| ATX power connector | Yes |
| PSU cabling type | Non-Modular |
| CPU power connector (4+4 pin) | Yes |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 2 |
| Motherboard power cable length | 600 mm |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 7 |
| PCI Express connector | Yes |
| PCI Express power connectors (12+4 pin) | 4 |
| Molex power cable length | 150/600 mm |
| Molex power connectors | 2 |
| SATA power cable length | 150/500 mm |
| 80 PLUS certification | 80 PLUS Bronze |
| Bearing technology | FDB |
| MTBF | 100000 h |
| Form factor | ATX |
| Intended use | PC |
| Cooling type | Active |
| Fan diameter | 120 mm |
| Fan location | Top |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Colour | Black |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 2218 g |
| Width | 150 mm |
| Warranty | 3 year(s) |
| Model name | GP-P750BS |
