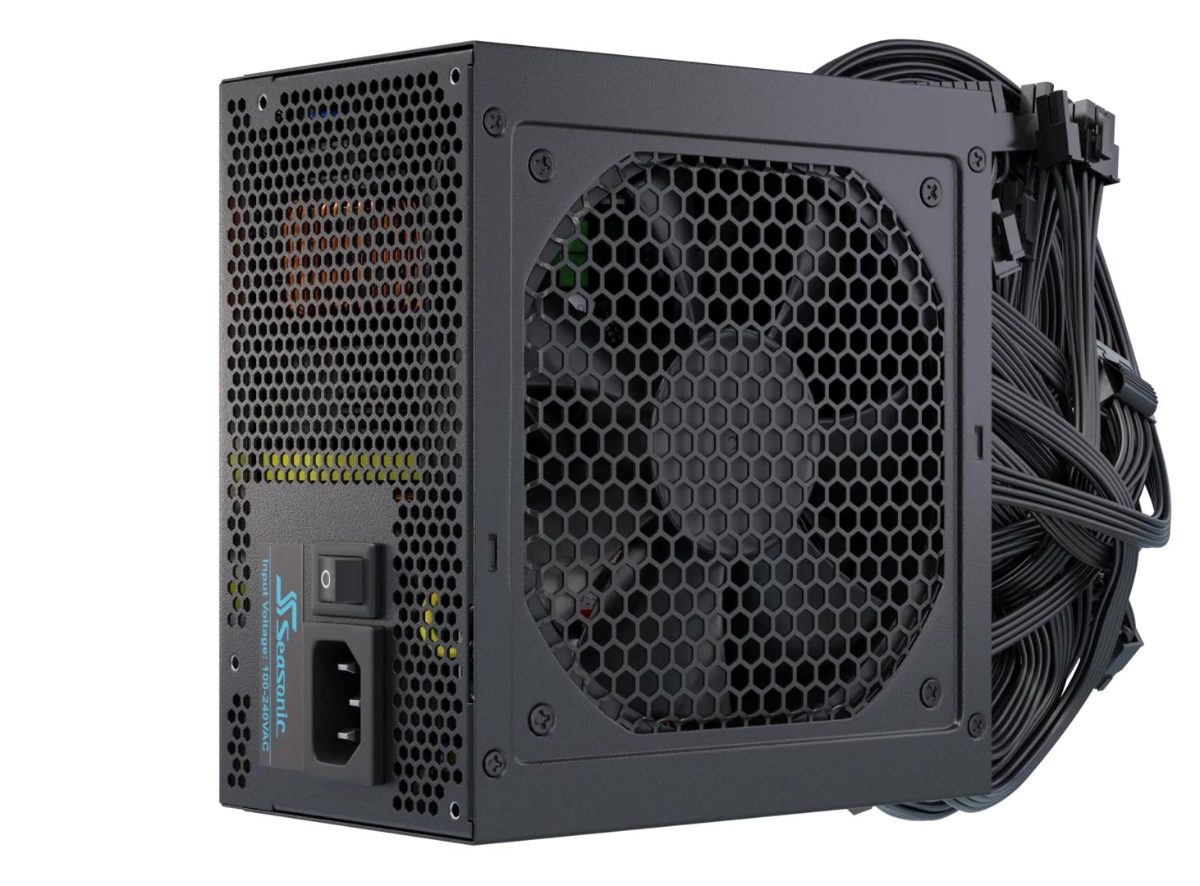

Power Supply, SEASONIC, G12 GC, 850 Watts, Efficiency 80 PLUS GOLD
Power Supply, SEASONIC, G12 GC, 850 Watts, Efficiency 80 PLUS GOLD, MTBF 100000 hours, SSP-850RT2
SEASONIC · 4711173878544
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 60 mo.
- Invoice: with every order
- EAN
- 4711173878544
- Brand
- SEASONIC
Description
The G12 GC Series is available in the standard ATX Form Factor and in wattages that are most common for a PC system. The Seasonic G12 GC-Series achieves 80 PLUS® Gold standard of providing at least 87 %, 90 % and 87 % power usage efficiency at 20 %, 50 % and 100 % operating loads, respectively. This efficiency, combined with Active Power Factor Correction, enables the G12 GC series power supplies to lessen energy waste, which translates into savings on the costs of energy costs for its users. In addition to being greatly efficient, the G12 GC units utilize the LLC resonant converter design, and the industry’s leading Smart and Silent Fan Control (S2FC).
Specifications
| Input frequency | 50/60 Hz |
| Input voltage | 100 - 240 V |
| Combined power (+12V rail) | 840 W |
| Combined power (+3.3V) | 100 W |
| Combined power (+5Vsb) | 12.5 W |
| Combined power (-12V) | 3.6 W |
| Efficiency | 90 % |
| Input current | 8 A |
| Max output current (+12V) | 70 A |
| Max output current (+3.3V) | 20 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| Power protection | Over current/Over power/Over total voltage/Over voltage/Short circuit/Under voltage |
| Rated power | 850 W |
| PSU cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| MTBF | 100000 h |
| Form factor | ATX |
| Intended use | PC |
| Cooling type | Active |
| Fan diameter | 120 mm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Colour | Black |
| Operating temperature | 0 - 50 °C |
| Cables included | AC,CPU,PCIe,SATA |
| Certification | cTUVus, TUV, CB, CCC, BSMI, CE, FCC |
| Certificates | REACH/RoHS/WEEE |
| Depth | 140 mm |
| Height | 86 mm |
| Width | 150 mm |
| Model name | G12 GC |
