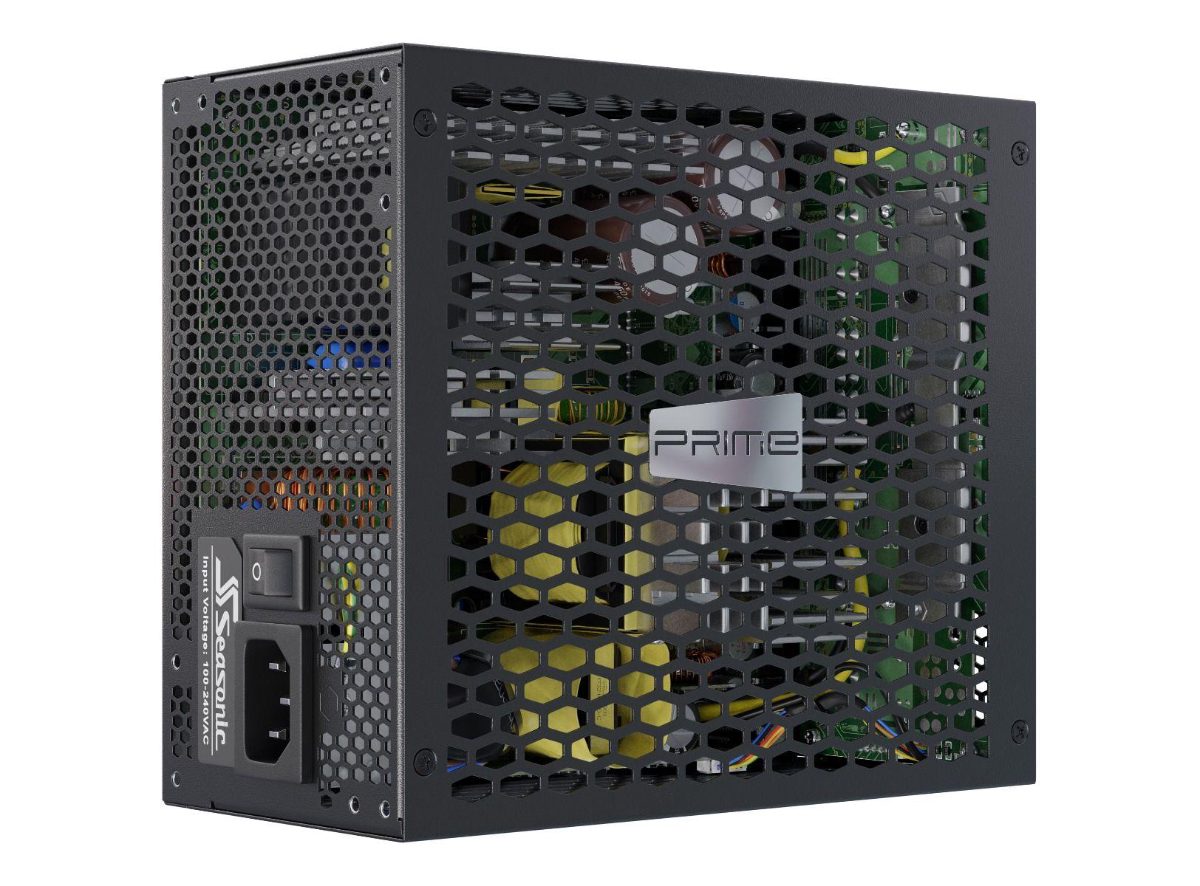

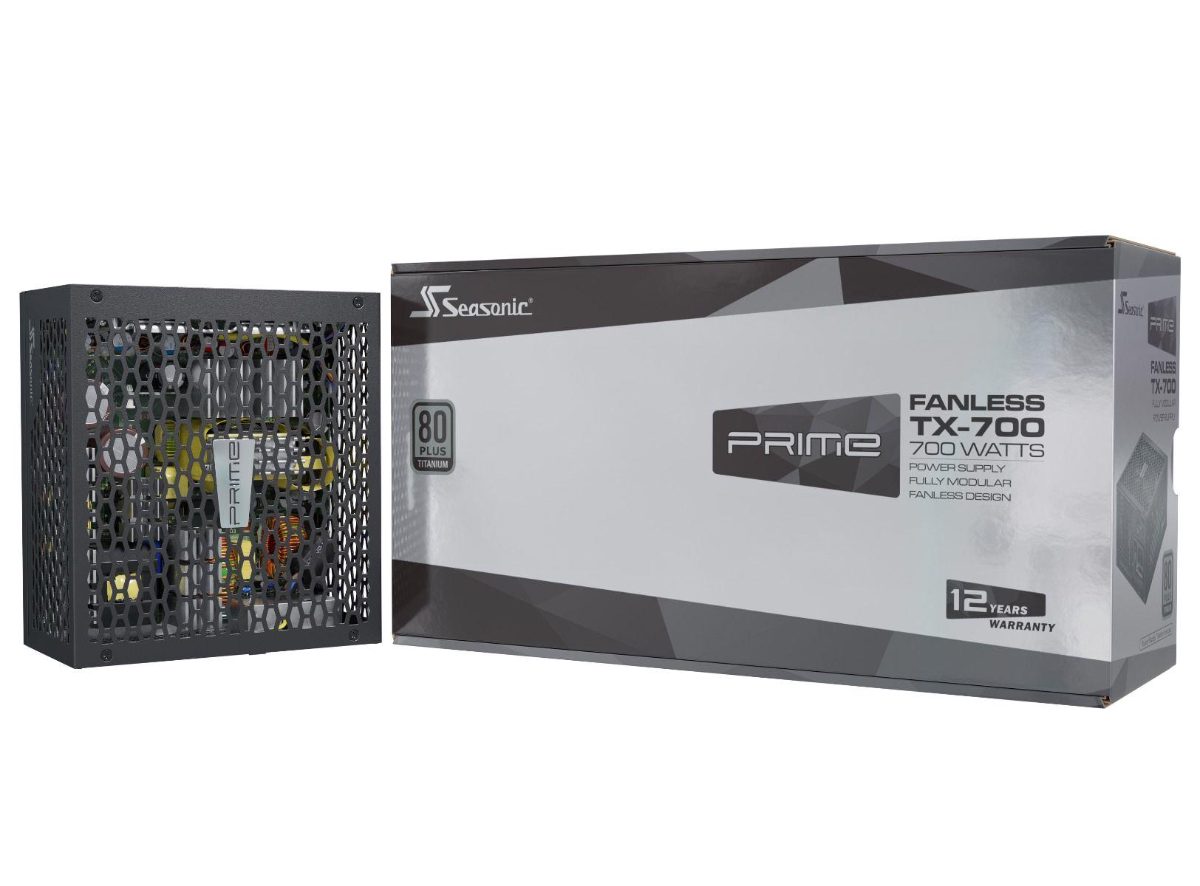

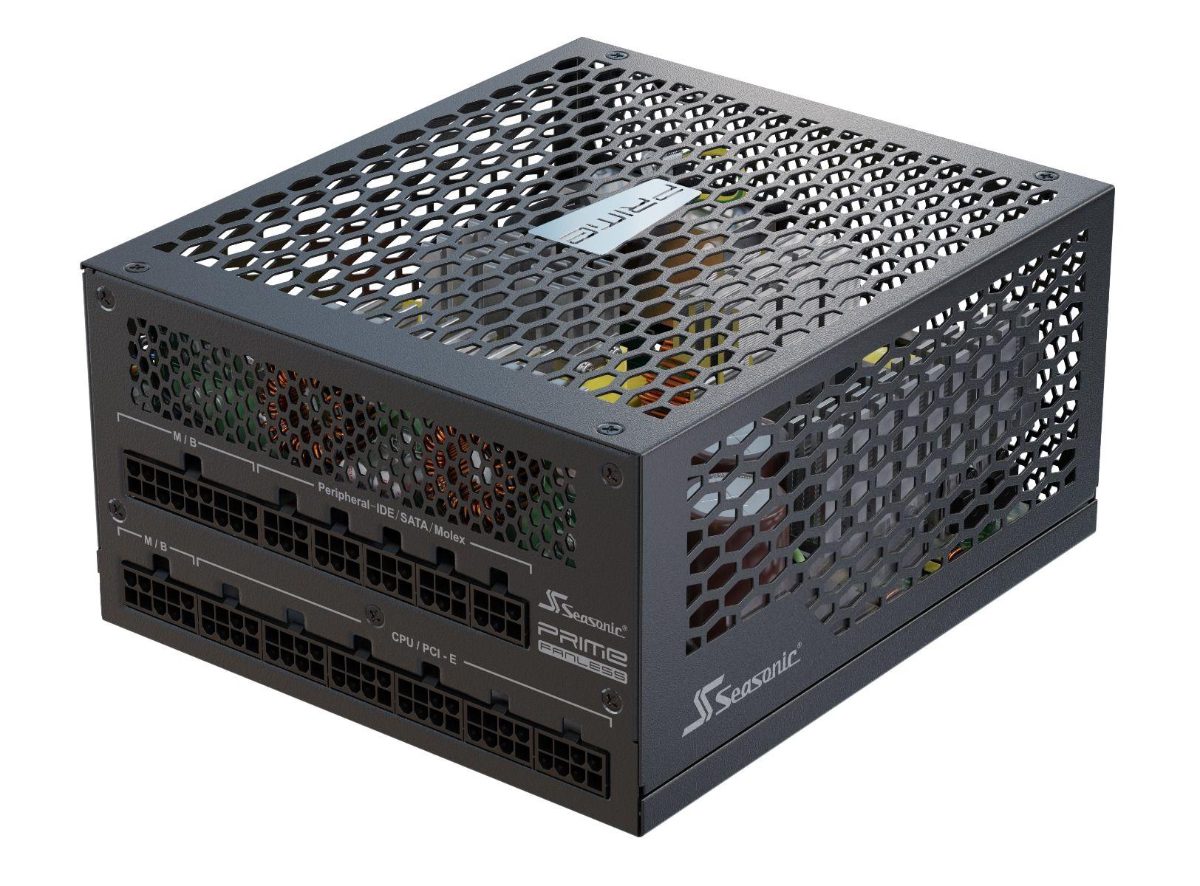

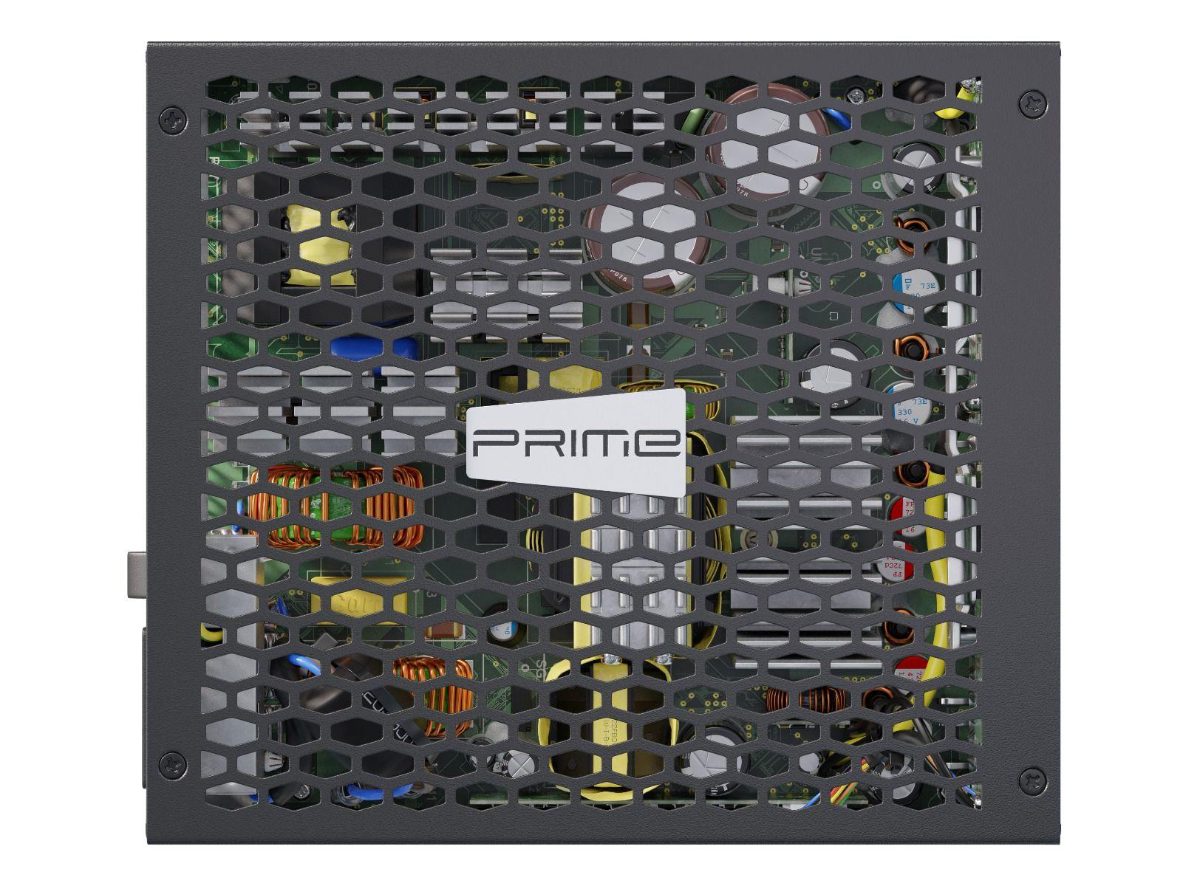

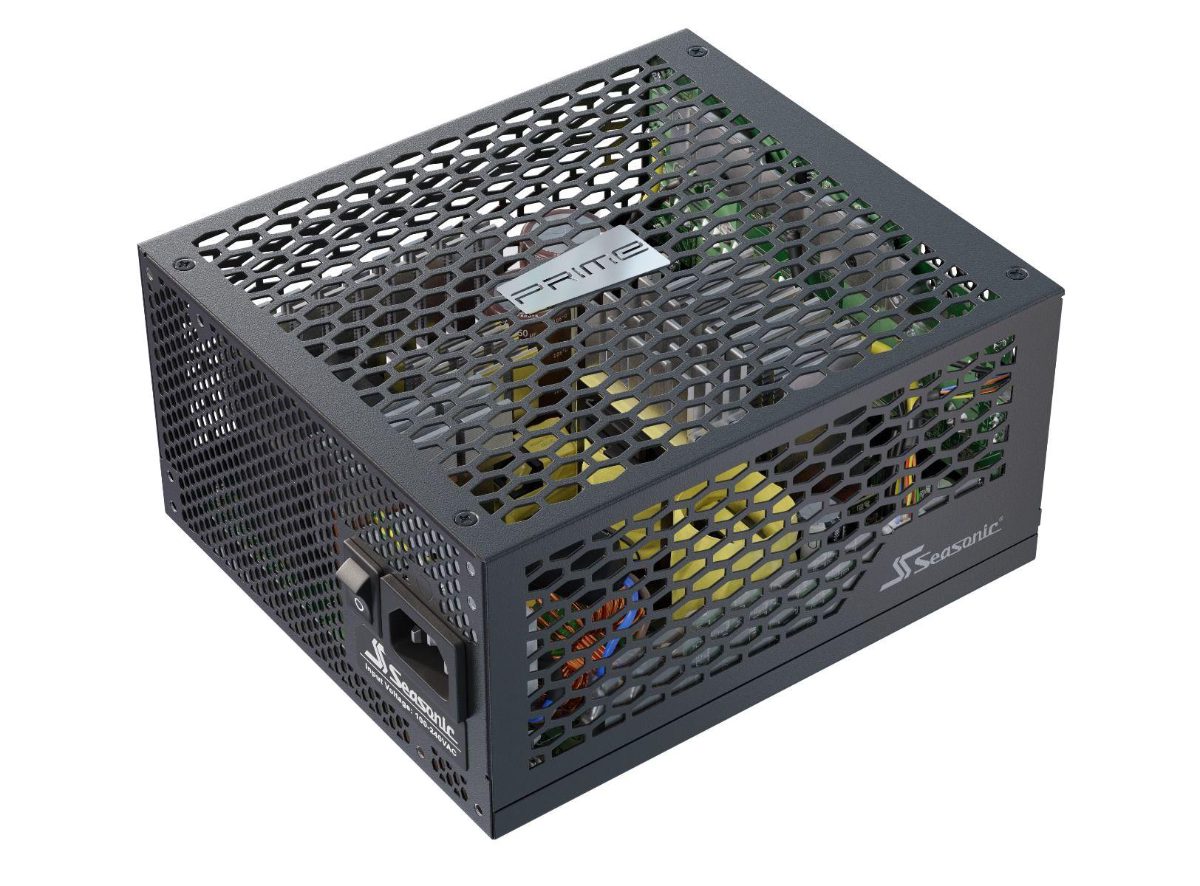

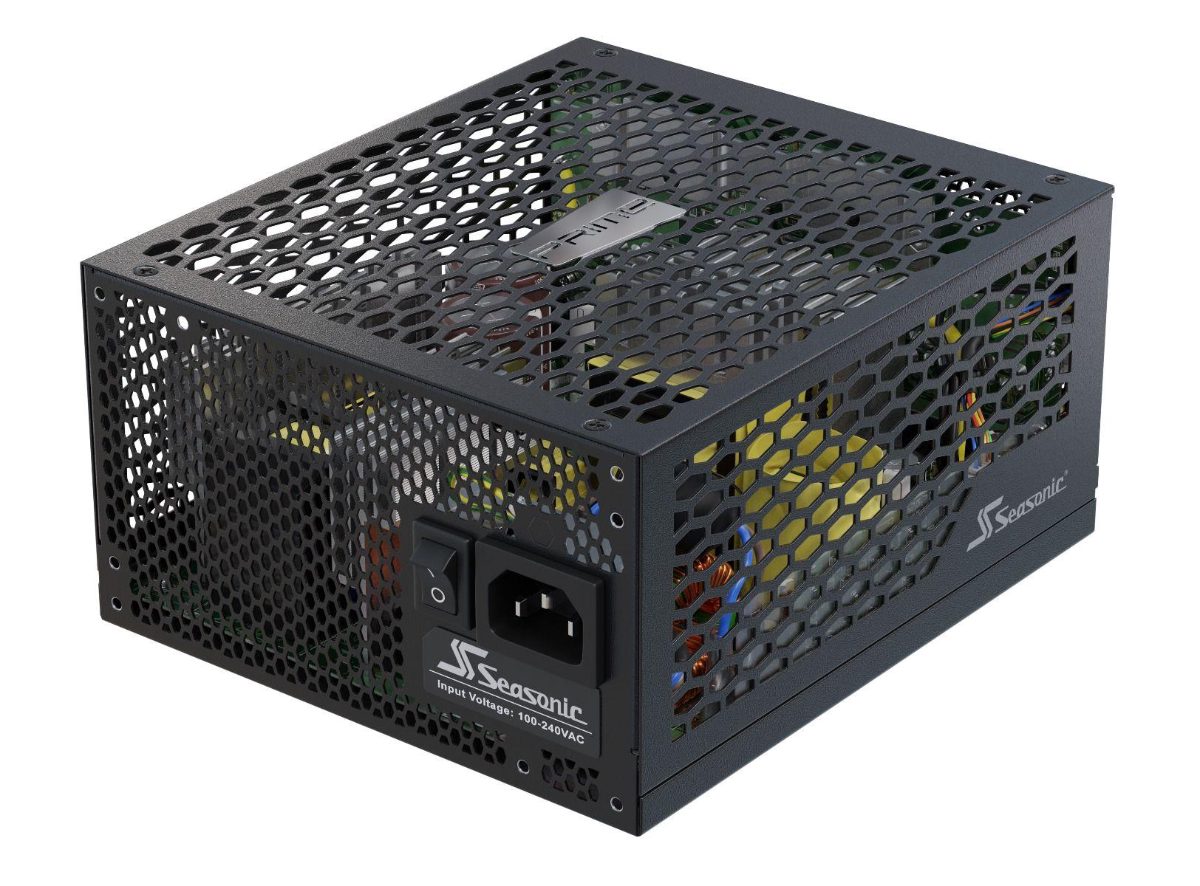

Power Supply, SEASONIC, PRIME FANLESS TX, ATX, PC, 100 - 240 V, 700 W
Power Supply, SEASONIC, PRIME FANLESS TX, ATX, PC, 100 - 240 V, 700 W, PRIME-TX-700
SEASONIC · 4711173876175
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 144 mo.
- Invoice: with every order
- EAN
- 4711173876175
- Brand
- SEASONIC
Description
PRIME Fanless TX utilizes the fanless technology, which eliminates the fan noise completely, ensuring truly quiet operation. The unit not only is rated to be 80PLUS Titanium efficient, but it also has the highest power output on the fanless power supply market at the moment. The power supply is ideal any situations that demand silence from the equipment. The high quality components inside and the innovative circuit design result in clean and stable power output. The fully modular cables allow for better cable management in the computer case.
80 PLUS® Titanium
The PRIME Titanium Series achieves the highest level of 80 PLUS® Titanium certification on the market with its 94 % efficiency at 50 % system load.
Micro Tolerance Load Regulation
Seasonic’s latest design keeps the output voltage within a very tight range, achieving under 0.5 % load regulation. This impressive electrical performance and stability makes this power supply an ideal choice for high-performance systems.

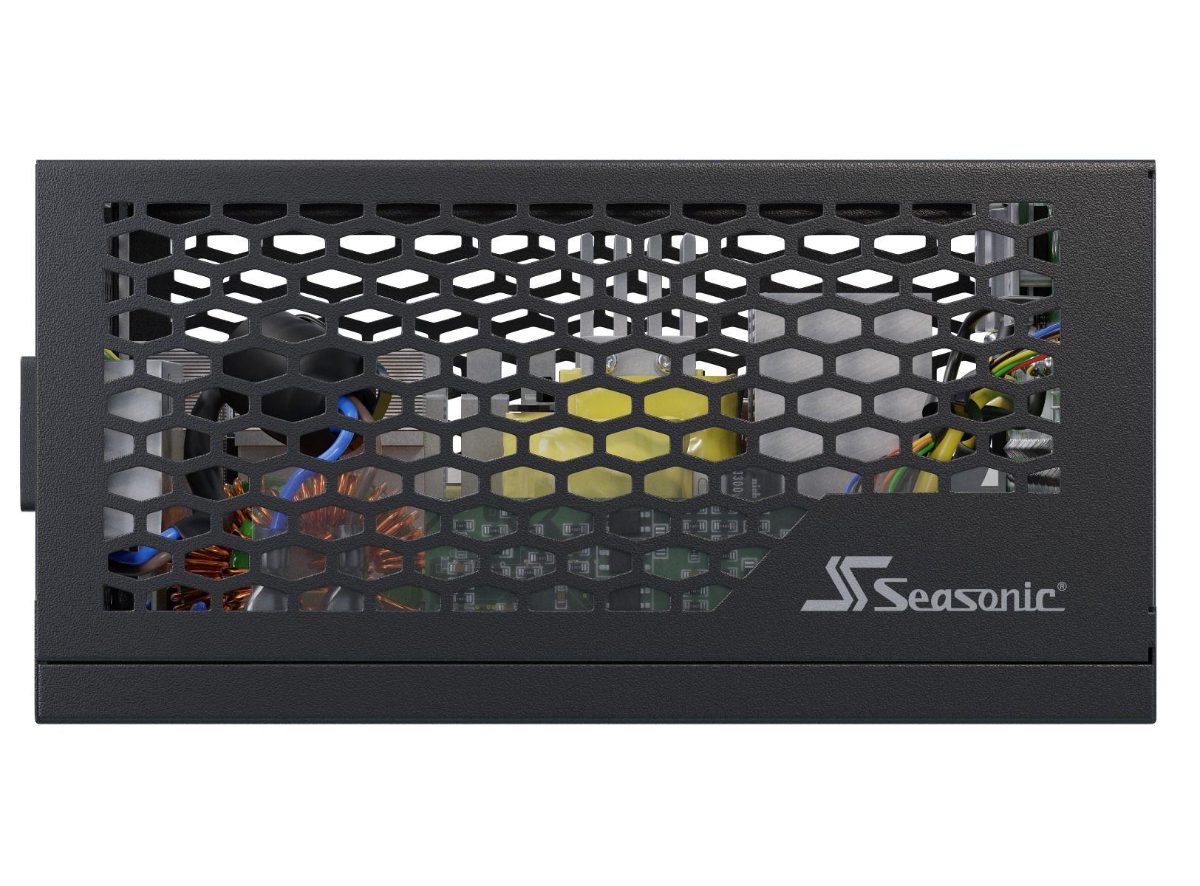

Seasonic Fanless Design

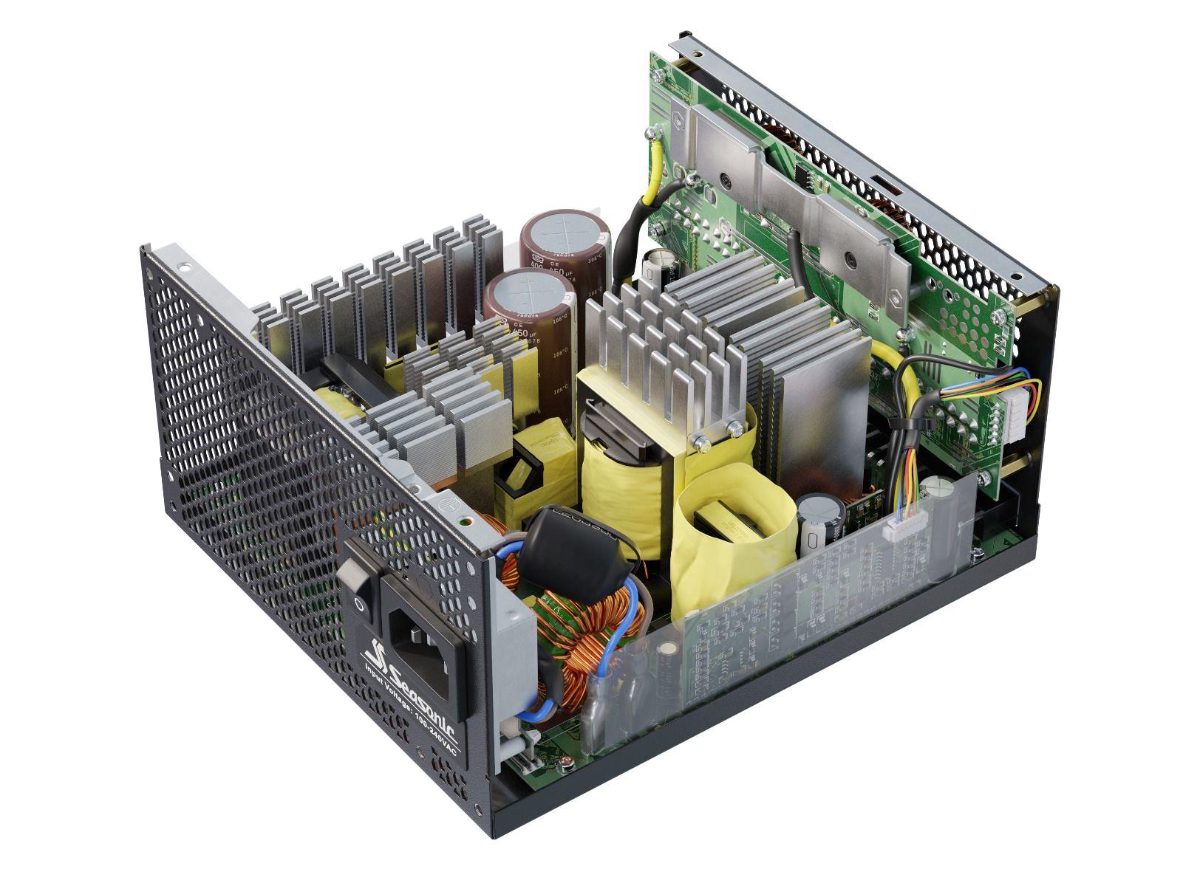

Cooling fans inside the power supply are replaced by passive cooling based on heat dissipation. Silent operation does not only provide a more pleasant working environment but it also results in less power consumption and lower utility bills.
- ATX 12 V

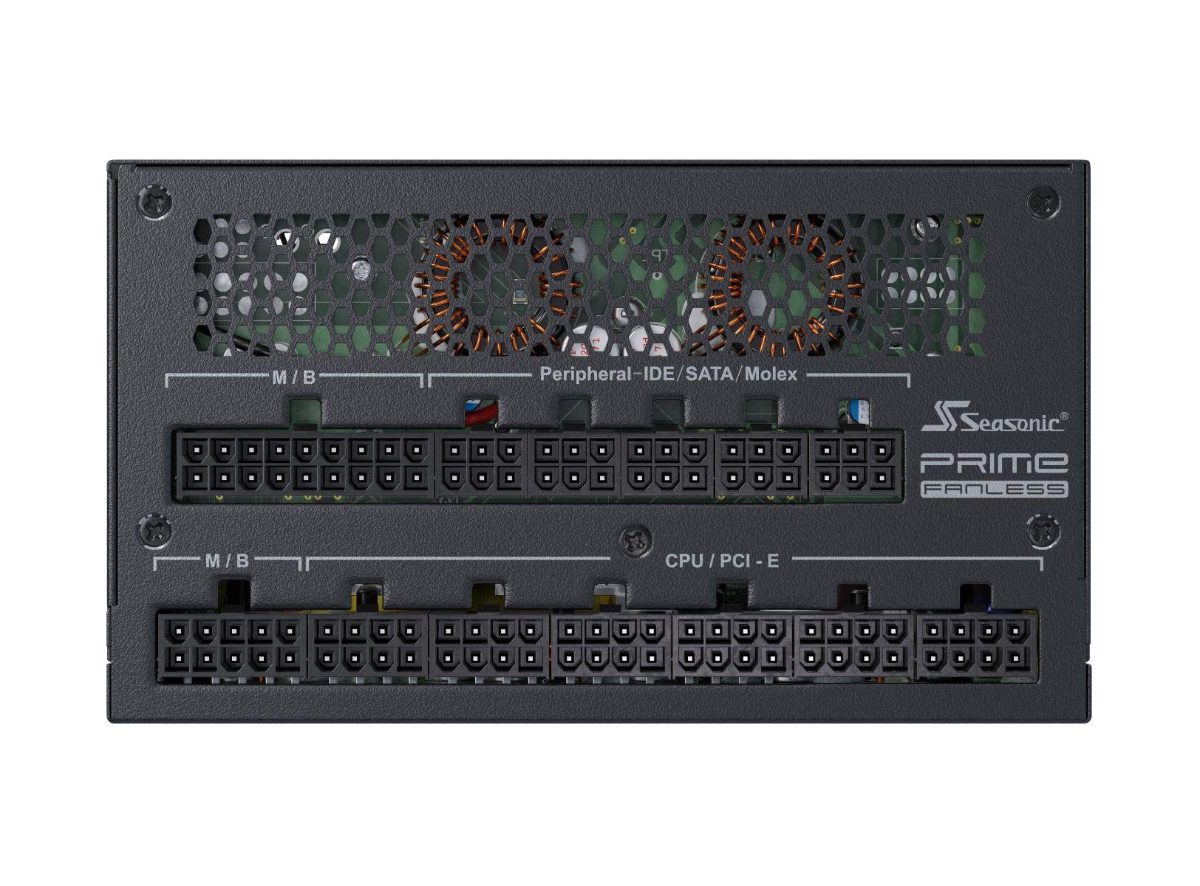

- Full Modular
- 80 PLUS Titanium Certified
- Dimensions: 170 mm (L) x 150 mm (W) x 86 mm (H)
Specifications
| Input frequency | 50 - 60 Hz |
| Input voltage | 100 - 240 V |
| Combined power (+12V rail) | 696 W |
| Combined power (+3.3V) | 100 W |
| Combined power (+5V) | 100 W |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 3.6 W |
| Efficiency | 94 % |
| Input current | 4.5 - 9.5 A |
| Max output current (+12V) | 58 A |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Power protection | Over current/Over power/Over voltage/Short circuit/Under voltage |
| Rated power | 700 W |

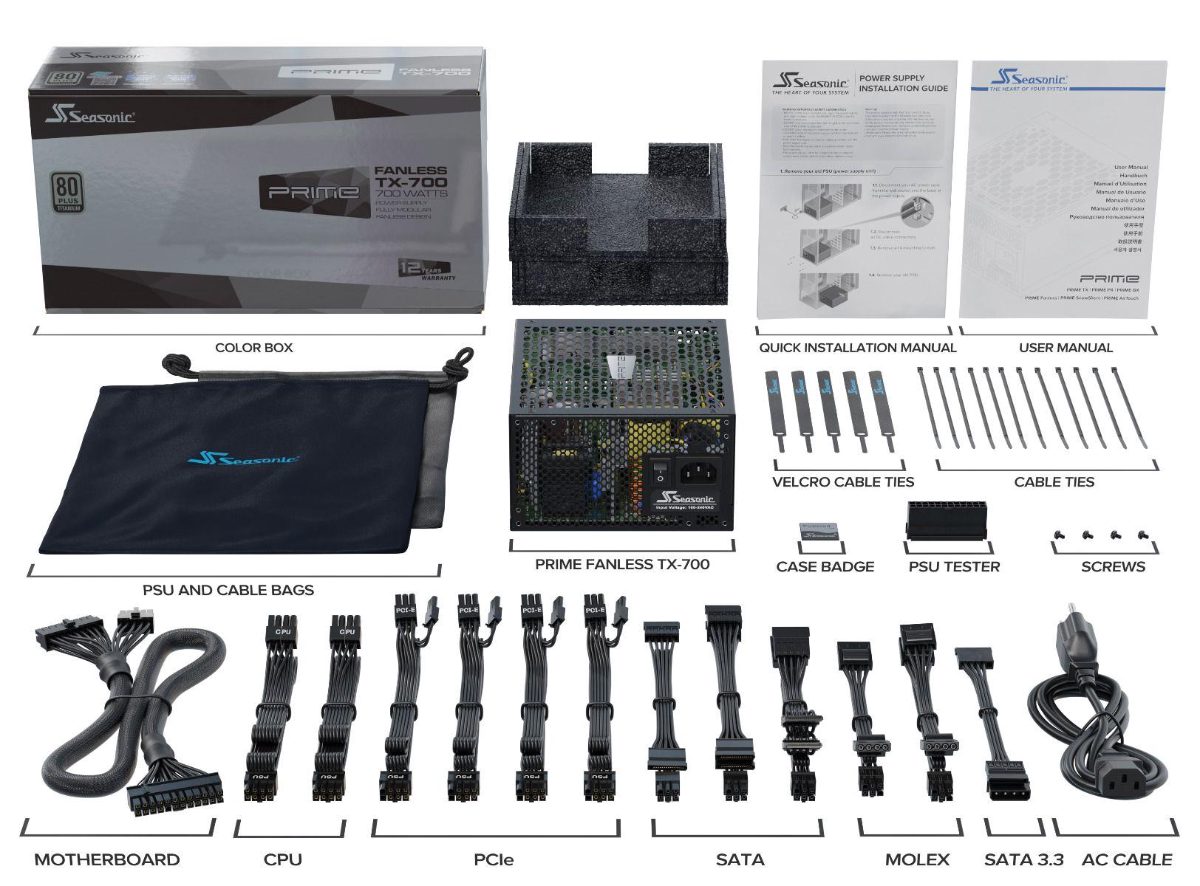

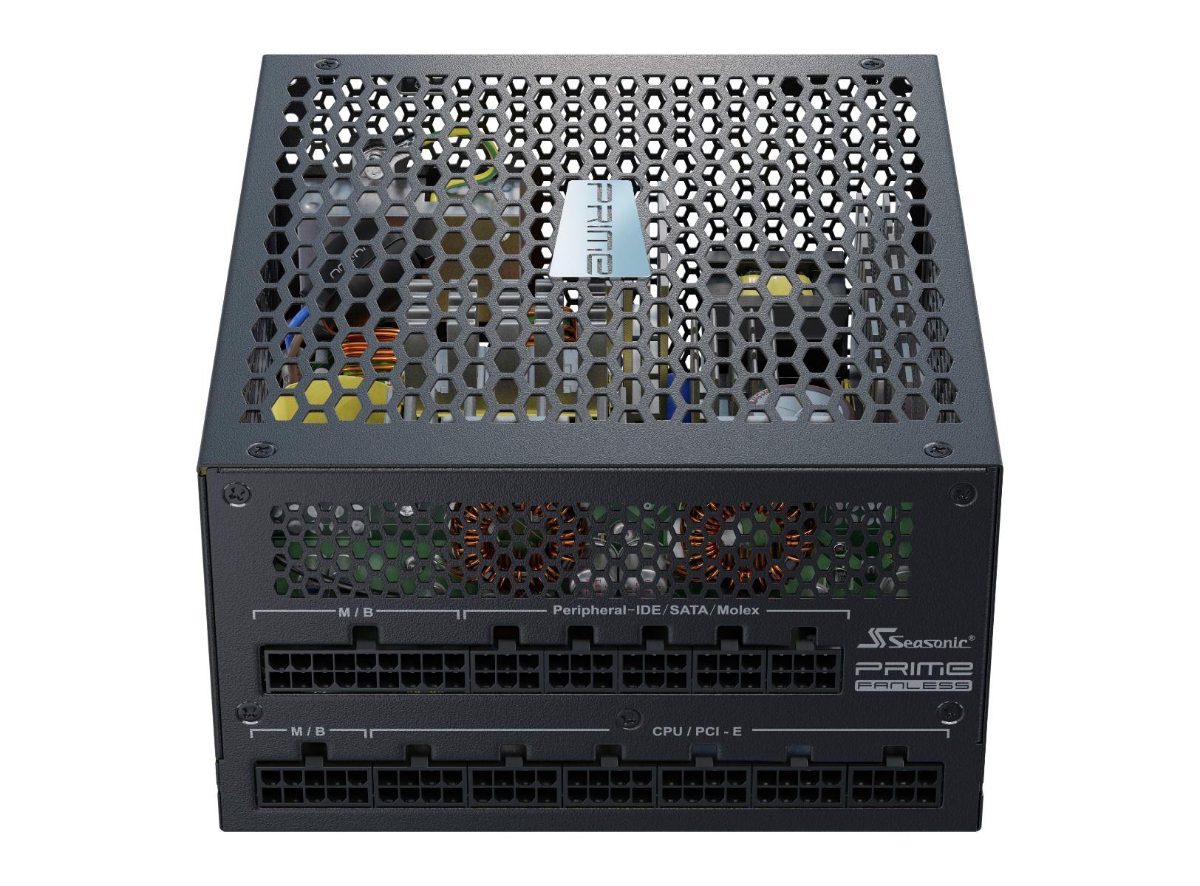

| PSU cabling type | Fully-Modular |
| CPU power cable length | 650 mm |
| CPU power connectors (8-pin) | 2 |
| Motherboard power cable length | 610 mm |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 3 |
| PCI Express power cable length | 750 mm |
| PCI Express power connectors (12+4 pin) | 4 |
| Molex power cable length | 300/470/690 mm |
| Molex power connectors | 3 |
| SATA power cable length | 450/800/810 mm |
| 80 PLUS certification | 80 PLUS Titanium |
| MTBF | 150000 h |
| Form factor | ATX |
| Intended use | PC |
| Supported motherboard form factors | ATX |
| Cooling type | Passive |

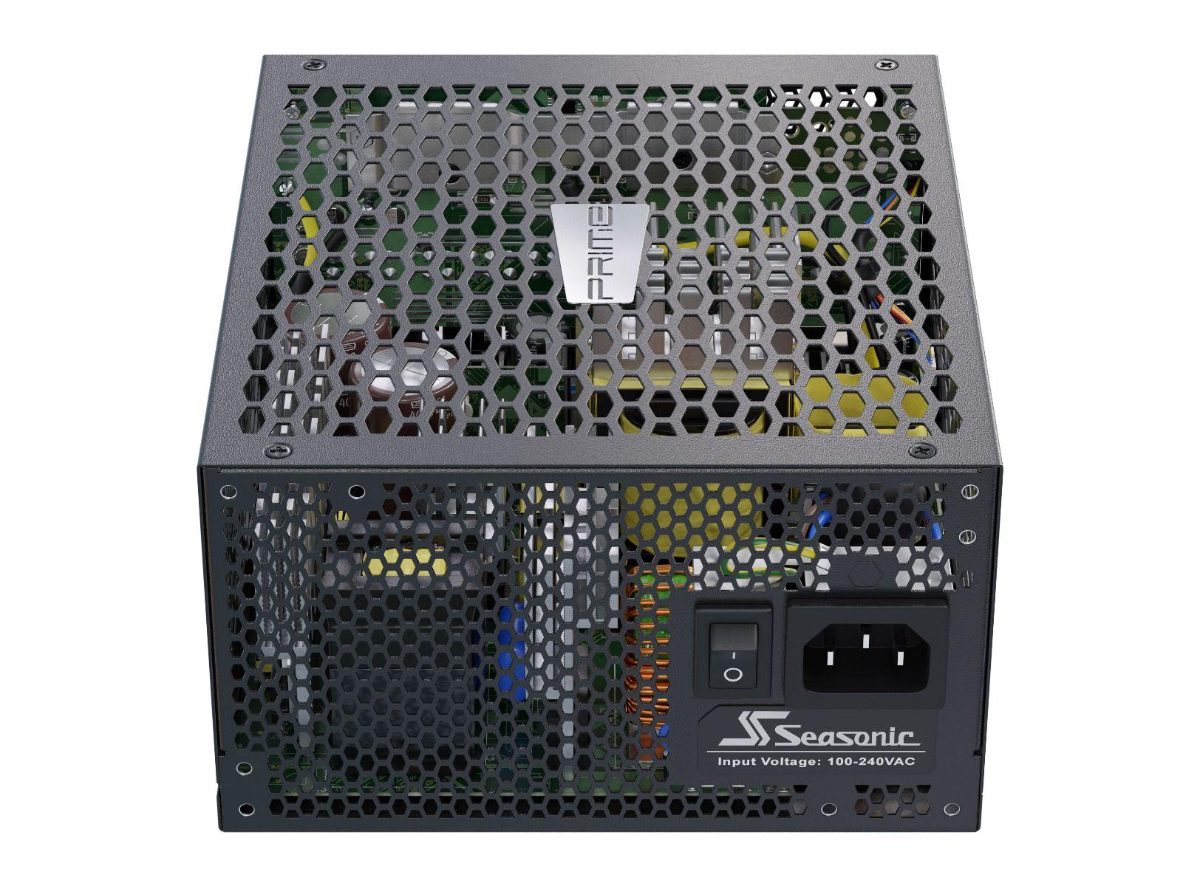

| On/off switch | Yes |
| Colour | Black |
| Operating temperature | 0 - 45 °C |
| Certification | cTUVus, TUV, CB, CCC, BSMI, EAC, CE, WEEE, ErP Lot 6, REACH |
| Certificates | RoHS |
| Depth | 170 mm |
| Height | 86 mm |
| Width | 150 mm |
| Sustainability certificates | ENERGY STAR |
| Model name | PRIME FANLESS TX |
