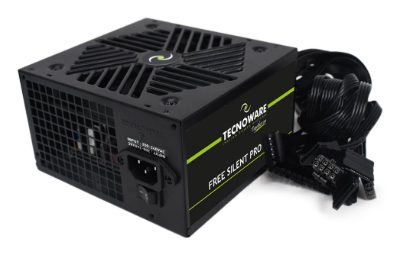

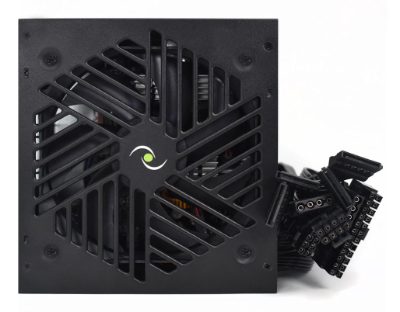

Power Supply, TECNOWARE, FAL551FSP12, ATX, 550 W
TECNOWARE · 8026475183408
22,48 €
The invoice is sent as soon as you order.
Available · 24 pcs
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 24 mo.
- Invoice: with every order
- EAN
- 8026475183408
- Brand
- TECNOWARE
Description
Internal power supply for personal computer, 550W power, input voltage 230 Vac, 50/60 Hz, conforms to ATX 12V v.2.31 specifications, main switch, surge protection, overload protection, short circuit protection, high MTBF, high reliability, quiet operation, 12 cm silent fan, temperature control of the fan speed, Flat type connection cables from 500mm to 800mm, 1 x 20+4-pin connector, 1 x 12V 4+4-pin connector, 1 x 6+2 PCI-E connector, 2 x Molex connectors, 4 x Sata connector, dimensions 150x140x86 mm, weight 1.0 Kg, black color, CE certification, RoHS.
- Internal Power Supply for Computers
- High Efficiency (>85%) and High Operation Noise
- Active PFC >0.9
- Dimensions: 140x86x150 mm (WxHxD)
- Input voltage 230 Vac 50Hz
- Temperature control of the fan speed
- Flat connection cables from 500mm to 800mm
- Surge protection
- Overload protection
- Short circuit protection
Specifications
| Input frequency | 47 - 63 Hz |
| Input voltage | 180 - 264 V |
| Combined power (+12V rail) | 360 W |
| Combined power (+3.3V) | 170 W |
| Combined power (+5V) | 170 W |
| Combined power (+5Vsb) | 12.5 W |
| Combined power (-12V) | 9.6 W |
| Efficiency | 85 % |
| Input current | 5 A |
| Max output current (+12V) | 30 A |
| Max output current (+3.3V) | 23 A |
| Max output current (+5V) | 24 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.8 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Power protection | Overload/Short circuit/Surge protection |
| Rated power | 550 W |
| ATX power connector | Yes |
| PSU cabling type | Non-Modular |
| CPU power cable length | 550 mm |
| CPU power connector (4+4 pin) | Yes |
| Motherboard power cable length | 500 mm |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 4 |
| PCI Express power cable length | 500 mm |
| PCI Express power connectors (12+4 pin) | 1 |
| Molex power connectors | 2 |
| 80 PLUS certification | No |
| ATX version | 2.31 |
| Form factor | ATX |
| Intended use | PC |
| Fan diameter | 120 mm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Colour | Black |
| Operating temperature | 0 - 40 °C |
| Storage temperature | -15 - 40 °C |
| Certificates | CE/RoHS |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 1000 g |
| Width | 140 mm |
| Model name | FAL551FSP12 |
